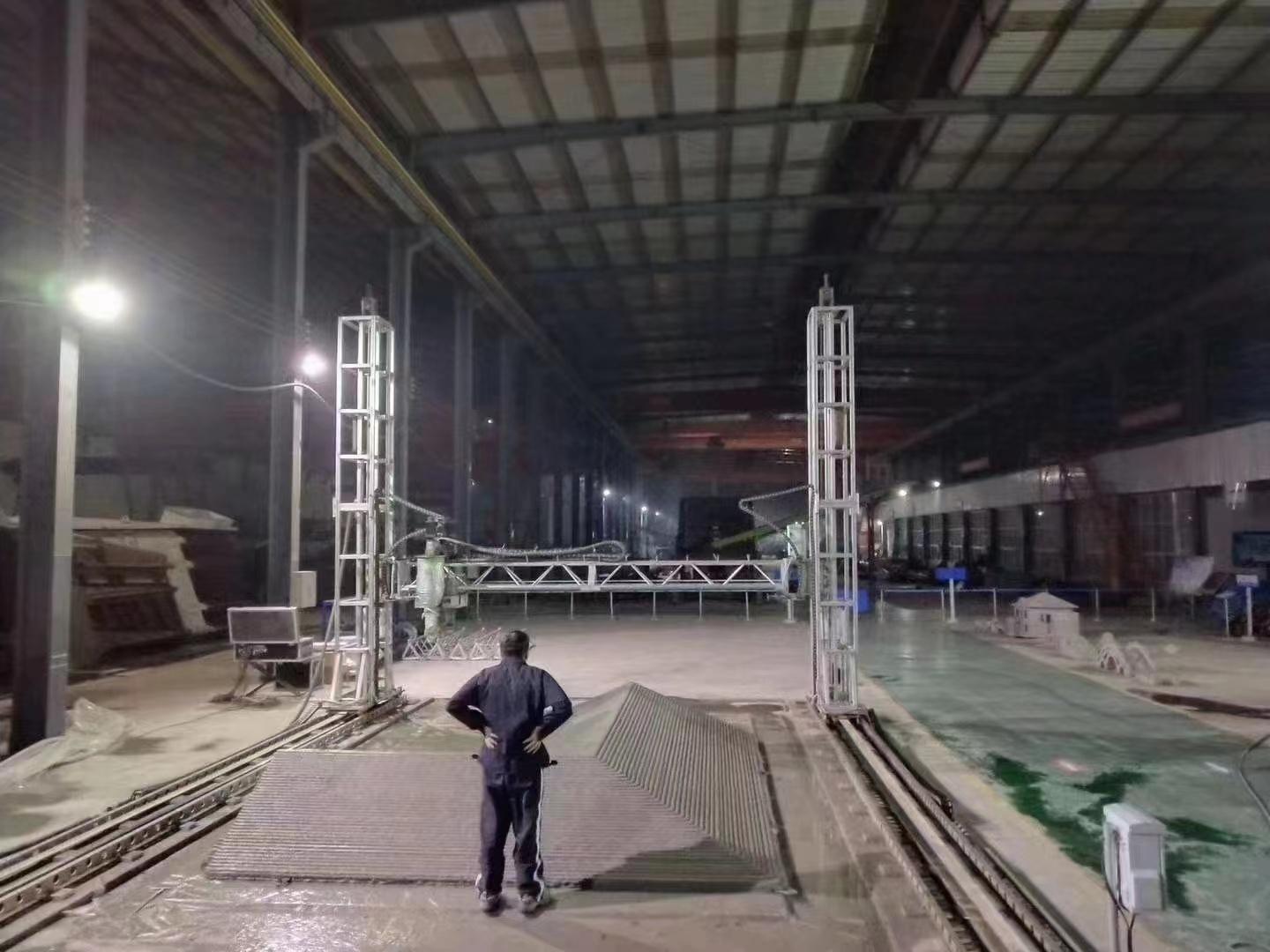

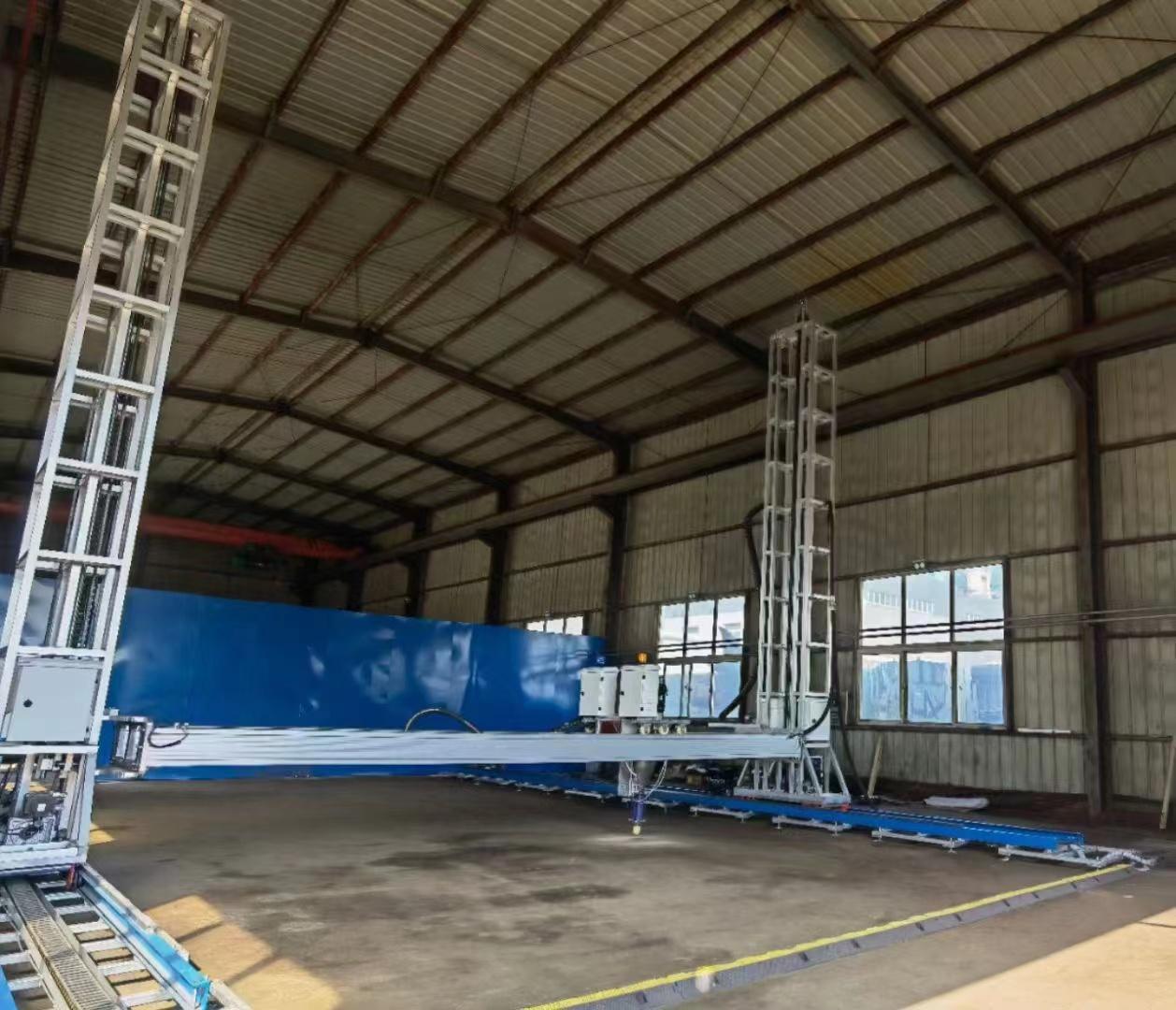

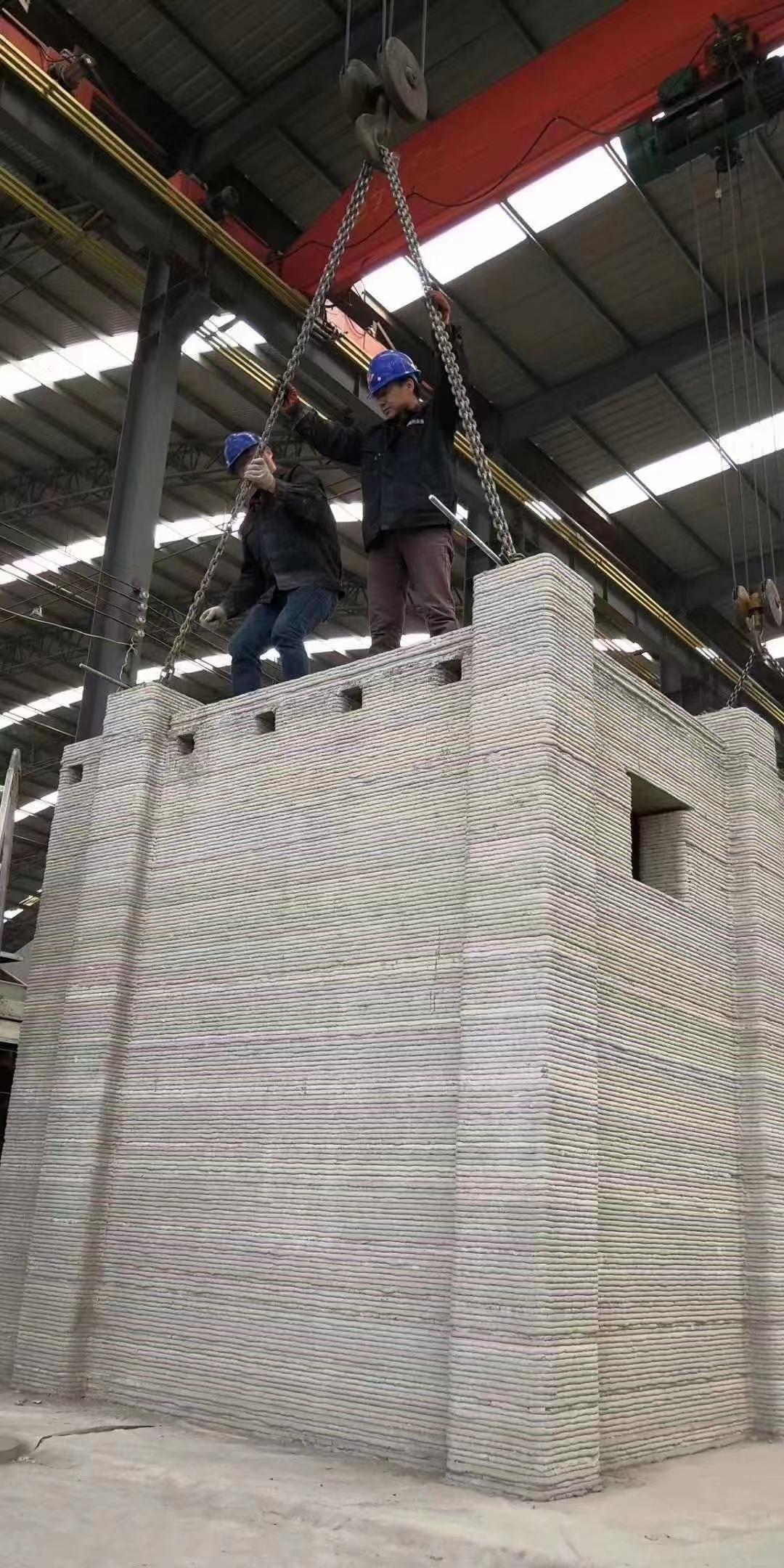

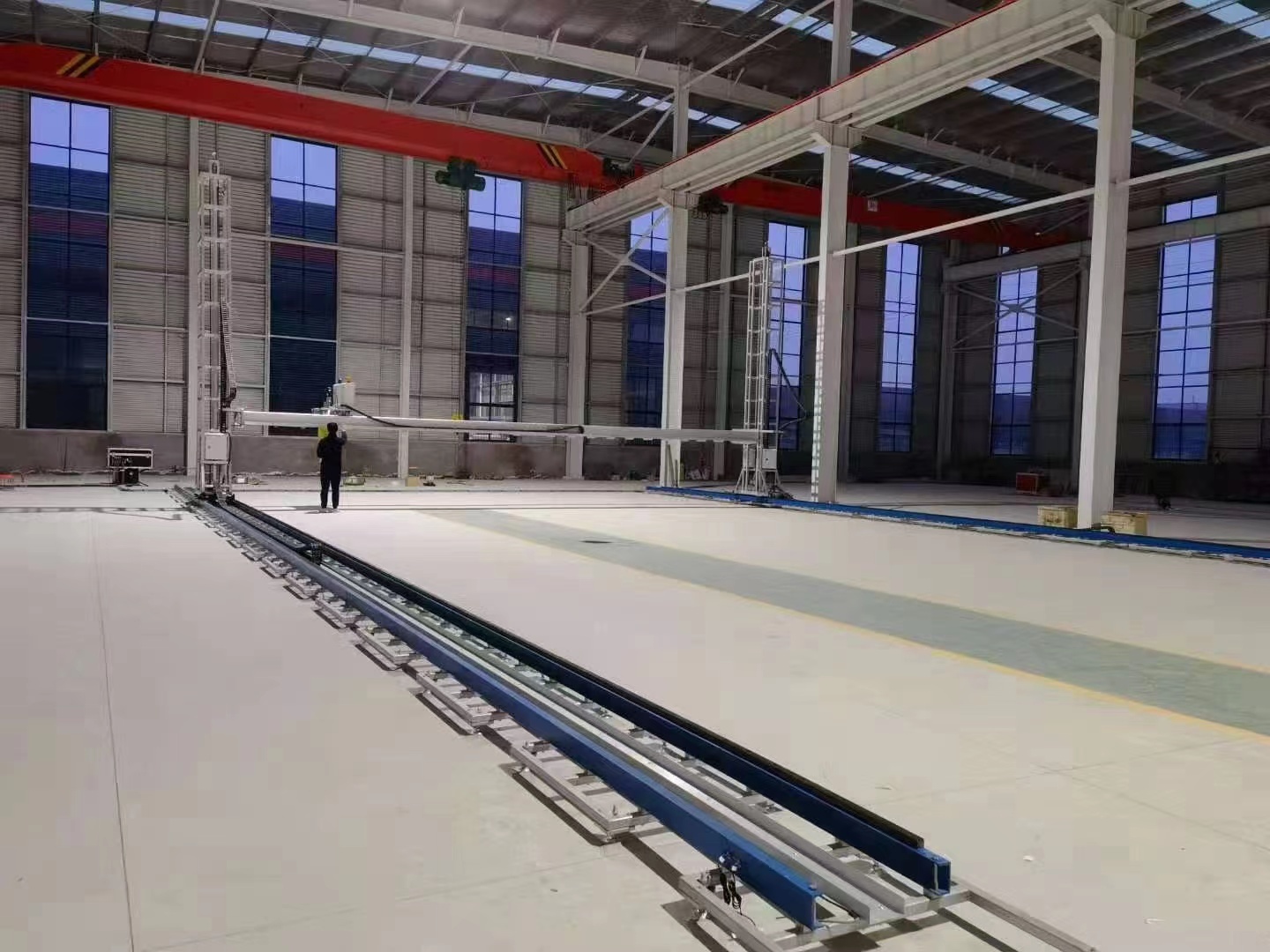

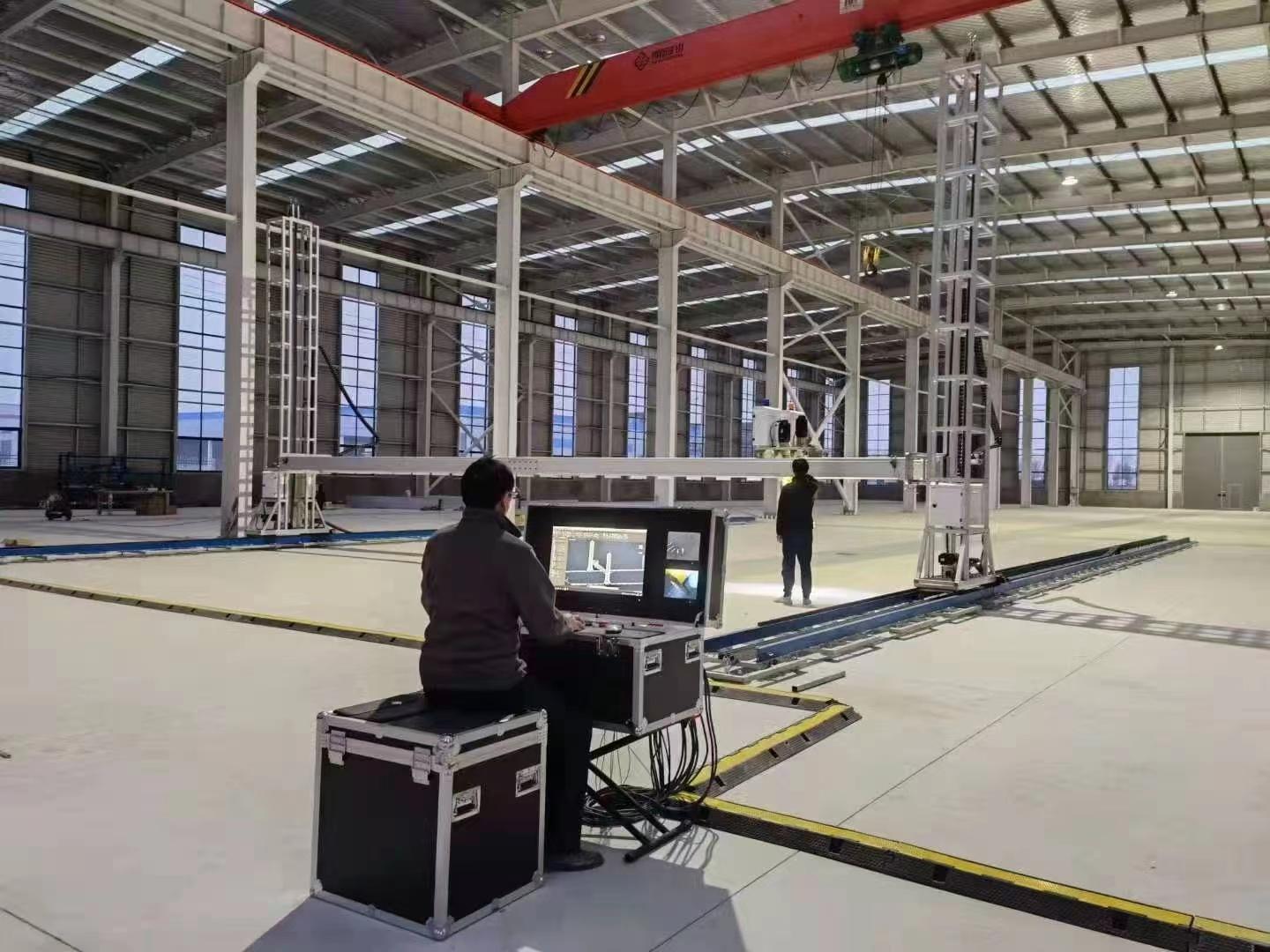

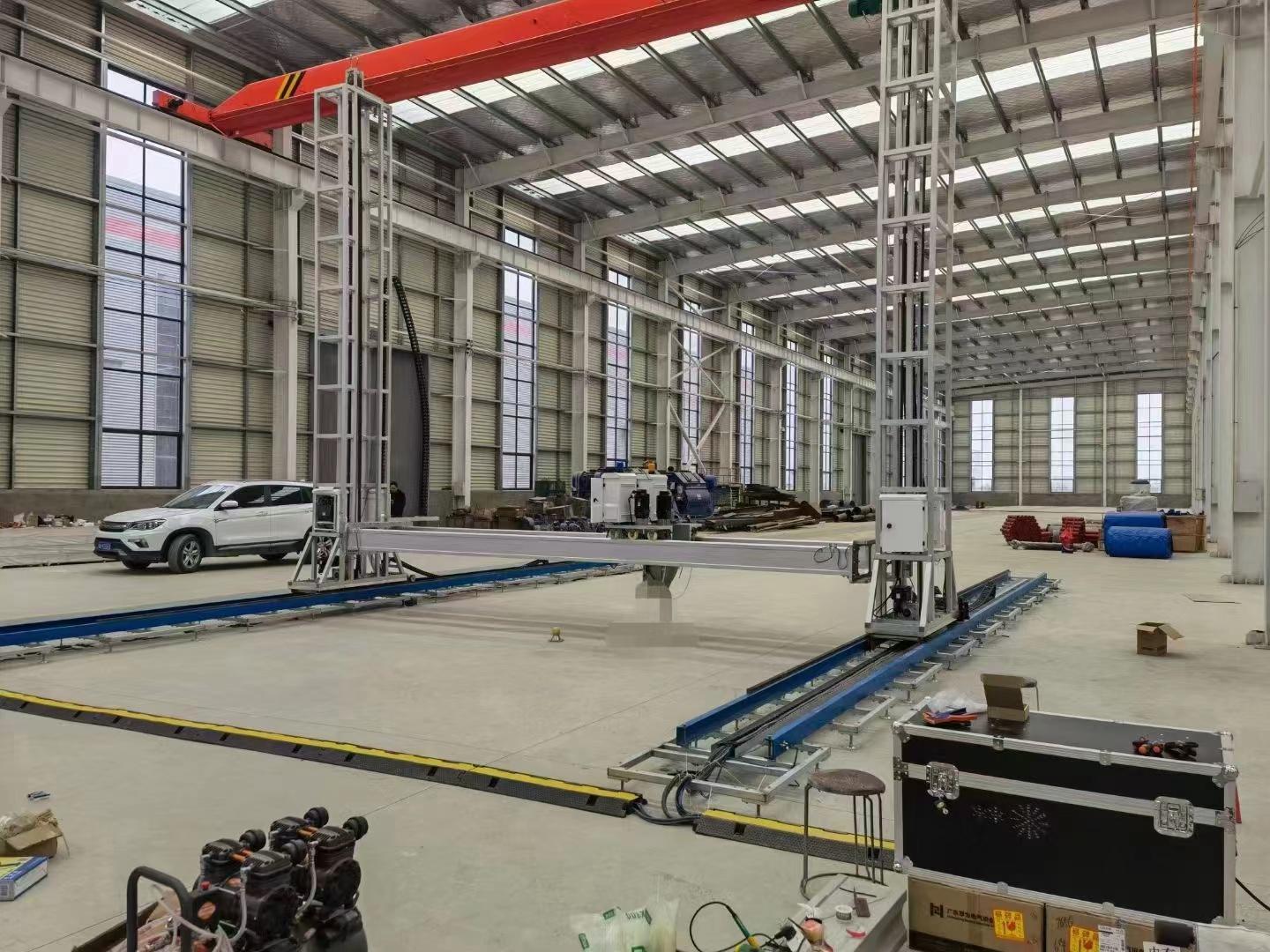

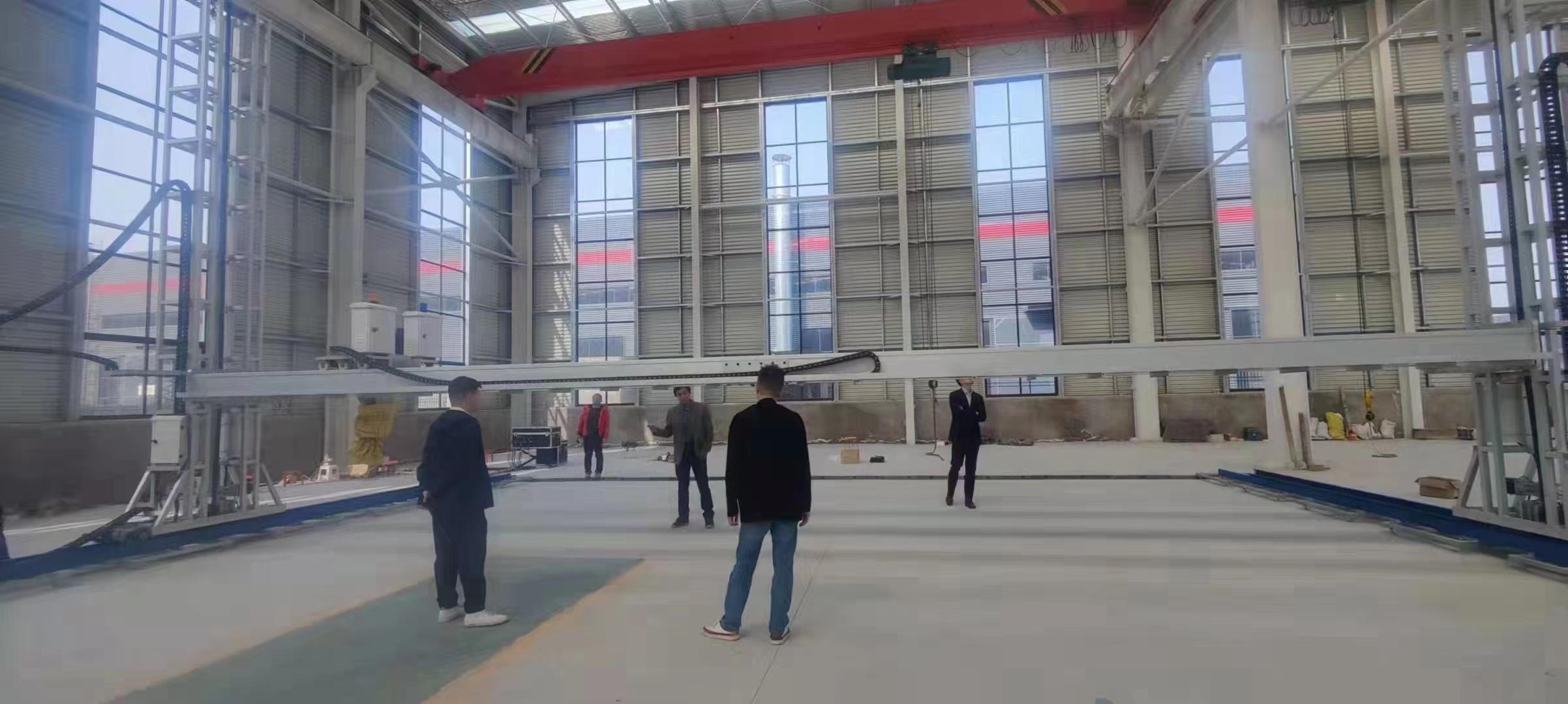

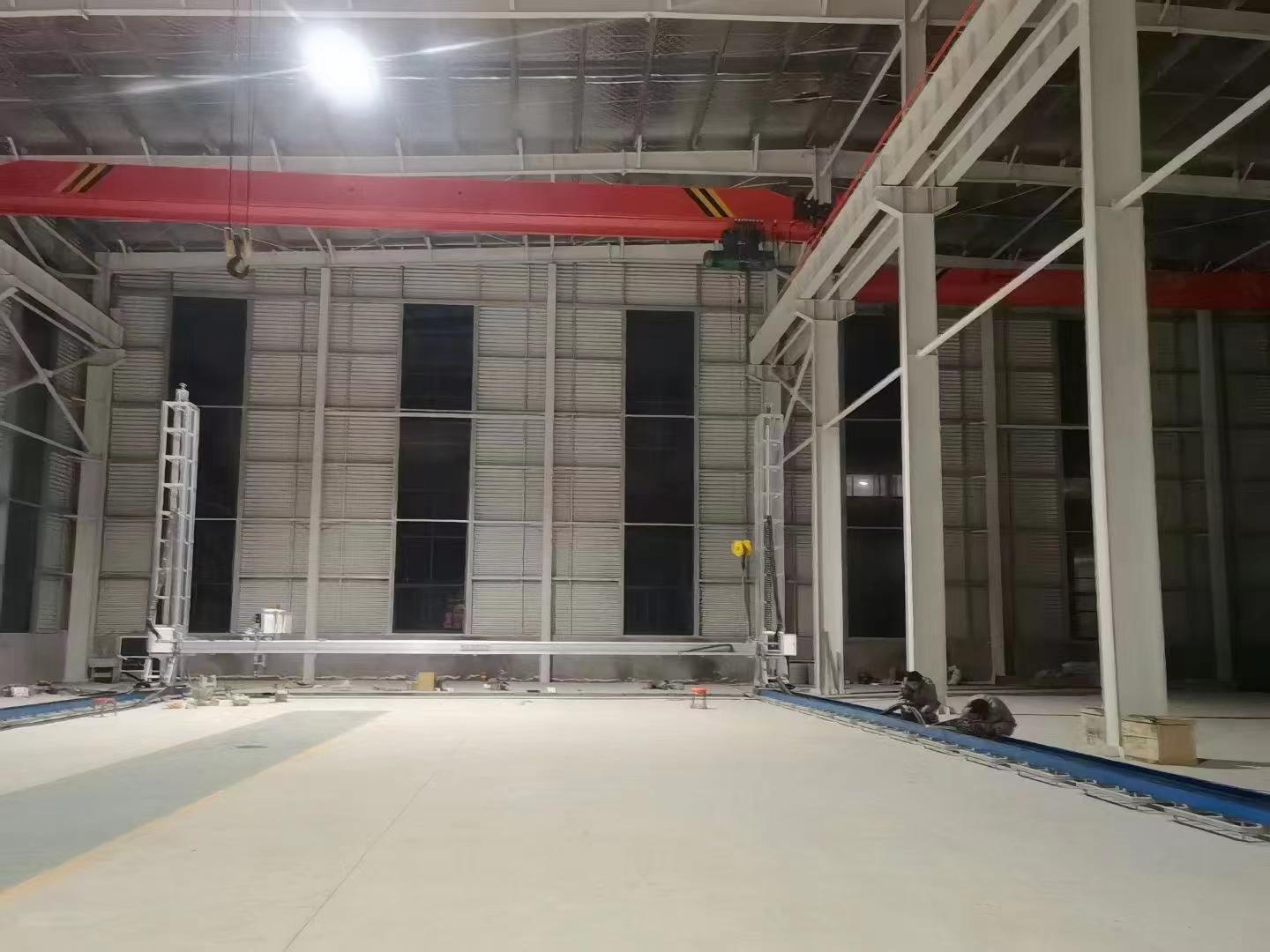

Advanced 3D Concrete House Printer for Construction
- $220000.00 /piece
- 1 piece
- Guangzhou Rising Dimension Trading Co., Ltd.
- Guangdong, China
- Mr Martin
PRODUCT DETAIL
| usage: | 3D printing | Mechanical test report: | if |
| XY positioning accuracy (mm): | 1 | Voltage: | 110v/220v/380v |
| Minimum printing thickness (mm): | 5 | Consumable Type: | General Purpose 325 and Higher Performance Cement |
| Applicable industries: | Building Materials Stores, Manufacturing Plants, Home Use, Construction Engineering, Energy & Mining | Video external inspection: | if |
| Dimensions (L*W*H): | 2500mm*3000mm*3000mm | weight: | 2000kg |
| Warranty: | 1 year | Core components: | other |
| payment terms: | wire transfer | Z positioning accuracy (mm): | 0.5 |
| Health status: | new | year: | 2021 |
| Forming size (m): | 2*2*2 | Core Components Warranty: | 1 year |
| Forming size: | 2000*2000*2000mm | port: | Huangpu, China |
| Machine size (m): | 2.5*3*3 | Extruder: | single |
| Main selling point: | high productivity | application: | put up |
| Maximum print speed (mm/sec): | 300 | feature: | Highly adaptable to the environment, saving labor, green and environmental protection, saving construction costs |
| Forming technology: | 3D Surface Printing | Auto grade: | automatic |
| place of origin; place of origin: | Guangdong, China | Supply capacity: | 50 pieces per month |
Product Description
Specification
model. | TKH-2 |
Machine size (m) | 2.5×3×3 |
Forming size (m) | 2×2×2 |
XY positioning accuracy (mm) | 1 |
Z positioning accuracy (mm) | 0.5 |
extruder | single |
Minimum printing thickness (mm) | 5 |
Maximum print speed (mm/sec) | 300 |
Extruder diameter (mm) | 10/20/30/40 |
Consumable Type | Universal 325 and above high performance cement |
computer | i7- 7700T/256SSD/GTX1080/FHD |
PLC (dot) | Omron 40+24 |
Servo motor (part) | 6 |
voltage | 110v/220v/380v |
Model type | stl/obj/3ds/ply/3mf |
Model size (m) | unlimited |
Edit function | move/rotate/mirror/ Zoom/Cut |
Slicing function | Basic/Advanced/Expert Support material can be used for filling, Supports can be filled concentrically |
Slicing speed | extremely high speed |
Preview function | Display full/single layer display/range display |
print function | Pause/breakpoint precise positioning/continuous different diameters are available for main and support materials. |
Functional advantage | Large-scale application verification: mature equipment and stable operation Advanced flow field design: greatly improve molding quality Dual laser scanning and two-way intelligent powder feeding: greatly improve efficiency. Backwash filter system: filter element life 1500H Oxygen sensor redundancy settings: multi-layer protection, key parameters are not distorted Personnel isolation throughout the process: strengthening personnel occupational health protection PROFINET bus: fast communication, precise synchronization |
Support function | Hard/Light/Instant Freeze/Non-Stick/Easy to Remove/Recycle. self-research data |
