Large 3d mortar cement printer for building house
- $150000.00 /set
- 1 set
- Xi'an Supersonic Aviation Technology Co., Ltd.
- Shaanxi, China
- Ms Danae Li
| Supply Ability: | 10 Set/Sets per Month; | Payment Terms: | T/T; |
| Printing Material: | cement; | Warranty: | 1 Year; |
| Automatic Grade: | Automatic; | Support preparation machine: | 12kw; |
| Local Service Location: | None; | Product name: | 3d mortar printer machine; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ; | Key Selling Points: | High Productivity; |
| Features: | 3D house printing; | Plate Type: | Flatbed Printer; |
| Dimension(L*W*H): | 50m*15m*15m; | Application: | house printing,3D house printing; |
| Video outgoing-inspection: | Provided; | Marketing Type: | Hot Product 2019; |
| Warranty of core components: | 1 Year; | Year: | 2019; |
| Color & Page: | Single color; | Weight: | 1000kg; |
| After-sales Service Provided: | Online support,Free spare parts,Video technical support; | Forming size: | 28m*10m*6m; |
| Place of Origin: | Shaanxi China; | Machinery Test Report: | Provided; |
| Port: | Shenzhen; | Brand Name: | SAT; |
| Core Components: | Motor,Pump,Engine; | Max printing speed: | 500mm/s; |
| Packaging Detail: | Shipping container; | Usage: | 3D printing; |
| Type: | 3d Printer Liquid; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Condition: | New; | Voltage: | 110v/220v/380v; |
| Showroom Location: | None; | Production Capacity: | 300mm/s; |
| Alternator: | 7.5kw; |

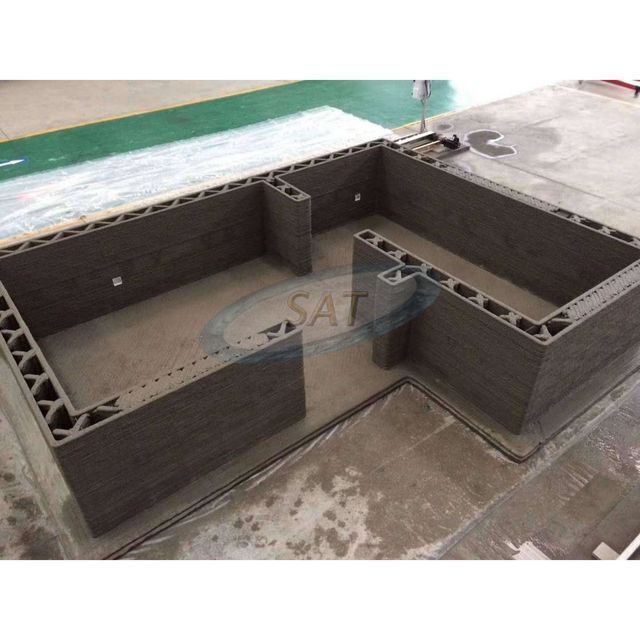

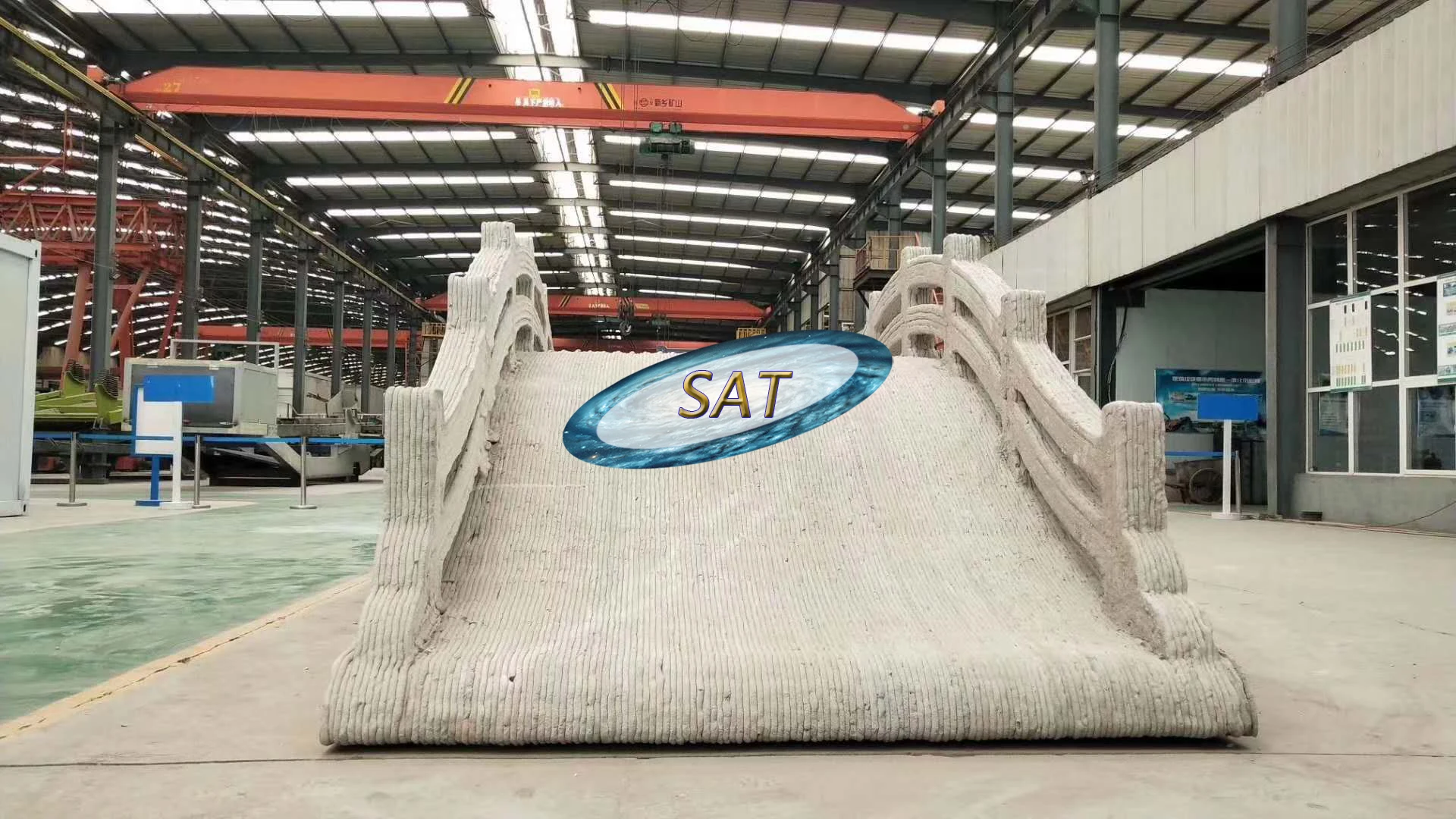

The hot sale 3D architectural mortar cement printer is at least one generation of construction technology higher than the current popular assembly building, solving and realizing the worldwide technical difficulties such as whole printing, site printing, curved surface printing and supporting materials, etc, using double extrusion head printing technology, achieve high-efficiency and fast one-step whole forming,
The whole printed building has no breakpoints, beautiful lines, seamless, zero defects.. It is a revolutionary contribution of machine to replace manual work. We supply a complete set of technology: equipment, software, materials and technology are mature and reliable.

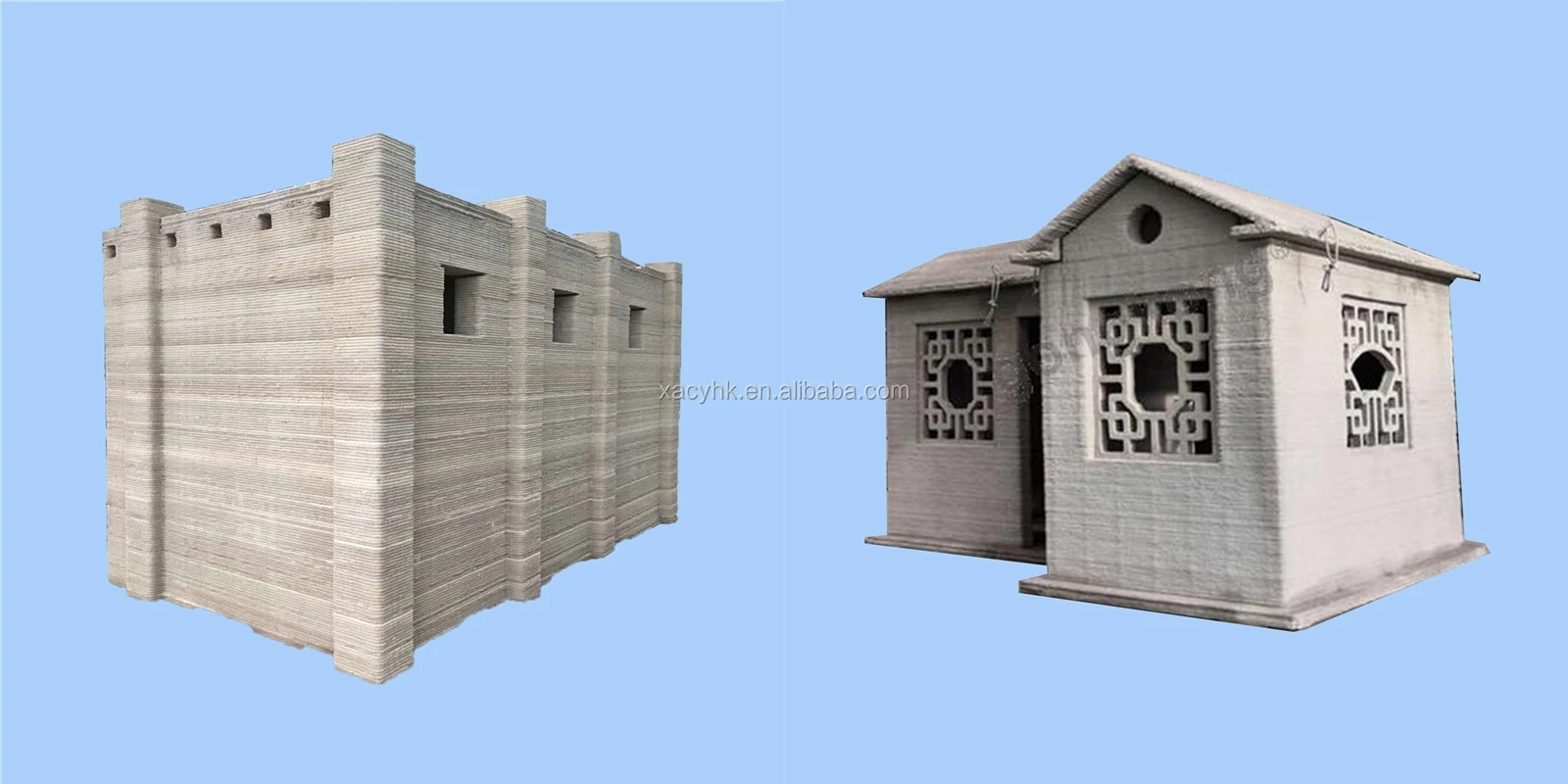

Architectural house building 3D printer is a multi-purpose construction printer. It is used for post-disaster house reconstruction.
1. Main technical indicators
|
Hardware for Architectural 3D printer |
|
|
Printer type |
TKH-50 |
|
Machine size/L×W×H(m) |
30×12×7 |
|
Printing size/L×W×H(m) |
28×10×6 |
|
X.Y-axis positioning accuracy (mm) |
1 |
|
Z-axis positioning accuracy (mm) |
0.5 |
|
Extruder |
Double |
|
Min printing thickness (mm) |
5 |
|
Max printing speed(mm/s) |
500 |
|
Extruder dia(mm) |
10/20/30/40 |
|
Consumptive Material type |
General 32.5 and higher performance cement |
|
Computer |
i7-7700T/256SSD/GTX1080/FHD |
|
Servo motor (part) |
7 |
|
PLC (point) |
OMRON40+24 |
|
Power supply voltage |
110v/220v/380v |
|
Software |
|
|
Model file format |
Stl/Obj/3ds/Ply/3mf |
|
Model size (m) |
Unlimited |
|
Editing function |
Move / rotate |
|
Slicing function |
Basic / Senior / Expert Filling can be supported by supporting materials and concentric filling can be achieved. |
|
Slicing speed |
Extremely high speed |
|
Preview function |
Full / single layer / range display |
|
Printing function |
Pause / breakpoint precise positioning / continuation, Main material and supporting material can have different diameters |
|
Support function |
Hard / light weight / instant freeze / non adhesion, easy to remove / recycle. Self-research material |
|
Supporting Equipment |
|
|
Name |
Parameters |
|
Cement pulping machine |
The amount of mortar 3m³/h, Distance 30m |
|
Support pulping machine |
The amount of mortar 3m³/h, Distance 30m |
|
Support preparation machine |
12kw |
|
Cement mixer |
4kw,500l |
|
Alternator |
7.5kw |
|
concrete iron straightener |
12mm |
|
concrete iron bending machine |
12mm |
|
concrete iron bolling machine |
12mm |
|
Woodworking machine |
20mm plank cutting |
Packaging: flight case or negociated
Shipping: by sea, by aire or by express
Online service, online engineer service and online video service
