African hot selling gold ore process line mine mixer chemical stirring leaching tank
- $1650.00 /set
- 1 set
- Henan Xingyang Mining Machinery Manufactory
- Henan, China
- Ms Andy Zhang
PRODUCT DETAIL
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Customized service: | supply |
| Showroom location: | not any | Core components: | motor, gear |
| port: | Qingdao, Tianjin, Shanghai, Guangzhou, or upon request | Weight (kg): | 850 |
| Video external inspection: | if | brand: | New Kangjie |
| Motor Type: | AC motor | Marketing Type: | normal product |
| Mixer Type: | Single or double impeller | Health status: | new |
| Warranty: | 1 year | Certification: | International Organization for Standardization, CE |
| Packaging Preview: | color: | customizable | |
| Applicable industries: | Manufacturing, Retail, Energy and Mining | Material: | Q235 |
| Name: | Gold production line mixing tank | After-sale service: | 1.5 years warranty |
| application: | Mineral Leaching Process | Mechanical test report: | if |
| place of origin; place of origin: | Henan, China | Impeller material: | Rubber or Polyurethane |
| Core Components Warranty: | 6 months | Production capacity: | 95% |
| Packaging Details: | Wooden box, steel plate box or customer's request | type: | leaching tank |
| Dimensions (L*W*H): | different models | usage: | gold processing plant |
| Supply capacity: | 50 sets per month | motor: | Siemens or Chinese famous brand |

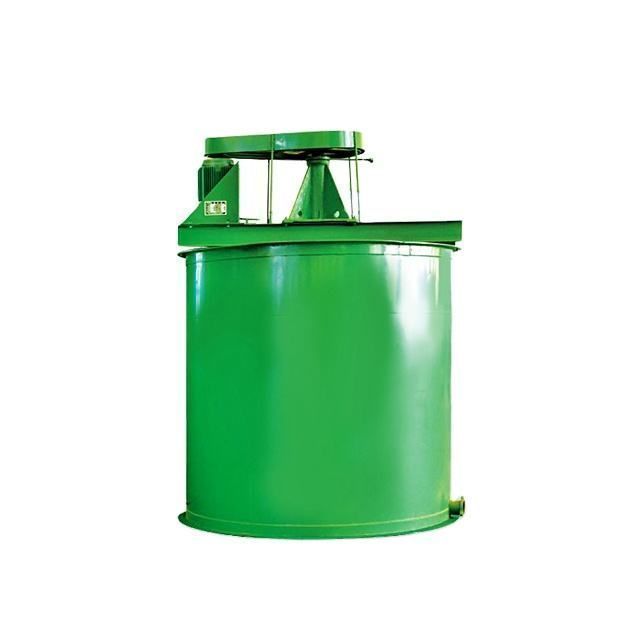

Chemical mixing tank for hot selling gold ore production line
| Product description of agitation tank for gold ore processing line |
| Card |
|
New Kangjie |
|
effective volume |
| 0.098-38m3 |
| Motor Power |
| 1.1-45KW |
| application |
| Gold, copper, platinum, silver, lead, zinc, fluorite, graphite, etc. |
| introduce |
| The gold ore stirring tank is used to mix the pulp before flotation, increase the reaction time of the reagents, and enhance the quality of the reagents' reaction. This machine is suitable for beneficiation industry, and also suitable for batching mixing in various industries. |
| feature |
|
1. Strong stirring ability and low consumption 2. Easy maintenance and outstanding stirring performance 3. Strong mixing cycle ability 4. Improve the circulation effect, the pulp and medicine are fully mixed |
| Technical parameters of mixing tank |
| Model |
Tank inner diameter (mm) |
Tank height (mm) |
Effective volume (cubic meter) |
Impeller speed (r/min) |
Diameter of impeller (mm) |
motor model | Motor power (kw) | Dimensions (L*W*H) (mm) | Weight (tons) |
| XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | Y100L-6 | 1.5 | 1173*1138*1491 | 1.0 |
| XB-1200 | 1200 | 1200 | 1.4 | 340 | 400 | Y132S-6 | 2.2 | 1354*1310*1742 | 1.1 |
| XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 1656*1572*2171 | 1.2 |
| XB-2000 | 2000 | 2000 | 5.6 | 290 | 550 | Y132M2-6 | 5.5 | 2380*2162*2850 | 2.3 |
| XB-2500 | 2500 | 2500 | 11.2 | 280 | 650 | Y180L-6 | 15 | 3036*2716*3543 | 3.4 |
| XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | Y255S-8 | 18.5 | 3604*3216*4250 | 4.9 |
| XB-3550 | 3550 | 3550 | 30 | 230 | 850 | Y255M-8 | twenty two | 3940*3755*5386 | 7.3 |
| XB-4500 | 4550 | 4550 | 38 | 122 | 1000 | Y280M-8 | 45 | 4720*4800*6600 | 9.7 |

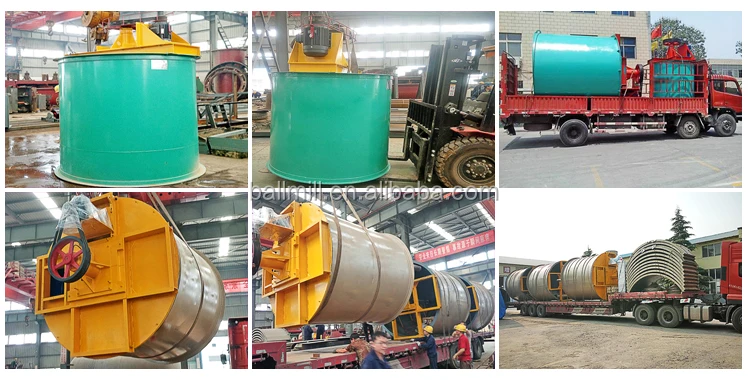

| Mixing tank delivery photo |

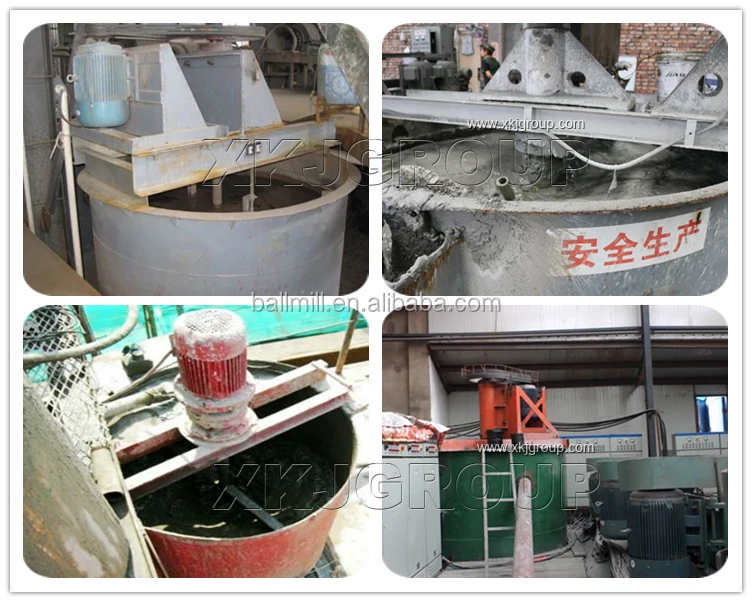

| Gold ore processing line stirring tank operation site |
| FAQ |
| 1. What is the quality of your products? |
|
All products of XKJ company have passed the test before leaving the factory. We produce according to contract requirements or Chinese national standards. Each device has its own quality record tracking card. |
|
2. What is the price of your products? |
| We have been producing mineral processing products for over 20 years. We believe that quality is more important than price, and we can offer the lowest price for the same quality. |
| 3. Do you provide the beneficiation flow chart? |
| Our experienced engineers specialize in designing the process flow for beneficiation of various ores, including iron ore, tin ore, copper ore, gold ore, lead-zinc ore, etc. |
| 3. How about your products and services? |
| Our experienced engineers are at your service 24/7. The warranty period is 12 months after installation and can be extended to 24 months upon customer request. |
