ore ore stone gold leaching tank copper beneficiation mixing tank mixing tank leaching tank
- $980.00 /set
- 1 set
- Gongyi Yuefeng Heavy Industry Machinery Co., Ltd.
- Hunan, China
- Mr xike Jiao
PRODUCT DETAIL
| place of origin; place of origin: | Henan, China | type: | leaching tank |
| Health status: | new | Weight (kg): | 500 |
| payment terms: | wire transfer | brand: | Yue Feng |
| application: | chemistry, mining | Marketing Type: | normal product |
| Mechanical test report: | if | Motor Type: | AC motor |
| usage: | CIL processing plant | Packaging Details: | container transportation |
| Warranty: | 1 year | Showroom location: | not any |
| Applicable industries: | Manufacturing, Construction, Energy & Mining | Core Components Warranty: | 1 year |
| Video external inspection: | if | port: | Qingdao |
| Core components: | motor | Production capacity: | 95% |
| Supply capacity: | 300 sets per year | Dimensions (L*W*H): | 1130*1330*1721mm |
| Key words: | Copper leaching tank | Name: | Leach mixing tank |

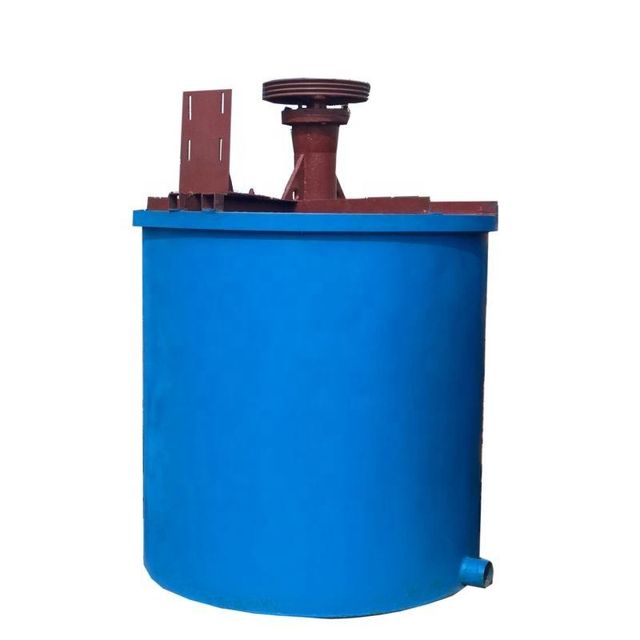

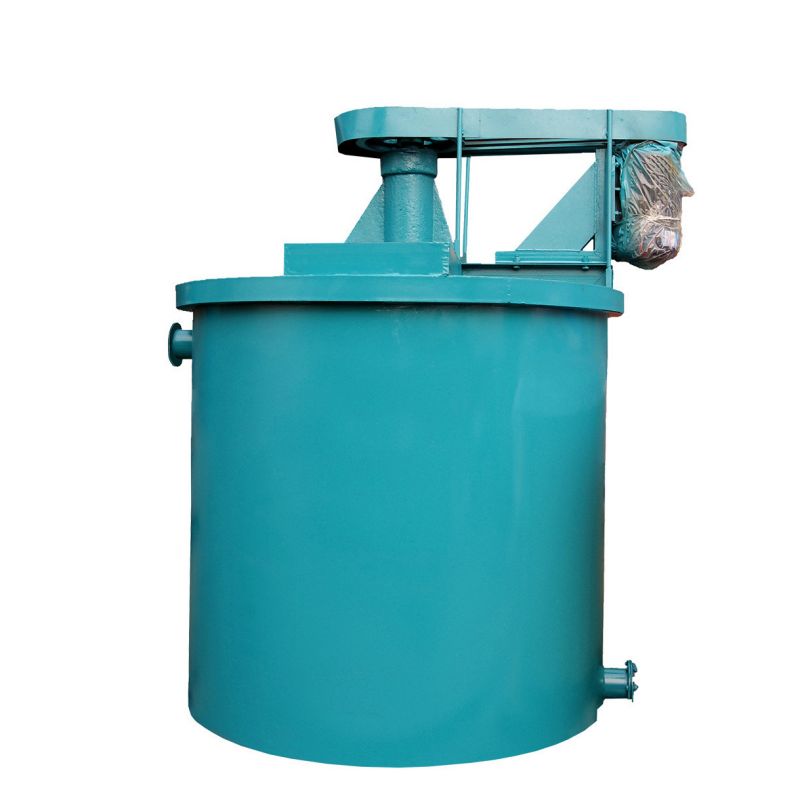

Product Description
Mixing tanks are used to mix pulp with chemicals in preparation for flotation separation. Mixing tanks are mainly used in pulp mixing before flotation, chemical and construction industries, cyanide plants, sewage treatment plants, coal plants, etc.

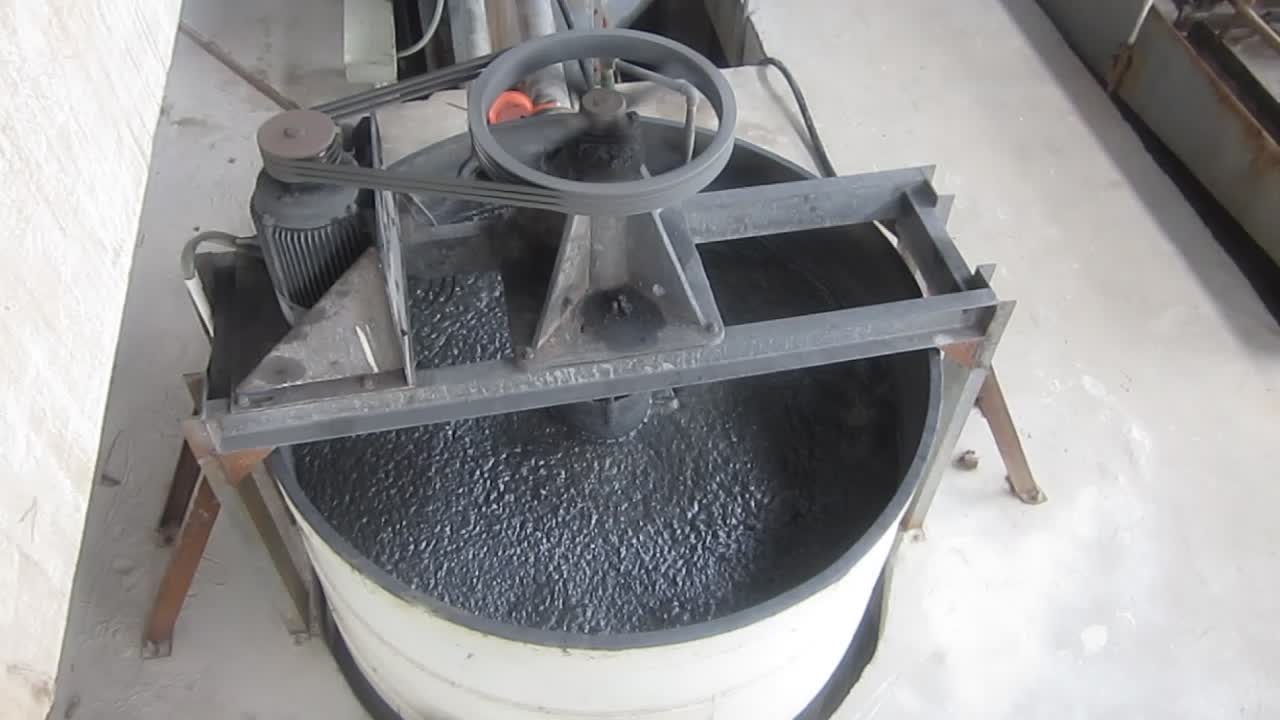

working principle
When the machine is working, under the rotation of the impeller, the pulp and the reagent are circulated in size and evenly mixed, and the mixed suspension is discharged from the overflow port.
The advantagesMixing tank
1. The cylinder is lined with XKJ wear-resistant rubber, which is wear-resistant and corrosion-resistant; 2. Strong stirring ability; 3. Stable operation and easy maintenance; 4. Energy saving.
Product parameters
Model | Effective volume (m3) | Impeller speed (r/min) | Impeller diameter (mm) | motor model | Motor power (kw) | Weight (kg) |
GBJ-1000×1000 | 0.58 | 530 | 240 | Y112M-6 | 2.2 | 1548 |
GBJ-1250×1250 | 1.4 | 350 | 240 | Y100L2-4 | 3 | 1808 |
GBJ-1500×1500 | 2.2 | 320 | 420 | Y132M2-6 | 5.5 | 2207 |
GBJ-2000×2000 | 4.4 | 240 | 560 | Y160L-6 | 11 | 3150 |
GBJ-2500×2500 | 11.2 | 271 | 560 | Y180L-6 | 15 | 3943 |
GBJ-3000×3000 | 19.1 | 240 | 700 | Y225S-8 | 18.5 | 4613 |
GBJ-4000×4000 | 37 | 180 | 900 | Y280S-6 | 45 | 9249 |
