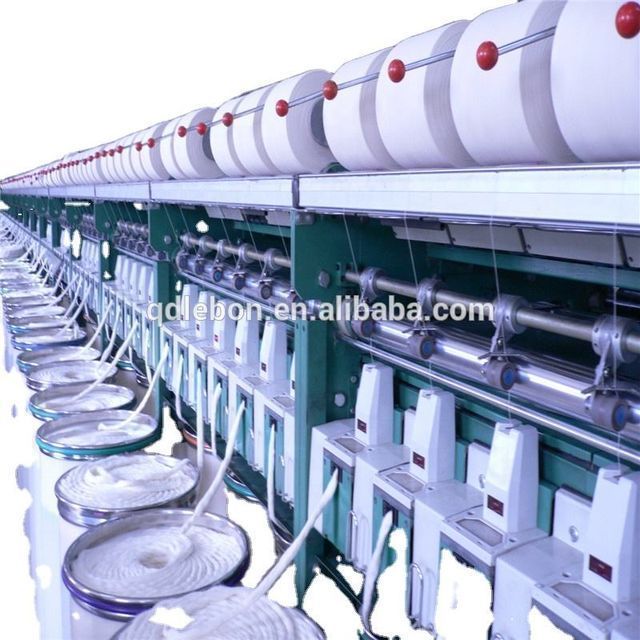

Air spinning machine for spinning cotton yarn

PRODUCT DETAIL
Packaging Details:export standard packageShowroom location:Egypt
Yarn density (Tex):200-1250Drafted multiple:4.2-12
Scope of application:spinning millWarranty:1 year
strength:18 kWAfter warranty service:Video technical support
brand:Lebon IndustriesMarketing Type:normal product
application:spinningSpinning method:Rotor spinning
port:Qingdao PortNumber of spindles:240-600
place of origin; place of origin:Shandong ChinaDimensions (L*W*H):13900*4035mm
Production capacity:100%Core components:PLC, bearing, motor
Control type:computer controlusage:cotton, wool, chemical fiber
Supply capacity:10 sets per monthautomatic:yes
Mechanical test report:ifpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
color:white and blueApplicable industries:manufacturing plant
weight:12000 kgproduct name:Rotor Spinning Machine/Rotor Spinning Machine
Package preview:Types of:Spinning line
State of health:newCore component warranty:1 year
Mapping system:Three-roller double-short apron drafting systemVideo shipment inspection:if
Product Description

Rotor spinning production line processing:

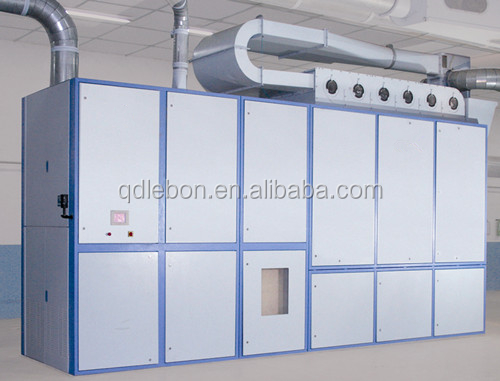

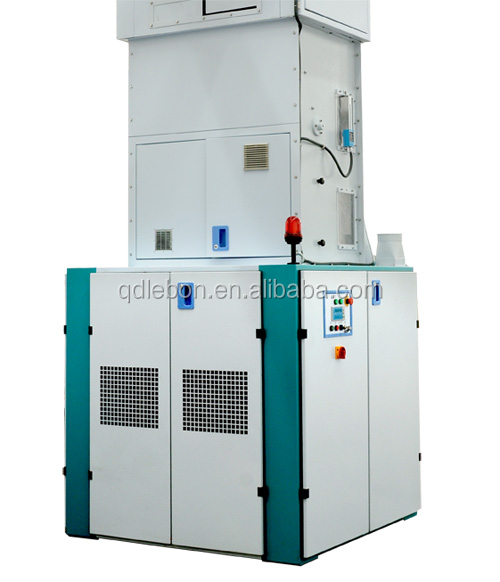

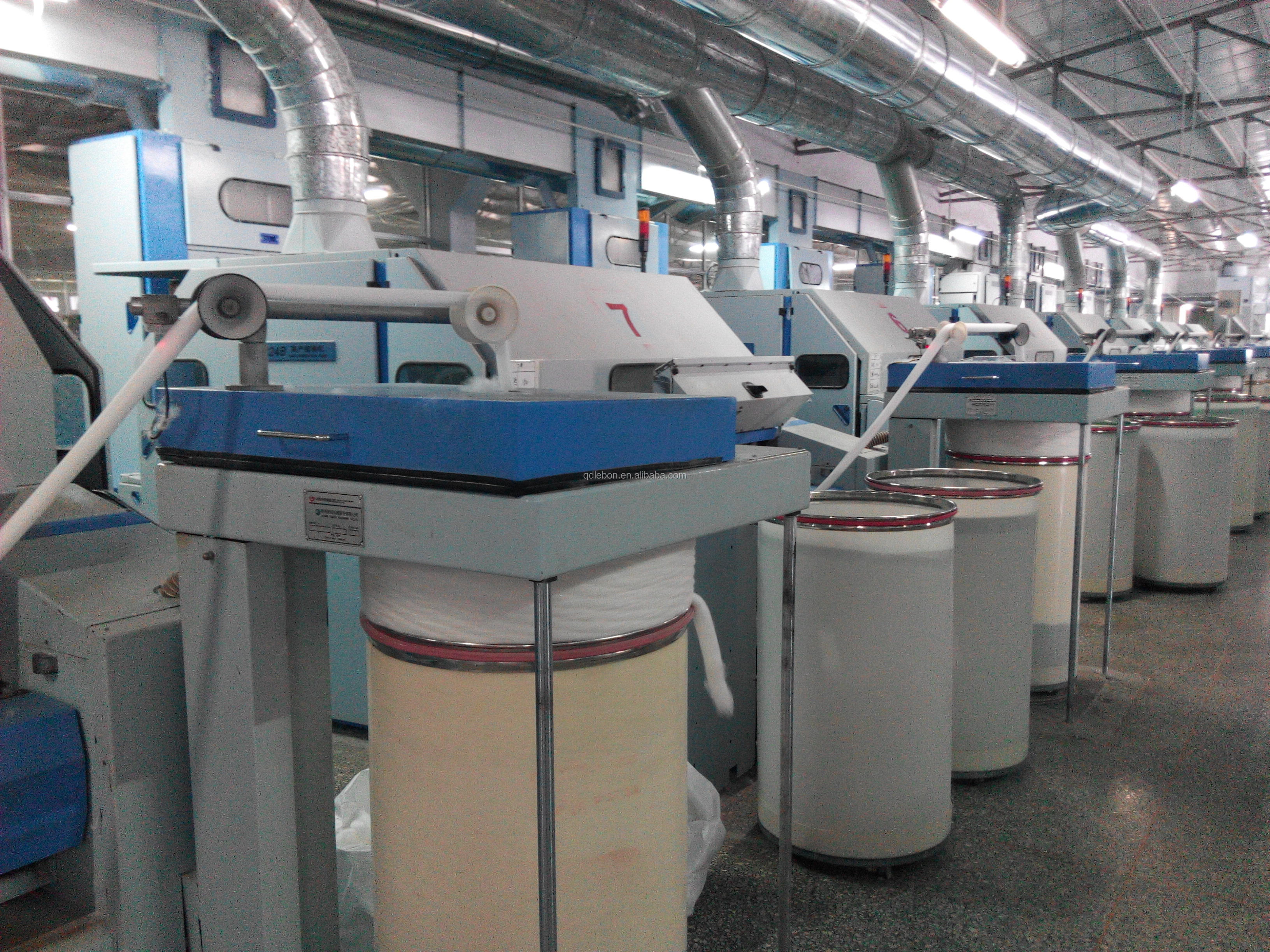

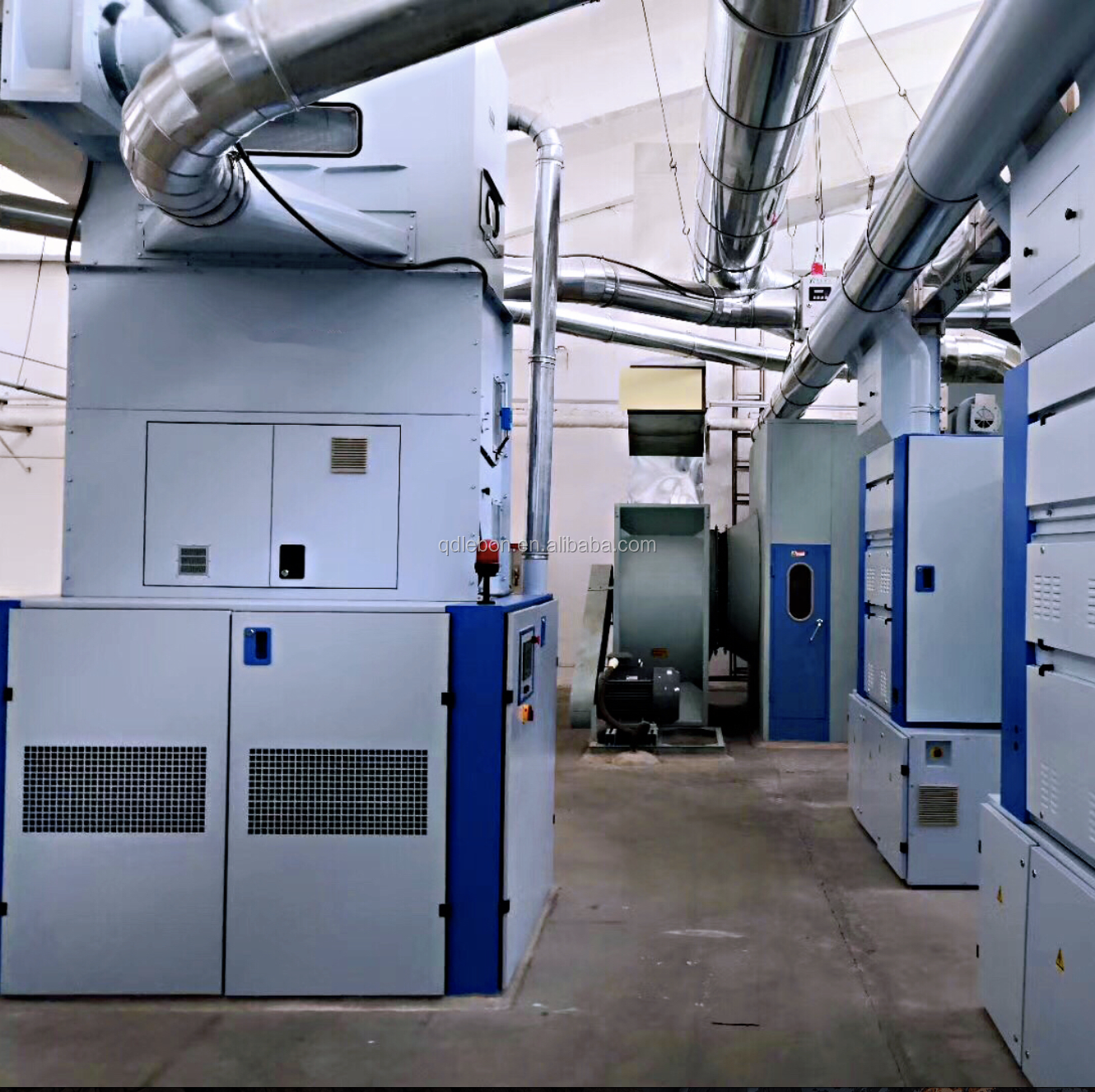

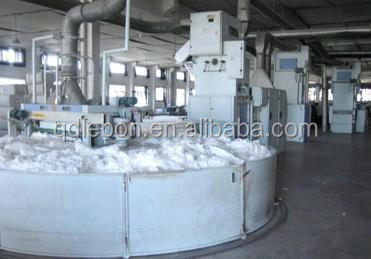

Cotton/wool/chemical fiber → cotton pulling machine → blower → fiber opening and blending machine → multi-way mixer → fine opener → blower → chute feeder → carding machine → drawing frame → rotor spinning machine.



application:

The rotor spinning machine produced is a high-speed, high-efficiency, self-exhausting air spinning machine with a waste removal mechanism. Suitable for spinning cotton, wool, hemp, silk, polyester, acrylic, viscose, vinylon, polypropylene, nylon and their blends.

Main Specifications:

main feature:
1. They can draw a sliver of 0.2-0.45 Nm (5000-2200tex) directly from two channels and spin a yarn of 10-68 Nm (100-14.7tex).
2. According to the needs of brewing and deep processing, this machine is equipped with three-handed and skewering devices.
3. In order to save labor, this machine is equipped with a whole bag conveyor.
4. The machine is pre-assembled and can be shipped in sections.
5. The machine is controlled by a programmable controller (pc).
6. The machine is equipped with a processing parameter monitoring and display device.
7. The machine is equipped with a tension compensation device and a yarn storage device, which can take up conical packages.
8. This machine adopts frequency converter to control motor speed and adjust spinning parameters

parameter:

Model RS30

Specification 200mm

Unit number 20-500 ingots

Rotor speed 30000~95000rev/min

Rotor diameter 43, 54, 66mm

Combing roller speed 5200, 6200, 6700, 7200, 7700, 8200rev/min

Draft ratio 35~230.5

Take-up speed 0.2~0.45Nm(5000~2200Tex)

Tank size 20~116.7m/min

Pipe size 250*900, 300*900, 350*900, 400*900mm

Packing size big end*62*170mm(3o30'
cylinder tube),

56*50*170mm (cylinder barrel)

Packing size 300*150mm (cylinder tube)

250*150mm(3o 30' cylinder tube)

Package weight about 4Kg

Rotor drive motor power 2*11Kw

Combing roller drive 2*4Kw

Three-hand fan 1*3Kw

Miscellaneous fan 1*4Kw

Conveyor belt drive 1*0.55Kw (with reducer)

Gear box transmission 1*4Kw (drawing) 1*0.75Kw (feeding)

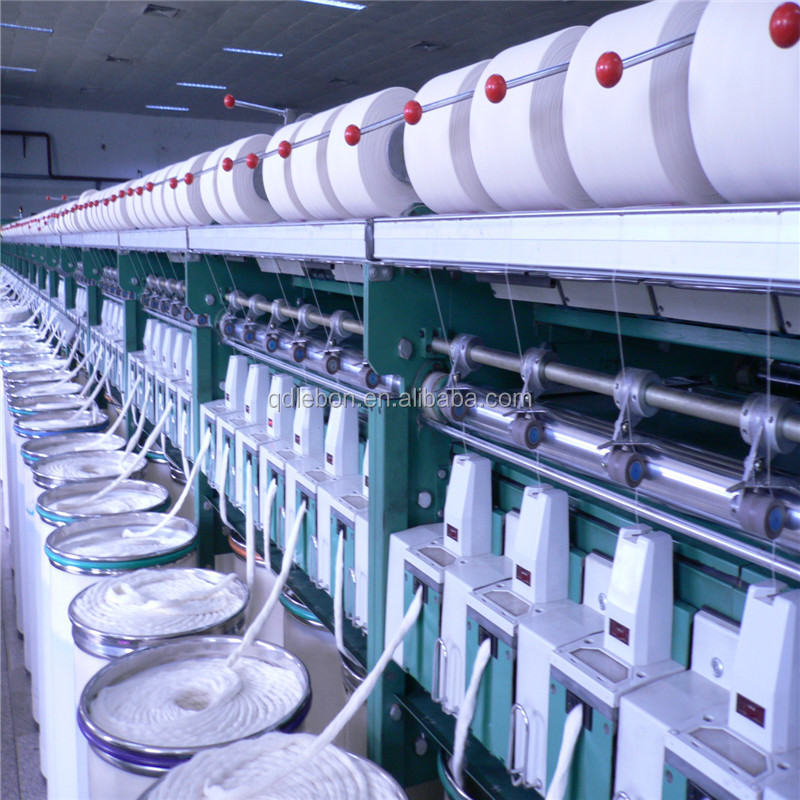

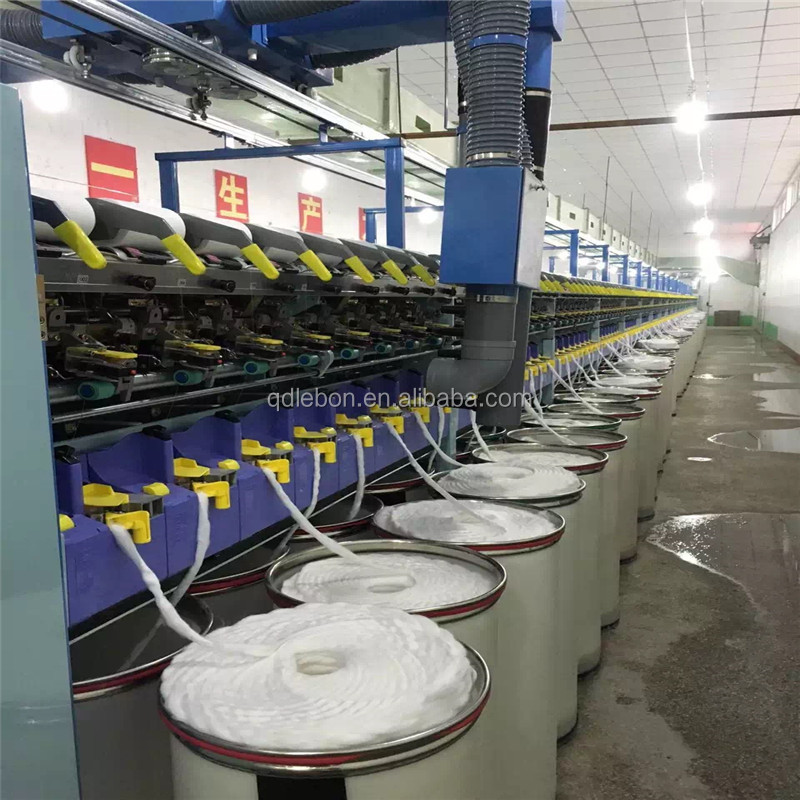

Product Image













Applicable raw materials

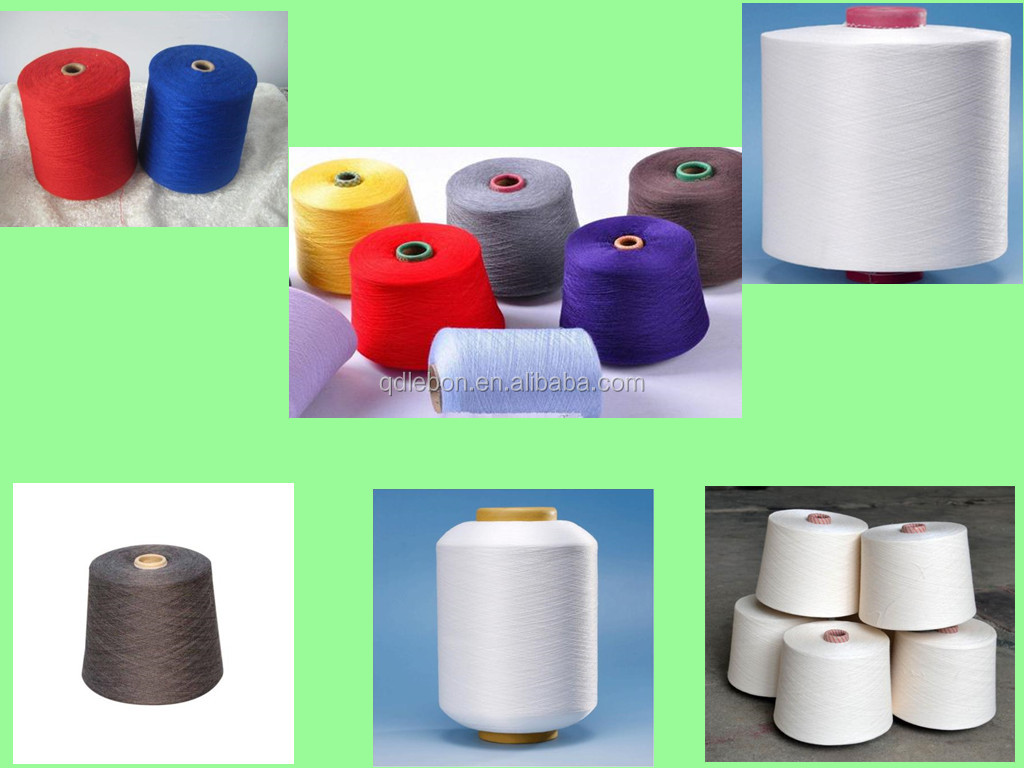

Final product





Packaging and Shipping



export standard package



1) Wooden case/plywood case



2) Styrofoam packaging



3) Bare packaging



our service



1) Overseas service engineers are available upon request.



2) Any machine in our factory has one year warranty.



3) 24 hours technical support by email, phone, skype, whatsapp, TM, etc.



4) Manual in English with detailed information.
