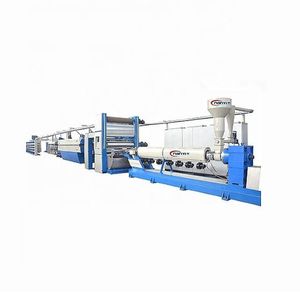

Polypropylene 450m/min high speed woven bag production line

PRODUCT DETAIL
After-sales service provided:Video technical support, online supportMechanical test report:if
Local service locations:USA, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, MexicoMarketing Type:2020 New Products
brand:NeilProduction capacity:50-100
payment terms:L/C, T/TPackaging Details:standard packaging
Showroom location:not anyHealth status:new
application:textileOrigin:China
automatic:YesAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
Certification:ISO9001CE certificationDimensions (L*W*H):9100*2300*2730
Supply capacity:1 bag per dayCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear
port:NingboWarranty:1 year
strength:3.8KWPackage preview:
type:Spinning lineweight:2100 kg
Applicable industries:Clothing store, building material store, manufacturing plant, restaurant, household, retail, food storeCore component warranty:1 year
Video outbound inspection:if

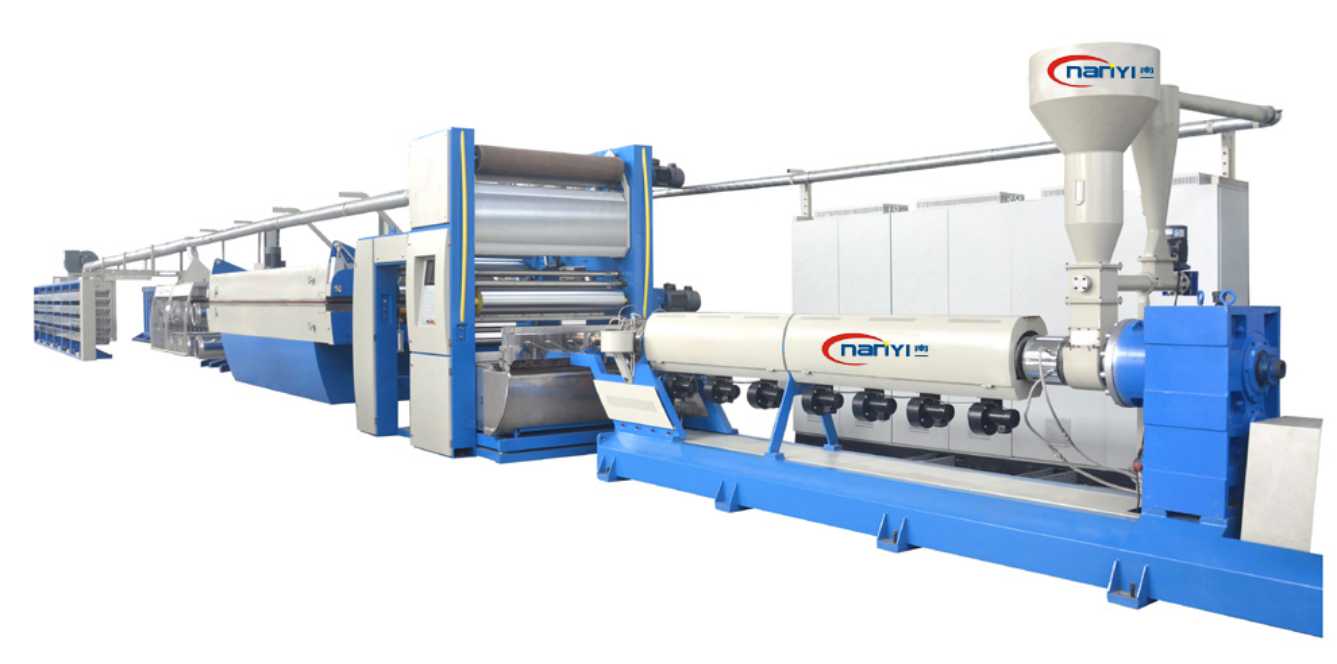

Polypropylene 450m/min high speed woven bag production line
Product Description
High speed plastic extrusion tape production line:
1. Application of direct drive motor and two stretching units in tape stretching production line, with automatic adjustment of mold and
Online thickness measurement system, high efficiency and energy saving, manual production of high tenacity and low denier yarn
Regulation.
2. The application of the online thickness measurement system makes the film more uniform and stable, saving raw material costs,
The visual die lip automatic adjustment has changed the traditional die head adjustment method, which is more intuitive and more
Convenience (optional)
3. The cutting unit adopts six sets of non-stop changing forms to improve production efficiency.
4. The use of automatic winding machine is more suitable for the demand of high-speed tape stretching line.
5. Electrical control unit: adopts European famous brand processor control (PC), and conducts centralized monitoring and control on the whole line
And fully, bring simpler operation and more stability. (option)
6. It is suitable for the production of various specifications of PP, HDPE ordinary tape, fibrillation tape, folding tape and other flat tapes.
Specification.
technical date
model.
SJMS-Z75X33-850*8
SJMS-Z90X33-1000*8
SJMS-Z105X33-1500*8
SJMS-Z120X33-1600*8
SJMS-Z130X33-2000*8
Screw diameter (mm)
75
90
105
120
130
maximum. Capacity (kg/hour)
200
350
500
600
650
Screw speed(r/min)
20-132(rev/min)
T-die width (mm)
850
1000
1500
1600
2000
Length over (m)
6 meters
Maximum running speed(m/min)
450m/min
Ribbon Fiber Range
400-2000D
detailed picture
Mechanical Parts
Name: Taiwan brand process controller
Brand: Nanyi & PRESION
Original: China can realize the monitoring and control of temperature, speed and current of various parts
The speed of the whole machine can be uniformly controlled in sections
Mechanical Parts
Mechanical Parts

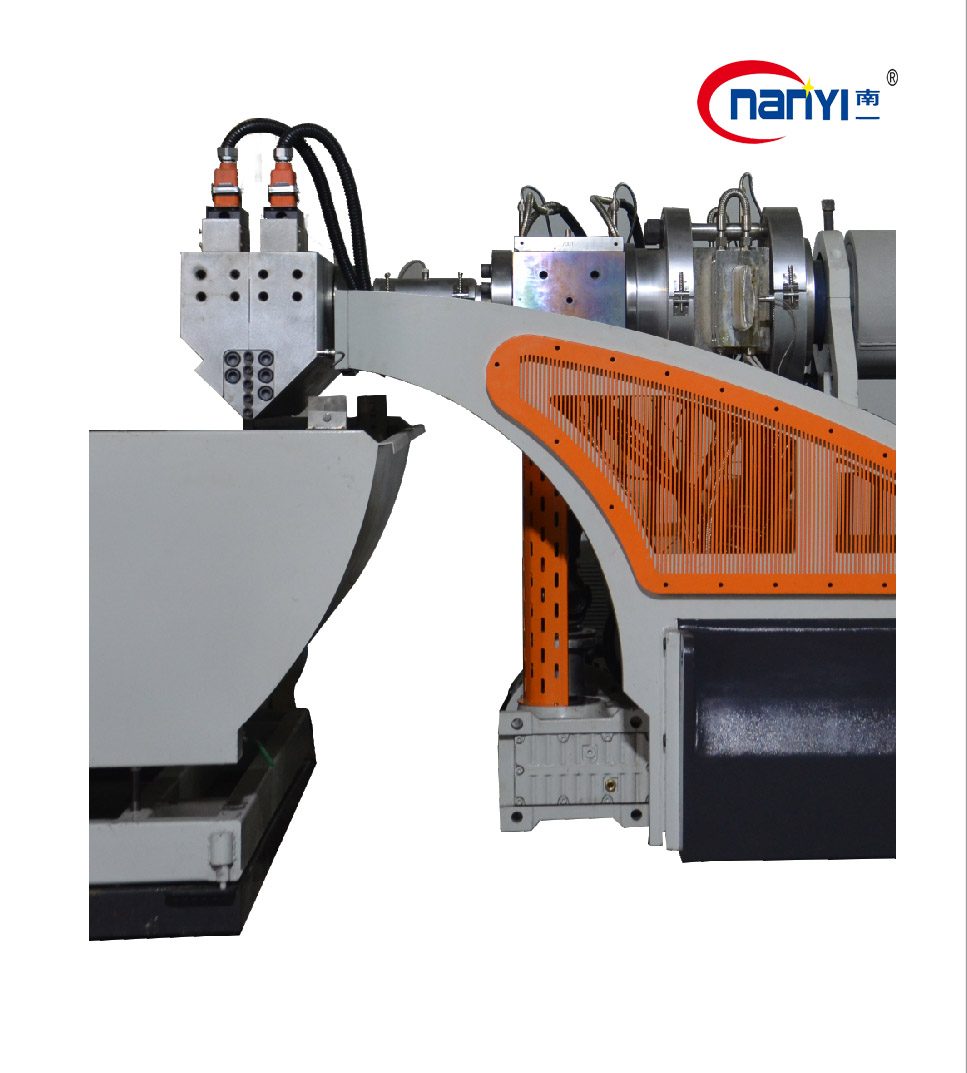

Name: Melt pump & automatic screen changer
Brand: Nanyi & PRESION
Original: Implementation of Melt Transfer, Pressure Stabilization and Metering in China
Mechanical Parts

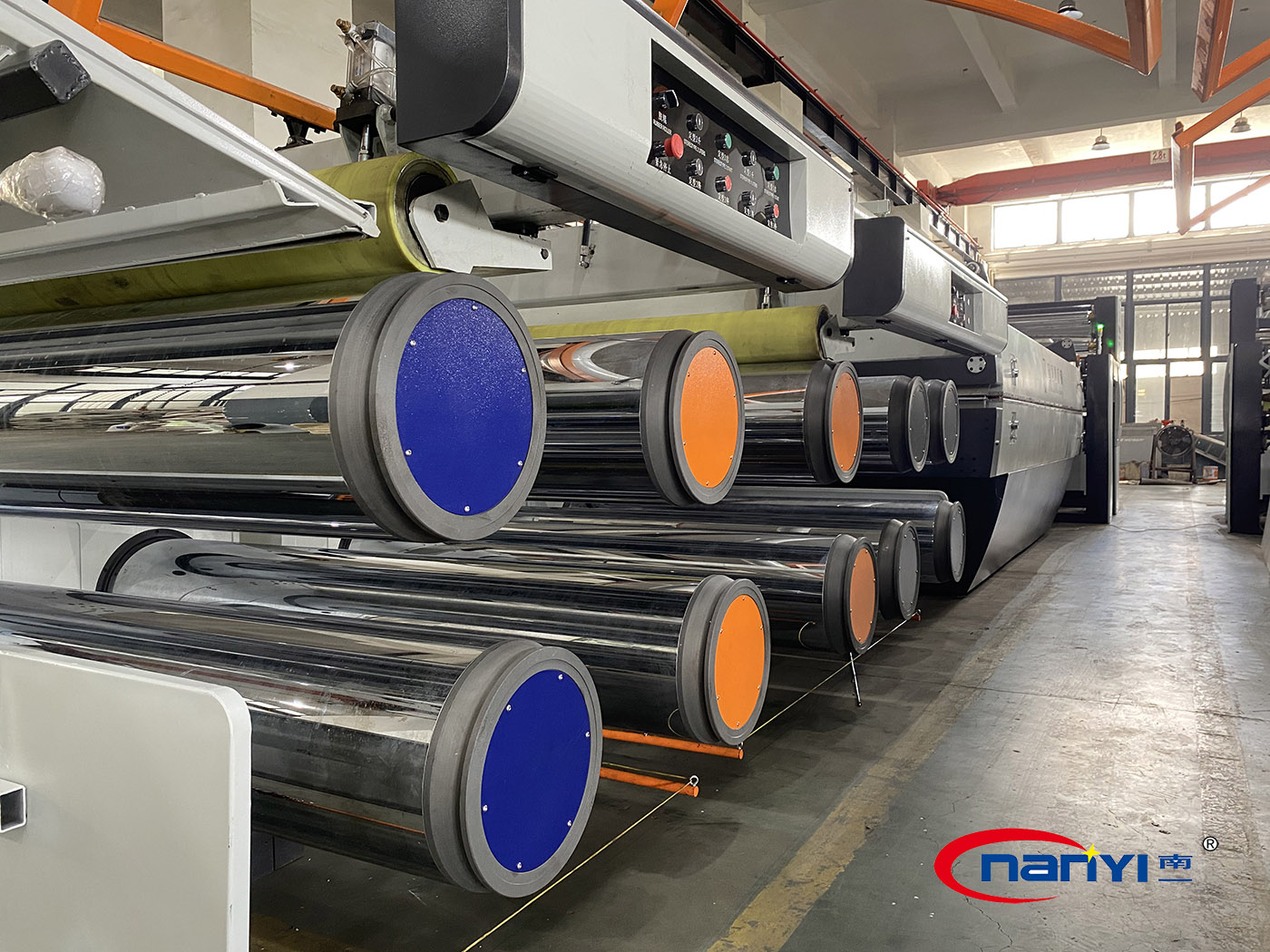

Name: 8 pieces of rollers (hot and cold)
Brand: Nanyi & PRESION
ORIGINAL: CHINA Include heating and cooling double-sided control unit, more uniform diaphragm quality
Mechanical Parts

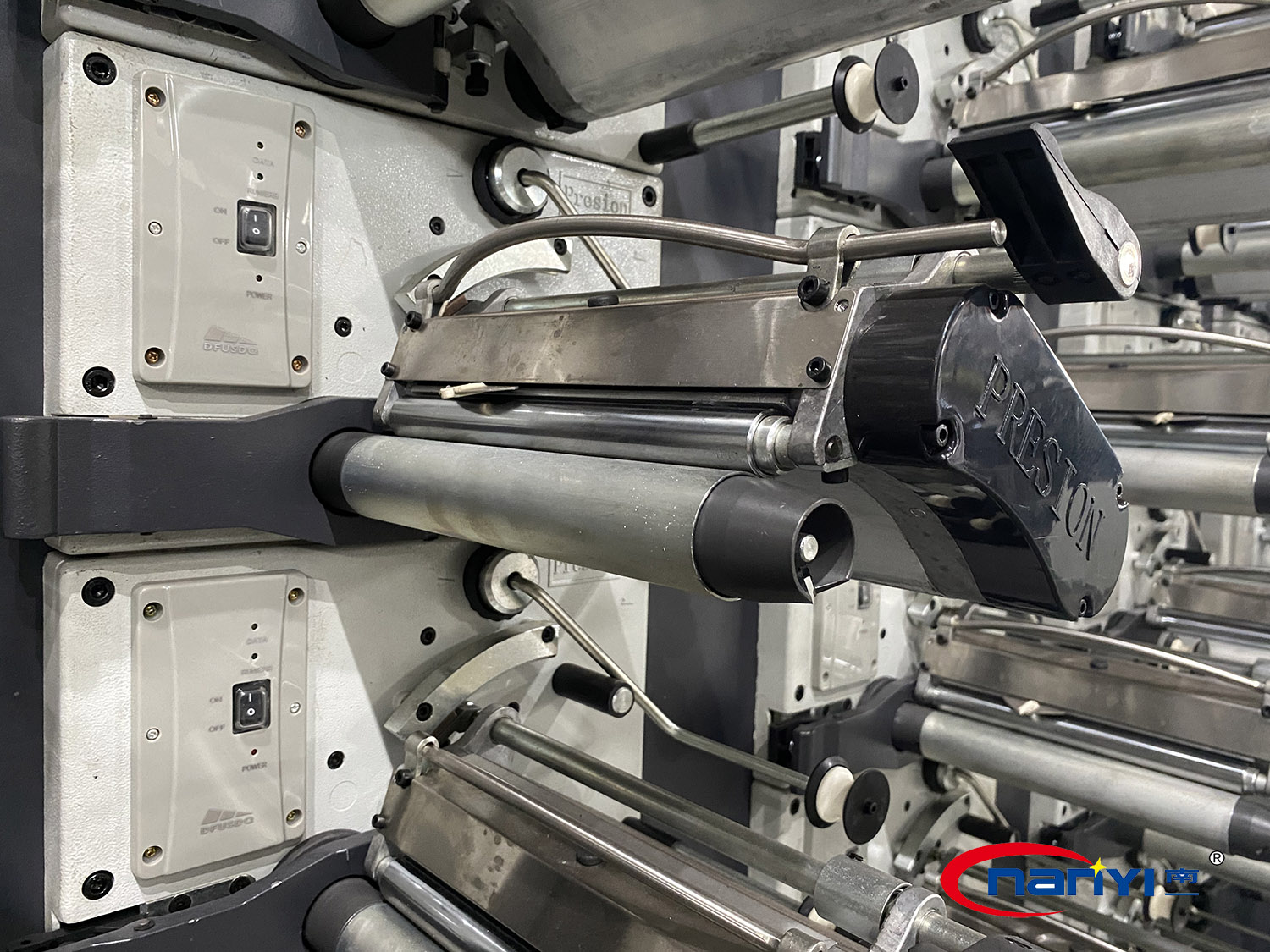

Name: High-speed frequency conversion winding machine
Brand: Nanyi & PRESION
Original: China realizes the digital tension control mode to make the spindle shape better.
At the same time, the single spindle adopts frequency conversion control to achieve lower energy consumption. High quality spindle
Used in circular loom production to ensure better weaving quality.
PP, PE raw materials

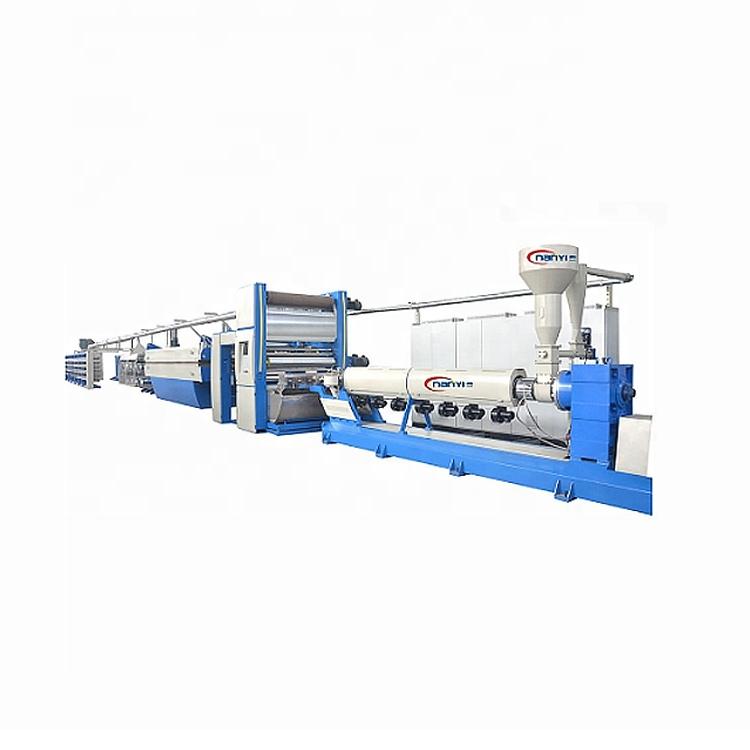

Tape Extrusion Line

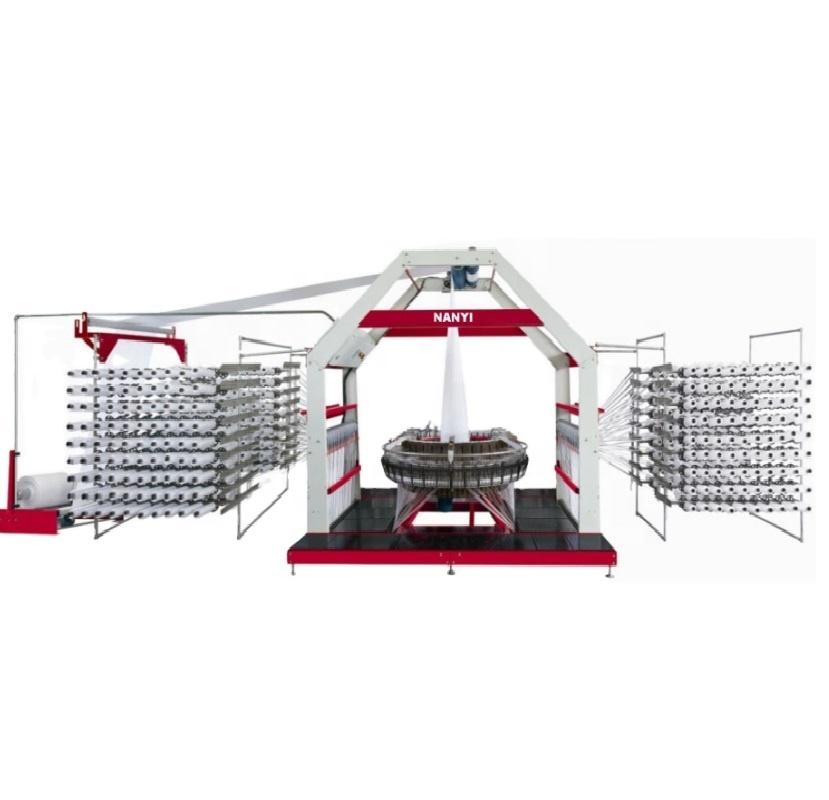

circular loom

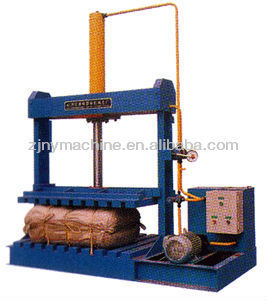

Hydraulic Ball Machine
Automatic Cutting Sewing Machine
printing press
machine made bags
