Aluminum Welding Tig AC DC Double Pulse Tig Welding Machine IGBT Inverter Tig Welding Machine Price
- $65.00 /piece
- 1 piece
- Wuxi Hanshen Electric Joint-Stock Co., Ltd.
- Jiangsu, China
- Ms Alice Wei
PRODUCT DETAIL
| Protection class: | IP21S | efficiency: | 80% |
| Material/Metal Processing: | Carbon steel, stainless steel, aluminum alloy | Nominal Duty Cycle (TIG) at 40°C: | 60% |
| AC Frequency Range: | 20-200 Hz | Output polarity: | AC/DC TIG welding |
| Clearance range: | -40~+40 | Video shipment inspection: | not available |
| Rated input voltage: | 220 volts | Slow down time: | 0.0-10s |
| port: | Shanghai port | aspect: | 690*335*670;695*360*830; |
| product name: | Digital inverter pulse AC and DC argon arc welding machine | Rated output voltage (TIG): | 10.4 volts |
| Mechanical test report: | if | Warranty: | 1 year |
| Weight (kg): | 126 kg | brand: | Hanshen |
| payment terms: | L/C, T/T | Packaging Details: | Standard export wooden case or carton |
| Motor type: | DC | Insulation class: | f |
| maximum. Load power capacity: | 26KVA | Health status: | new |
| Power factor: | 0.83 | Origin: | Jiangsu, China |
| Package preview: | Pulse frequency: | 0.1-20 Hz | |
| Pulse duty cycle: | 1-99% | Supply capacity: | 2500 pieces per week |
| Applicable industries: | Hotels, machine repair shops, manufacturing plants, construction, energy and mining | feature: | inverter |
| Main selling points: | easy to operate | Rated output current (TIG): | 200A |
Virtual Reality
GTAW arc welder

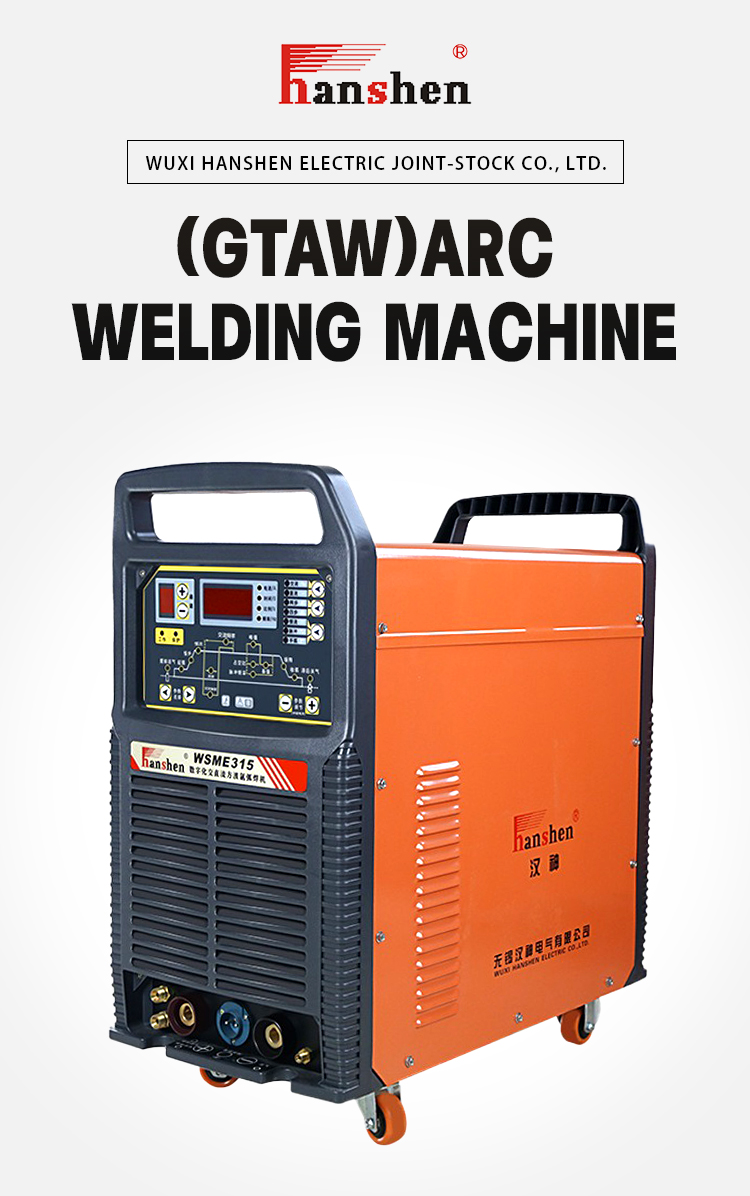

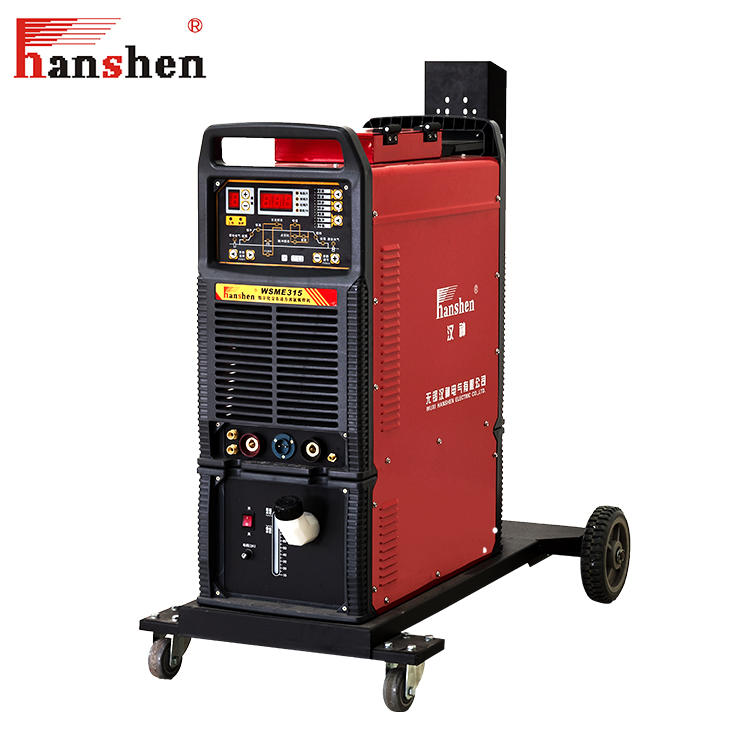

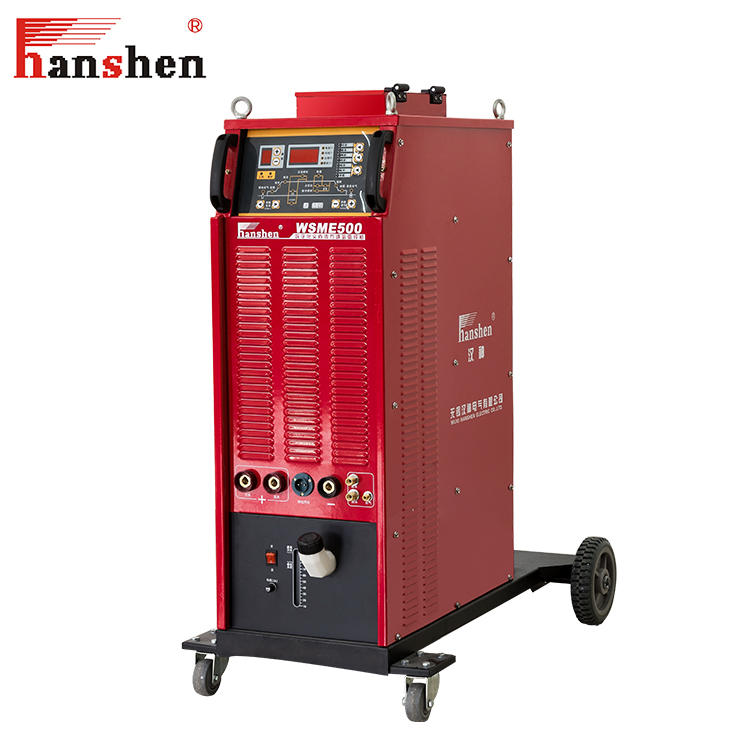

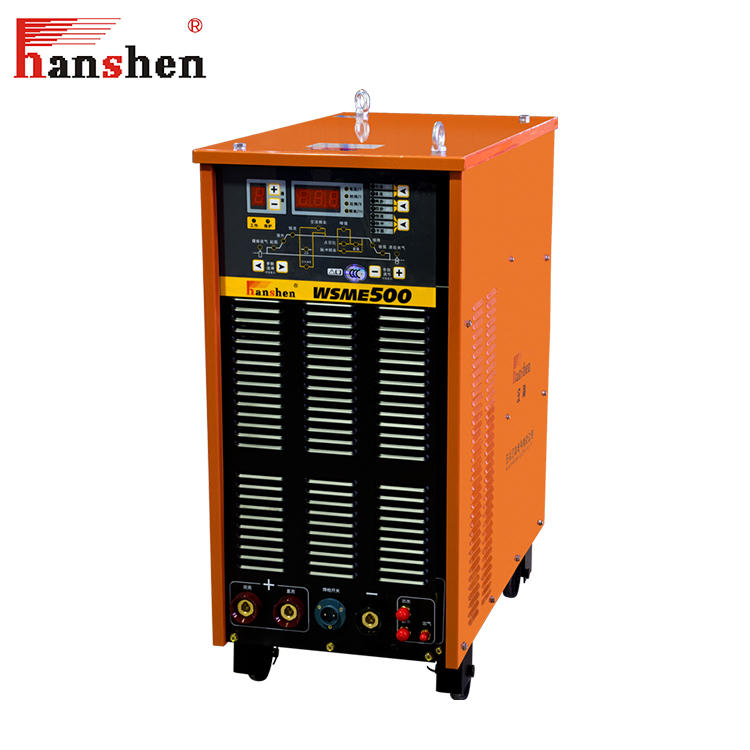

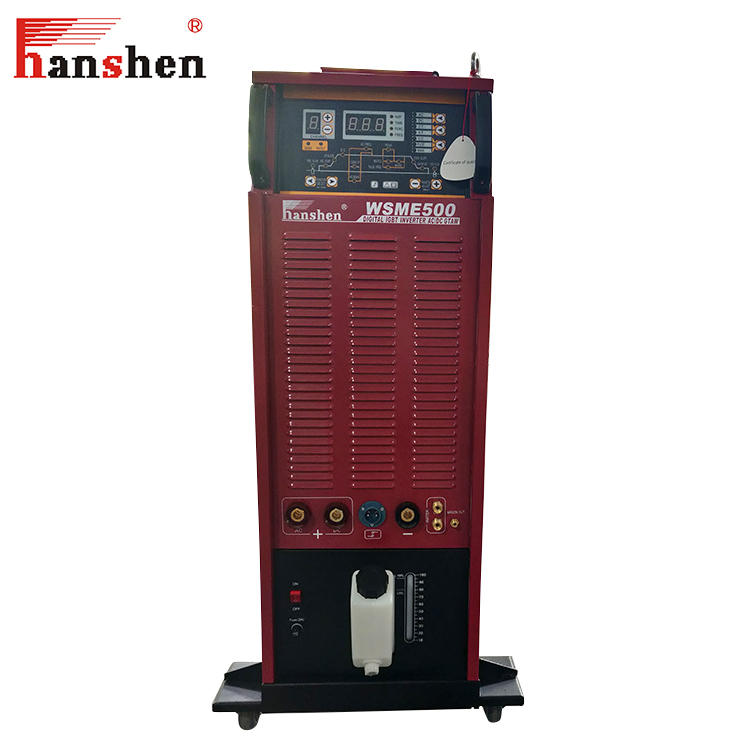

WSME315/500 Digital Display AC/DC Square Wave Pulse Arc Welding Machine
Model | WSME315S | WSME500S | WSME315C | WSME500C | |||
Rated input power | Three-phase, 220V/380V/415V/440V, 50/60Hz | ||||||
Rated input capacity (kVA) | 14.5 | 26 | 14.5 | 26 | |||
Rated input current (A) | twenty two | 39 | twenty two | 39 | |||
Rated output current (A) | 10-315 | 20-500 | 10-315 | 20-500 | |||
Rated output voltage (V) | 10.4-22.6 | 10.8-30 | 10.4-22.6 | 10.8-30 | |||
Open circuit voltage (V) | 64 | 69 | 64 | 69 | |||
MMA thrust current range (A) | 20-315 | 20-500 | 20-315 | 20-500 | |||
MMA arc current range (A) | 1-200 | ||||||
Arc current adjustment range (A) | 20-160 | ||||||
Arcing current adjustment range (A) | 10-315 | 10-500 | 10-315 | 10-500 | |||
Base value current adjustment range (A) | 10-315 | 10-500 | 10-315 | 10-500 | |||
Peak current adjustment range (A) | 10-315 | 10-500 | 10-315 | 10-500 | |||
Pulse duty cycle (%) | 1-99 | ||||||
Pulse frequency (Hz) | 0.1-20 | ||||||
Clearance range (%) | -40~+40 | ||||||
AC Bias Range (%) | -50~+30 | ||||||
AC frequency range (Hz) | 20-200 | ||||||
Advance (S) | 0.0-5 | ||||||
Lag time (S) | 1-10 | ||||||
Ramp time (S) | 0.0-10 | ||||||
Deceleration time (S) | 0.0-10 | ||||||
Rated duty cycle (%) Room temperature 40°C | 60 | ||||||
degree of protection | IP21S | ||||||
insulation level | f | ||||||
power factor | 0.83 | ||||||
efficiency(%) | 80 | ||||||
Dimensions (length × width × height) (mm) | 690*335*670 | 695*360*830 | 1118*660*1124 | 1123*660*1241 | |||
Weight (kg) | 60 | 75 | 85 | 126 | |||
featureSecond
* AC TIG, AC Pulsed TIG, DC TIG, DC Pulsed TIG and DC MMA welding capabilities

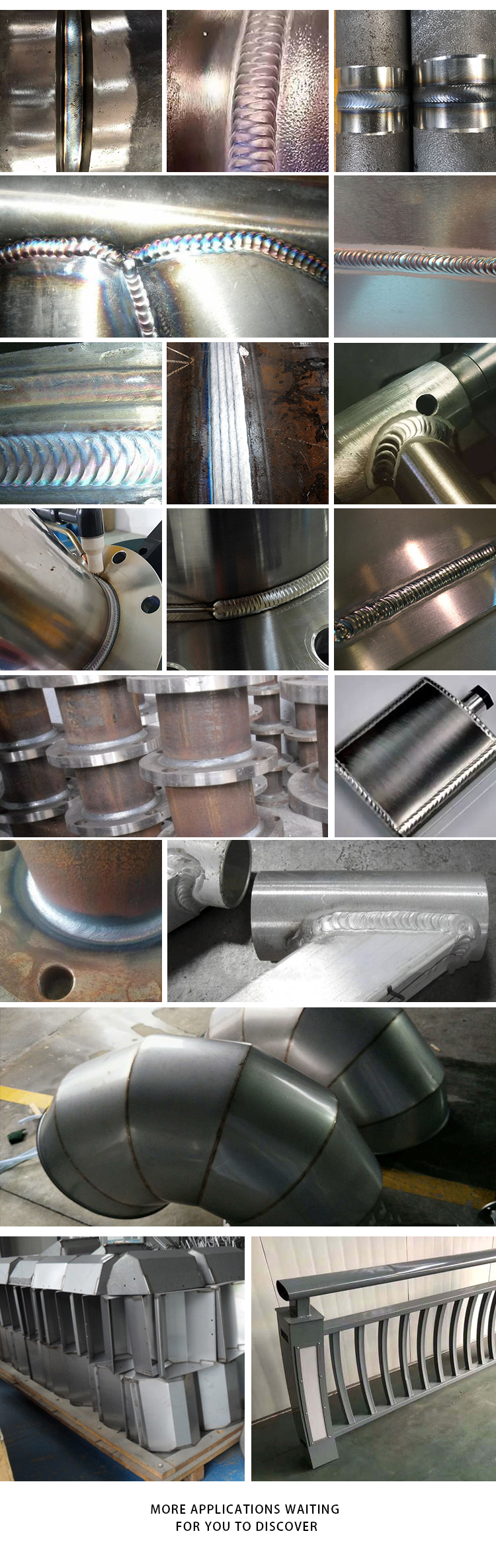

Applicable welding materials
Aluminum, aluminum alloy, carbon steel, alloy steel, stainless steel, copper, titanium, etc.

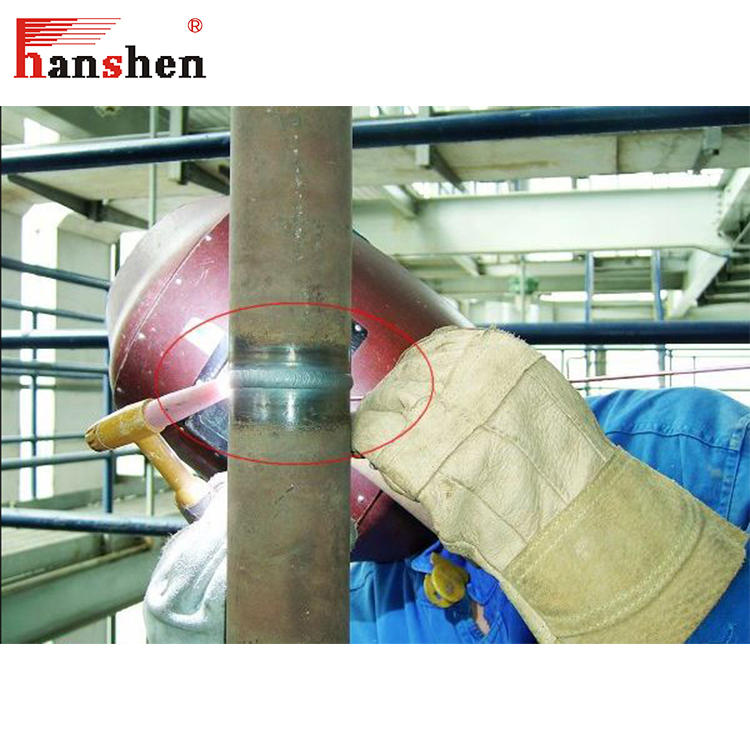

Application field
Machinery industry, petroleum industry, chemical industry, shipbuilding industry, vehicle industry, electric power construction and decoration.
* AC TIG, AC Pulsed TIG, DC TIG, DC Pulsed TIG and DC MMA welding capabilities
*Soft Switching Technology
*Microcomputer control technology can save 10 sets of welding parameters
*Multi-function: AC wave width, positive and negative half-wave amplitude
*AC frequency adjustable
Applicable welding materials
Aluminum, aluminum alloy, carbon steel, alloy steel, stainless steel, copper, titanium, etc.
Application field
Machinery industry, petroleum industry, chemical industry, shipbuilding industry, vehicle industry, electric power construction and decoration.
A1:Don't worry. Please feel free to contact us. In order to get more orders, MOQ 1 with customer's design, we do. so we accept
small order.
Q2:Can you send the product to my country?
A2:Of course we can. If you don't have a forwarder there, we can also help you.
Q3:Can you do OEM for me?
A3:We accept all OEM orders, just provide us with your design. We will offer you a favorable price and make samples for you as soon as possible.
Q4:What are your payment terms?
A4:By T/T, L/C at sight, 30% deposit in advance, 70% before delivery.
Q5:What is your delivery date?
A5:It is determined by different products and quantities. Normally, it takes 5-15 days.
Q6:How long will it take if we want to get a quotation?
A6:We will provide you within 24 hours after receiving your inquiry. If you have an emergency, please call us or tell us in your email so that
We can quote your inquiry with priority.
