Australian Standard Addressable Fire Alarm System Control Panel Connection Smoke Detector CFT-MN/300/200
- $549.00 /piece
- 1 piece
- Shenzhen Proyu Technology Co., Limited
- Guangdong, China
- Ms Sunny Xiong
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal | Supply capacity: | 15,000 pieces of addressable fire control panels per month |
| port: | Shenzhen | brand: | Proyou |
| temperature: | -10℃~+50℃ | product name: | Addressable Fire Alarm Panel |
| Delivery Details: | 3-7 working days | Addressing point: | 200 |
| power supply: | AC 220V 50HZ, DC 24V 6A | AC input power: | 120W |
| model: | PY-CFT-MN200/300 | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | with carton | gross weight: | 12 kg |
| humidity: | ≤95% |

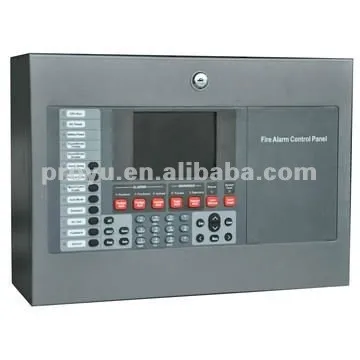

Australian Standard Addressable Fire Alarm System Control Panel Connection Smoke Detector CFT-MN/300/200
Specifications:
System capacity: 200 points (non-polarity, two buses, full mixed coding)
AC input voltage: AC 220V±20% 50Hz
AC input power: 120W
DC power supply: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah batteries connected in series
The 24V DC power supply has a long-term constant output current of 6A.
The 5V DC power supply has a long-term constant output current of 4A.

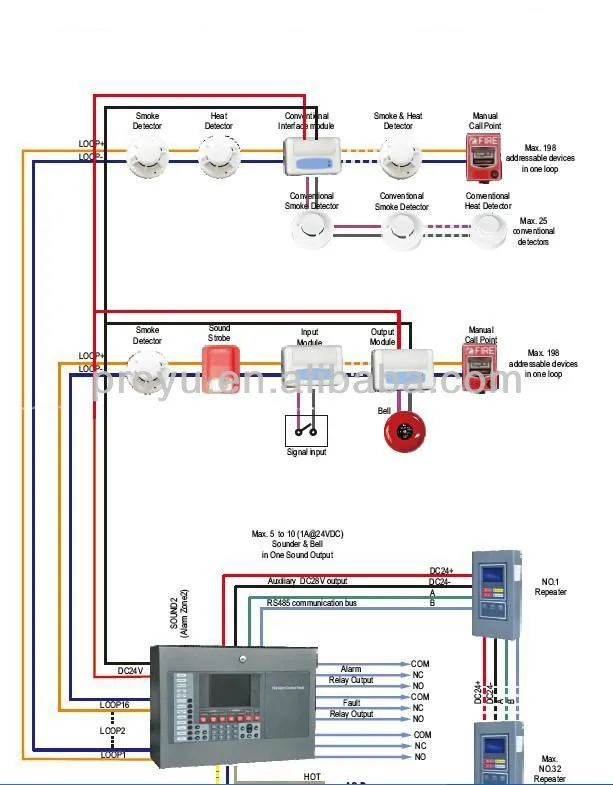

Circuit bus: two-wire system; overall length: ≤1500m
Circuit bus voltage UL:
+20V≤UL≤+26V (when working with DC power supply)
+24V≤UL≤+26V (when working with AC power supply)
System working conditions
1. Temperature: -10°C~+50°C
2. Humidity: ≤95%
3. Power supply: AC 220V 50HZ DC 24V 6A
4. Output contact capacity: AC 220V 1A DC 27.6V 3A

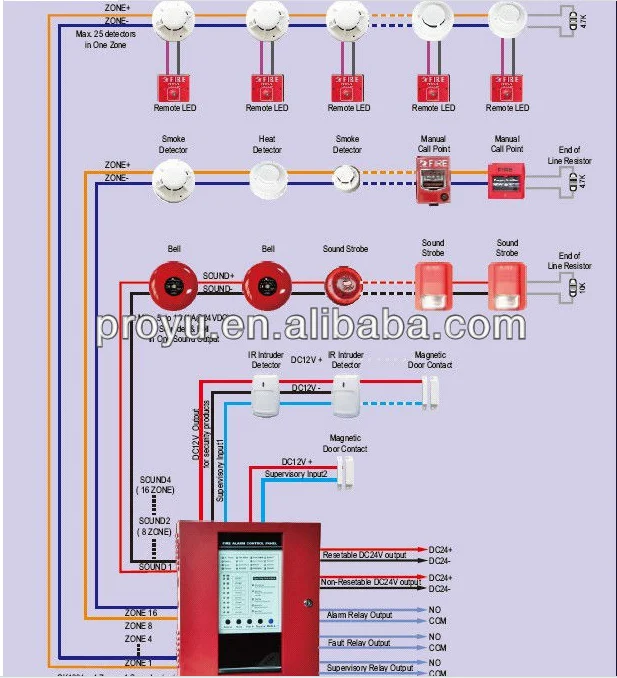

Other conventional fire alarm systems:
