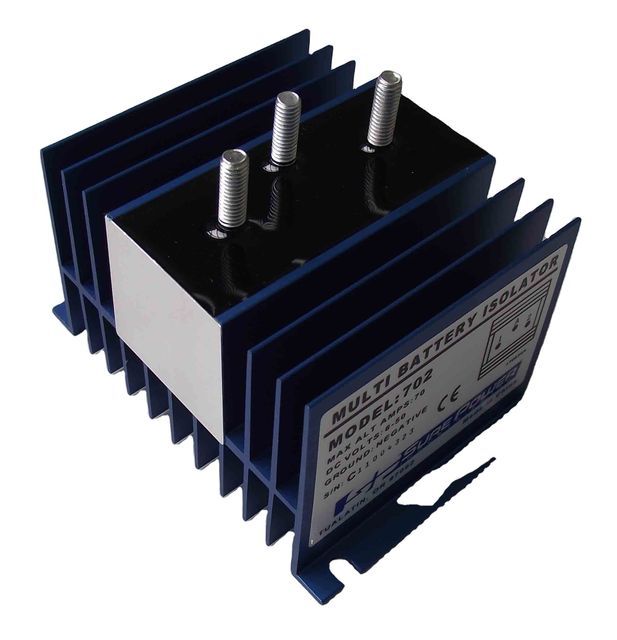

BI070A1B2 Multi-Battery Charging System Dual Battery Isolator, Split Charger, Separator

PRODUCT DETAIL
type:diodecar model:Trucks, SUVs, RVs, Off Road
Package preview:brand:millstone
Packaging Details:white box, color boxport:Shanghai
Origin:China ShanghaiWarranty:1 year
payment terms:wire transferSupply capacity:5000 pieces per month
Product Description

* Eliminate multiple battery drain when two or more battery packs are in the charging system.

*Isolate each battery circuit, allowing each battery to discharge and charge according to its own needs.

* Solid state electronics. More efficient and reliable than mechanical and solenoid systems.

*Full current for either position.

* Anodized aluminum radiator.

* Sealed against oil, gas, salt, water and harsh environments.

*Designed to exceed OEM specifications. The most comprehensive line of battery isolators on the market.

*CE certification





Specification

*System voltage: 0-50 Vdc

* Current: 70 Amps

*Voltage drop: 090Vdc max

* Systematically: Negative pole

*includes mounting hardware

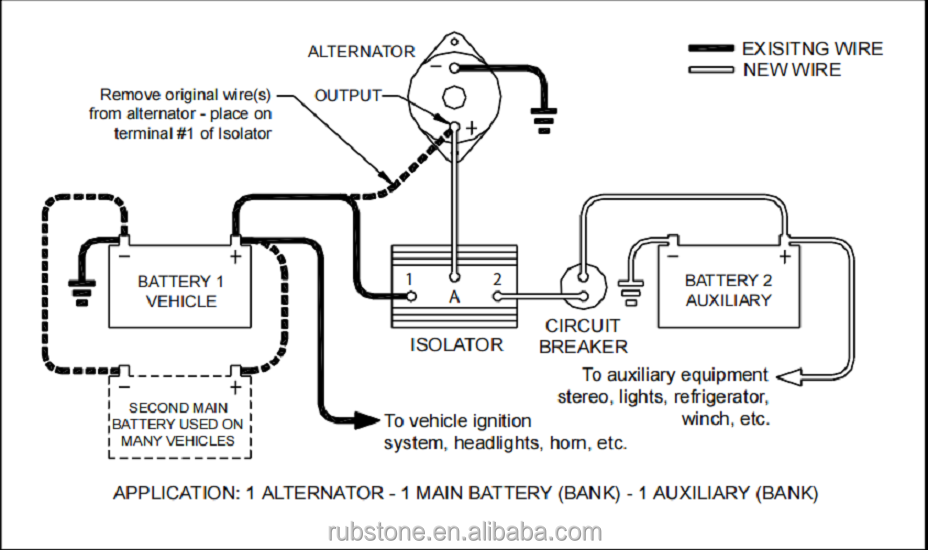

wiring
