SR050 12V 24V 50 Ampere Intelligent car MINI VSR automatic voltage sensitive relay, dual charger insulating battery charging system

PRODUCT DETAIL
Model:SR050Supply capacity:10000 pieces per month
type:MechanicalWarranty:2 years
port:Shanghaipayment terms:wire transfer
product name:Voltage Sensitive Relaybrand:millstone
Packaging Details:white box, color box, blisterplace of origin; place of origin:China
car model:Truck, Bus, RV, SUV, Off-Road,
Product Description

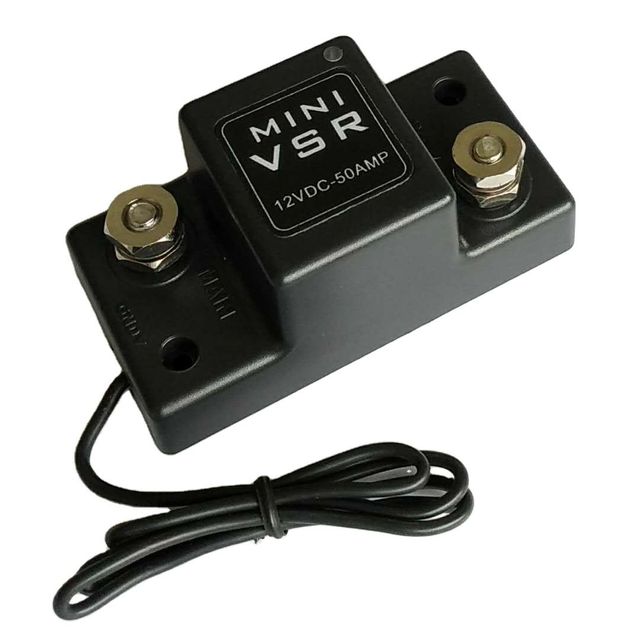

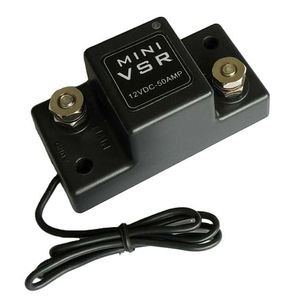

Mini VSR Voltage Sensitive Relay

* Dual battery charging made easy

*Protect electronics on home battery circuits from engine start uo spikes

*Fully automatic



Specification

*Continuous: 50 amps

*Voltage system: 12VDC

*iSense: Single

* Engagement: 13.2VDC, 10s delay, LED on

* Disconnect: 12.8VDC, 10s delay, LED off





VSR operation:

A Voltage Sensitive Relay (VSR) allows two batteries to be charged simultaneously. When the engine starts, the main battery pack (start and house) is charged simultaneously. When the combined voltage falls below 12.8 volts (eg. engine stopped), the VSR disengages, disengaging the battery. The system eliminates the possibility of draining the wrong battery and protects sensitive electronics powered by household batteries from harmful engine cranking spikes.

How VSRs work

Once the voltage of the main battery rises above 13.2VDC, the VSR switches to charge the two batteries in parallel, and when the combined voltage falls below 12.8VDC, the VSR disengages. Disengagement can occur when idling (due to slow alternator speed and low current) or if the household battery is running low. An increase in engine speed will increase the output of the alternator and maintain the voltage.

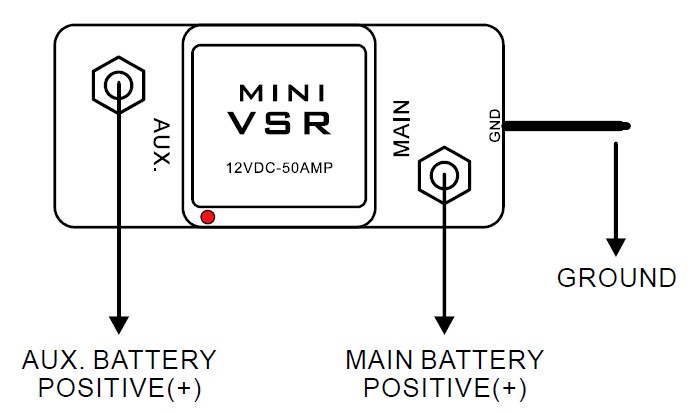

wiring
