BOBR hand push road marking machine
- $9000.00 /piece
- 1 piece
- OOO STIM
- -, Belarus
- Ms Valeryia Misko
PRODUCT DETAIL
| Remove width: | 200 mm | Removal depth: | 1 mm |
| Warranty: | 1 year | type: | push by hand |
| Core components: | Engine, Bearings, Removable Counterweight, Gasoline Engine, Vibration Damper, Carbide Knives, Quick Release Parking Brake, Steel Frame | Mechanical test report: | if |
| engine: | 11.0HP | Tool life: | 1500 square meters |
| Core Components Warranty: | 1 year | Dimensions (L*W*H): | 1100x700x1100 mm |
| Video external inspection: | if | payment terms: | L/C,T/T,Bank Guarantee |
| port: | Klaipeda, Odessa, Vladivostok, Kaliningrad, Rotterdam | weight: | 210 kg |
| strength: | 8.1 kW, 11 hp | application: | rotary cutter |
| Showroom location: | Russia, Ukraine, Poland | brand: | bob |
| Supply capacity: | 1 item per month | Speed removal: | 0.3-0.5 km/h |
| Packaging Preview: | Unique Selling Points: | Gentle attitude to the road | |
| Name: | road marking machine | Health status: | new |
| usage: | road marking removal | Applicable industries: | Construction Engineering, Other, Road Safety, Road Application, Road Construction, Road Marking Machinery |
| place of origin; place of origin: | Belarus | Packaging Details: | Metal container, fastened with hooks, packed |
| product name: | BOBR road marking machine | Marketing Type: | normal product |
Product Description

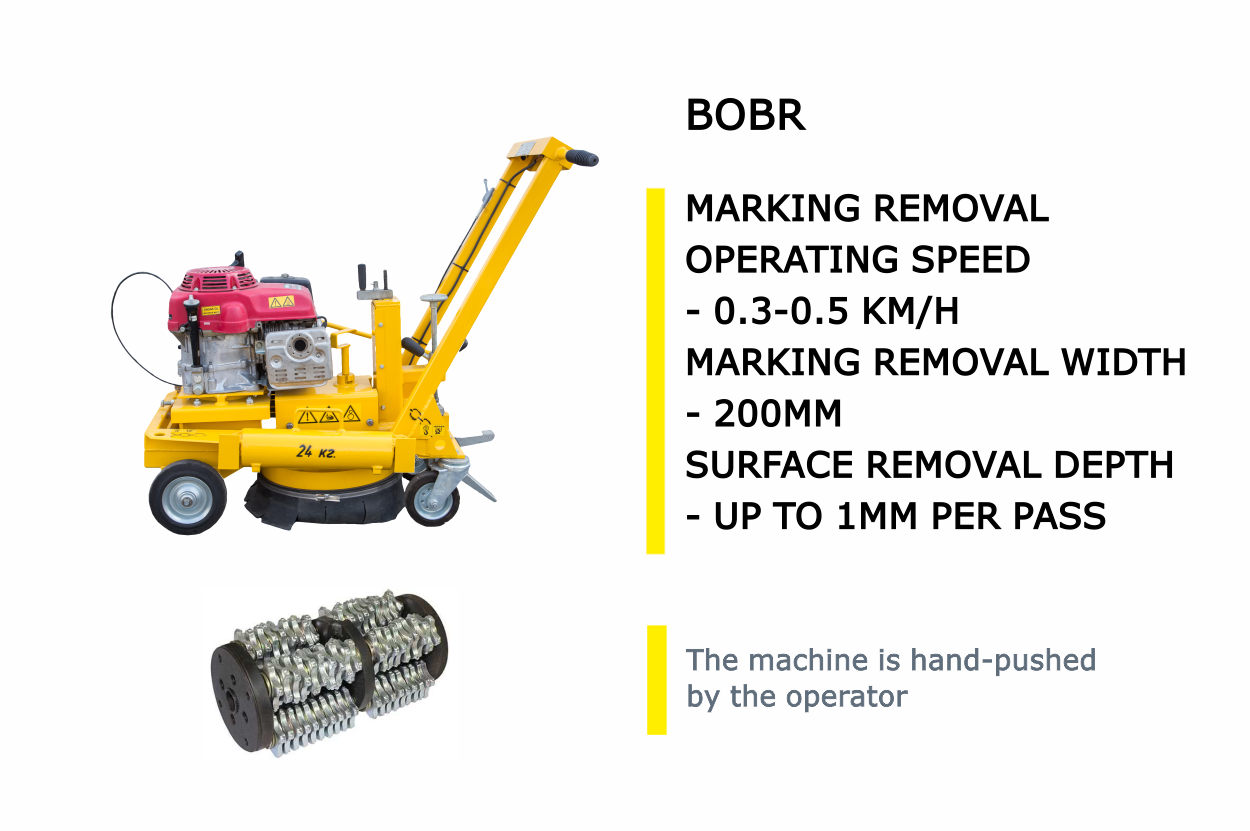

Road marking machines are designed to mechanically remove horizontal road markings coated with cold plastic, thermoplastic or paint.
The machine cuts marking materials and parts of road surfaces with carbide cutting tools. Floating cutter unit design prevents sharp nicks and grooves.
The machine cuts marking materials and parts of road surfaces with carbide cutting tools. Floating cutter unit design prevents sharp nicks and grooves.
Basic Specifications
Mark Removal Width (Holder) | 200 mm |
Surface removal depth | Up to 1 mm per pass |
Marking removal job speed | 0.3-0.5 km/h |
Operating Road Slope | 9% |
Maximum allowable road gradient | 15% |
Tool life* | 8-10 km (1,500 m2) |
Machine working weight | 210 kg |
Dimensions (LxWxH), m | 1.1x0.7x1.1 |
staff | 1 person |
*Lifetime depends on the type of marking to be removed, the type of pavement and operator experience.
Design Features
- steel frame;
- Robust protective rubber housing of the tool unit;
- carbide tools;
- quick release parking brake;
- anti-vibration shock absorbers;
- gasoline engine (8.1 kW);
- Milling depth adjustment system;
- Removable weight for easy loading during transport.
- Robust protective rubber housing of the tool unit;
- carbide tools;
- quick release parking brake;
- anti-vibration shock absorbers;
- gasoline engine (8.1 kW);
- Milling depth adjustment system;
- Removable weight for easy loading during transport.
