KONTUR 50 Self-propelled Airless Paint Glass Bead Road Scribing Machine
- $28000.00 /piece
- 1 piece
- OOO STIM
- -, Belarus
- Ms Valeryia Misko
PRODUCT DETAIL
| Packaging Details: | Metal container, fastened with hooks, packed | Marking method: | airless spray |
| Paint Can Capacity: | 45 kg | Health status: | new |
| strength: | 13 hp | Marketing Type: | New Products 2020 |
| Showroom location: | Russia, Ukraine, Poland | port: | Klaipeda, Odessa, Vladivostok, Kaliningrad, Rotterdam |
| Packaging Preview: | feature: | self-propelled, paint | |
| Mechanical test report: | if | Line Type: | horizontal line |
| product name: | Kontur 50 Paint Glass Beads | Road marking machine: | self-propelled paint |
| Core components: | PLC, engine, bearing, motor, pressure vessel, gear, pump, fine filter, marking unit light, hand-held spray gun, lift aiming device, LED position light, 50cm hand-held spray gun extension, 2 spray guns | Mark width: | <250 mm |
| Unique Selling Points: | High operating efficiency | Applicable industries: | Construction Engineering, Other, Road Safety, Road Application, Road Construction, Road Marking Machinery |
| brand: | Contour | payment terms: | L/C,T/T,Bank Guarantee |
| Core Components Warranty: | 1 year | usage: | Narrow location of city parking lot |
| Line thickness: | 0.3 ~ 0.8 mm | application: | road marking |
| Supply capacity: | 1 item per month | Warranty: | 1 year |
| engine: | Briggs & Stratton | Dimensions (L*W*H): | 2200x1200x1300 mm |
| place of origin; place of origin: | Belarus | weight: | 385 kg |
| Video external inspection: | if |
Product Description

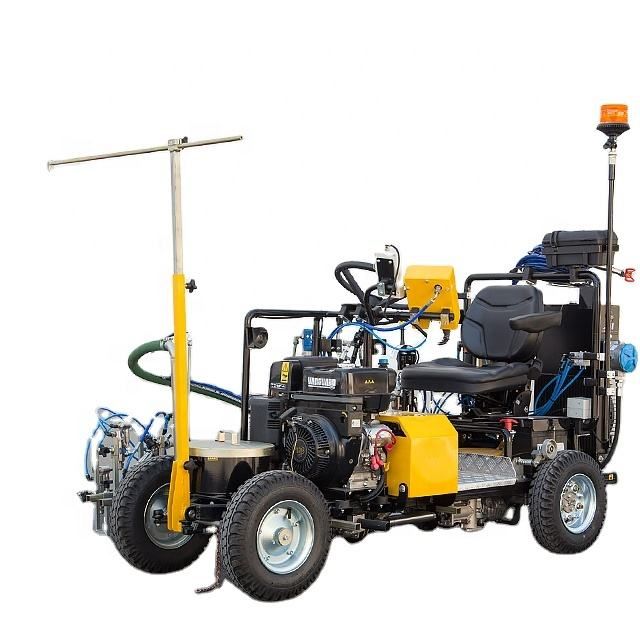

Kontur 50 is designed for airless longitudinal and lateral horizontal road markings, using paint while pressurized dripping retroreflective glass beads.
This is the smallest machine of its kind. The compact size allows marking to be applied in cities without disturbing traffic.
Airless marking technology allows the use of high viscosity paints to obtain lines with clean and sharp edges.
The control panel provides the application of 10 marker line types in manual, semi-automatic and automatic modes.
Carefully selected components ensure equipment reliability and long service life. In the machines we use components from leading companies such as Graco, Danfoss, Festo, Fini and Kamber.
This is the smallest machine of its kind. The compact size allows marking to be applied in cities without disturbing traffic.
Airless marking technology allows the use of high viscosity paints to obtain lines with clean and sharp edges.
The control panel provides the application of 10 marker line types in manual, semi-automatic and automatic modes.
Carefully selected components ensure equipment reliability and long service life. In the machines we use components from leading companies such as Graco, Danfoss, Festo, Fini and Kamber.
The standard configuration
* Liftable aiming device;
* Operation panel with motor timing;
* Paint fine filter;
* Flash on telescopic pole;
* Hand-held spray gun;
* marked unit light.
* Operation panel with motor timing;
* Paint fine filter;
* Flash on telescopic pole;
* Hand-held spray gun;
* marked unit light.
Options
* LED position lights and turn indicators;
* Removable water tank, 45 liters;
* 50 cm hand-held spray gun extension.
* Removable water tank, 45 liters;
* 50 cm hand-held spray gun extension.
Product Specifications
scope | Cantour 50 |
engine type | gasoline |
Engine power, kilowatts | 9.6 |
engine power, horsepower | 13 |
engine manufacturer | Briggs & Stratton |
cylinder | 1 |
Engine capacity, cubic centimeters | 420 |
Maximum engine speed, rpm | 3600 |
generator, A | 40 |
compressor | piston |
Compressor capacity (inlet), L/min | 365 |
Maximum working road slope, % | 20 |
Maximum gradeability, % | 30 |
Driving speed, km/h | 8 |
Glass Bead Jar, L | 17 |
Glass bead jar, kg | 28 |
control panel | M21 |
display type | two lines |
default program | up to 7 |
Quick program selection button | 6 |
Control panel mode (automatic/semi-automatic/manual) | usable |
Marking Materials (Main/Optional) | painting |
Maximum marking speed, km/h (with main/optional material) | 5 |
Maximum marking material quantity, kg | 30 |
Fuel tank capacity, L | 6.6 |
Fuel tank capacity, L | 18 |
Lines applied at the same time | 2 |
gun (applicator) | 2 |
Double line width, mm | up to 150 |
Single line width, mm | up to 250 |
Working position, mm | 3000x1200x1300 |
Transport position, mm | 2200x1200x1300 |
Empty weight, kg | 385 |
