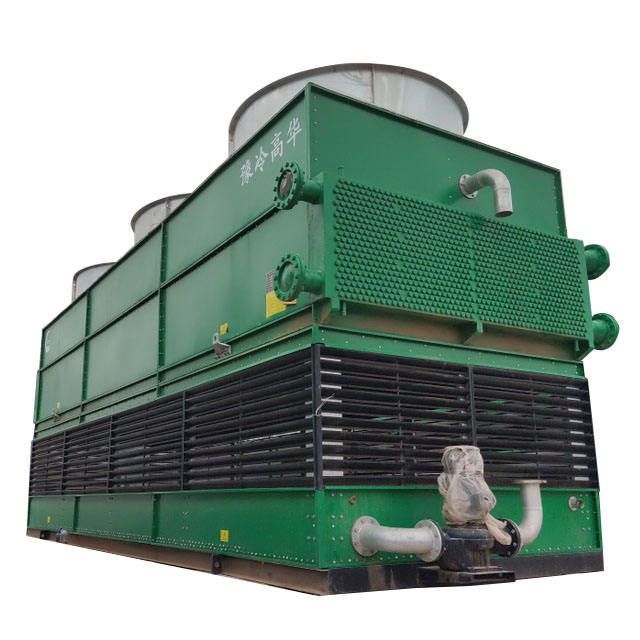

Baltimore Coil Ammonia Evaporator Condenser Plant

PRODUCT DETAIL
Why choose us
GH Cooling is a professional evaporative condenser designer and manufacturer in China. The company's main products include evaporative condensers, closed cooling towers, air-cooled heat exchangers, "air cooling + evaporative cooling" composite closed cooling systems, anti-white fog high-efficiency cooling systems, etc. Products are widely used in electric power, chemical industry, metallurgy, petrochemical industry, coal chemical industry, air conditioning, food refrigeration industry, etc. Our factory covers an area of ​​13,500 square meters and has ISO certificate. Our products are popular in domestic and international markets.
Product Description
Evaporative condenser product description

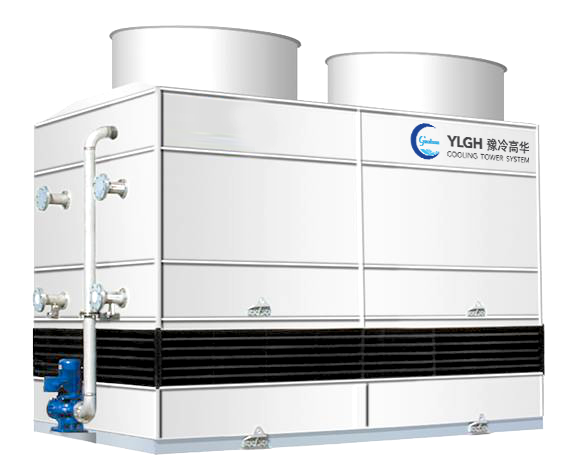

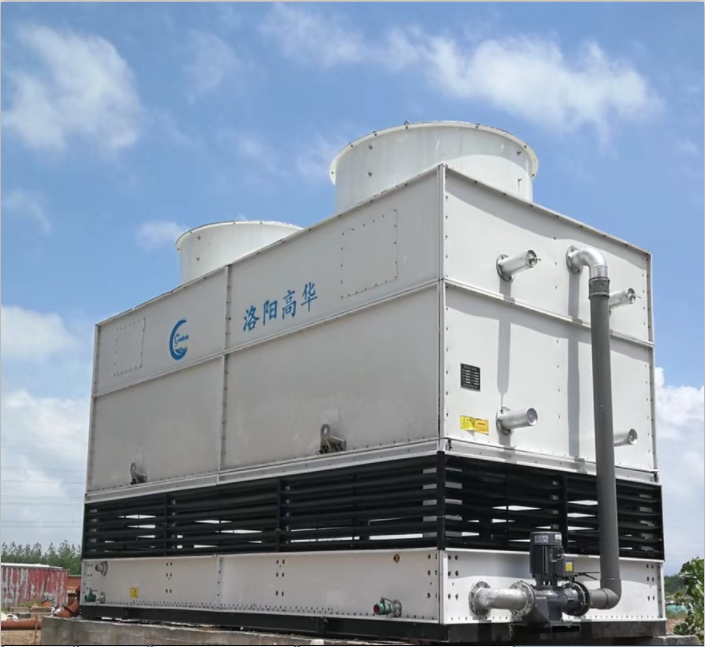

NZL evaporative condenser
NZL evaporative condenser is an energy-saving, water-saving, efficient and environmentally friendly cooling tower that uses evaporation and condensation as the main heat exchange methods. The steam to be condensed is circulated through the condensation coil, and the outside of the condensation coil is continuously moistened by a circulating water system. The air is pulled through the coil, causing a small portion of the circulating water to evaporate. Evaporation removes heat from the steam in the coil, causing it to condense. It occupies a small area and is easy to operate and maintain.
Detailed description

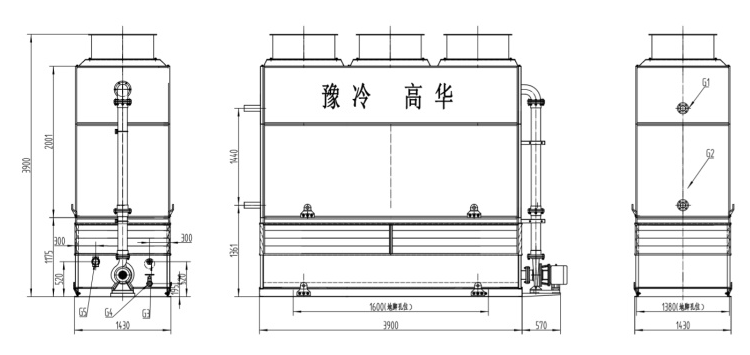

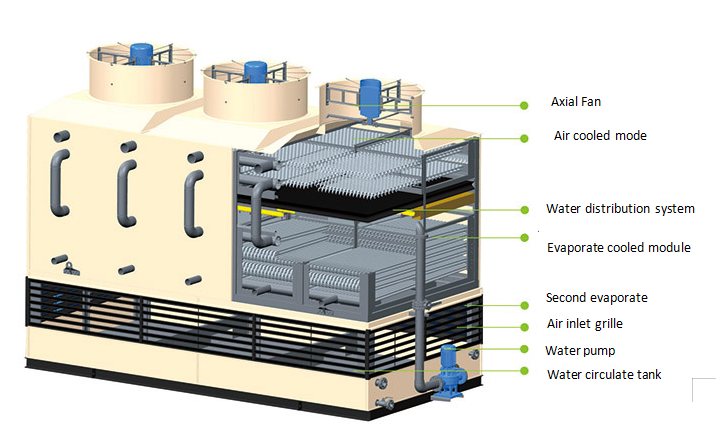

Evaporative condenser details
Product parameters
Evaporative condenser parameters
thing
Model
Heat exchange capacity, KW
Fan power, KW
air volume,
cubic meters/hour
water flow,
cubic meters/hour
pump power,
kilowatt
Net weight, kg

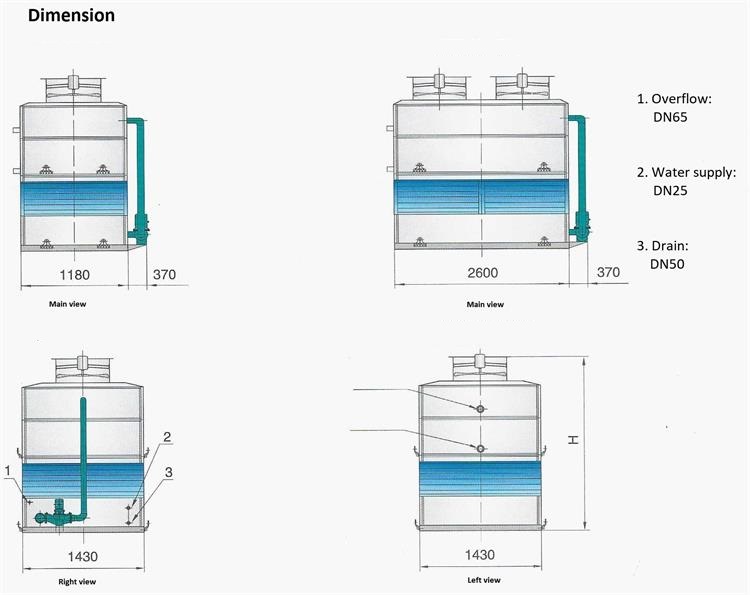

Dimensions, mm
Connection size
1
NZL100
103
1.1
15000
25
0.75
1460
1180*1430*3206
2-DN80
2
NZL150
152
1.1
15000
25
0.75
1710
1180*1430*3456
2-DN80
3
NZL200
Chapter 202
1.5
18500
25
0.75
1920
1180*1430*3706
2-DN80
4
NZL260
261
1.1*2
15000*2
35
1.1
2320
1180*1430*3206
2-DN80
5
NZL380
Chapter 382
1.5*2
18500*2
35
1.1
2673
1180*1430*3456
2-DN80
6
NZL400
403
2.2*2
26000*0
35
1.1
2783
1180*1430*3636
2-DN80
7
NZL450
Chapter 451
1.5*2
18500*2
60
2.2
3064
1180*1430*3706
2-DN80
8
NZL500
502
2.2*2
26000*2
60
2.2
3125
1180*1430*3786
2-DN80
9
NZL580
Chapter 582
4.0
55000
60
2.2
4372
2620*2720*3561
2-DN80
10
NZL600
600
5.5
78000
60
2.2
4126
2620*2720*3561
2-DN80
11
NZL800
803
5.5
80000
60
2.2
5104
2620*2720*3811
2-DN80
12
NZL950
Chapter 955
7.5
100000
87
3.0
5823
2620*2720*4061
2-DN80
13
NZD 1000
1006
5.5
80000
87
3.0
6482
2620*2720*4311
2-DN80
14
NZL1200
1206
7.5
100000
120
4.0
7669
3190*2720*44311
2-DN125
15
NZL1400
1403
5.5*2
75000*2
135
5.5
8605
3790*3190*4061
2-DN125
16
NZL1900
1905
5.5*2
78000*2
170
7.5
11832
3990*3190*4351
3-DN100
Our advantages
(1) Save electricity; save water; save space;
(2) High heat exchange capacity;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long life.

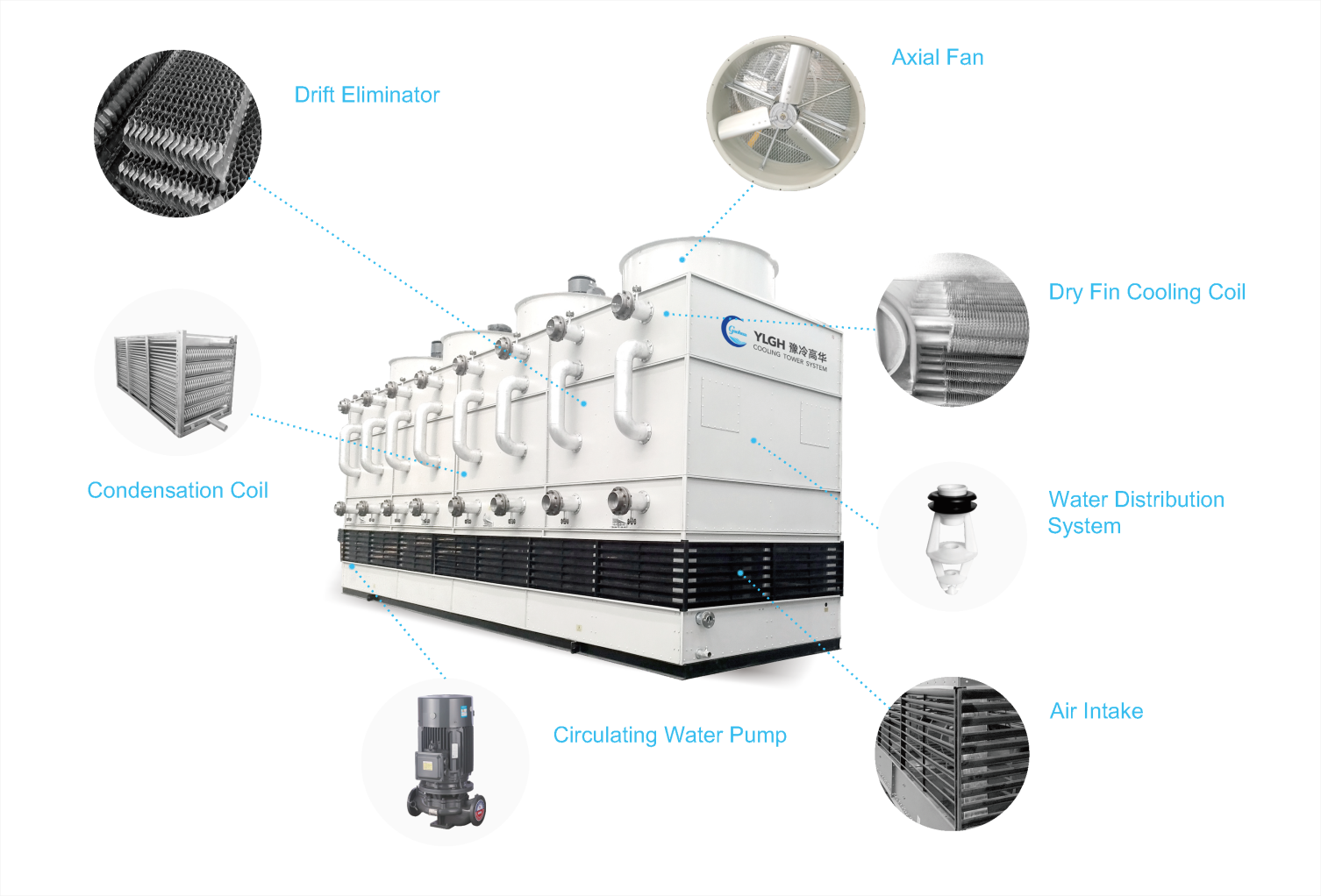

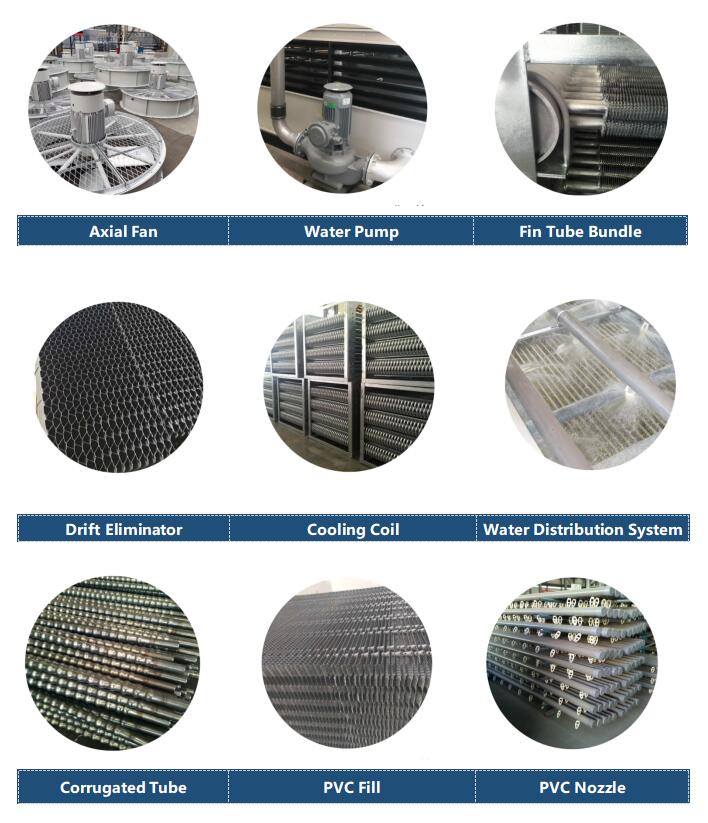

main parts
