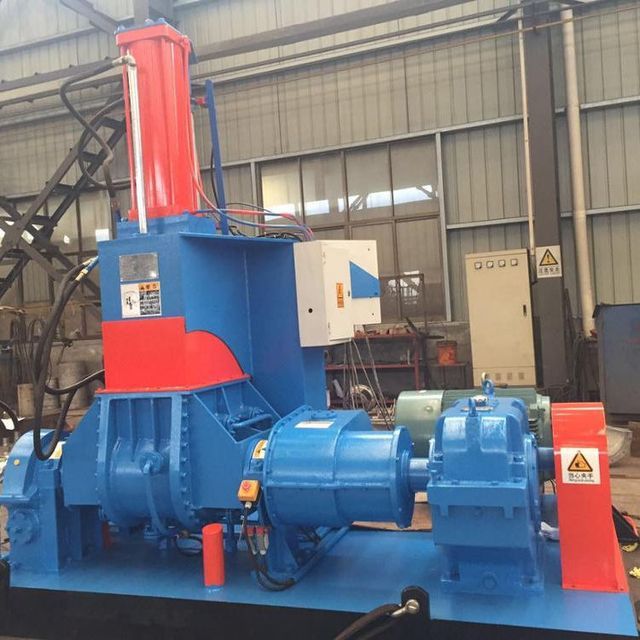

Banbury Internal Mixer 50L/75L/150L/Rubber Industry
- $8800.00 /set
- 1 set
- Nantong Kneading Mixing Machine Co., Ltd.
- Jiangsu, China
- Mr Donghong Wu
| Showroom location: | not any | Total capacity (liter): | 75 liters |
| payment terms: | L/C, T/T, Western Union, MoneyGram, Cash | Power (kW): | 90 kW |
| Local service locations: | not any | Warranty: | 1 year |
| After Warranty Service: | online support | Supply capacity: | 1500 sets per year |
| Batch time (times/hour): | 10 times/hour | Main selling points: | high accuracy |
| Packaging Details: | Wooden box (can be customized according to user requirements and specifications) | port: | Shanghai, Nantong |
| Origin: | Jiangsu, China | type: | Rubber kneader |
| brand: | new friends | Health status: | new |
| Weight (kg): | 4500 kg | Applicable industries: | Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, food stores, print shops, construction, energy and mining |
| After-sales service provided: | Online support, engineers are available to repair machinery overseas | model: | 75 liters |
Rubber machine
Rubber Dispersing Mixer
Rubber kneader
Kneader
Possess ISO certificate
Features of Dispersing Kneader:
1. Our dispersing kneader can provide mass production for your craft.
Excellent mixing properties ensure optimum dispersion and homogeneity. Processing is extremely stable.
2. Compression airtight kneading mixer, which provides excellent mixing quality and avoids environmental pollution.
3. Temperature control system with automatic steam heating and imported cooling.
4. Safe and easy to operate.
5. High production efficiency.
6. The high-speed mixer can also be placed in front of the kneader to form a whole production line.
thing | X(S)N-10X32 | X(S)N-20X34 | X(S)N-35X30 | X(S)N-55X30 | X(S)N-75X30 | X(S)N-110X30 | ||
Total volume of mixing chamber | L | 25 | 45 | 75 | 125 | 180 | 250 | |
Mixing chamber working volume | L | 10 | 20 | 35 | 55 | 75 | 110 | |
Drive motor power | kilowatt | 15 | twenty two | 55 45 | 75 55 | 110 95 | 185 | |
Tilt motor power | kilowatt | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
slope | ° | 140 | 140 | 140 | 140 | 140 | 140 | |
Rotor Speed (Front/Rear) | rpm | 32/23.5 | 34/28 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | |
compressed air pressure | MPa | 0.5～0.8 | 0.5~0.8 | 0.5～0.8 | 0.6～0.8 | 0.6～0.8 | 0.6～0.8 | |
Compressed air capacity | m3/min | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | |
Cooling water pressure (rubber mixing) | MPa | 0.2～0.4 | 0.2～0.4 | 0.3～0.4 | 0.3～0.4 | 0.3～0.4 | 0.3～0.4 | |
Heating Vapor Pressure (Plastic Mixing) | MPa | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | |
| L | mm | 2580 | 2630 | 3200 | 3280 | 3330 | 3930 |
Dimensions | watt | mm | 1300 | 1520 | 1900 | 1930 | 2620 | 3000 |
| h | mm | 2280 | 2550 | 2950 | 3070 | 3340 | 3660 |
weight | Kilogram | 3300 | 4500 | 6500 | 7500 | 10500 | 14500 | |
Applicable to: ultra-high viscosity materials are mixed, cut, and extruded under vacuum to make rubber and filler mixing and spreading faster, reduce production time and energy consumption, improve storage stability of plastic products, and increase production intensity
