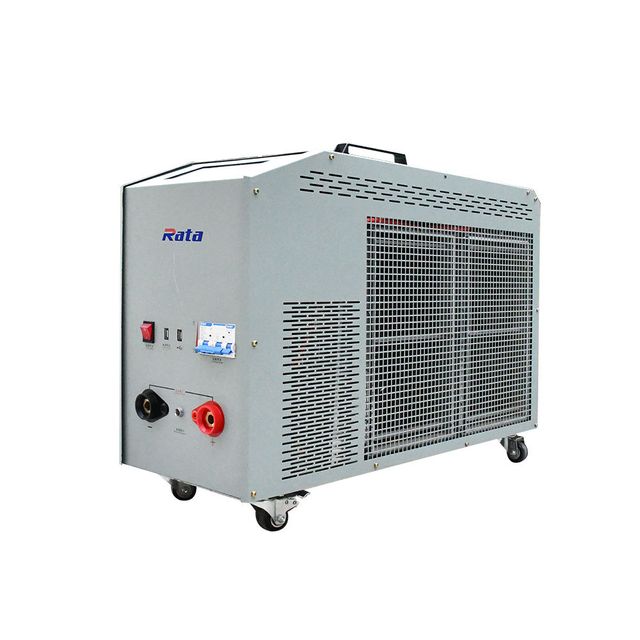

Battery Discharge Tester 100V-80Ah Online Battery Discharge/Charge/Monitor
- $3000.00 /piece
- 1 piece
- Deyang Rata Technology Co., Ltd.
- Sichuan, China
- Mr Daniel He
PRODUCT DETAIL
| Voltage test accuracy: | 1% | type: | Portable, Unloader |
| Certificate: | EU standard | payment terms: | L/C,Western Union,T/T |
| aspect: | 350mm*580mm*680mm | application: | Telecom, Mobile, Unicom and DC Power |
| Certification: | According to customer requirements | model: | RATA-FDY 100/80 |
| custom made: | Yes | Voltage: | 100V |
| Supply capacity: | 10 acres per month | port: | chongqing |
| usage: | Impact testing machine | Machine voltage resolution: | 0.1V |
| size: | 350mm*580mm*680mm | standard: | ASTM |
| place of origin; place of origin: | Sichuan, China | weight: | 60kg |
| brand: | Lata | The voltage measurement range of the whole machine: | 180-300V |
| Warranty: | 3 years |

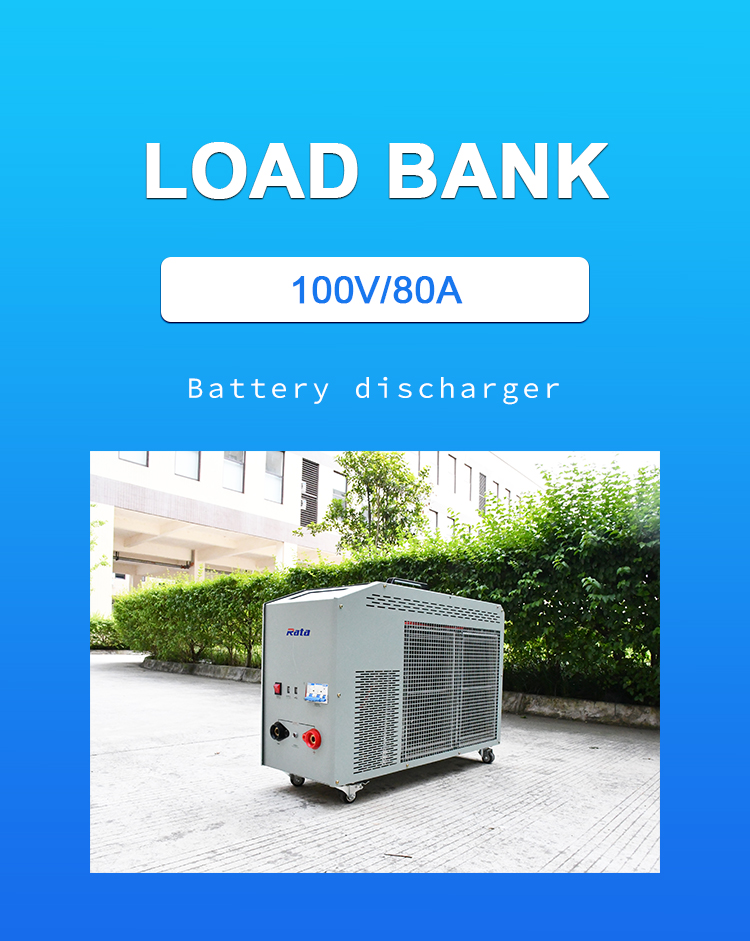

100V-80A Battery Discharge Equipment Multifunctional Battery Tester Instrument Battery Discharge/Charge/Online Monitoring
Specification
Main functions and features of the battery tester:
The product uses a color touch screen. It can be operated by finger or stylus, which is convenient and flexible. Data storage method: internal storage and external storage enhance the overvoltage protection function, and automatically restore the overcurrent protection function to overheat protection.
Online monitoring function:
When the battery pack is in the state of online discharge, uniform charge and floating charge, the instrument can monitor the battery pack and cells in real time. Discharge capacity, monitoring time, etc.
Discharge function:
After removing the battery pack from the system, use the intelligent dummy load for constant current discharge, and set the "discharge current", "discharge time", "discharge capacity", "protection voltage of the whole group" and "final protection of the cell" voltage”, the tester can automatically perform the discharge function, and display the discharge current, battery discharge capacity, whole string voltage, cell voltage, discharge time, etc. in real time; when the battery pack reaches the final discharge voltage set value, final discharge capacity set value, When the final discharge time is set, any battery voltage is lower than the final battery voltage setting or manual final operation can stop the discharge test. The last battery voltage condition can also be set to alarm not only stop. It can save 10 groups of online monitoring data and 10 groups of discharge test data; users can query and delete. The computer can be connected to the instrument through the serial port, and the instrument can be tested, controlled and monitored in real time, as well as graphical analysis. The computer can be connected to the instrument through the serial port, and the instrument can be tested, controlled and monitored in real time, as well as graphical analysis.
Automatic protection function:
When the tester detects that the entire battery string or cell is abnormal, and the tester works abnormally, it will automatically stop the test, so as to protect the battery during the test. The main unit of the tester adopts the integrated design of the monitoring part and the power supply part, and the power supply part adopts new high-efficiency components. It is a comprehensive battery tester with small size and high efficiency. Humanized operation interface, simple operation, clear process, each operation has English prompts. Aquamarine blue high-brightness large-screen LCD display, the display effect is clear and beautiful. The upper computer data management software has powerful functions and friendly interface, which can provide functions such as data management, printing, analysis, report statistics, and automatic generation of test reports.
Battery discharger parameters | ||
Model | RATA-FDY 240/10 | |
Machine voltage measurement range | 180—300V | |
Overall voltage resolution | 0.1V | |
Voltage test accuracy | 1% | |
Discharge current range | 0-100A | |
Discharge current control accuracy | 0.1A | |
Current measurement accuracy | 1% | |
Battery Voltage Measurement Type | 2V/6V/12V | |
Battery voltage measurement range | 0-16V | |
Battery voltage resolution | 0.001V | |
Operating Voltage | Single-phase three-wire system: 220Vac (minus 20 to plus 30%) Frequency: 45-65Hz | |
pressure cooker | Input case: 2200vdc 1min Input and output: 2200vdc 1min Output: 700vdc 1min | |
safety standard | EN610950 | |
Cooling method | forced air cooling | |
communication method | RS232 communication and SD card communication | |
display mode | 7-inch color touch LCD display | |
temperature | Work: -5 to 50 degrees Celsius Storage: -40 to 70 degrees Celsius | |
humidity | Relative humidity 0 to 90% (plus or minus 2 degrees Celsius) | |
noise | less than 60dB | |
high | Rated altitude 4000m | |
size | 740mm*273mm*460mm(L*W*H) | |
reference weight | 60kg | |

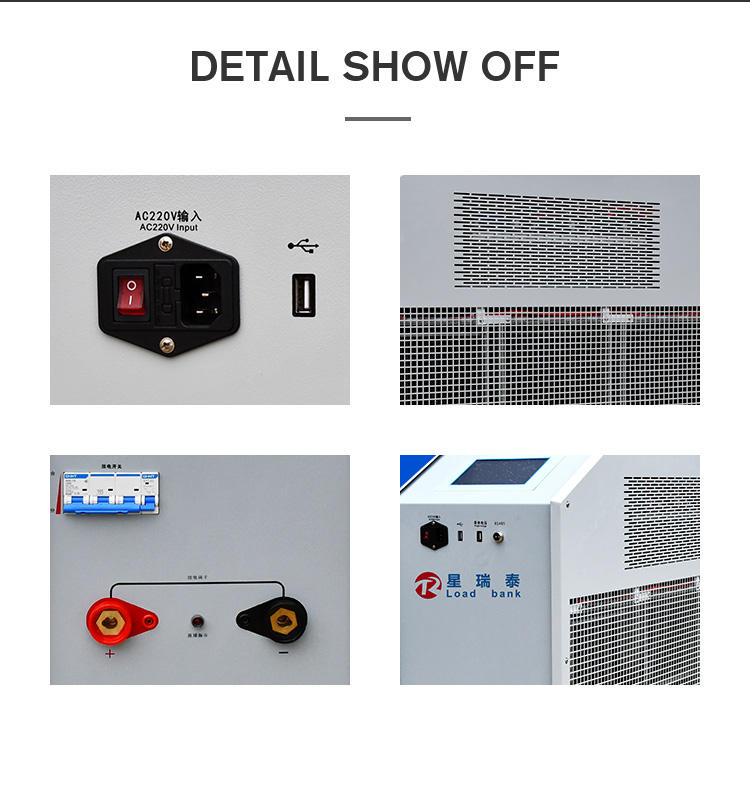

The box body is made of special cold-rolled steel plate, which can be customized indoor and outdoor.
The resistance tube is made of stainless steel, and the temperature drift coefficient is less than or equal to 2%. The resistance error of the resistance tube is ±3%, the working temperature is 1/3 of the design temperature, and there is no red heat after long-term work.
The cooling fan adopts a large axial flow fan, and the designed air volume is more than 10% higher than the actual air volume, which ensures the outlet temperature of the load box.
The resistance tube is made of stainless steel, and the temperature drift coefficient is less than or equal to 2%. The resistance error of the resistance tube is ±3%, the working temperature is 1/3 of the design temperature, and there is no red heat after long-term work.
The cooling fan adopts a large axial flow fan, and the designed air volume is more than 10% higher than the actual air volume, which ensures the outlet temperature of the load box.
Product Description

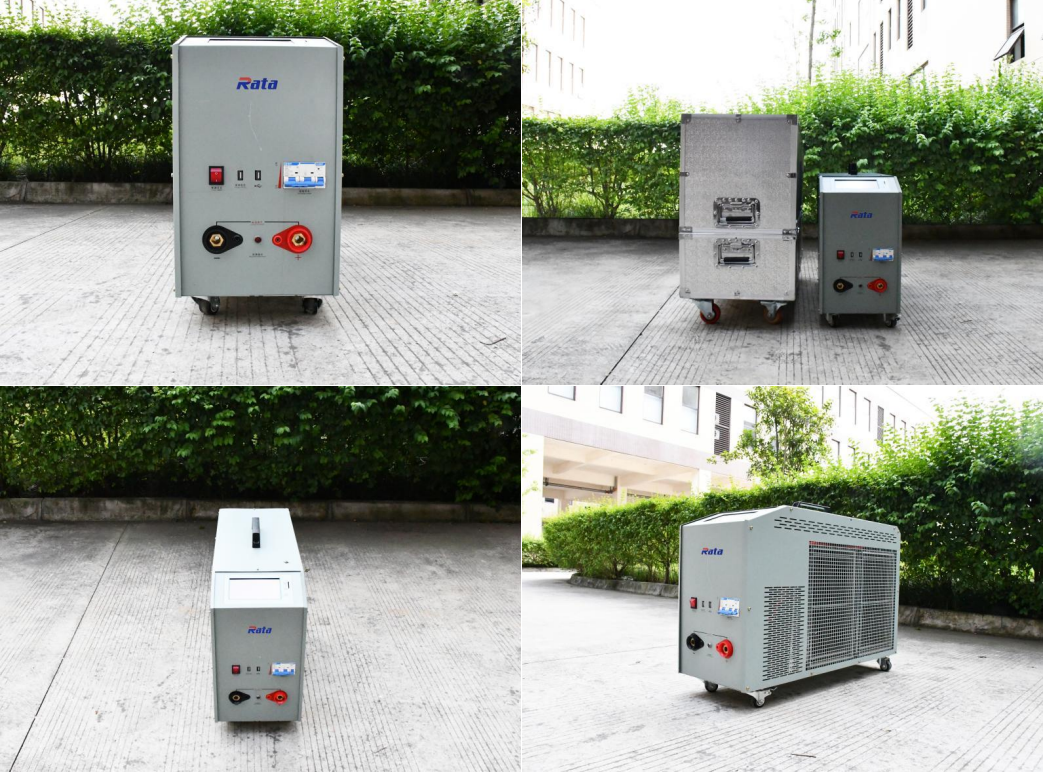

Note: Only some product images are shown
