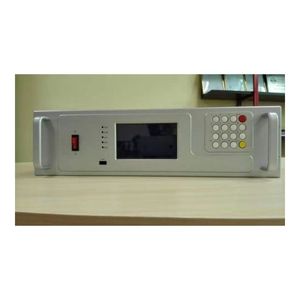

New Smart Data Center UPS Battery Monitoring System Suitable for UPS Systems
- $1290.00 /set
- 1 set
- Changshu Innovative International Trade Co., Ltd.
- Jiangsu, China
- Ms Susanna Wu
Warranty: | 1 year | custom made: | Yes |
Packaging Details: | Box | Supply capacity: | 10000 sets per month |
Certification: | BCTC | Packaging Preview: | |
port: | Shanghai | brand: | YNW |
payment terms: | letter of credit, wire transfer | type: | monitoring Center |
aspect: | 483*300*133mm | Voltage: | 0~500V |
model: | TOPUKE1200-48V/2V/2 | place of origin; place of origin: | China |
product description
The "TOPUKE1200 battery online monitoring system" is established by using industrial-grade components; it is an intelligent and timely online monitoring product that uses high-performance single-chip microcomputer as the control power supply to achieve reliable data and transmit the monitoring data to the monitoring center.
1.1 Product use
TOPUKE1200 battery online monitoring system is mainly used in power plants, power supply bureaus, energy storage power stations (wind energy, solar energy, etc.), communication room base stations, DC systems and UPS backup power supplies in finance, military, transportation, etc., and can also be used in electric vehicle battery packs monitoring. Timely and continuously monitor the battery internal resistance voltage, charge and discharge current, temperature, remaining Ah and other information to provide important reference for the operation and maintenance of the battery pack and ensure the reliable operation of the battery pack.
1.2 Product Features
The battery online monitoring system has the following advantages:
1. Unique battery residual Ah and internal resistance monitoring measures;
2. Signal acquisition is timely, high-speed, accurate, accurate, safe and reliable;
3. Reliable acquisition of battery voltage, cell voltage, cell internal resistance, charge and discharge current, charge and discharge capacity, and temperature;
4. Single battery health level assessment;
5. Timely implementation of monitoring procedures;
6.Storage battery pack network monitoring.
7. Fault SMS alarm;
8. Generate a report to be printed;
9. Easy installation
1.3 Service Environment
Power station generator room, power supply bureau, energy storage power station and other places where batteries are used; Communication base station, generator room; Financial, military, and transportation generator room;
1.4 System Configuration
number |
Name |
Specifications |
quantity |
1 |
Battery Online Monitoring System |
TOPUKE1200 |
1 |
2 |
Display terminal (matching models without display) |
|
1 |
3 |
current sensor |
CS050EK1 |
1 |
4 |
temperature sensor |
DS18B20 |
2 |
5 |
sampling cable |
0.3-0.5 square meters, 2.5 square meters |
Based on method and distance |
6 |
Monitoring software system |
TOPUKE1200 |
1 |
7 |
GSM MODEM (optional) |
|
1 |
8 |
Monitoring System Manual |
TOPUKE1200 V1.0 Manual |
1 |
Structure and Theory
2.1 System structure
The system structure is generally divided into the following parts: acquisition module, discharge module, central processing module, display module, control module, alarm notification module and buttons.
The acquisition module collects battery voltage, current, temperature, internal resistance and other parameters in time; the central processing module will switch, analyze and calculate the collected information; the display module is mainly used to display the test results and present the parameter settings of the control module to the instrument , and then the display module uploads the information to the PC through the 232 serial port (485, Ethernet) to realize remote monitoring; the monitoring host computer software can memorize and analyze the information, and then generate a local alarm. In addition, it sends alerts to designated mobile phones via GSM and MODEM.

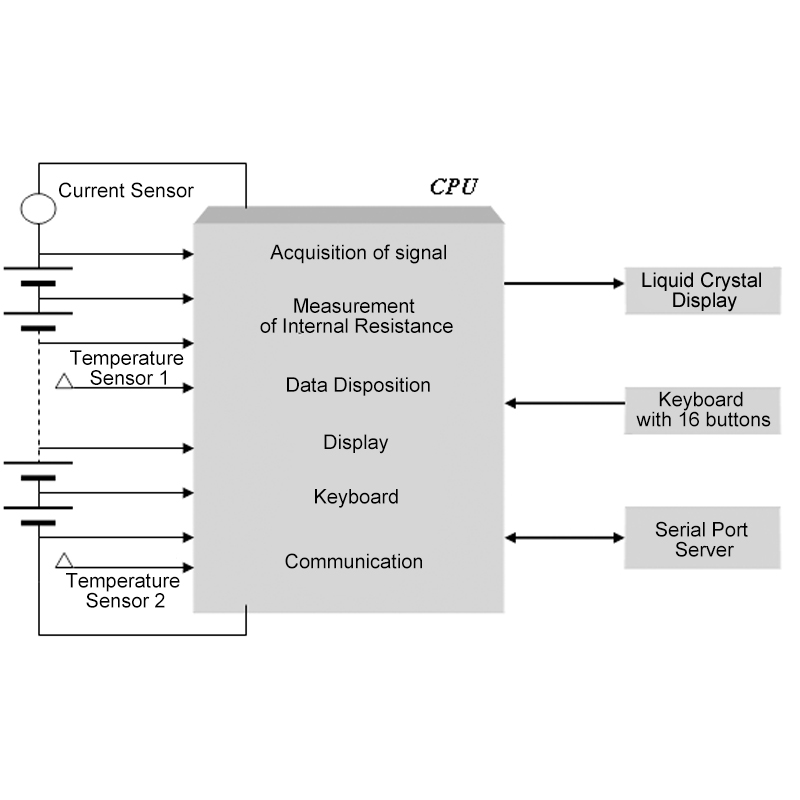

The system architecture diagram is as follows:
2.2 How it works
2.3 Security

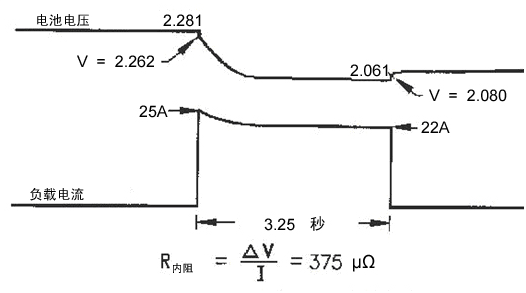

The DC discharge internal resistance test method is to test the internal resistance according to the working characteristics of the battery, and it is a method based on the working mode of the battery. Under normal circumstances, the battery can provide continuous and constant 0.1C current for nearly 10 hours; at the same time, it can also provide 1C high current instantaneously for several minutes or tens of minutes.
The method of DC discharge test internal resistance will not affect the performance and life of the battery. The battery is allowed to discharge with a large current for a short time, but the battery will be damaged due to overcharging or an unqualified charger, so avoid overcharging. Sometimes, the battery will be discharged with a current of hundreds of amperes; sometimes, due to the power failure of the base station in the computer room, it is generally discharged for more than a few hours with tens of amperes. This will not damage the battery, but a battery that floats without being discharged can be easily damaged.
The TOPUKE1200 battery online monitoring system performs shallow discharge with a current of 20-30 amps for a duration of 3.25 seconds; and its discharge capacity is less than 1/300 (for a battery with a capacity of 200Ah, the larger the capacity, the less the discharge capacity). When the battery voltage drop is only 0.01V-1V (depending on the battery capacity and performance), it will not cause the float action.
This method of testing internal resistance can be performed weekly to predict low-frequency battery aging.
Therefore, it will not cause any damage to the battery, but will often stimulate the battery to prolong its service life. The so-called impact on life is mostly used by manufacturers of the AC injection method to promote the AC method. Objectively, both methods are implemented in accordance with normal testing and do not reduce battery life or damage the battery.
3.1 Product Features
Easy installation
With 3U and 1U chassis, it can be easily installed in standard equipment cabinets; non-standard chassis is attached with fixing handles, which can be easily fixed on walls and battery racks.
Easy cable installation
The wiring adopts European-style pluggable terminals, which is convenient for construction and saves time.
3.2 Equipment technical indicators
Name |
method |
Test Range |
measurement accuracy |
battery voltage |
max 256 |
0~16V |
±0.2%±2mv |
battery voltage |
1 |
0~500V |
±0.3% |
current |
Discharge |
0~500A |
±1A |
temperature |
2 circuits |
-45℃~85℃ |
±0.5℃ |
Number of charge and discharge |
|
20~3000AH |
±5% |
SOC estimation |
|
20~3000AH |
±5% |
SOH |
|
0~5 |
±5% |
3.3 Environment
Equipment use environment:
For indoor use only, or in an enclosed environment that is waterproof and dustproof.
Working temperature: -10℃~70℃
Working humidity: 30%~90%
Storage temperature: -40℃~85℃
Storage humidity: 20%~95%
Electromagnetic compatibility: in line with the B-level standard of GB/T17626-1998.
packing list
a host
Several test cables
A serial communication line
testing software
Instruction Manual
Manufacturer's certificate
Product Warranty Card
Factory Inspection Report
