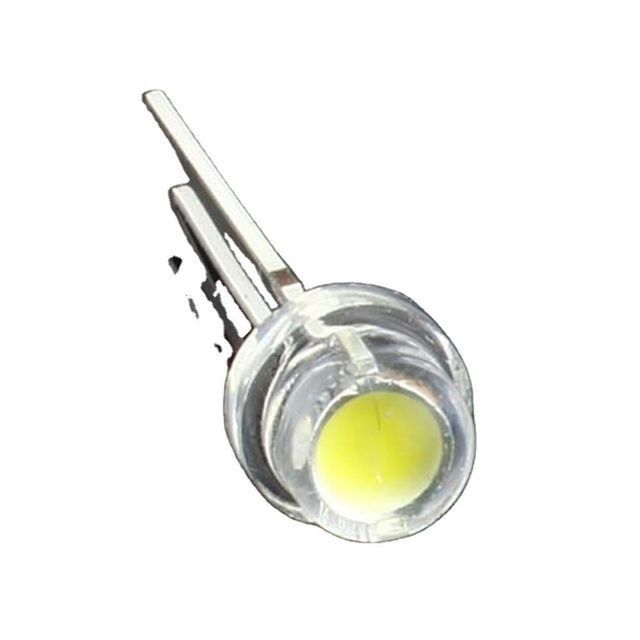

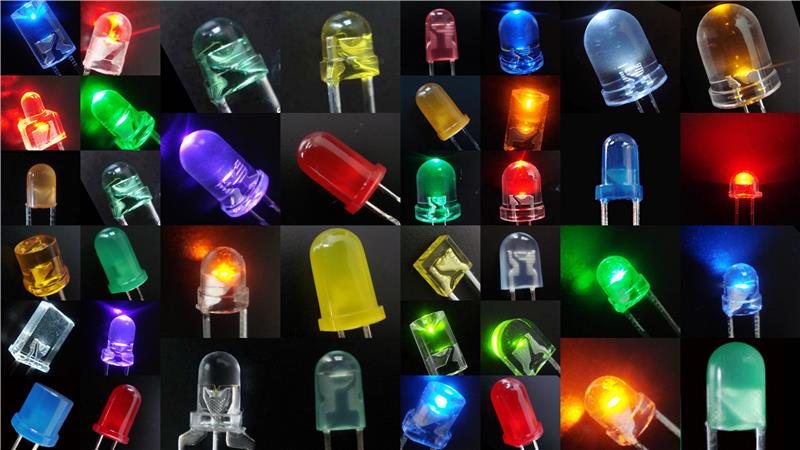

Best price Epistar chips 4.8mm Super bright 8-9lm White 5mm straw hat LED for lighting
- $0.0097 / >=5000 pieces
- 5000 pieces
- Shenzhen Fedy Technology Co., Ltd.
- Guangdong, China
- Ms Ava Qiu
| Warranty(Year): | 3-Year; | Package Preview: | ; |
| Leg: | Short leg long pins; | Operating Temperature(℃): | -25 - 65; |
| Power Dissipation: | 80; | Lifespan (hours): | 80000; |
| Optical Attenuation(%): | 0.001; | Storage Temperature(℃): | -25 - 85; |
| Luminous Efficacy(lm/w): | 120; | Type: | LAMP LED; |
| Color Temperature(CCT): | 1500-25000k; | Lighting solutions service: | Lighting and circuitry design; |
| Color temperature: | 2500-20000K; | Luminous Intensity: | 3-25lm; |
| Certificate: | CE ROHS Reach; | Port: | Shenzhen; |
| Luminous Flux(lm): | 3-25lm; | Input Voltage(V): | 2v 3v; |
| Product Weight（kg）: | 0.001; | Packaging Detail: | 1000pcs/bag, with anti-static package,NW:0.27kg, 100bag/Carton, QTY:100k, NW:28kg Carton Dimensions: 45*45*35Cm straw hat LED; |
| Emitting Color: | White Blue Green Red Amber yellow UV IR Pink; | Viewing angle: | 100-120Degree; |
| Voltage: | 3.0-3.4V; | Working Time (hours): | 80000; |
| Color Rendering Index(Ra): | 758595; | Lens color: | Water clear; |
| Warranty: | 3 year; | Lifespan: | 80000hours; |
| Supply Ability: | 800000 Pieces per Day; | Support Dimmer: | Yes; |
| Brand Name: | Fedy; | Certification: | ce,RoHS; |
| Place of Origin: | Guangdong, China; | Payment Terms: | Western Union,T/T,Paypal; |
| Intensity: | 5-6-7-8-9-12-16-20LM; | Chip Material: | AlGaInP GaAs GaP InGaN; |
| Viewing Angle(°): | 100; | Version: | straw hat LED; |
| Color Temperature: | 1500-25000k; | Power: | 0.06W; |
Item: High quality 6-7lm 7-8lm 8-9lm white warm white 5mm straw hat LED
Warranty: 3 years
Lifespan > 80 000hours
Super low decay version

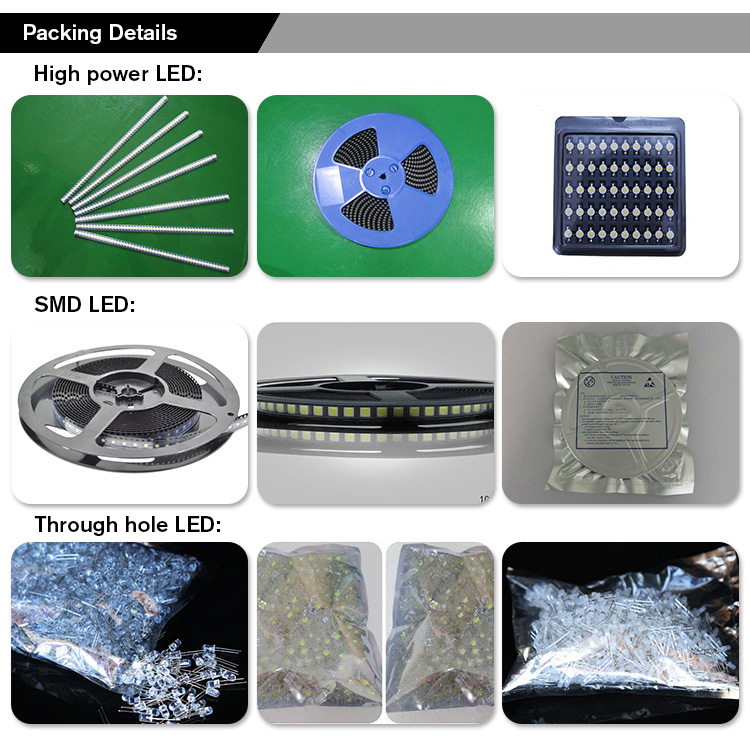

Packing: 1000pcs/ESD bag
Certificate: CE/RoHS
| 4.8mm Straw hat Red LED | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTR-1 | 300-400 | 100-120degree | 620-630 | Water clear lens White diffused lens Red diffused lens |
| FD-5HTR-2 | 400-600 | 620-630 | ||
| FD-5HTR-3 | 600-800 | 620-630 | ||
| FD-5HTR-4 | 800-1200 | 620-630 | ||
| FD-5HTR-5 | 1200-1800 | 620-630 | ||
| FD-5HTR-6 | 1800-2200 | 620-630 | ||
| FD-5HTR-7 | 2500-3000 | 620-630 | ||
| 4.8mm Straw hat Yellow LED | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTY-1 | 150-250 | 100-120degree | 588-595 | Water clear lens White diffused lens Yellow diffused lens |
| FD-5HTY-2 | 500-700 | 588-595 | ||
| FD-5HTY-3 | 800-1000 | 588-595 | ||
| FD-5HTY-4 | 1500-1800 | 588-595 | ||
| FD-5HTY-5 | 2000-2800 | 588-595 | ||
| 4.8mm Straw hat Amber LED | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTA-1 | 150-250 | 100-120degree | 600-610 | Water clear lens White diffused lens Amber diffused lens |
| FD-5HTA-2 | 500-700 | 600-610 | ||
| FD-5HTA-3 | 800-1000 | 600-610 | ||
| FD-5HTA-4 | 1500-1800 | 600-610 | ||
| FD-5HTA-5 | 2000-2800 | 600-610 | ||
| 4.8mm Straw hat White LED | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTW-1 | 6-7lm | 100-120degree | Warm white (2500-5500K) Pure white (5500-6500K) Cool white (6500-10000K) |
Water clear lens White diffused lens |
| FD-5HTW-2 | 7-8lm | |||
| FD-5HTW-3 | 8-9lm | |||
| 4.8mm Straw hat Green LED | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTG-1 | 1600-1800 | 100-120degree | 520-530 | Water clear lens White diffused lens Green diffused lens |
| FD-5HTG-2 | 2500-3000 | 520-530 | ||
| FD-5HTG-3 | 3500-4000 | 520-530 | ||
| 4.8mm Straw hat Blue led | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTB-1 | 500-600 | 100-120degree | 460-470 | Water clear lens White diffused lens Blue diffused lens |
| FD-5HTB-2 | 600-800 | 460-470 | ||
| FD-5HTB-3 | 1200-1800 | 460-470 | ||
| 4.8mm Straw hat UV LED in water clear lens | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTUV-1 | 150-250 | 100-120degree | 400-410 | Water clear lens White diffused lens |
| FD-5HTUV-2 | 400-800 | 400-410 | ||
| FD-52HTUV-1 | 100 | 390-400 | ||
| FD-53HTUV-1 | 600 | 380-385 | ||
| FD-54HTUV-1 | 200 | 360-365 | ||
| FD-542HTUV-1 | / | 365-370 | ||
| FD-55HTUV-1 | / | 410-420 | ||
| FD-56HTUV-1 | / | 430-440 | ||
| FD-57HTUV-1 | / | 370-375 | ||
| FD-58HTUV-1 | / | 375-380 | ||
| 4.8mm Straw hat Pink led | ||||
| Part No. | Intensity at 20mA in 15-20degree |
Emitting angle Available | Wavelength ( nm ) |
Lens available |
| FD-5HTPI-1 | 200-300 | 100-120degree | Water clear lens White diffused lens |
|
| FD-5HTPI-2 | 1000-1200 | |||
1. FEDY is a professional manufacturer of high quality led diode since 2000
2. Class A quality with 3 years warrany for all items.

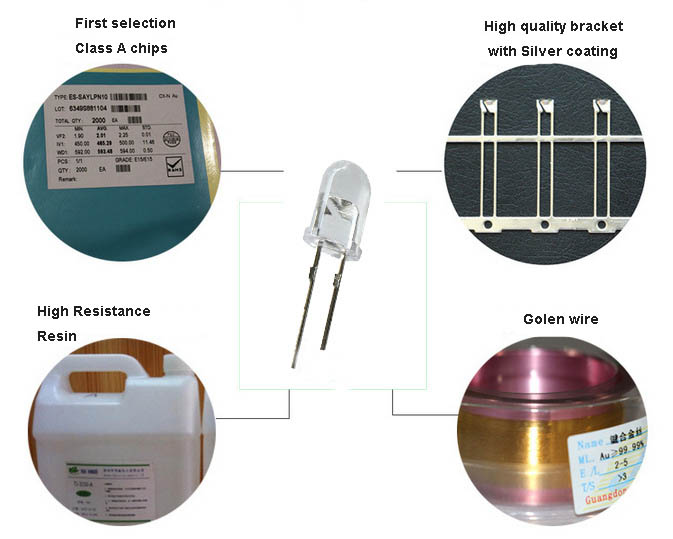

3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.

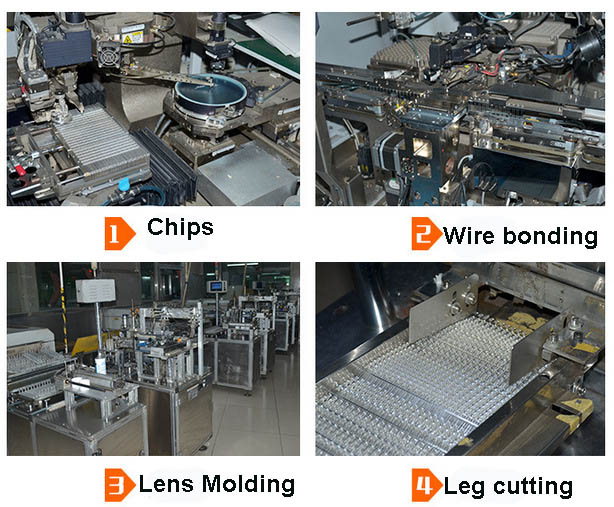

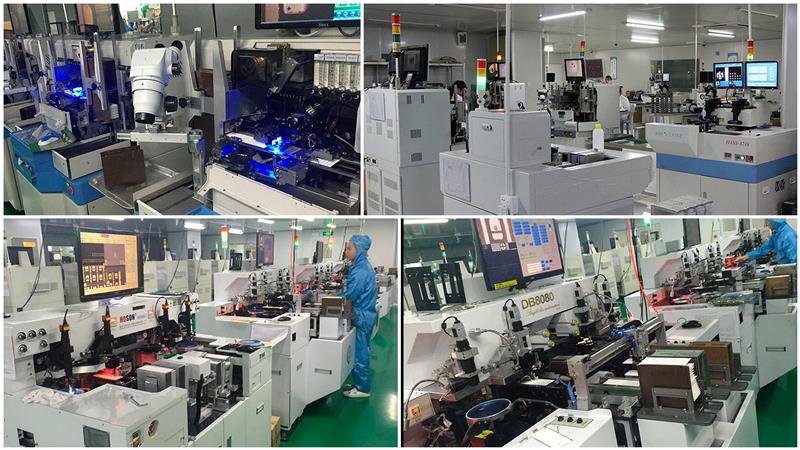

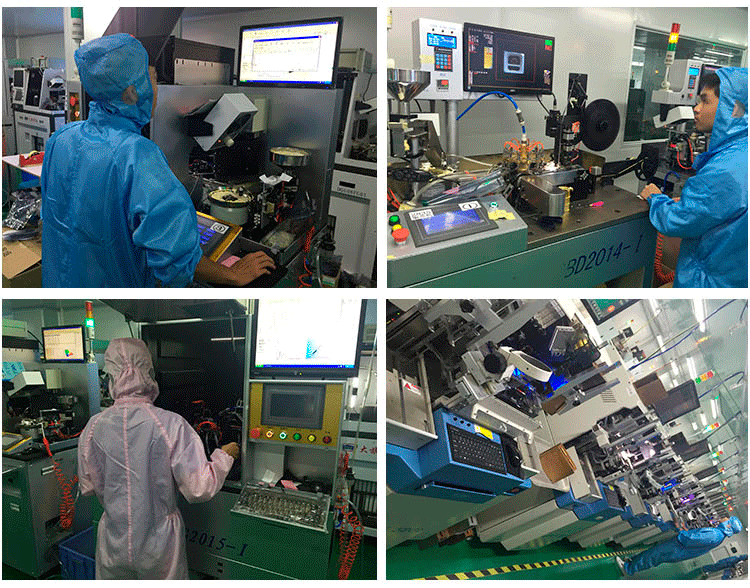

5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
FAQ
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) , Paypal, or Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pre-paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-10days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
