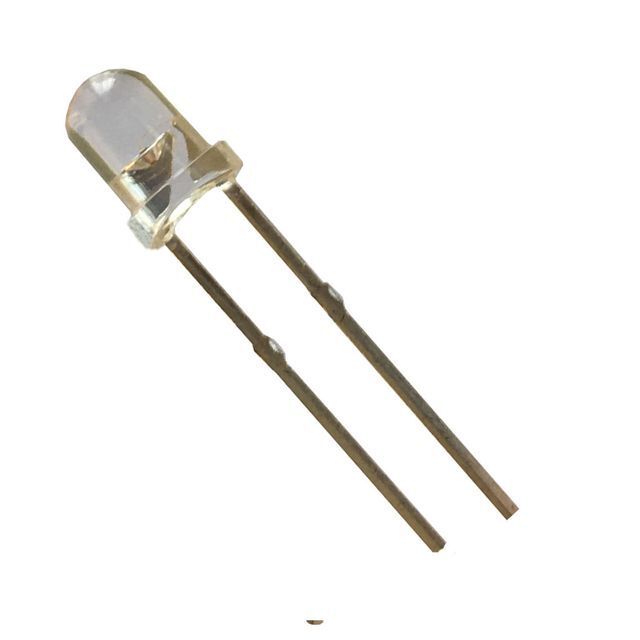

Greenergy 2022 China 5mm 1.2v high power through hole lamp led light emitting diode ir infrared 1750nm LED

PRODUCT DETAIL
Viewing Angle(°):15;Brand Name:LVL;
Luminous Efficacy(lm/w):5;Place of Origin:Hunan, China;
Color Temperature(CCT):1750nm;Single package size:5X5X5 cm;
Power Dissipation:0.2;Warranty(Year):2-Year;
Luminous Intensity:2.8mW@100mA;Input Voltage(V):0.8-1.5V;
Chip Material:InGaAsP;Working Time (hours):35000;
Single gross weight:0.050 KG;Certification:RoHS;
Optical Attenuation(%):10;Luminous Flux(lm):2.8mW@100mA;
Color Rendering Index(Ra):0;Lifespan (hours):50000;
Emitting Color:Infared;Type:LAMP LED;
Operating Temperature(℃):-40 - 80;Color Temperature:1720nm;
Power:0.2W;Packaging Detail:Neutral packing of 5mm 1.2v high power through hole lamp led light emitting diode ir infrared 1450nm LED;
Product Weight(kg):0.2;Storage Temperature(℃):-40 - 100;
Size:F5 mm head;Lighting solutions service:Lighting and circuitry design;
Selling Units:Single item;Support Dimmer:no;

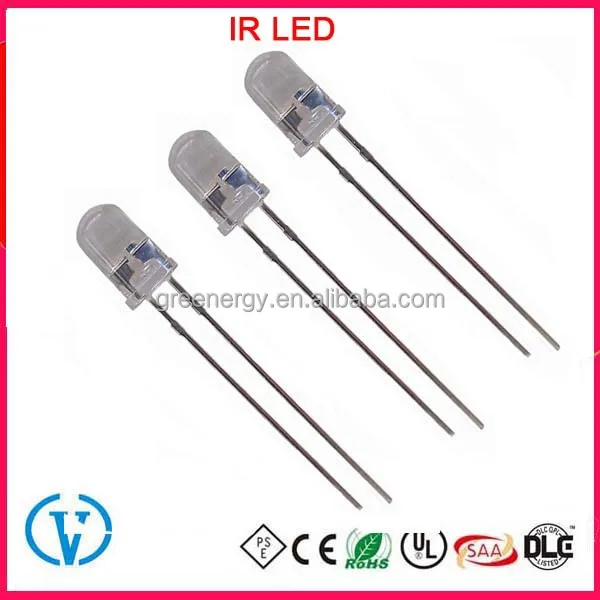

A, Feature of IR LED

♦High Power Infrared LED
♦ Peak wavelength typ. 1720 nm
♦ Very High radiant Intensity
♦ Emission angle ±7°





 5mm 1.2v high power through hole lamp led light emitting diode ir infrared 1450nm LED





1,                Absolute Maximum Rating            (Ta=25℃)
Item Symbol Value   Unit
DC forward current IF 100   mA
Power dissipation PD 90   mW
Operating temperature Topr "-40~+60
Storage temperature Ystg -40~+80
Reverse voltage VR 5   V
Sold soldering temperature Tsol 260℃/3Sec   ---
Plus with Max 10ms,duty ratio max1/10



2  ,            Initial Electrical/Optical Characteristics                               (Ta=25℃)
Item Symbol condition Min Type Max Unit
DC forward Voltage VF I=100mA 0.5 0.9 1.5 V
DC reverse Current IR V=5V ---- ---- 5 μA
Wavelength WD I=100mA 1670 1720 1770 Nm
FWHM(nm) Δλ I=100mA ---- 130 ---- Nm
Output Power Pout(mW) IV I=100mA 1.0  2.8 5 mW
50%Power Angle 2θ1/2 I=I00mA ---- 7 ---- deg



3,     Typical Electrical & Optical Characteristics at TA = 25°C


Wavelengt h (nm) Part No. Dimension (mm) Radiant Power[mW]             IF /100mA  VoltageVF[V]
min max min max
1720nm±50 L1720 5mm 1 5 0.5 1.5
