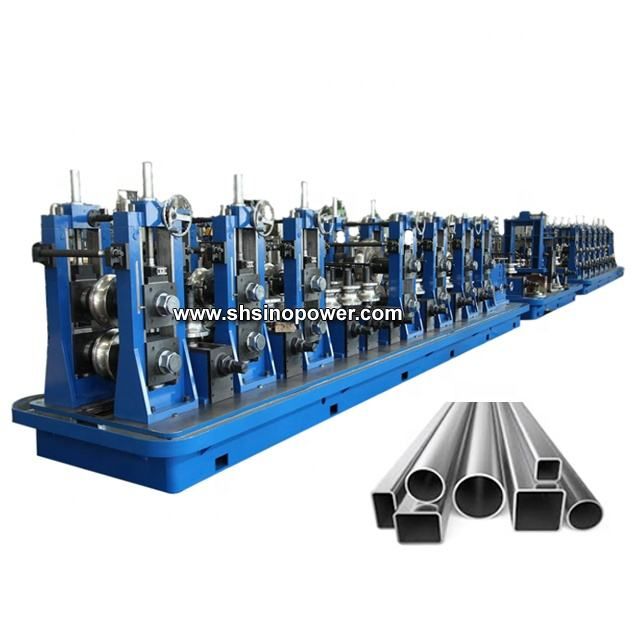

Big discount automatic erw pipe rolling mill high frequency pipe welding machine production line for sale
- $115000.00 / 1 - 1 units
$112000.00 / >=2 units - 1 unit
- Shanghai Honcang Industrial Limited
- Shanghai, China
- Mr SHAWN XU
| Warranty: | 1 year | Type of machine: | Tube grinding line |
| Applicable industries: | manufacturing plant | Pipe shape: | Round tube, square tube, rectangular tube, LTZ profile |
| Tube: | Carbon steel | Core components: | Bearings, Gears |
| place of origin; place of origin: | Jiangsu, China | Marketing Type: | New Products 2020 |
| weight: | 45 tons | Main selling point: | competitive price |
| Voltage: | 220/380/415/420/440V | Local service location: | not any |
| payment terms: | wire transfer | Certification: | ISO 9001:2008; Chief Executive |
| Core Components Warranty: | 1 year | After Warranty Service: | Video technical support |
| After-sales service provided: | On-site repair service, online support, video technical support | Mechanical test report: | if |
| Showroom location: | not any | Control System: | Siemens/Taiwan PLC control system; |
| thickness: | 0.6 - 2.5mm steel pipe | type: | Tube mill |
| Pipe diameter: | 12.7 -76mm steel pipe | Video external inspection: | if |
| Health status: | new | Packaging Details: | automatic erw pipe making machine steel pipe welding machine line carbon steel pipe making machine |
ERW pipe making machine | Slitting machine | cut length line |
Steel coil forming machine | Roll film production line | Coil color coating line |
Why choose us?
1.30 years of research and development of metal processing equipment
2.15 years of export experience, serving hundreds of customers in 40 countries
3. Top engineer team, advanced production technology, bring maximum return to customers.
4.24 hours online service, perfect service system
The high-frequency pipe welding machine is the main equipment of the welded steel pipe production line. Below are the detailed specifications of our pipe production line.

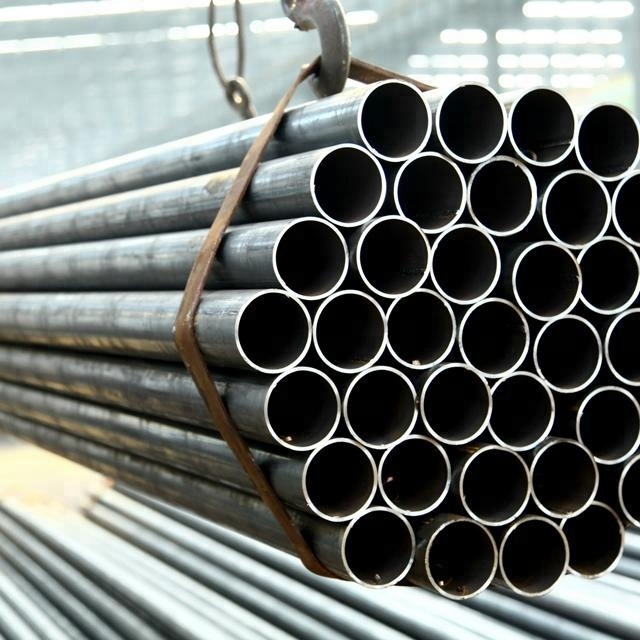

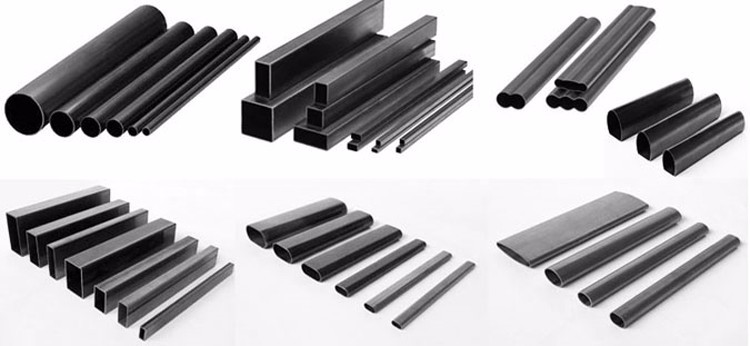

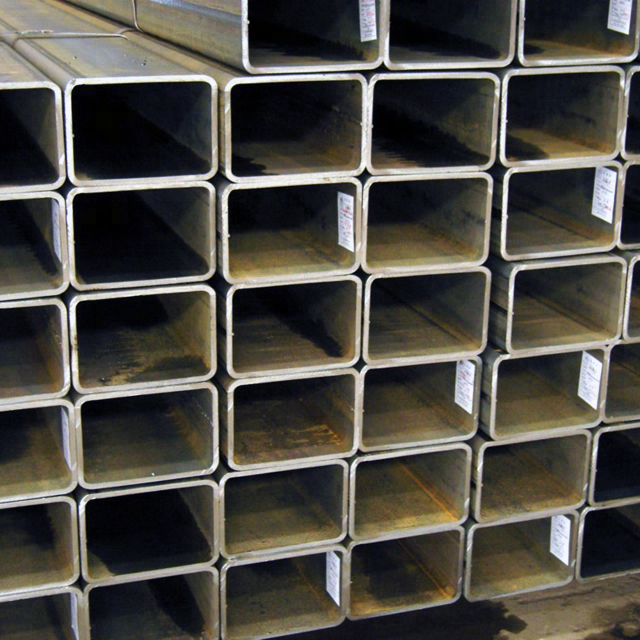

1: What kind of pipes can our pipe factory produce?
1. Oil and gas pipelines 7. Wire and cable protection pipes
2. Heating pipes 8. Structural support steel pipes
3. Low pressure process piping 9. Industrial steel pipes
4. Low pressure fire pipeline 10. Decorative pipeline
5. Sewage pipes 11. Water pipes
6. Steel Scaffolding Pipe 12. Construction Pipe

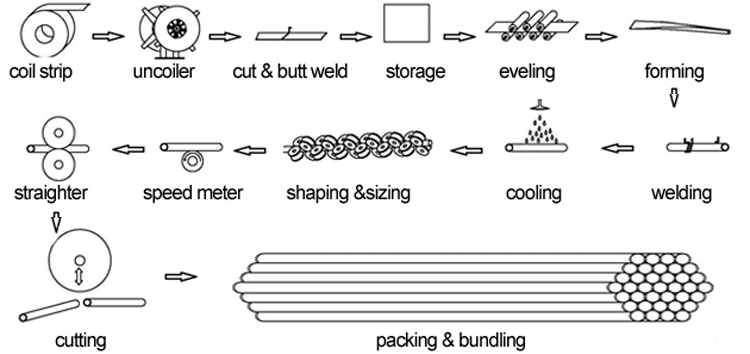

2. Flow chart of our tube mill
ISO/CE MS iron pipe making machine production line 8-219mm ERW pipe making machine standard flow chart:

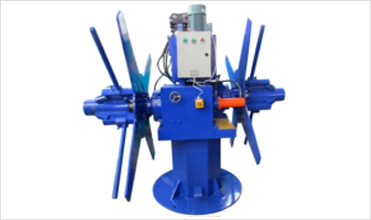

Step 1: Uncoiler
Function: The frame, main shaft, additional rollers and brakes provide tension support for rolling strips for the ERW pipe rolling production line.
There are 3 types: pneumatic, hydraulic and manual.

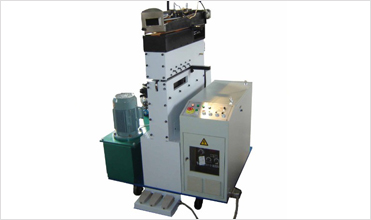

Step 2: Shear Butt Weld
2 types: automatic and manual
What it does: Cut off the ends of each coil of strip, and then weld them together so that the pipe welding machine line can continue production.

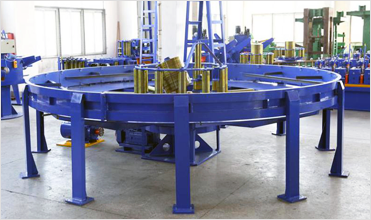

Step 3: Strip the accumulator
Function: Store strips to keep production going.
2 types: horizontal/vertical
Advantages: The horizontal type can provide more storage space. The vertical type is cheap and takes up little space.

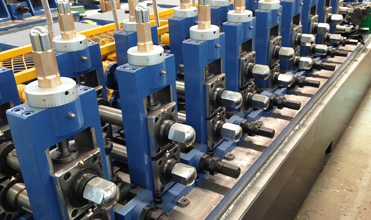

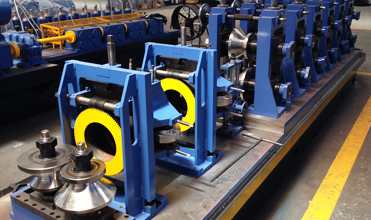

Step 4: Form the Sections.
Function: Strip forming pipe
Advantage:
>Advanced molding technology
>First-class forming platform
>Reliable quality gearbox
>Siemens Bader Motor

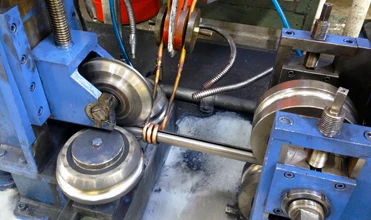

Step 5: High Frequency Soldering
Function: welding pipes of different thickness and diameter, high frequency welding machine power of welding machine
Our advantage: We choose the best welder in China: SANY brand.
Step 6: Adjustment Section
Function: Adjust tube size to exact size
Advantage:
>Advanced sizing technology
>First-class forming platform
>Reliable quality gearbox and Siemens Baide motor
>High precision and small diameter error

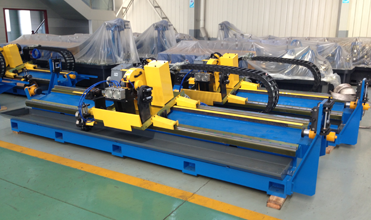

Step 7: Flying/Cold Saw
Function: Cut the tube grinding line tube to a suitable length.
Flying saw: easy to operate and low investment.
Cold Saw: Noise-free, burr-free cutting precision and profile.

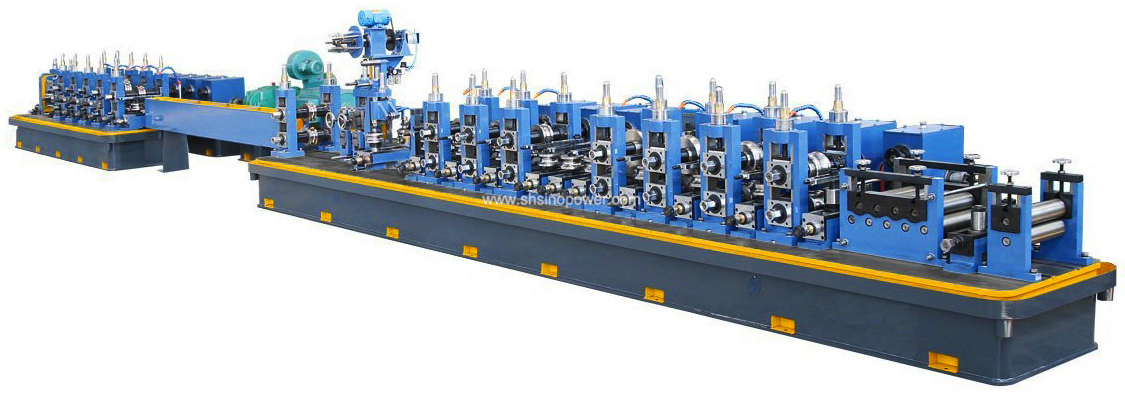

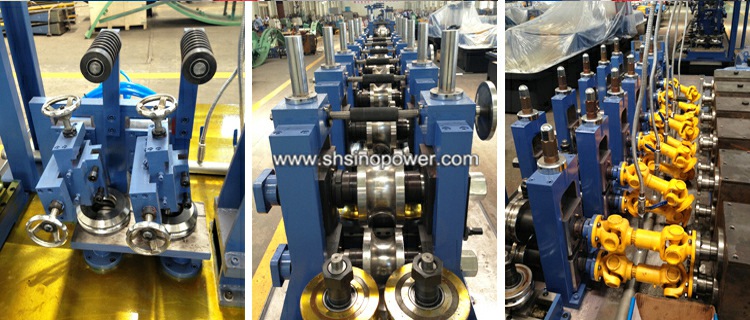

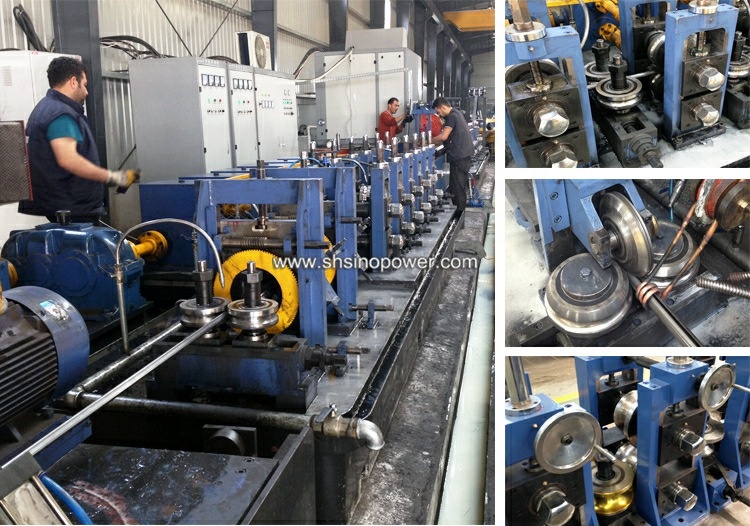

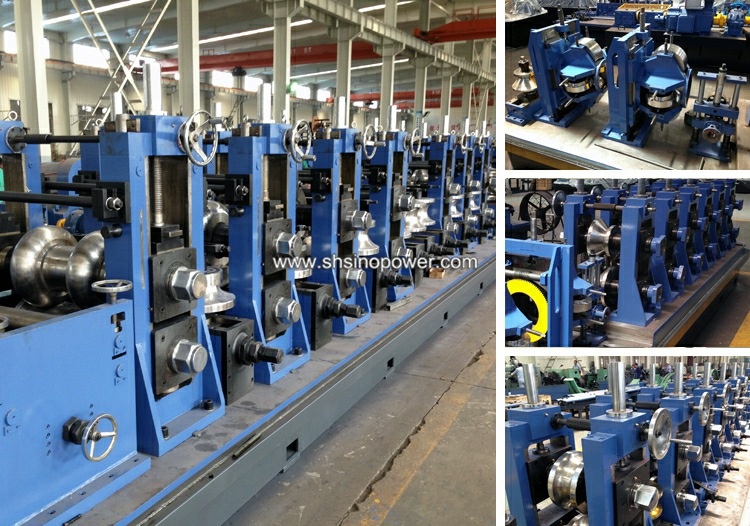

3. Details of the pipe making machine
With excellent product quality, CLP Group has successfully provided world-class products and services to more than 40 countries and regions around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, Philippines, Pakistan, Kazakhstan, Ethiopia, etc.
Below is ourStandard seriesour pipe making machine,We also accept customization.
Model | round tube | Square and Rectangular Tubes | speed | ||||||
Diameter/mm | Thickness/mm | square. size/mm | Adjustment size/mm | Thickness/mm | |||||
SP12 | 8-16 | 0.2-0.6 | 20-120m/min | ||||||
SP16 | 8-25 | 0.2-1.0 | 7×7-20×20 | 7×7-25×15 | 0.2-0.8 | 20-120m/min | |||
SP25 | 8-32 | 0.3-1.3 | 7×7-25×25 | 7×7-30×20 | 0.3-1.0 | 20-120m/min | |||
SP28 | 8-42 | 0.3-1.8 | 7×7-30×30 | 7×7-40×20 | 0.3-1.3 | 20-120m/min | |||
SP32 | 16-50.8 | 0.6-2.0 | 12×12-40×40 | 14×10-50×30 | 0.6-1.6 | 20-120m/min | |||
SP45 | 19-63.5 | 0.6-2.5 | 15×15-50×50 | 20×10-70×30 | 0.6-2.0 | 20-120m/min | |||
SP50 | 19-76 | 0.6-2.5 | 15×15-60×60 | 20×10-80×40 | 0.6-2.0 | 20-120m/min | |||
SP60 | 19-76 | 0.6-3.0 | 15×15-60×60 | 20×10-80×40 | 0.6-2.5 | 20-100m/min | |||
SP76 | 25-80 | 1.2-4.0 | 20×20-62×62 | 30×10-84×40 | 1.2-3.0 | 20-70m/min | |||
SP90 | 32-90 | 1.5-4.5 | 25×25-70×70 | 30×20-90×50 | 1.5-3.5 | 20-60m/min | |||
SP115 | 38-115 | 2.0-5.0 | 30×30-90×90 | 40×20-120×60 | 2.0-4.0 | 20-60m/min | |||
SP165 | 60-165 | 2.0-6.0 | 45×45-130×130 | 60×30-150×100 | 2.0-4.5 | 15-50 m/min | |||
SP219 | 90-219 | 3.0-8.0 | 70×70-170×170 | 100×40-200×140 | 3.0×6.0 | 15-50 m/min | |||
