Steel Plate Embossing Machine Steel Plate Embossing Machine Metal Embossing India Hot Products 2020 Tube Mill Line 5 Years CN; HEB
- $20000.00 /set
- 1 set
- Cangzhou Zhongtuo International Trade Co., Ltd.
- Hebei, China
- Mr xu
| Health status: | new, new | Warranty: | 5 years |
| Main selling point: | high accuracy | place of origin; place of origin: | Hebei china |
| port: | Tianjin | Core Components Warranty: | 2 years |
| Supply capacity: | 20 sets per month | Video external inspection: | if |
| Showroom location: | India | Drive System: | Hydraulic/Manual/Electric |
| Mechanical test report: | if | Packaging Details: | The uncoiler is covered with plastic film and the spare parts are packed in cartons. |
| brand: | Zhongtuo, Zhongtuo | Local service location: | India |
| Marketing Type: | Hot Products of 2020 | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Core components: | PLC, engine, bearing, motor, gear, pump | payment terms: | letter of credit, wire transfer |
| Embossing Roller: | 440*1150 | ability: | 10 tons |
| use: | Metal Embossing | After-sales service provided: | Online support, on-site installation and commissioning training, on-site maintenance and repair services, video technical support |
| Raw material thickness: | custom made | speed: | 25m/min |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Type of machine: | Tube grinding line |
steel plate embossing machine steel plate embossing machine
Steel wallboard embossing machine embossing rolls can make metal structural corners for building structures.
Custom grating floor plate embossing machines are used to produce sheets and arabesques with exquisite patterns and graphics.

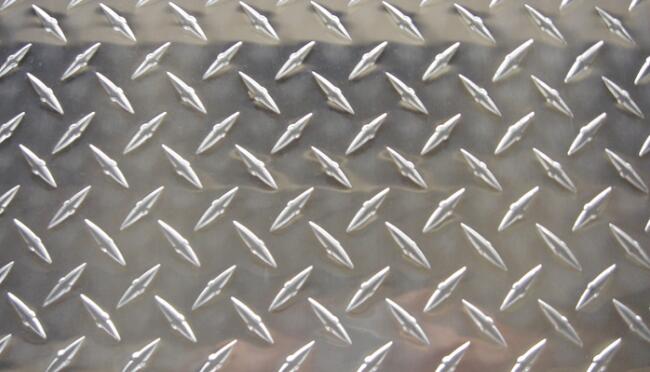

Different shapes of checkered boards can be used for many decorative buildings and also for anti-skid floors, especially for ships.
Zhongtuo metal floor embossing machine can help you emboss different patterns on metal, which can be used in many buildings, such as: walls, panels or others.
The alloy embossing roll for steel plate embossing roll is mainly composed of two large rolls.
The rollers are patterned, so when the rollers roll and the sheet between the two runs, the pattern appears on the sheet.
The best quality steel embossing roll floor embossing machinery can be done manually by workers, from feeding and embossing,
It is also composed of PLC control box fully automatic.

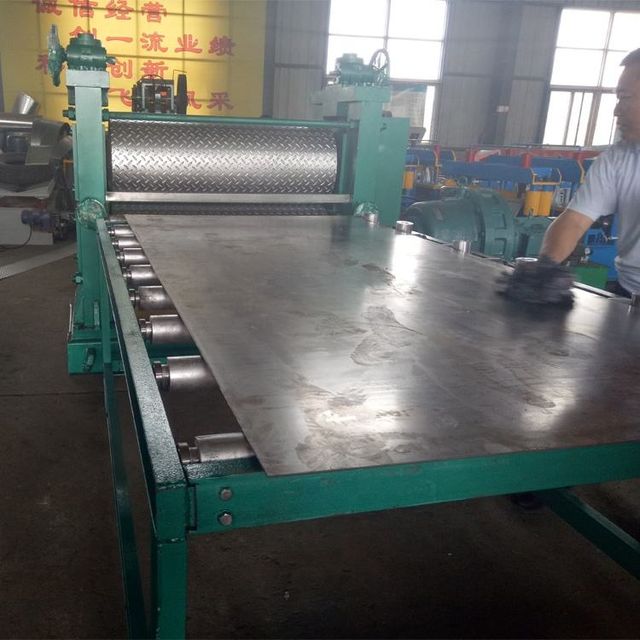

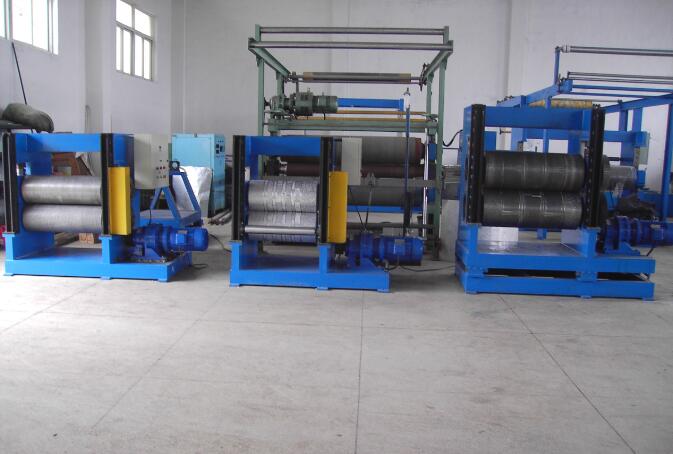

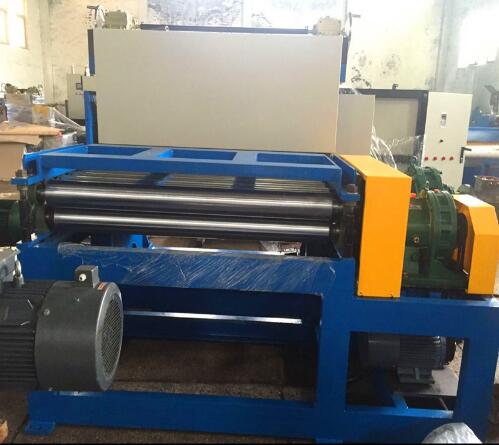

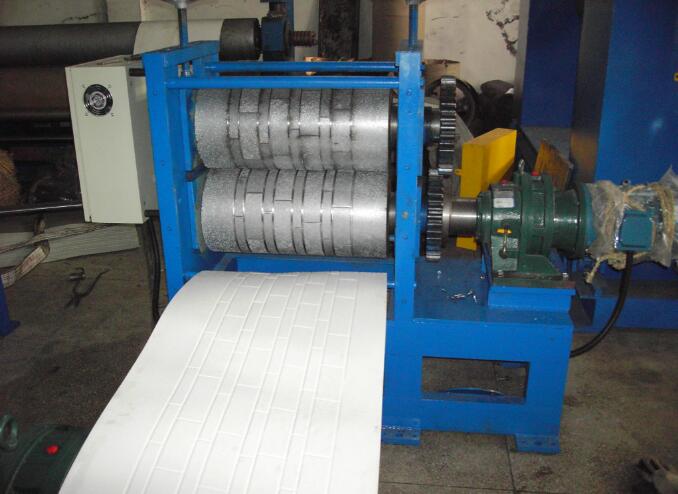

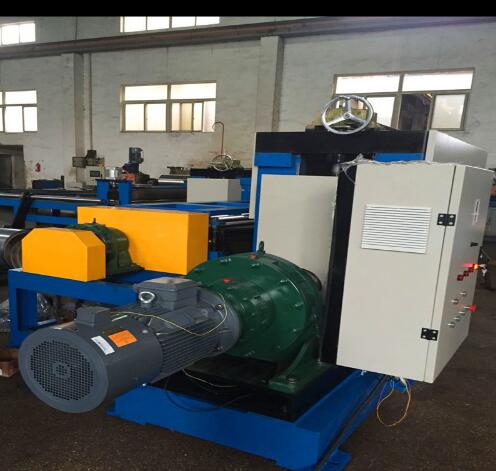

Here are some pictures of floor embossing machines for your reference:
Below are some specification details of alloy embossing rolls for steel plate embossing rolls, please check:
Embossing roller: ø440*1150;
Bearing: Torrington spherical roller bearing, TWB 3003136;
Adjust the embossing thickness via the dial.
Bearing box: 400*400*160mm.
Drive: 11kw AC motor,
Reducer: BWED53-17*11-11KW 4P
Speed: 1-10m/min
Pressure method: hydraulic system, 2 ø150 oil cylinders
Enclosed protective cover, safety device. Emergency stop switch
Embossing roller surface hardness: HRC 58~62
Hardness surface depth: 5-10mm
Embossing roller material: 60CrMnMo
Pattern laser engraving as customer's sample;
If you need a set of alloy embossing rolls for steel plate embossing rolls, we can design the machine and quote and send it to you.
But we need you to provide the following details:
1 sheet of material
2 Embossing speed
3 sheet thickness
4 Embossing pattern drawing
Standard parameters of this metal iron steel plate embossing roll equipment:
|
Model |
ZT-S1000 |
ZT-S1400 |
ZT-S1600 |
ZT-S1900 |
|
Dimensions (mm) |
2900*1200*1500 |
3300*1200*1500 |
3500*1200*1500 |
3800*1200*1500 |
|
Roller size |
φ350*1000mm |
φ380*1400mm |
φ400*1600mm |
φ450*1900mm
|
|
Roller material |
42CrMo |
42CrMo |
42CrMo |
42CrMo |
|
Roller hardness |
HRC55-58 |
HRC55-58 |
HRC55-58 |
HRC55-58 |
|
Embossing method |
Simultaneous embossing of upper and lower rolls |
Simultaneous embossing of upper and lower rolls |
Simultaneous embossing of upper and lower rolls |
Simultaneous embossing of upper and lower rolls |
|
Embossing regulations |
by screw |
by screw |
by screw |
by screw |
|
Motor power (KW) |
7.5 |
11 |
15 |
15 |
|
Line speed |
0-18m/min |
0-30m/min |
0-40m/min |
0-45m/min |
