CE certificate 433.92MHz wireless watch pager, wireless restaurant calling system

Price:$23.00 / 10 - 49 pieces
$20.00 / >=50 pieces
Min. Order:10 pieces
Supplier:Beijing Sinocanadian Furtherspace Technology Co., Ltd.
Region:Beijing, China
Contact:Mr Booker Zhang

PRODUCT DETAIL

NO.:	CTW07;	Warranty:	18 months;
Packaging Detail:	Foam bag + inner carton+ Master carton;	Supply Ability:	80000 Pieces per Week;
Port:	Beijing;	Mode:	vibration and ring;
Place of Origin:	Beijing, China;	Model Number:	CTW07;
Payment Terms:	Western Union,T/T;	Brand Name:	CATEL;
Color:	white;	application:	restaurant, fast food courts, cafe;

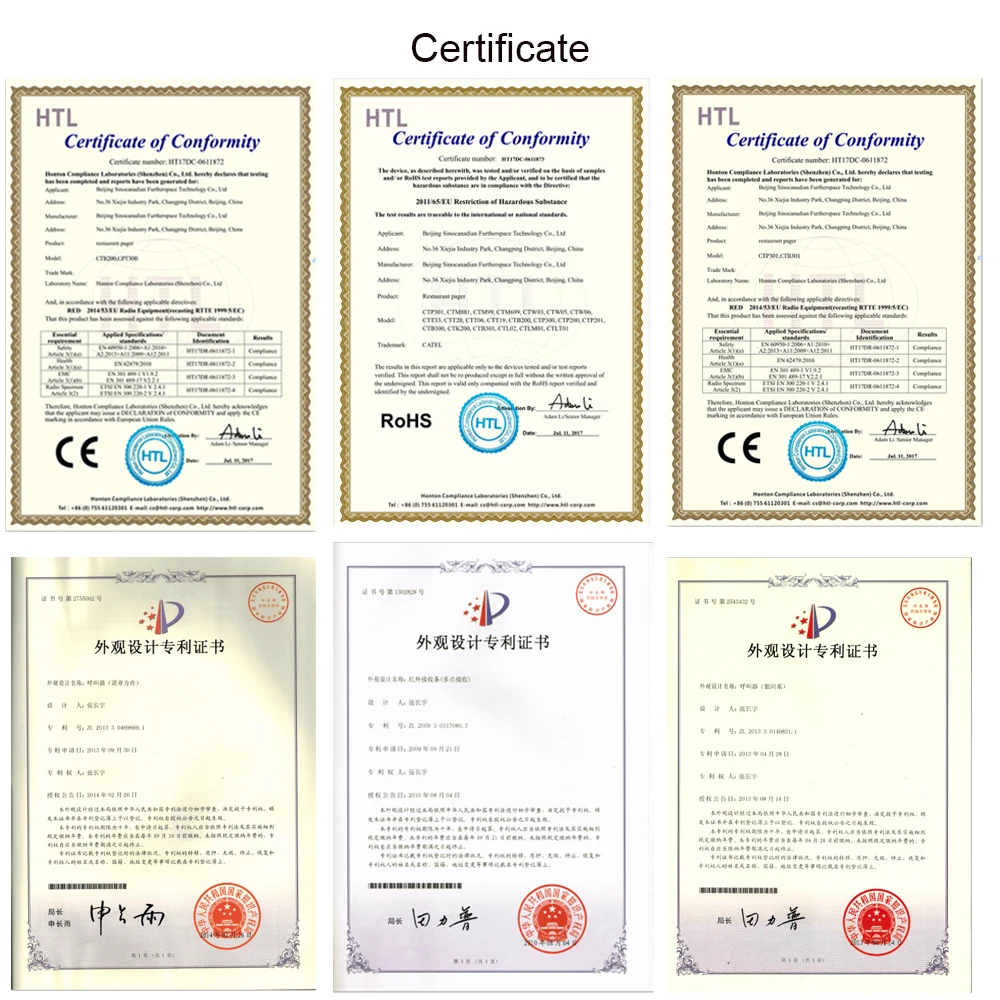

Certification:	FCC,ce,RoHS;

Product Description

Wireless Restaurant Calling System Calling Buttons Belt Watch Receiver for cafe, bar hotel Call Bell pager

Advantages:

Save labour cost

Improve service image

Most important, improve efficiency

How we use the calling system:

First, the calling buttons are pasted or put on the wall or on the table, when the guest have any service, he or she press the calling buttons, the receiver (LED screen or watch pager) will get signal with vibration or sound, showing the table number, then the waiter will know which table to be served.

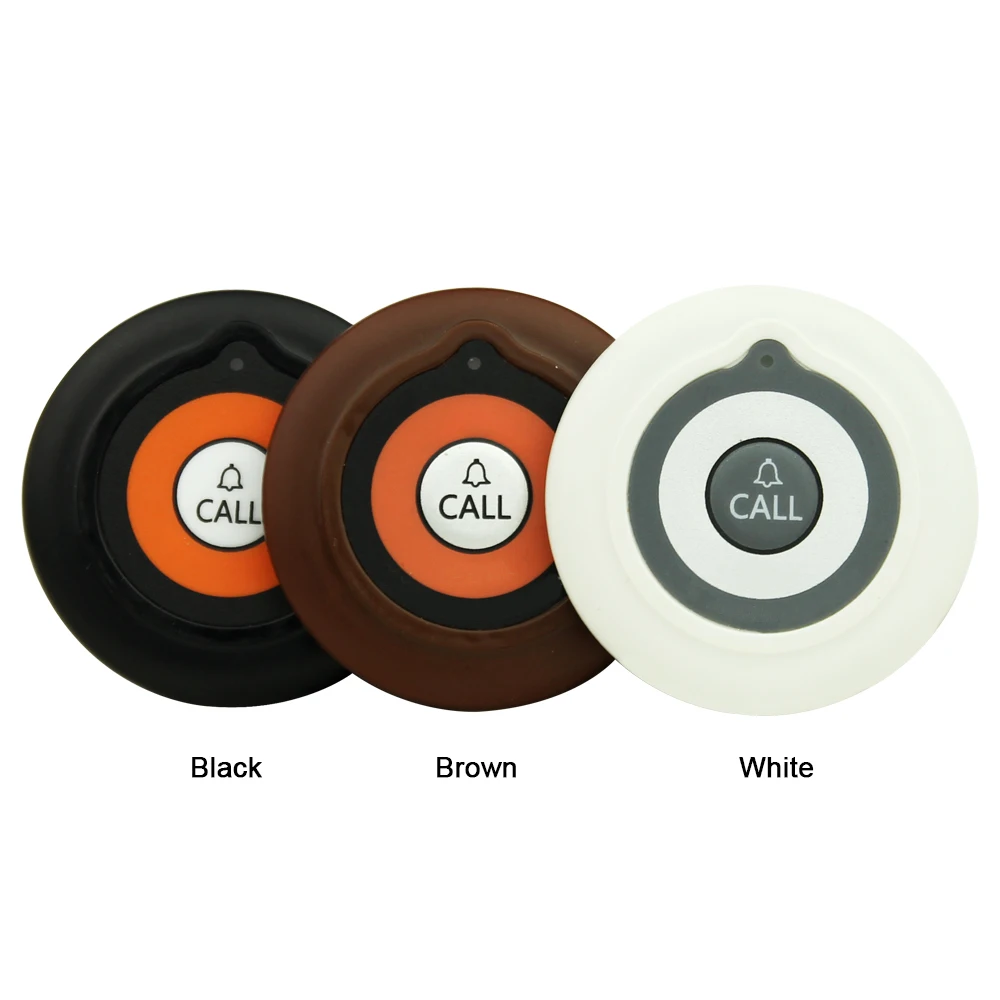

Call button Specifications:

CTT19 Call Button Specification
Dimension	57.5* 57.57.2 mm / 2.3 2.3 * 0.29 in
Material	ABS
Frequency	433.92MHz
Encoding	million group registration
Color	white, black, brown
Call distance	800 meters(Open area)
Weight	18 g / 0.04 lb

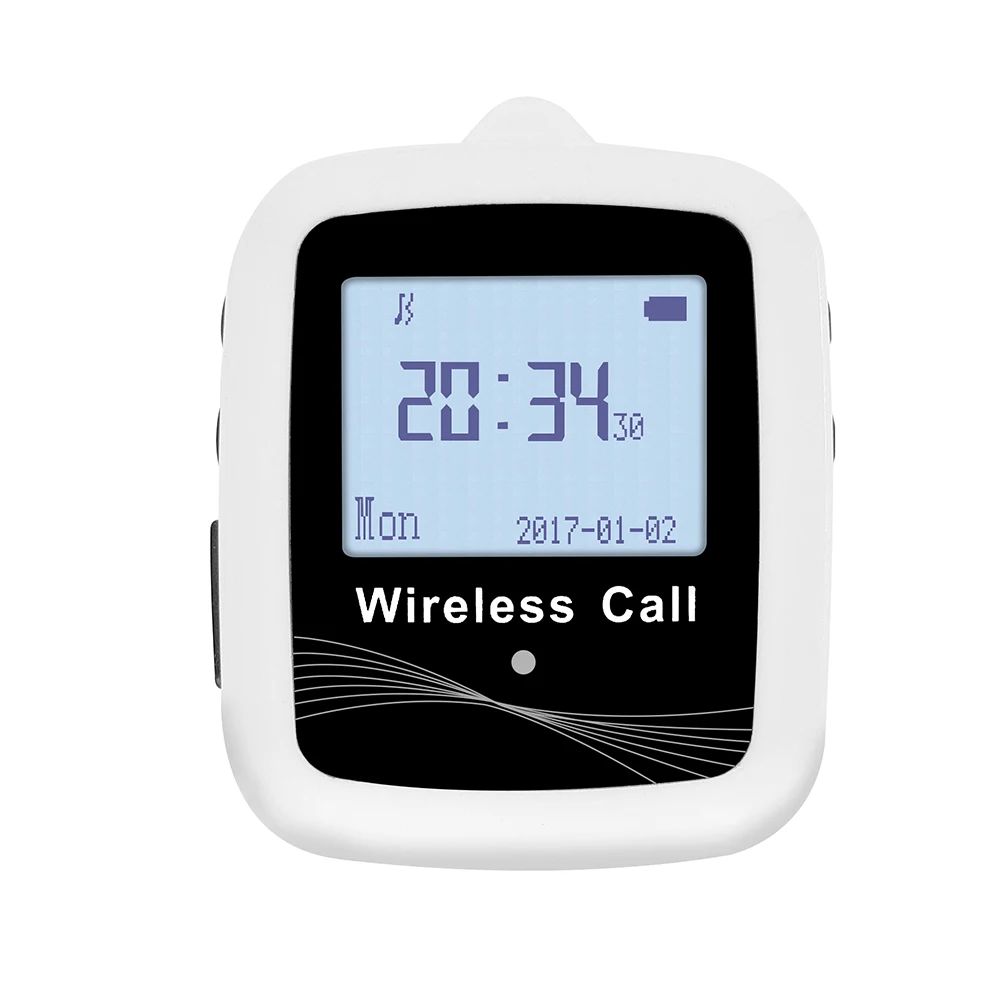

Watch Receiver Body Dimension: 52.3*61.7*16.5mm / 2.06*2.43 * 0.65 in

Function show :calling function, calling time, and calling sequence

Power:USB interface

Color:white or black

Material: Plastic

Capacity:500 pcs of call button transmitters

Alert Mode: vibration or ring

Receive Sensitivity :-110dbm

Frequency:433.92MHZ

Plug:AU, EU, UK, US standard plug

Weight:80g

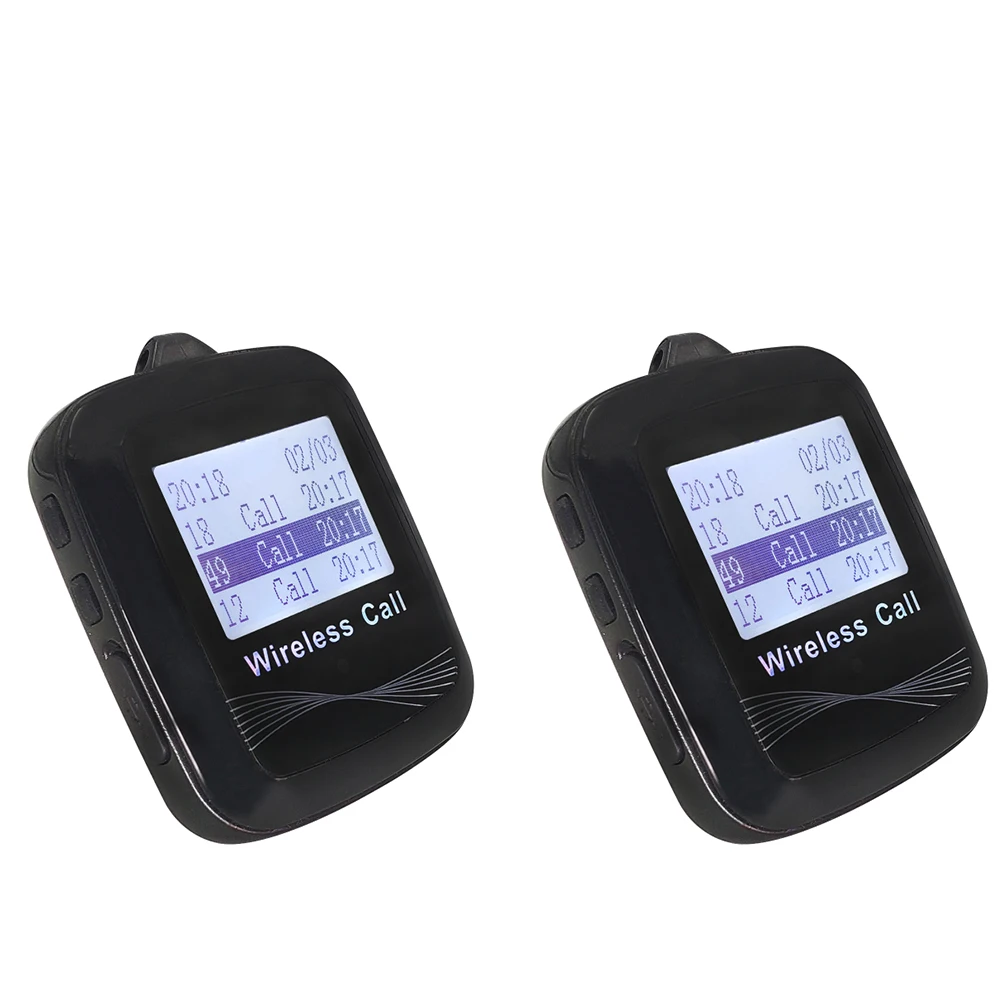

CTW07 Technical Data:

1).Capacity : 500 pcs of pager transmitters
2).Chinese & English showing
3).Alert Mode : vibration,ring or flash
4).Receive Sensitivity: -110dbm
5).Storage: 20 calling numbers(for queuing)
6).power supply mode: 250mAh lithium battery
7). Standby Time:7days (in ideal conditions)
8).Frequency:433.92MHZ
9).Compatible with 1, 2, 3, 4, 5 buttons
10). Dimension:50*41*14mm (not including the watch strap)
11).Color: Black
12).Material :Plastic

Feature
• RF wireless technology
• Fashionable watch design
• Dot matrix LCD screen
• Up to 999 channels
• Call button data pin support for custom
• Call button words selectable
• Single or list display mode
• Accurate time display
• Vibration/Buzzer prompt
• Low-power indication
• Built-in removable rechargeable battery

Advantages:

Save labor cost
Improve service image
Most important, improve efficiency

Notes:

1. Watch is the receiver, call buttons are the transmitters, they must work with each other.

2. As long as the guest press the buttons, the watch pager will receive signals, and make a sound or vibration, then the waiter will know which table to be served.

3. Our watch pager could receiver 500 pcs of call buttons calls.

CTW07 WATCH PAGER CAN SHOW call number, call function(bill, call, order, service, ect) and call time.

How to use the calling system ?

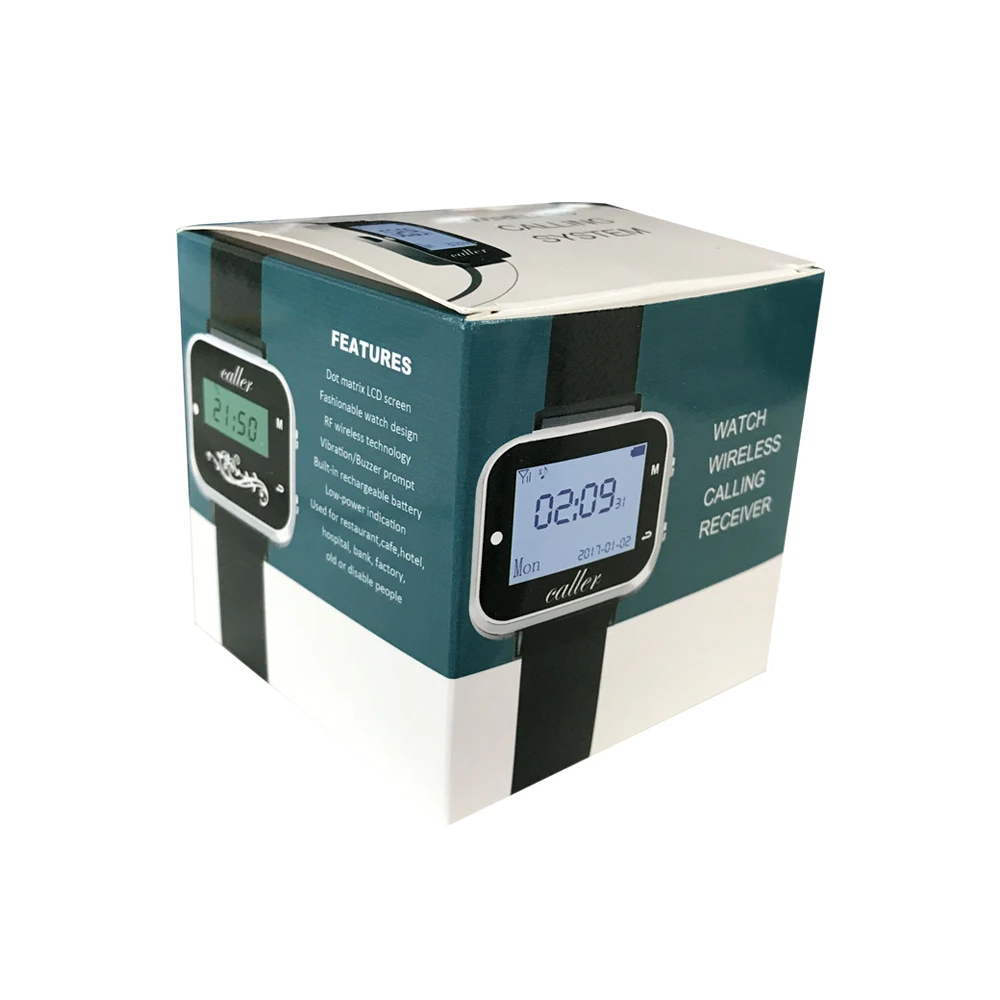

Packaging & Shipping

Foam bag + inner carton+ Master carton
