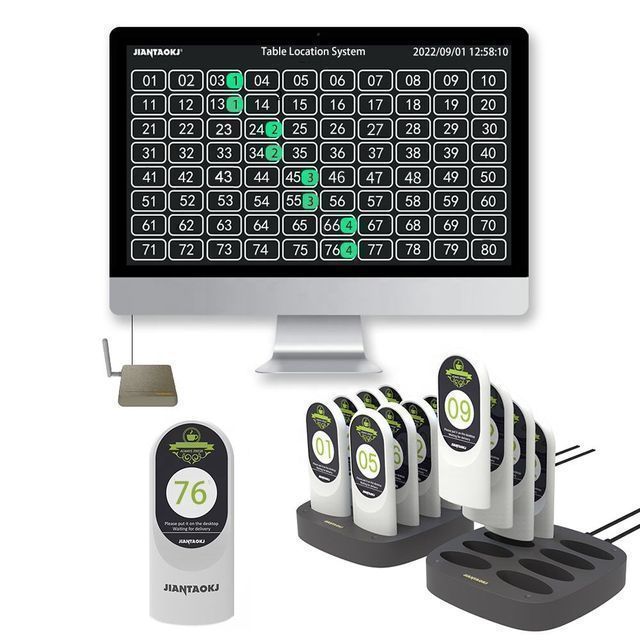

Jiantao Remote Locator Table Location Tracker Restaurant Waterproof Pager Visitor System

Price:$245.00 / 1 - 99 sets
$240.00 / 100 - 299 sets
$235.00 / 300 - 499 sets
$230.00 / >=500 sets
Min. Order:1 set
Supplier:Chongqing Jiantao Technology Co., Ltd.
Region:Chongqing, China
Contact:Ms Jenny Tao

PRODUCT DETAIL

product name:	visitor locator pager	Etic method:	Active RFID
communicate:	wireless calling system	Visitor Locator Frequency:	433MHZ
Packaging Details:	Packaging of table positioning system 1. Packaging material: independent box + foam lining + outer carton. 2. Packaging Details: Visitor Locator8+ Charging Base1 2. Carton Size: Depends on Quantity.	payment terms:	L/C, D/P, T/T
port:	Chongqing, Shenzhen, Shanghai...	Product advantages:	Save time and reduce labor costs
place of origin; place of origin:	Chongqing, China	Screen connection port:	hdmi
Product ingredients:	Guest and Table Locators...	Application scenario:	Restaurant, coffee shop, gourmet city, dessert bar, food truck
brand:	Jiantao	Product Features:	queue management
model:	JT-951009	Product Usage:	table positioning system

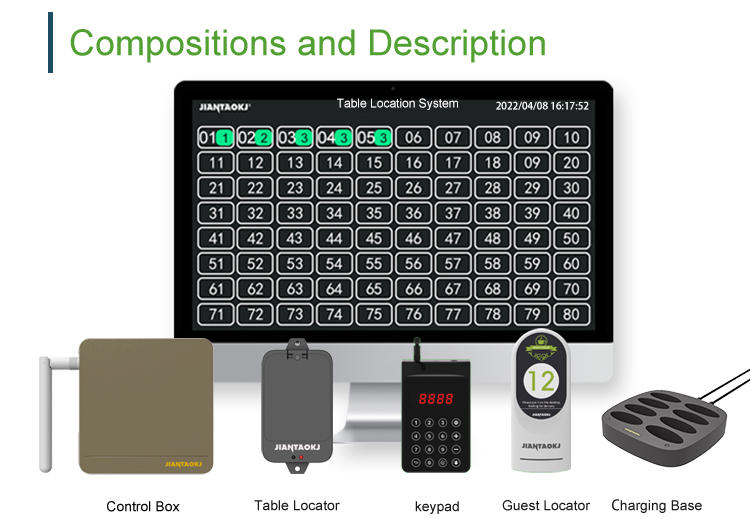

what do we sell

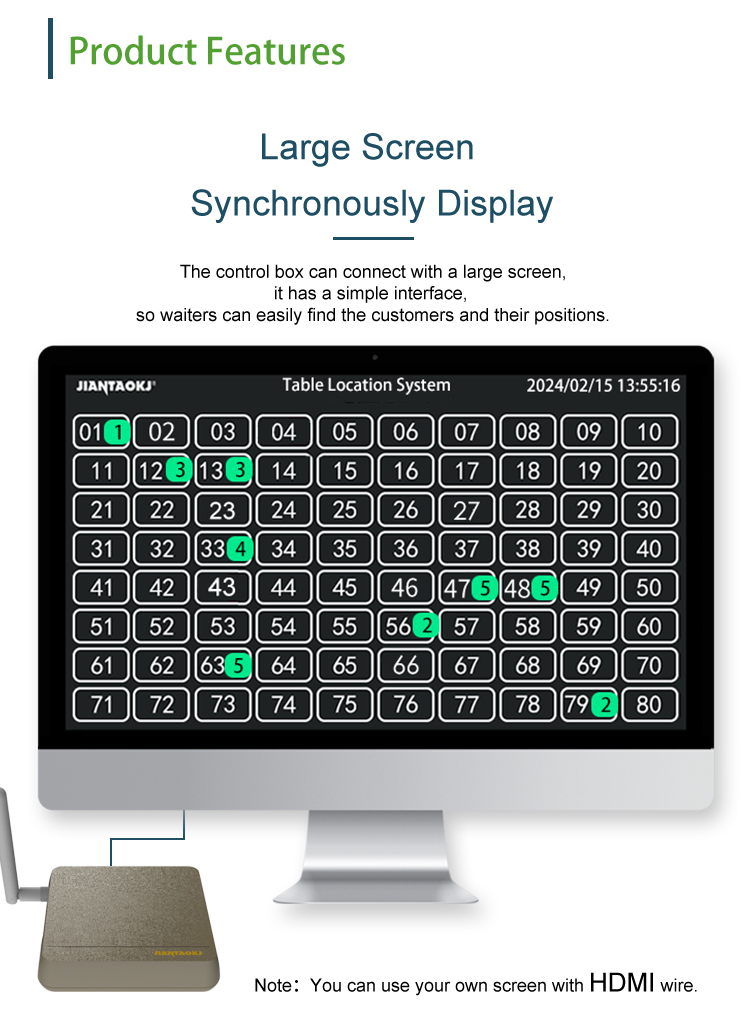

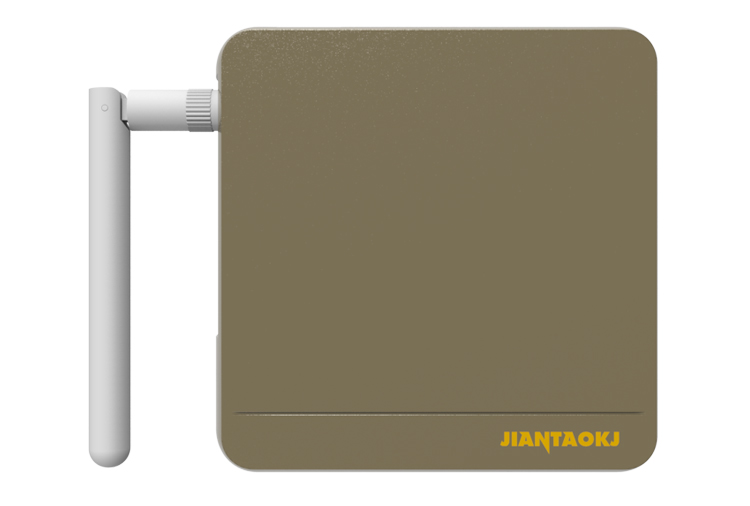

control box

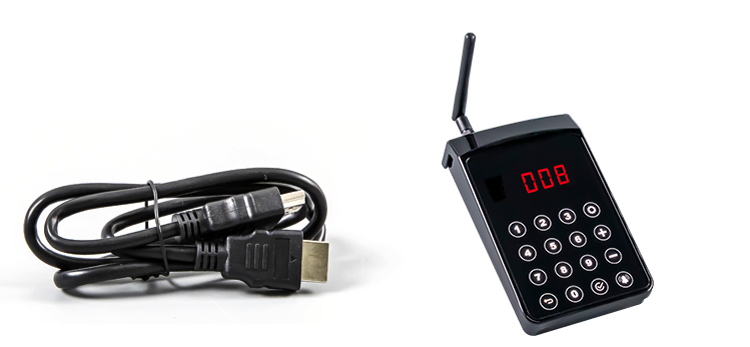

Used to display the position of the workbench in real time. ——Model: JT-100S ——Material: ABS ——Size: 108×108×15.5mm ——Power supply: 5V/2A ——Connection port: HDMI ——Coordination: screen (not provided), remote control (provided) AAA battery*2) Note: Please connect the control box to the screen via HDMI cable,

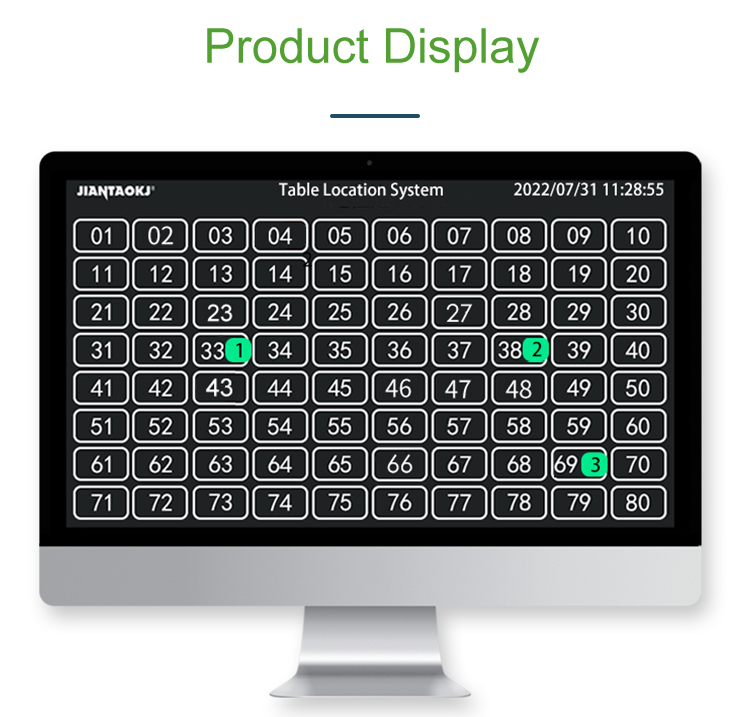

The screen will display table location and guest locator number information.

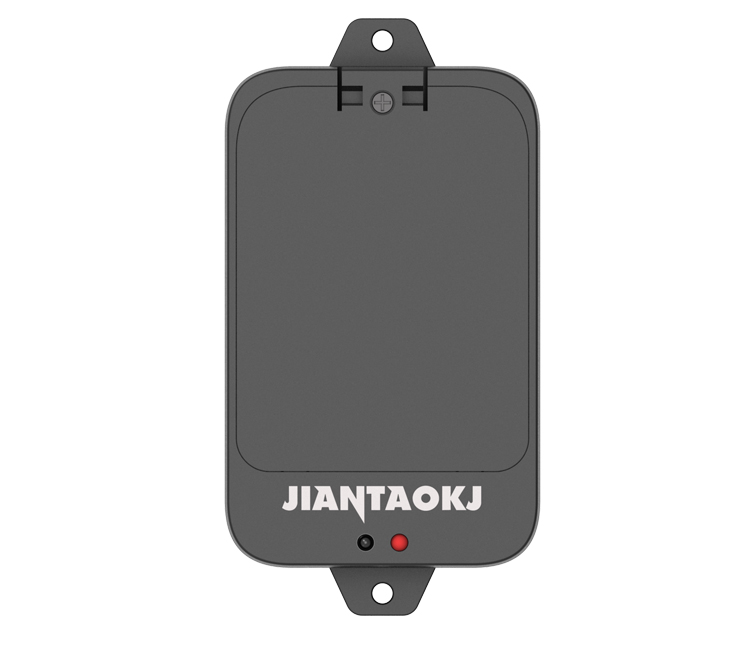

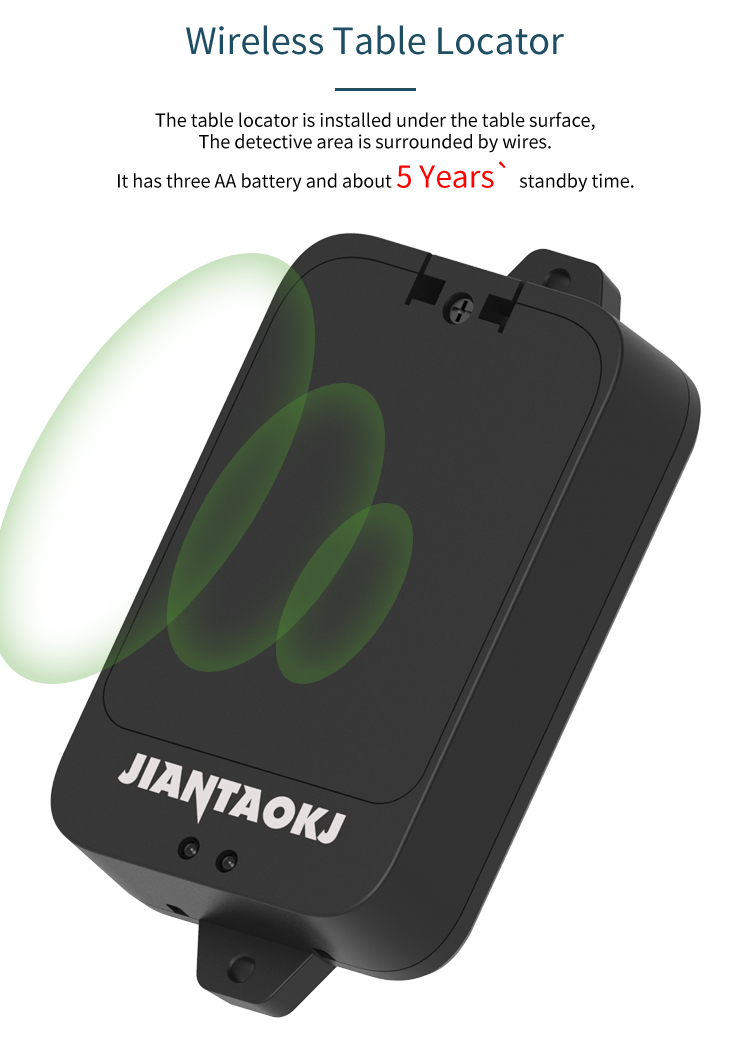

table locator

It is installed under the bottom of the table top and is used for positioning the table top. ——Model: JT-101S ——Material: ABS ——Size: 88×56×23mm ——Battery: AA batteries×3 (not provided) ——Standby time: about 5 years ——Communication method: 125KHz NFC Instructions for use: Please use the buckle to catch the locator, and the wire is wound around the bottom of the countertop.

keyboard

It is used to pair the number of guest locators and table locators. ——Model: JT-106 ——Material: ABS+PC ——Size: 159x97x28mm ——Power supply: DC12V1A ——Pairing method: Infrared emission Instructions: Please place a visitor locator (table locator) above the infrared emission position keyboard,

After receiving the ID number, the green (red) light is on for 5 seconds, and the registration is successful.

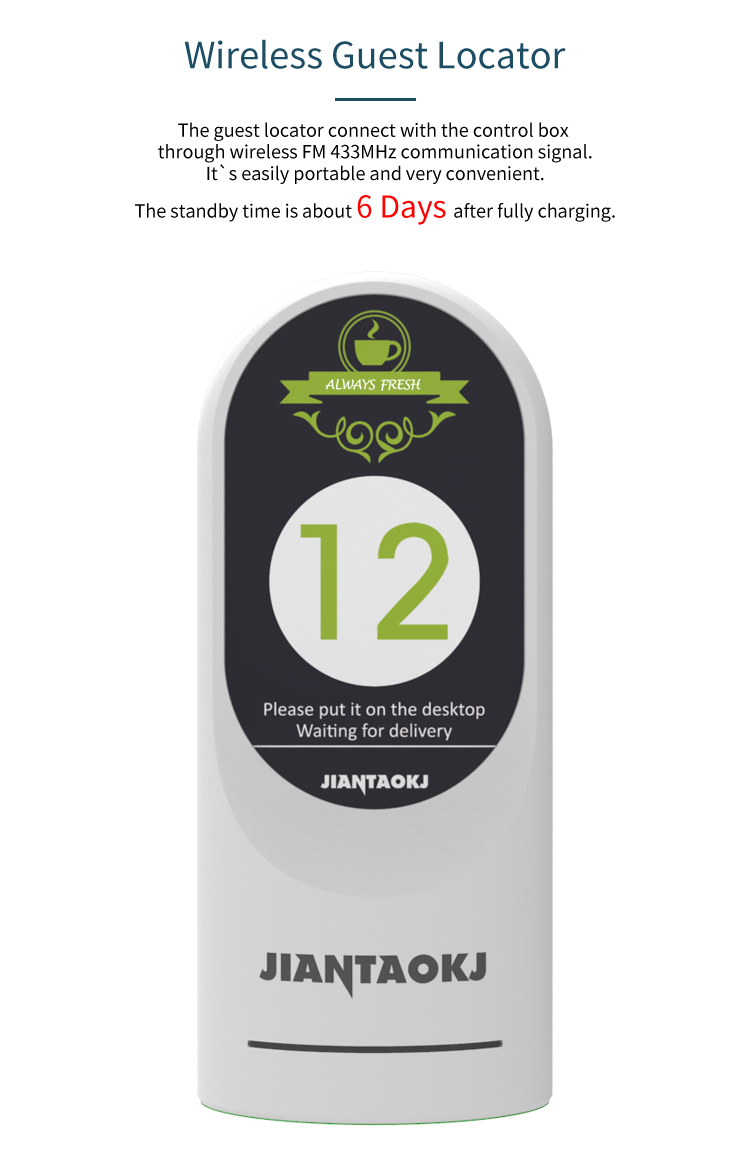

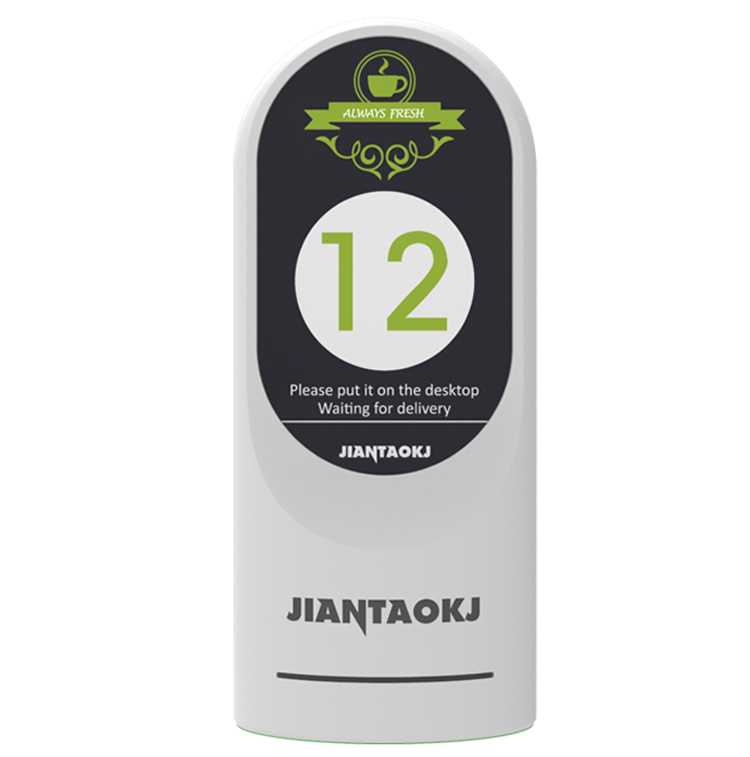

wireless visitor locator

Used to receive and send the table where the customer is. The cashier will hand over to the customer after ordering and paying. ——Model: JT-951 ——Material: ABS ——Size: 135x58x23mm ——Battery: 300mAh rechargeable lithium battery ——Standby time: about 6 days ——Positioning method: Active RFID ——Frequency: 433MHz Description: Please Place on a tabletop surrounded by wires.

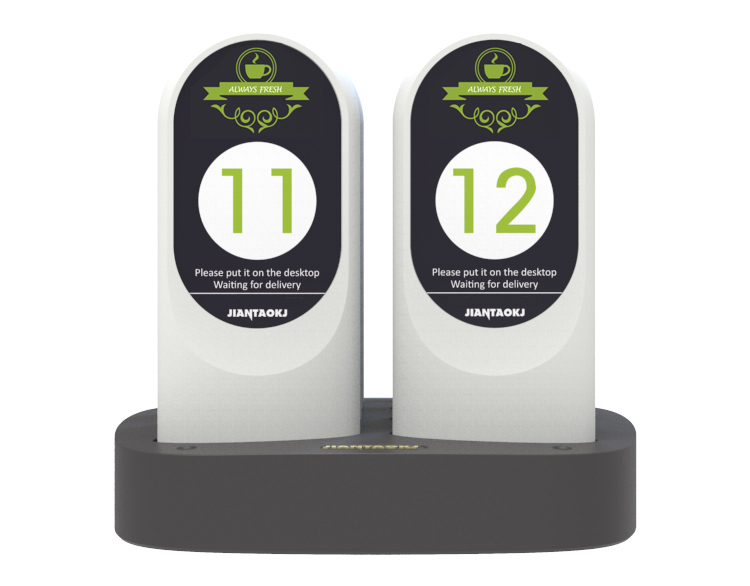

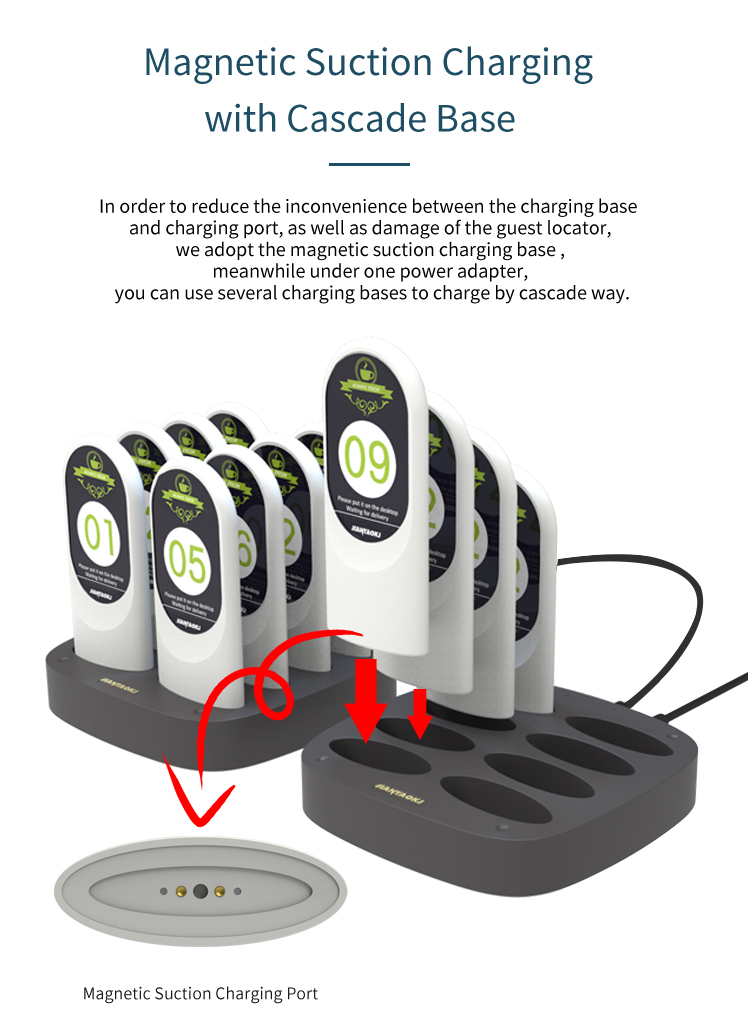

Visitor Locator Charging Base

It is used to charge the visitor locator. ——Dimensions of charging base: 155x155x27mm ——Power supply: DC 5V2A ——Charging method: magnetic suction (can be cascaded) ——Charging slots: 8 Note: Please put the visitor locator on the charging base and turn on the power,

The red charging indicator light is on when charging, and the green charging indicator light is on when fully charged. The charging bases can be cascaded with each other through a power adapter.

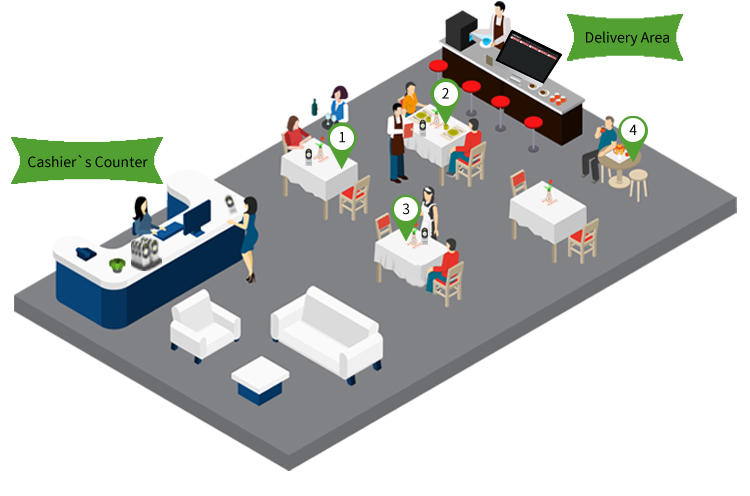

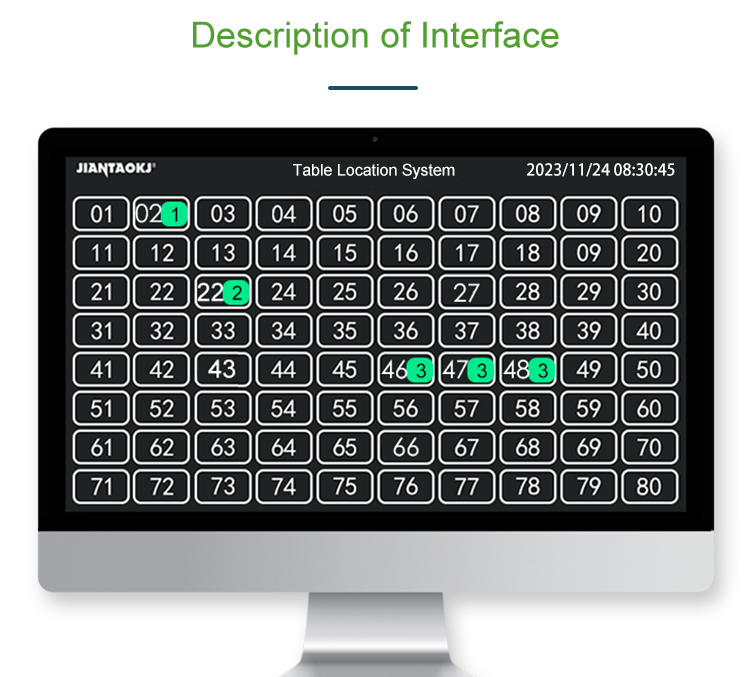

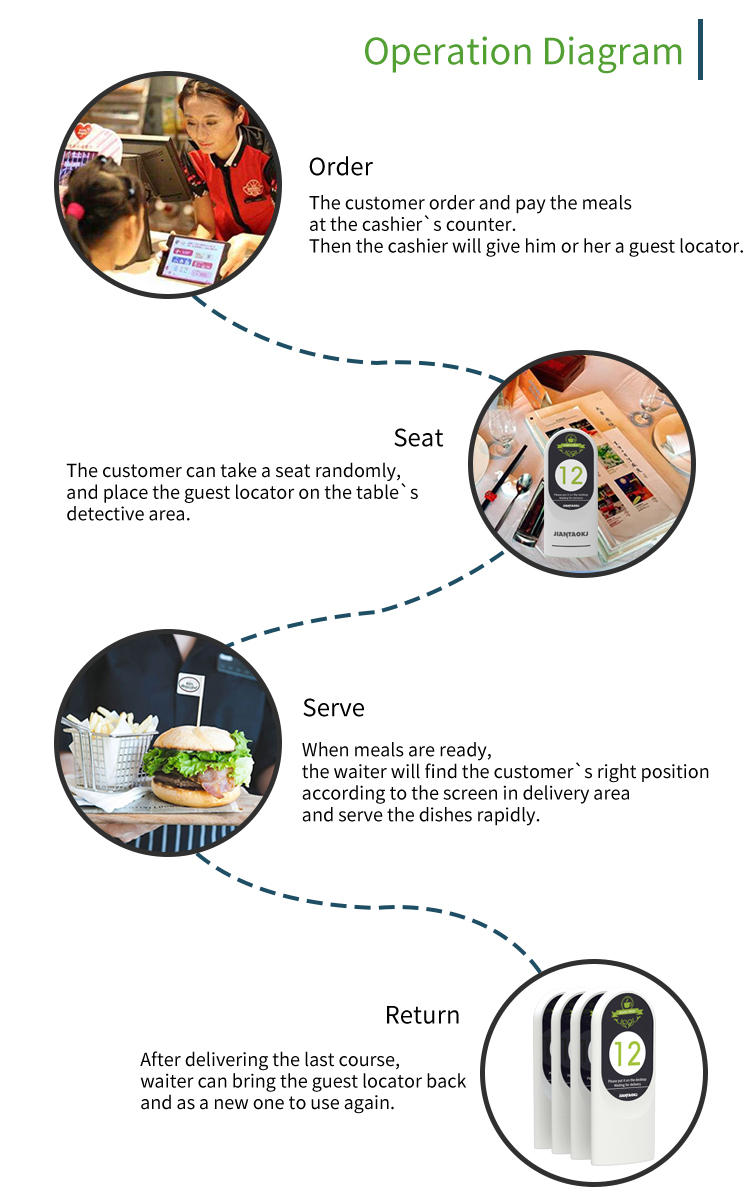

E.g: 1. Customer 02 sits at table 1; 2. Customer 22 sits at table 2; 3. Customers 46, 47, and 48 all sit at table 3. They share the same table.
describe: Share a table: the screen will automatically display the location of each customer; Change table: the screen will automatically update the customer's position; Returning Customer Locator: The screen will automatically disappear with the location of that customer.

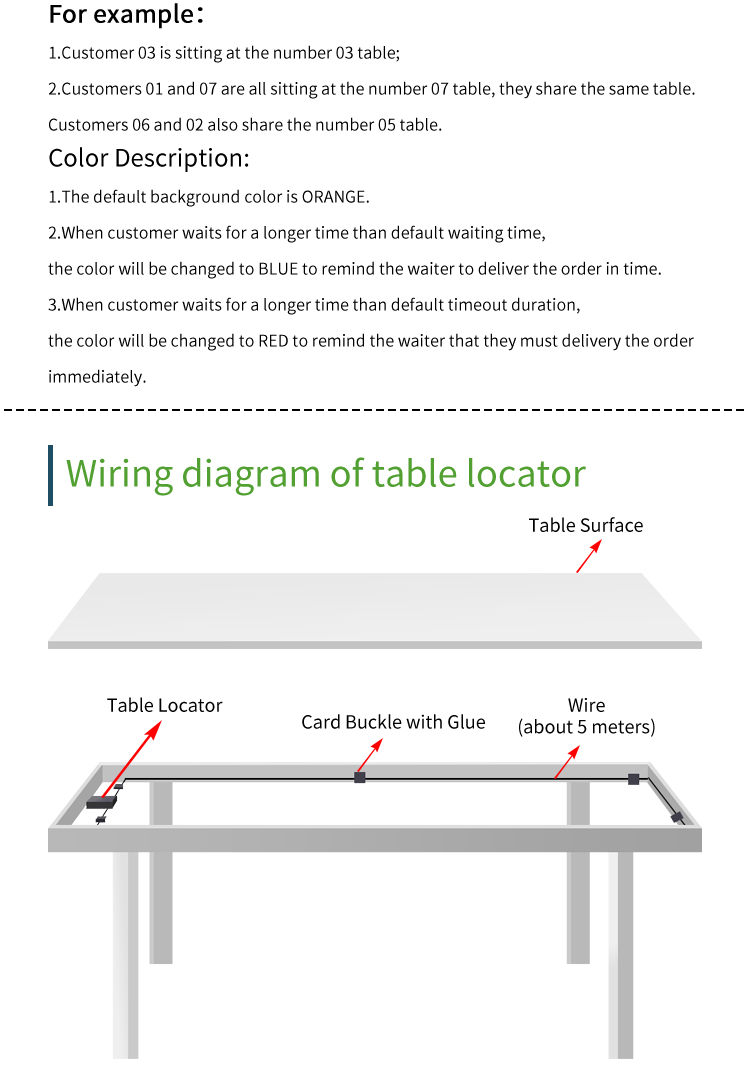

Installation Notes:

1. The bottom of the table is surrounded by wires, and the circular area is effectively positioned and detected. 2. Please try to straighten the wire and stick it on the table, the detection effect will be more sensitive. 3. The table can be made of wood, plastic, glass and other materials, but please avoid using metal and marble materials.
