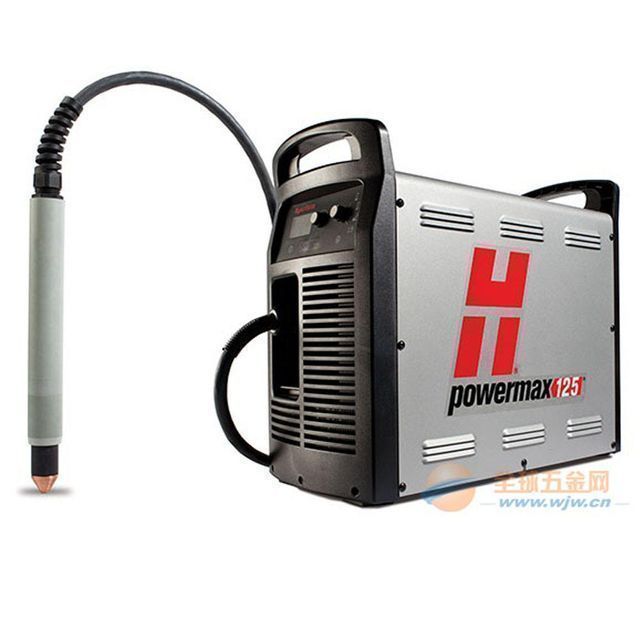

CNC Cutter Hypertherm Plasma Power 200 Amp

PRODUCT DETAIL

Showroom location:	not any	weight:	45
Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works, advertising agencies	year:	2022
Core components:	motor	Rated input voltage:	380V

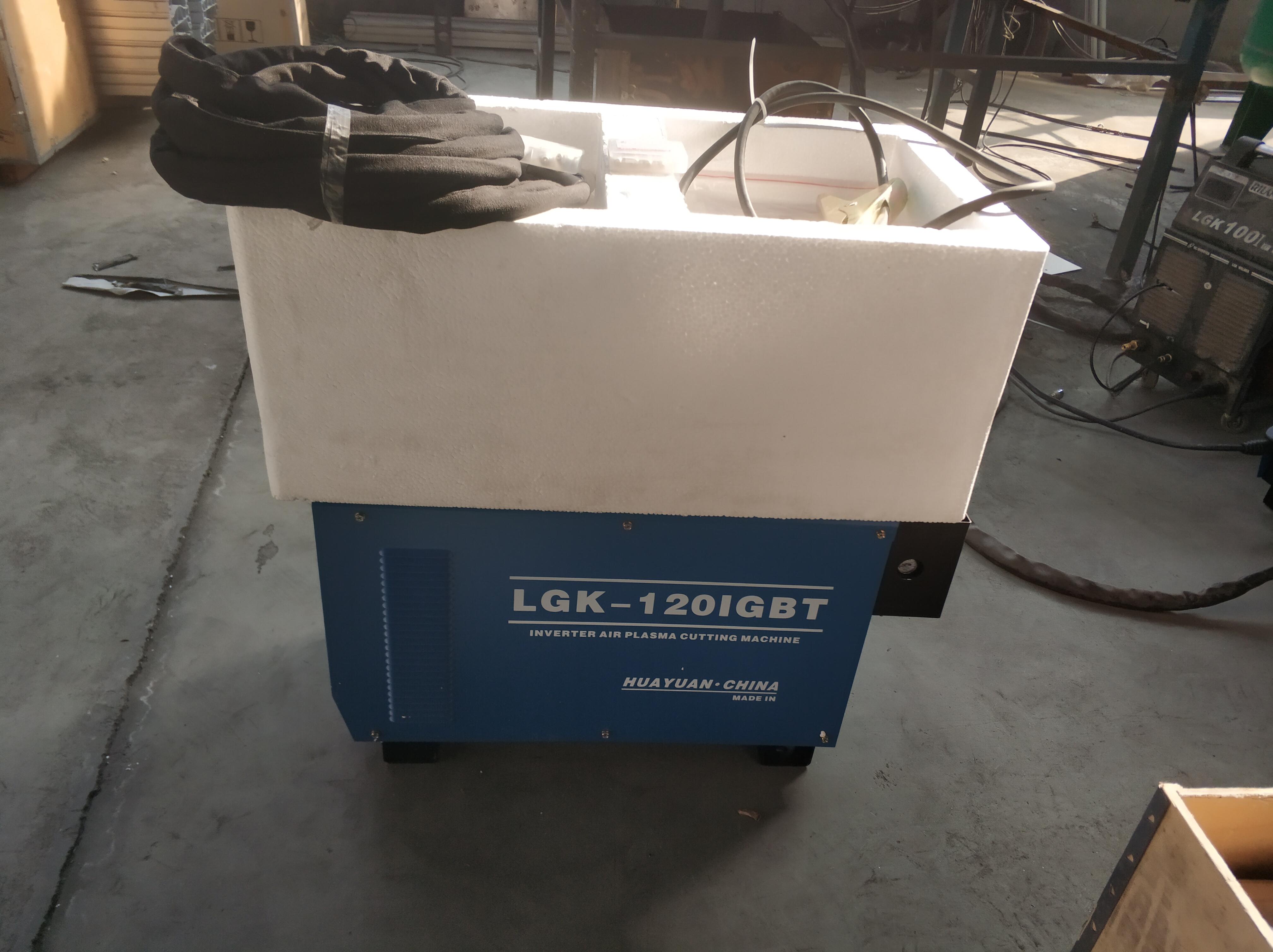

payment terms:	L/C,Western Union,T/T	Packaging Details:	Plywood or fumigation-free wooden box
Weight (kg):	45kg	Packaging Preview:
rated power:	16.5kva	Rated Duty Cycle @40°C:	100%
place of origin; place of origin:	Shandong China	Warranty:	1 year
Video external inspection:	if	maximum. The output voltage:	220V
Dimensions (LWH):	590260480mm	Core Components Warranty:	1 year
Mechanical test report:	if	Marketing Type:	normal product
Open Circuit Voltage (OCV):	220V	Supply capacity:	100 sets per month
Health status:	new	maximum. Output current:	60A
port:	Qingdao, Shanghai

Product Description

Specification

thing	unit	role model

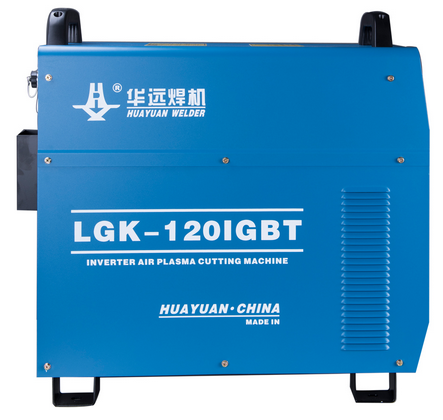

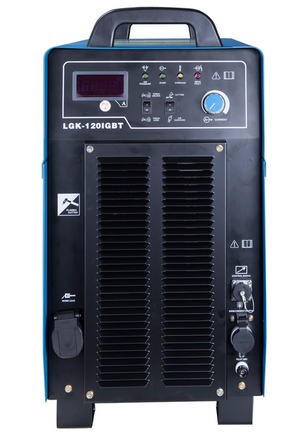

thing	unit			LGK-63IGBT	LGK-100IGBT	LGK-120IGBT	LGK-200IGBT	LGK-300IGBT	LGK-400IGBT
input power	Volts/Hz	3~ 380V±15% 50/60 Hz
Rated input capacity	kVA	9.5	17.8	22.2	38.8	70.1	93.5
Rated input current	One	14.5	27	34	71	100	138
Rated open circuit voltage	five	300	300	300	315	380	380
Rated cutting current	One	63	100	120	200	300	400
Rated cutting voltage	five	106	120	128	160	200	200
Current adjustment range	One	30~63	30~100	30~120	40~200	60~300	60~400
Maximum cutting thickness (steel)	mm	25	40	45	65	80	90
Premium Cut Thickness (Steel, Handheld)	mm	0.3~12	0.3~22	0.3~25	1~45	1~50	1~60
Premium cut thickness (steel, machine)	mm	6	12	15	25	35	40
plasma gas	-	compressed air
air pressure	MPa	0.3~0.5	0.45~0.6					0.45~0.6
Arc voltage output signal	-	1:1 / 1:20 1:50 / 1:100 arc voltage
Torch cooling method	-	air cooling					Air-cooled/Water-cooled
Rated duty cycle	%	60/40°C	100/40°C
Insulation class	-	F
Protection class	-	IP21S
Dimensions (L×W×H)	mm	585x280x485	695×320×580			800×380×810	890×420×900
Power Northwest	Kilogram	26	51	52	82	140	145
