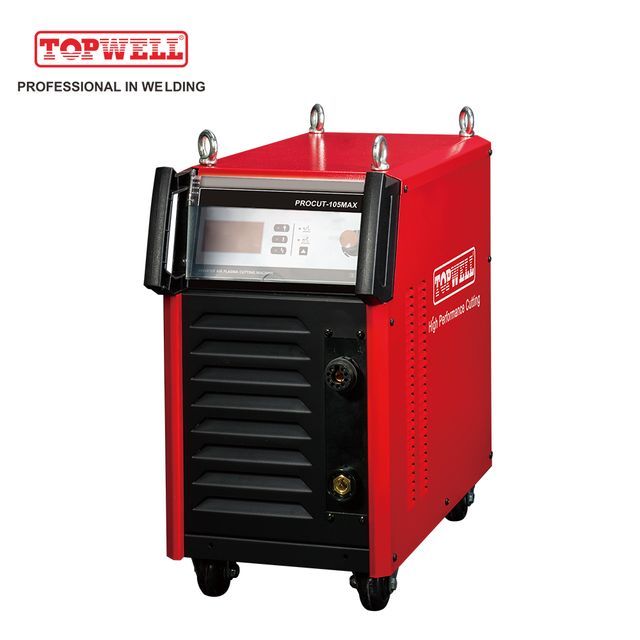

Non-high frequency ignition 105A plasma cutting machine PROCUT-105MAX, suitable for mechanized and manual cutting
- $3600.00 /piece
- 1 piece
- Hangzhou Topwell Technology Co., Ltd.
- Zhejiang, China
- Mr Robin Yan
PRODUCT DETAIL
| Year: | 2023 | Dimensions (length*width*height): | 540*240*480mm,680x310x650mm |
| Core component warranty: | 1 year | After-sales service provided: | Overseas service center |
| Gas preflow/delay time: | Default | Operating temperature: | 0-10℃~40℃ |
| Name: | PROCUT-105MAX | Open circuit voltage: | 220V~400V |
| Open circuit voltage (OCV): | 350VDC | Core components: | engine |
| Applicable industries: | Building materials stores, machine repair shops, manufacturing plants, restaurants, home furnishings, retail, construction projects | High-quality cutting thickness (500mm/min): | 1mm to 15mm |
| Rated input voltage: | 220V 380V 400V three-phase | Rated duty cycle at 40°C: | 380V/400V: 100%@105A |
| maximum. The output voltage: | 160VDC | payment terms: | Western Union, Wire Transfer, MoneyGram |
| Weight (kg): | 58kg | Place of origin: | Zhejiang, China |
| Packaging details: | carton | port: | Shanghai |
| Warranty: | 1 year | Video outbound inspection: | if |
| Voltage: | 380V | maximum. Output current: | 105A |
| Package preview: | Marketing type: | 2020 new products | |
| Rated load@100%: | 380V/400V: 100%@105A | weight: | 55 |
| Mechanical test report: | if | brand: | topwell |
| Health status: | new | type: | Plasma power supply |
| rated power: | 136KVA | Showroom location: | not any |
| Gas supply: | Clean, dry, oil-free air or nitrogen |
Product Description

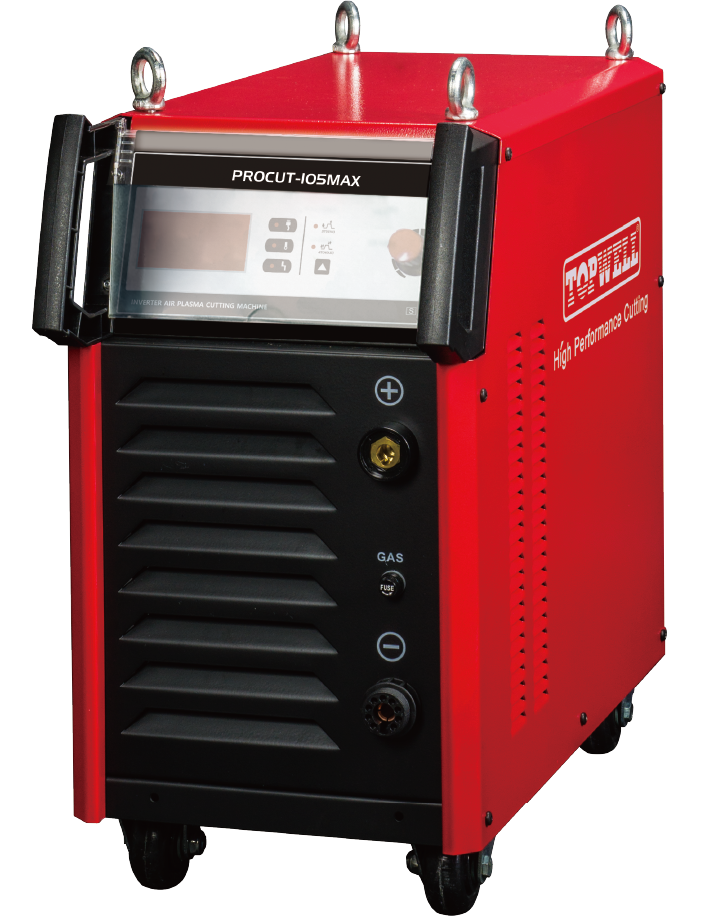

Product105MAX
Specification
system | Product105MAX |
Input voltage (±10%) | 380V, three-phase, 50/60Hz |
kilowatt output | 16.8kW |
Input [email protected] | 380V, three-phase, 44A |
Output current | 105A |
Rated output voltage | 160V DC |
Duty Cycle @ 40°C (104°F) | 105A@100% |
Open circuit voltage (OCV) | 350 VDC |
Dimensions with handle | Depth 680 mm; width 310 mm; height 650 mm |
Weight (including 7.5 m cutting torch) | 55kg |
torch | CNC: TP 105/7.5 M |
Air supply | Air |
Recommended gas inlet flow/pressure | 217 l/min (460 scf/h) @ 6.5 bar (94 psi) |
Engine drive requirements | 30 kW for full 105 A output |
Certification | EU CE, ROHS |

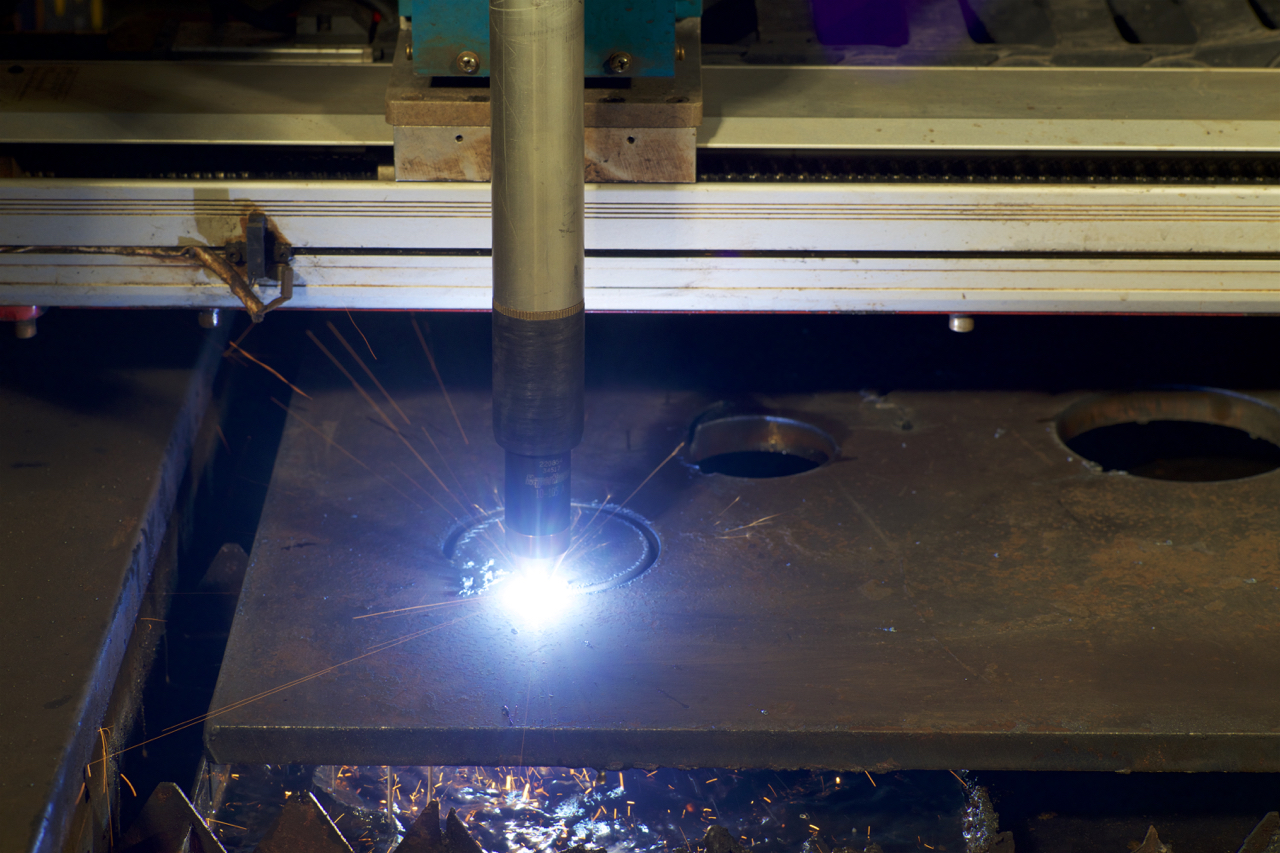

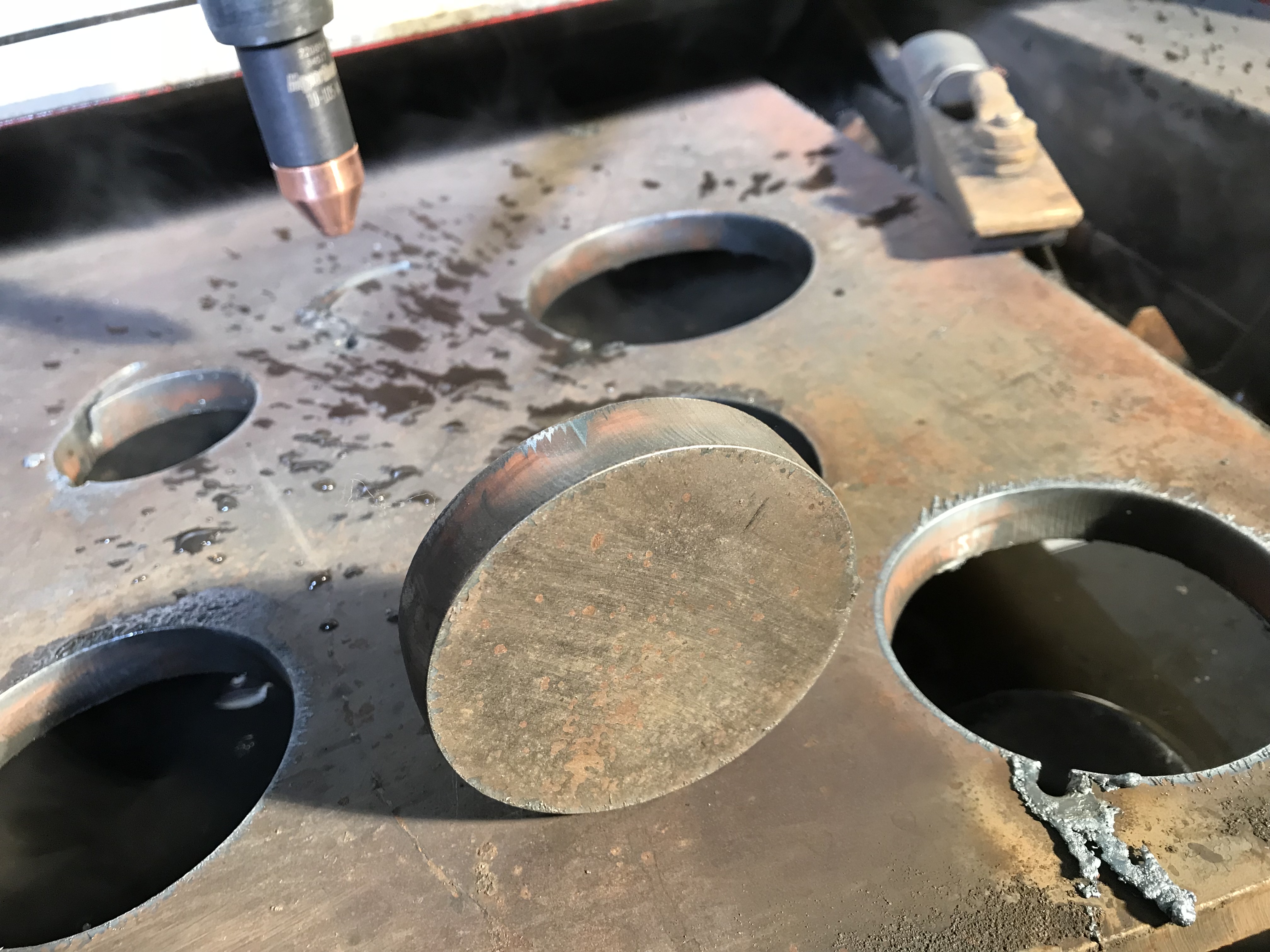

Superior mechanized cutting capabilities
*Quick, clean cuts (without slag) up to 18mm, maximum piercing of mild steel up to 25mm.
*It offers versatility for portable automation, XY table cutting, wide range cutting and robotic cutting.

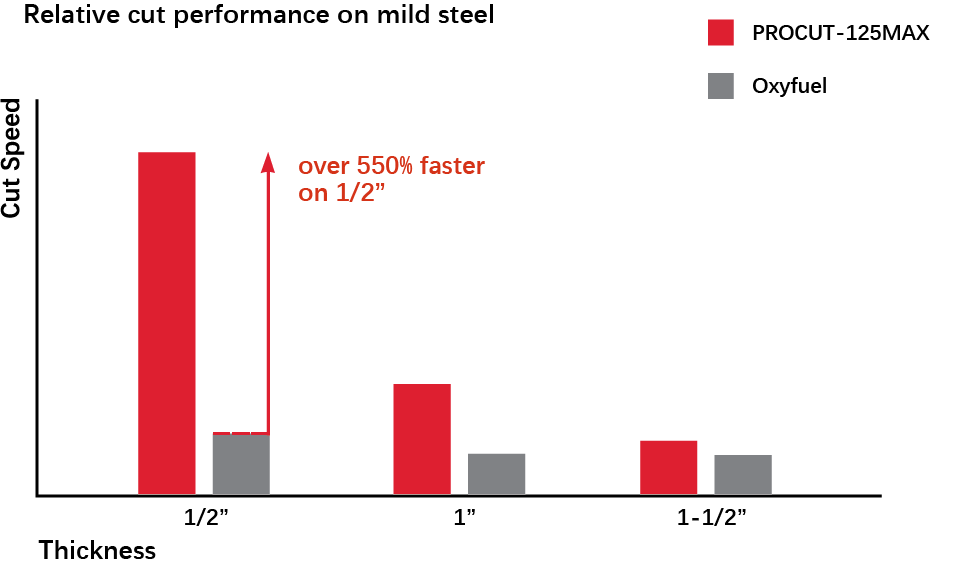

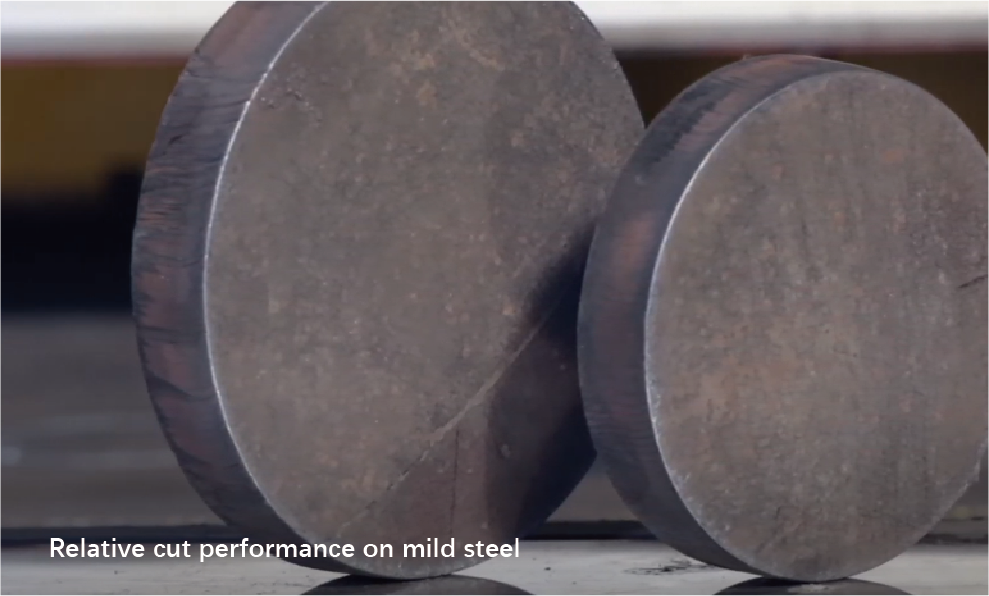

*Relative cutting performance of mild steel.
*Cuts up to five times faster than oxyfuel cutting on 12 mm (1/2 in.) mild steel, completing jobs faster.
*Superior cut quality means you spend less time sanding and edge preparation.
*100% duty cycle maximizes your cutting time.
*A variety of easy-to-use torch styles let you use the same system for a variety of jobs.
*Consumable parts life is four times longer than other systems in this amperage range.
*Electrode end-of-life detection protects electrodes
Automatically protecting the cutting torch and workpiece from damage is more reliable and stable.
Automatically protecting the cutting torch and workpiece from damage is more reliable and stable.
*100% duty cycle maximizes your cutting time.
*Designed for the most demanding production environments with 100% duty cycle.
*Designed and tested to the TOPWELL PROCUT family of products for superior reliability in the most demanding cutting environments.
product name | Product105MAX | ||
Material thickness (mm) | Cutting current(A) | Cutting speed (mm/min) | |
6 | 105A | 4110 | |
8 | 105A | 3220 | |
10 | 105A | 2410 | |
12 | 105A | 1810 | |
16 | 105A | 1050 | |
20 | 105A | 780 | |
product name | Product105MAX | |||
capacity | thickness | speed | ||
For CNC | ||||
No slag | 16mm | 900mm/min | ||
pierce* | 22mm | 700mm/min | ||
For manual cutting | ||||
respected | 32mm | 500mm/min | ||
Severance pay | 50mm | 125mm/min | ||
for gouging | ||||
metal removal rate | 21.7 pounds per hour | |||
groove profile | 0.25" deep x 0.29" wide | |||
*Puncture rating for handheld use or CNC torch height control

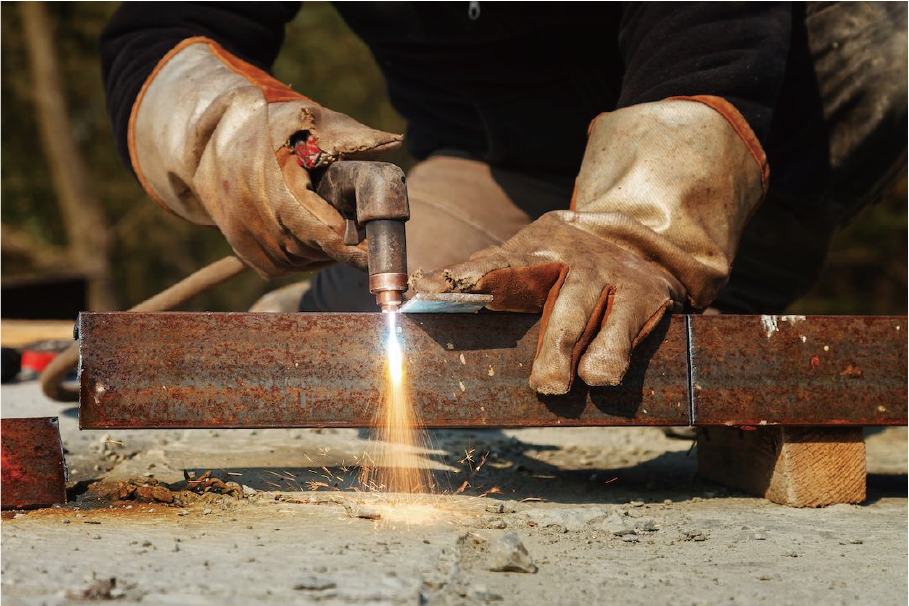

Thanks to its portability and high power, the PROCUT system can also be equipped with a handheld or machine cutting torch to suit the application, leaving good cut edge quality.

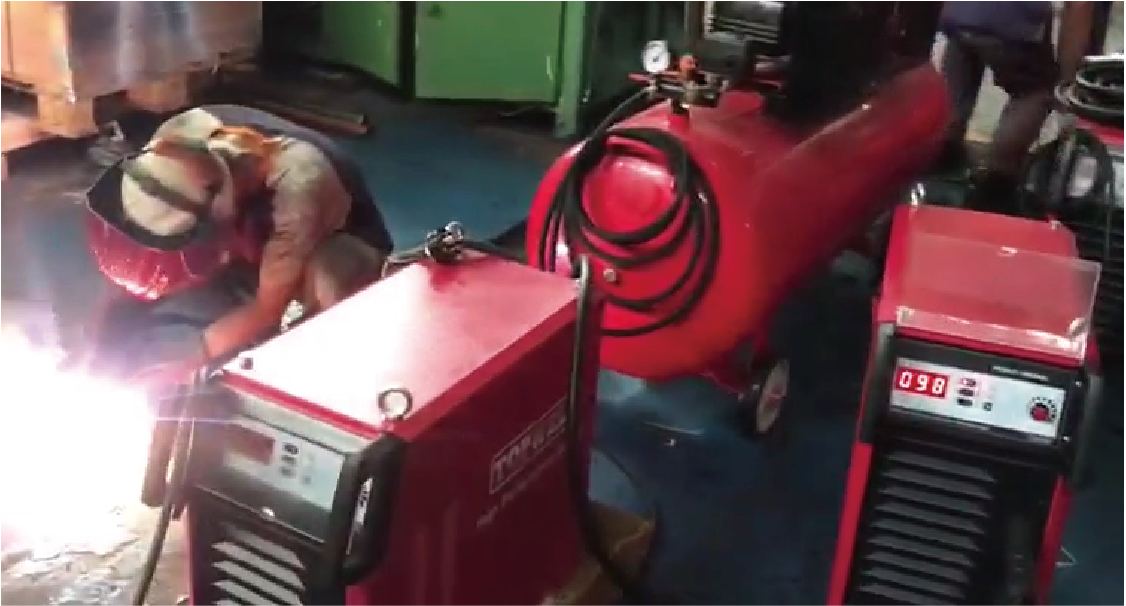

Gouging
The PROCUT system is also very effective for metal gouging, making it fast and clean.

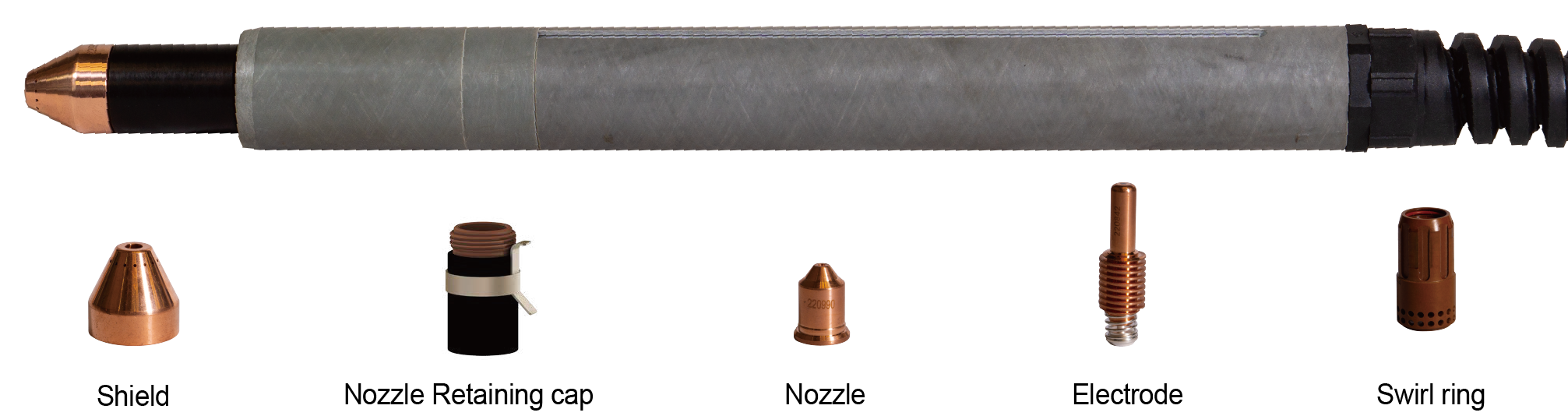

TP105 cutting torch and consumables
