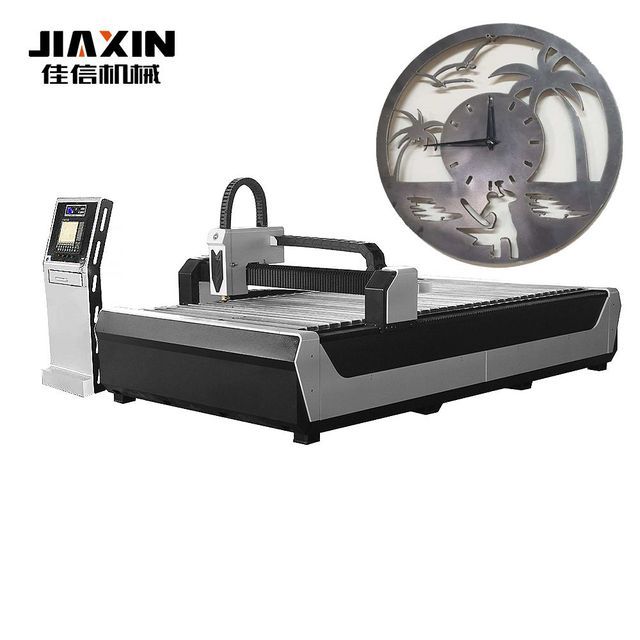

CNC Plasma Cutting Machine Metal Sheet Cutting Machine
- $4900.00 /set
- 1 set
- Shandong Jiaxin Machinery Equipment Co., Ltd.
- Shandong, China
- Ms Linda Zhu
PRODUCT DETAIL
Warranty: | 1 year | Voltage: | 220/380 |
Applicable industries: | Machine repair shops, manufacturing plants, construction projects, advertising agencies | Showroom location: | not any |
Packaging details: | Fumigation wooden box | rated power: | 3kW |
Core component warranty: | 1 year | Weight (kg): | 2000kg |
aspect: | 1530 | Health status: | new |
Main selling points: | competitive price | brand: | Jiaxin |
Dimensions (length*width*height): | 3950*2150*1500mm | payment terms: | L/C, Western Union, D/P, D/A, T/T |
port: | Qingdao, Shanghai, Tianjin, Guangzhou | Video outbound inspection: | if |
model: | JX-T1530 | Year: | 2020 |
Package preview: | Motor type: | servo motor | |
Place of origin: | Shandong Province, China | Mechanical test report: | if |
Marketing type: | Hot Products of 2019 | Core components: | Motor, PLC |
Supply capacity: | 100 sets per month |

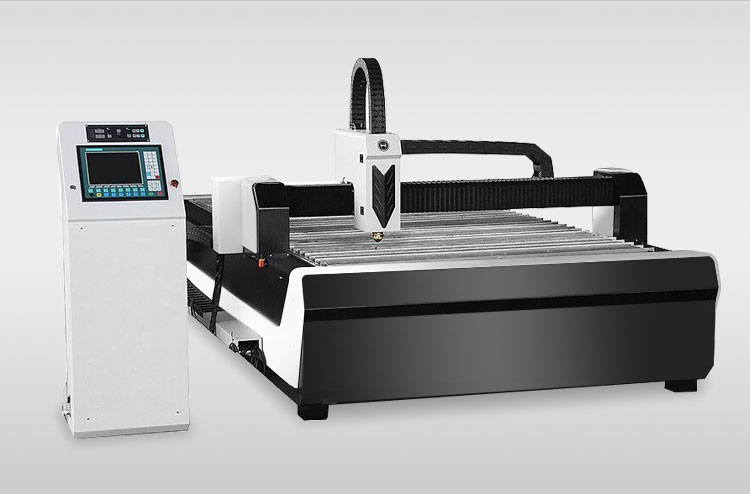

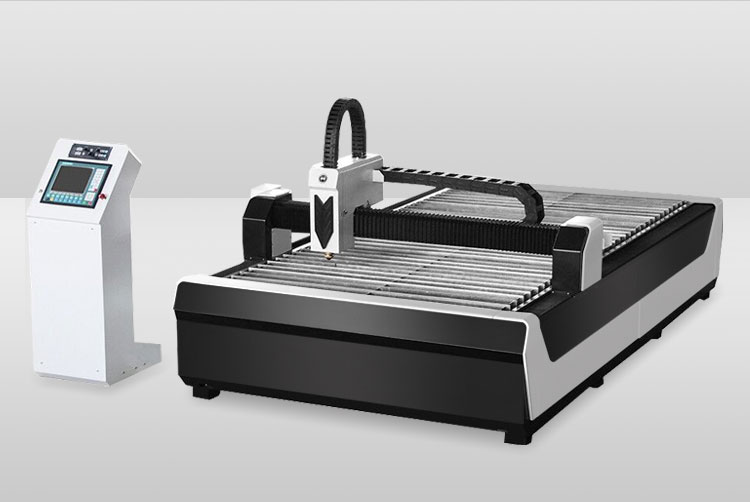

Product Description
Model | JX-T1530H |
Effective cutting range (mm) | 1500×3000mm |
Machine size (mm) | 2150x4250mm |
Cutting speed (mm/min) | 50-10000 |
Input power | 380v±10%VAC, 50/60HZ, three-phase |
Enter body | 220V±10%V AC, 50/60HZ, single phase |
Plasma cutting thickness (mm) | 0.5-40mm (according to your plasma power supply) |

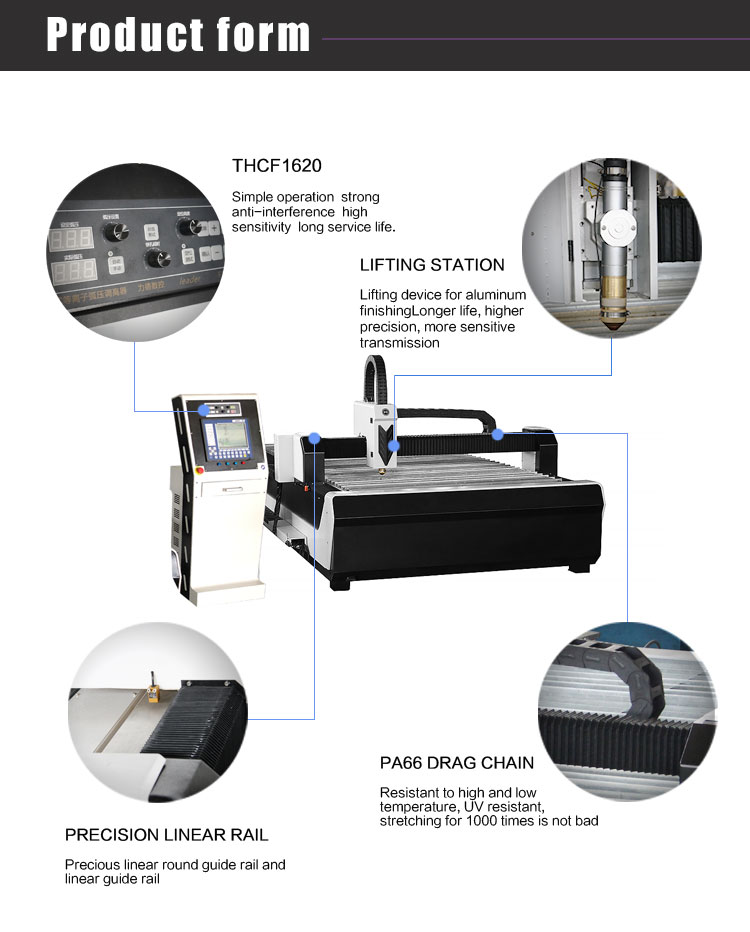

Torch height controller | F1628 |
plasma cutting gas | compressed air |
cutting torch | A plasma cutting torch with a plasma power supply |
CNC controller system | F2300A |
engine | Servo motors and drivers |
Operation accuracy | ±0.2mm |
Guide rail length × guide rail width × guide rail thickness (mm) | 3500×273×60 |
Marking software | StarCam or Fastcam |
Gas pressure (Mpa) | 0.5 |
arc | Arc ignition is not touched |
Processing materials | Iron, steel, aluminum plate, galvanized plate, titanium plate |
Product packaging

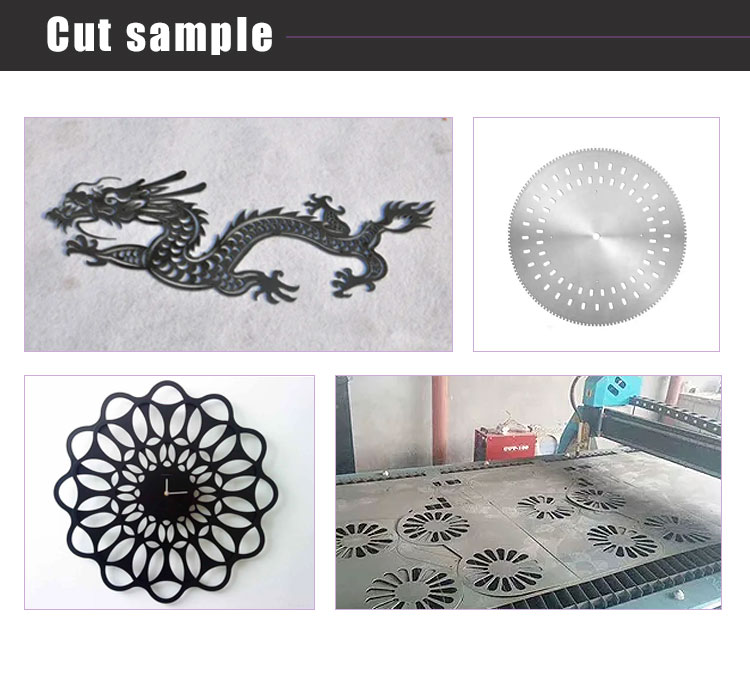

Cutting example
1. The machine can cut any flat-shaped parts consisting of straight lines and arcs.
2. The graphics can be static or moving, simple and easy to learn. It can be programmed directly on the machine or drawn on a computer or computer.
Attach using ready-made CAD files. The bonus software converts directly into G code program files,
Copy it to the operating system through a USB flash drive and it will be automatically cut.
3. Advantages: double-sided drive structure, exquisite system structure, high degree of automation, simple and convenient operation
Easy to maintain, it is easy to cut from thin plates to large thickness steel plates.
4. Purpose: The machine can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal plates.
2. The graphics can be static or moving, simple and easy to learn. It can be programmed directly on the machine or drawn on a computer or computer.
Attach using ready-made CAD files. The bonus software converts directly into G code program files,
Copy it to the operating system through a USB flash drive and it will be automatically cut.
3. Advantages: double-sided drive structure, exquisite system structure, high degree of automation, simple and convenient operation
Easy to maintain, it is easy to cut from thin plates to large thickness steel plates.
4. Purpose: The machine can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal plates.
