Mini CNC Plasma Gantry CNC Plasma Cutting Machine Optional Worktable Competitive Price 3000*5000 Provide Auto CAD 300
- $2450.00 / 1 - 1 sets
$2350.00 / 2 - 2 sets
$2200.00 / >=3 sets - 1 set
- Wuhan Lansun Technology Co., Ltd.
- Hubei, China
- Ms Fengny Bu
| style: | Cantilever, Mini, Small, Portable, Micro, Lightweight | Cutting gas: | Oxygen, gas, oxygen, air, acetylene, propane |
| brand: | Lan Sheng | model: | ZLQ-15B |
| Cutting method: | plasma and flame, flame, plasma | Supply capacity: | 300 sets per month |
| Processing material: | Stainless steel, carbon steel, aluminum, any sheet metal | Core component warranty: | 1 year |
| Plasma power: | LGK100, LGK120, LGK200 | Weight (kg): | 300 kg |
| Marketing Type: | other | Showroom location: | Canada, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria , Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistan, Malaysia |
| Warranty: | 1 year | Motor type: | stepper motor |
| Main selling points: | competitive price | Origin: | Hubei, China |
| Health status: | new | Applicable industries: | Building material stores, machine repair shops, manufacturing plants, construction works, advertising agencies, energy and mining |
| Dimensions (L*W*H): | 3000*5000 | Mechanical test report: | if |
| After-sales service provided: | Engineers available to repair machinery overseas | payment terms: | L/C, Western Union, T/T |
| CNC controller: | beijing start | Video outbound inspection: | if |
| Year: | 2022 | Voltage: | 220V/380V/415V |
| Core components: | Gears, motors, gearboxes, engines, CNC systems, plasma sources, guide rails | Drive mode: | Unilateral drive |
| Drawing software: | AutoCAD | port: | Shanghai/Ningbo/Shenzhen |
| Packaging Details: | wooden box |
Cutting Method Guidelines:
1,Flame cutting: Suitable for cutting carbon steel above 10mm;
2,plasma cutting:PLASMA is common in thin metal sheets below 50mm (according to the power of the plasma source);
The cost of plasma cutting is 1/3~1/2 of flame cutting
3. Non-ferrous metal materials such as stainless steel, aluminum or copper suitable for plasma cutting.
Mechanical components | describe |
Rail Width | 3m |
Effective cutting width | 2.5m |
Length of longitudinal rail | 5m (can be extended according to your requirements) |
Effective cutting length | 4m |
CNC cutting torch | Flame, plasma, flame and plasma |
CNC flame cutting torch | Wuhan Lanxun |
automatic ignition device | Wuhan Lanxun |
Torch Height Controller | automatic height controller |
plasma source | Chinese brand LGK100A LGK120A or American brand. |
CNC plasma cutting torch | According to plasma power |
plasma cutting speed | 50-6500mm/min |
flame cutting thickness | 5—120mm |
Oxy-fuel cutting speed | 50-3500mm/min |
Torch lifting distance | 120mm |
drive mode | dual drive |
interface | 7" true color display, Spanish |
CNC system | Beijing Star Control System |
Programming and fledgling software | fast camera |
motor | stepper motor |
main feature

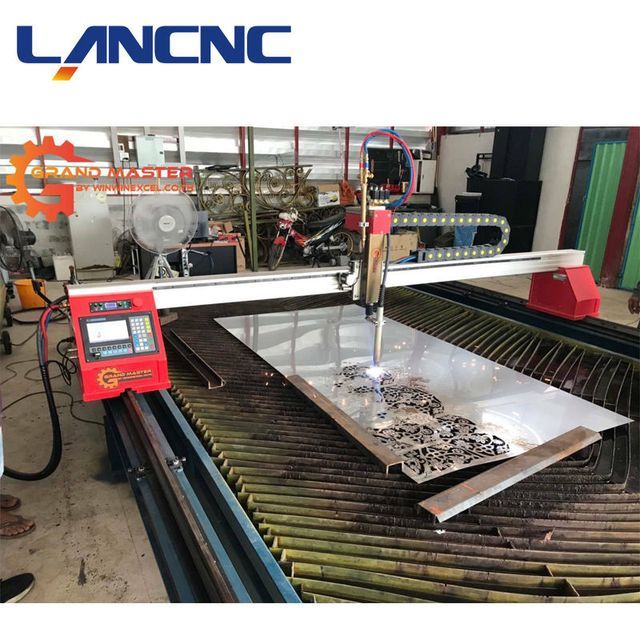

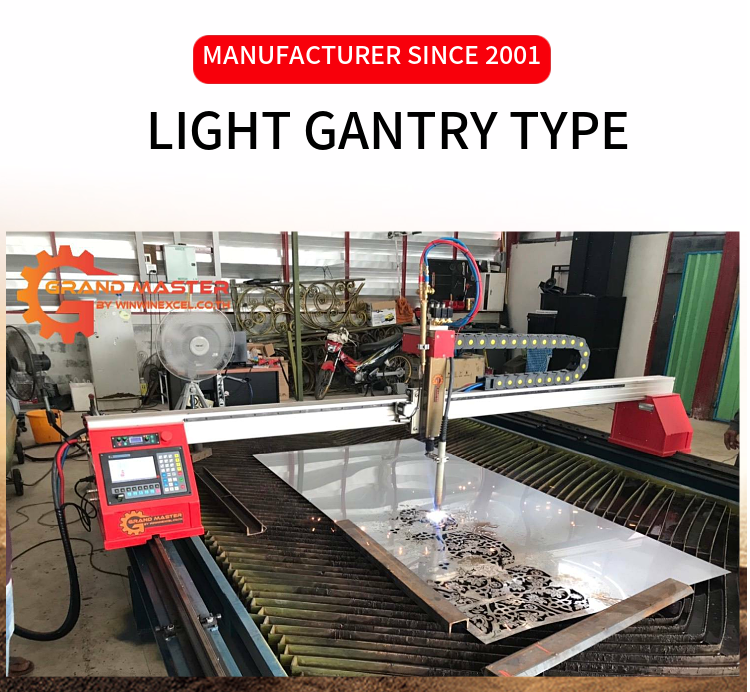

1. Gantry structure, large cutting width: horizontal width 3M, effective cutting width 2.5m, longitudinal trajectory 5m, effective cutting length 4m.
2. The beam adopts diagonal bracing and remote support, which has good rigidity and high precision. The installation method is in-line type, which is light and easy to move.
3. It can be configured as dual function of flame cutting, plasma cutting or flame plasma.
4. Flame cutting automatically ignites, and plasma cutting automatically adjusts the height by arc voltage.
5. After disassembly, there are only two packages for the whole machine, which is convenient for transportation and storage.
6. Provide detailed machine installation, operation and maintenance videos.
> High reliability, preventing the system from strong plasma interference, lightning strikes, etc.;
>Chinese, English, Russian, Spanish,More than 10 languagescan be easily switched;
>Using U disk to read and write program for software upgrade.
main feature
Machine Parts: Rails
Plasma stand and height controller
Plasma automatic arc voltage height controller.
