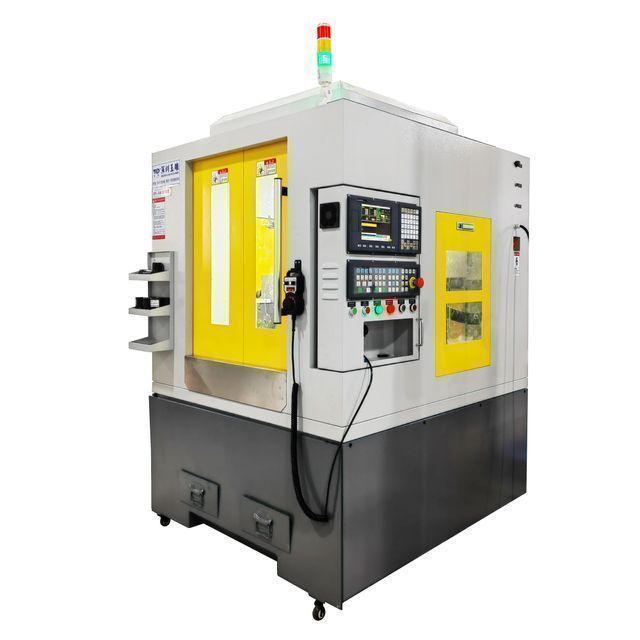

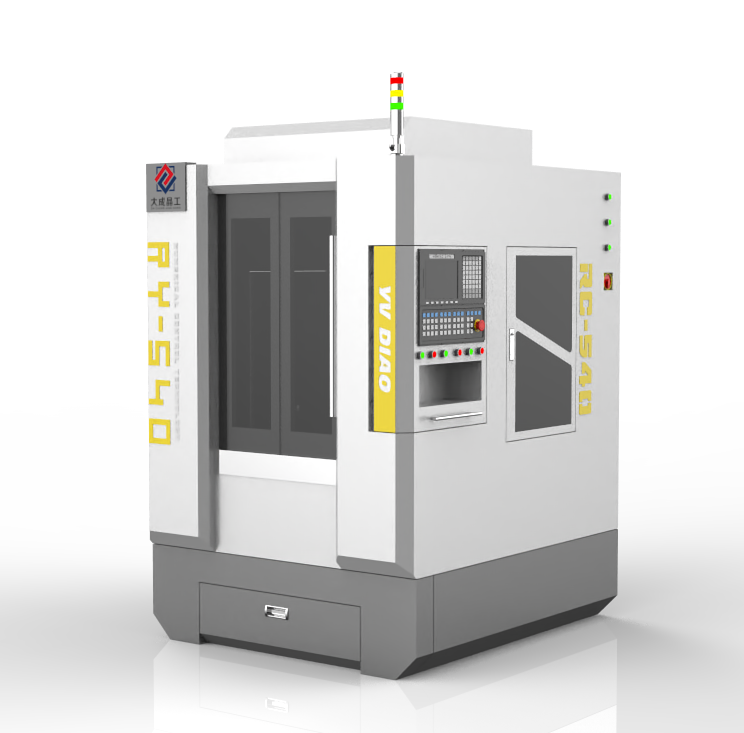

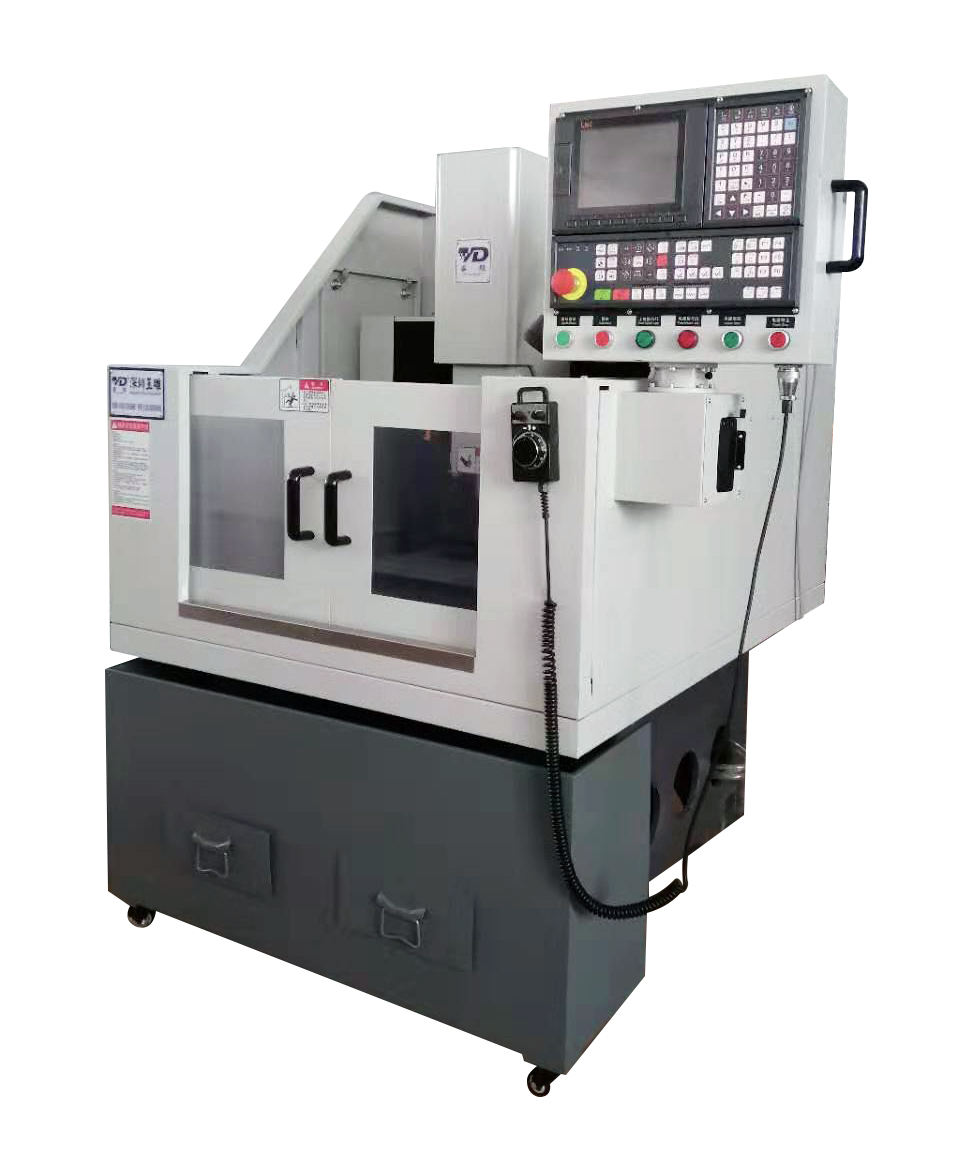

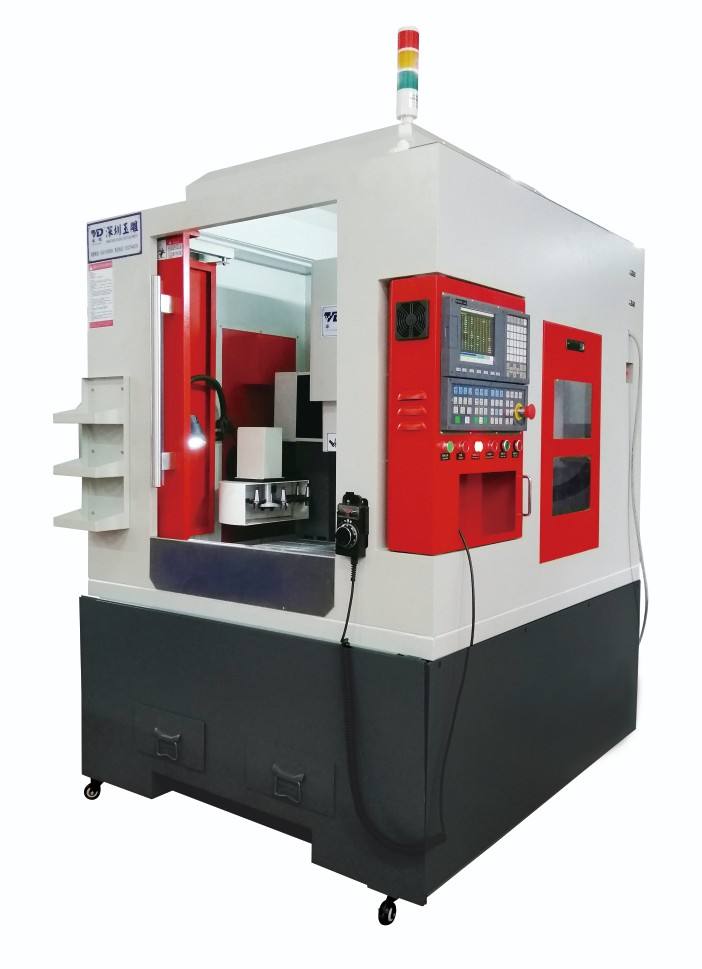

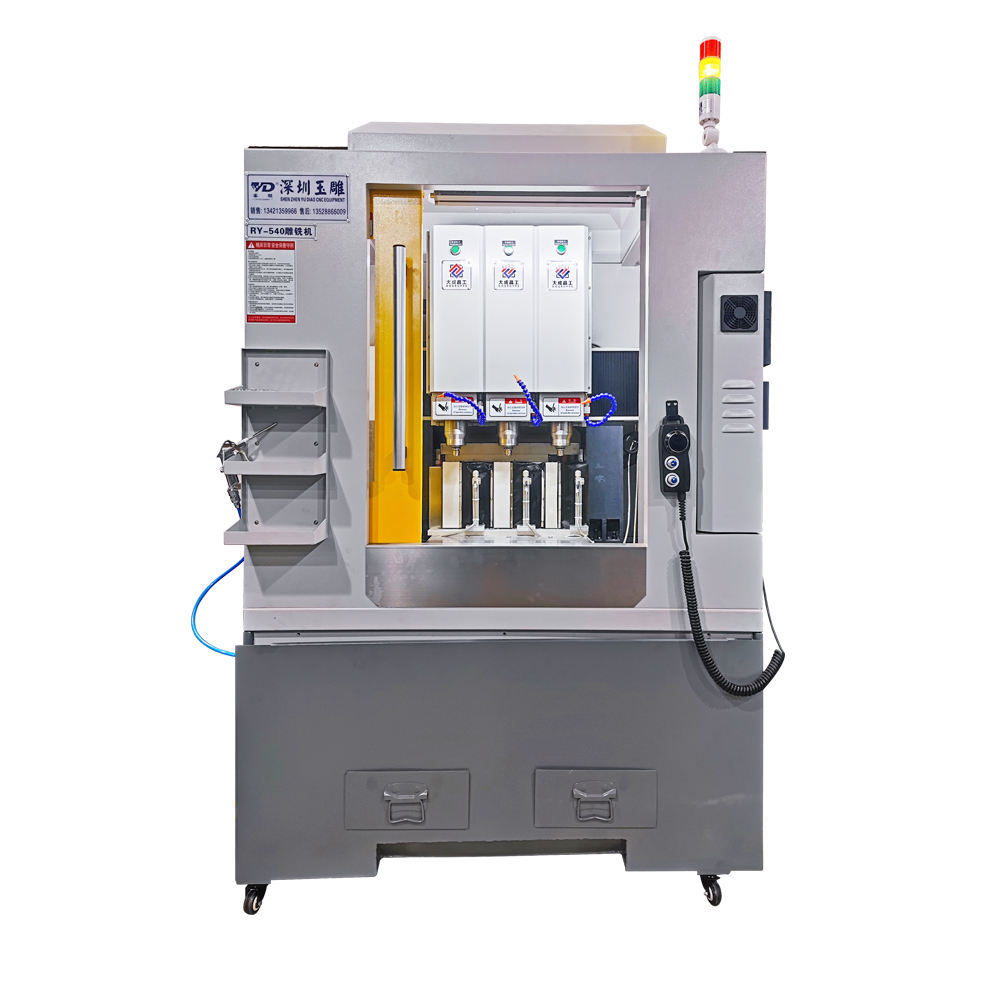

CNC metal milling machine
- $130000.00 / 1 - 4 sets
$12500.00 / 5 - 9 sets
$12000.00 / >=10 sets - 1 set
- Shenzhen Yu Diao Cnc Technology Co., Ltd.
- Guangdong, China
- Mr fengsheng Hong
PRODUCT DETAIL
brand: | determined | Video shipment inspection: | if |
Supply capacity: | 10 groups per week | Positioning accuracy (mm): | 0.01mm |
Spindle power (kW): | 2.2 | Warranty: | 1 year |
application: | 3c products, other applications, hard materials, household equipment, 3C accessories, precision molds, precision electrodes, medical industry | State of health: | new |
Core component warranty: | 1 year | Marketing Type: | normal product |
positioning accuracy: | ±0.005/300mm | Main selling points: | competitive price |
aspect: | 1600*1800*2000mm | Spindle speed (rpm): | 24000 rpm |
Maximum processing speed: | 12m/min | Packaging Details: | In accordance with international logistics standards |
Repeatability: | ±0.005 | Package preview: | |
Dimensions (L*W*H): | 1500*1600*1800 | Maximum operating speed: | 128m/min |
System Configuration: | Taiwan SynTech/Japan MITSUBISH | payment terms: | Western Union, T/T, MoneyGram |
Weight (kg): | 1500 | Repeatability (X/Y/Z) (mm): | ±0.005 |
place of origin; place of origin: | Guangdong, China | Spindle speed range (rpm): | 1 - 24000 rpm |
Showroom location: | Vietnam, Peru, Thailand, Japan | Table size: | 500*400mm |
port: | Shenzhen | X, Y, Z: | 500*400*150mm |
Mechanical test report: | if | Core components: | PLC, bearings, gearboxes, motors, spindles |
Product Description
1. The casting structure is stable, reasonable and beautiful. The cast iron of our company adopts HD250 grade casting, which has time aging and annealing aging, which ensures that the cast iron body is stable without deformation and durable. 2. The main parts of the fuselage adopt the first and second configuration parts imported from the same industry: for example: the guide rail adopts Taiwan Shangyin or Yintai or ABBA precision grade guide rail; the screw rod is Japan NSK, THK or Germany Rexroth (Rexroth); The first generation of bus absolute value control system and integrated drive; the servo motor adopts the high inertia of Panasonic servo motor in Japan; the wire adopts Japanese wire and customized wire;

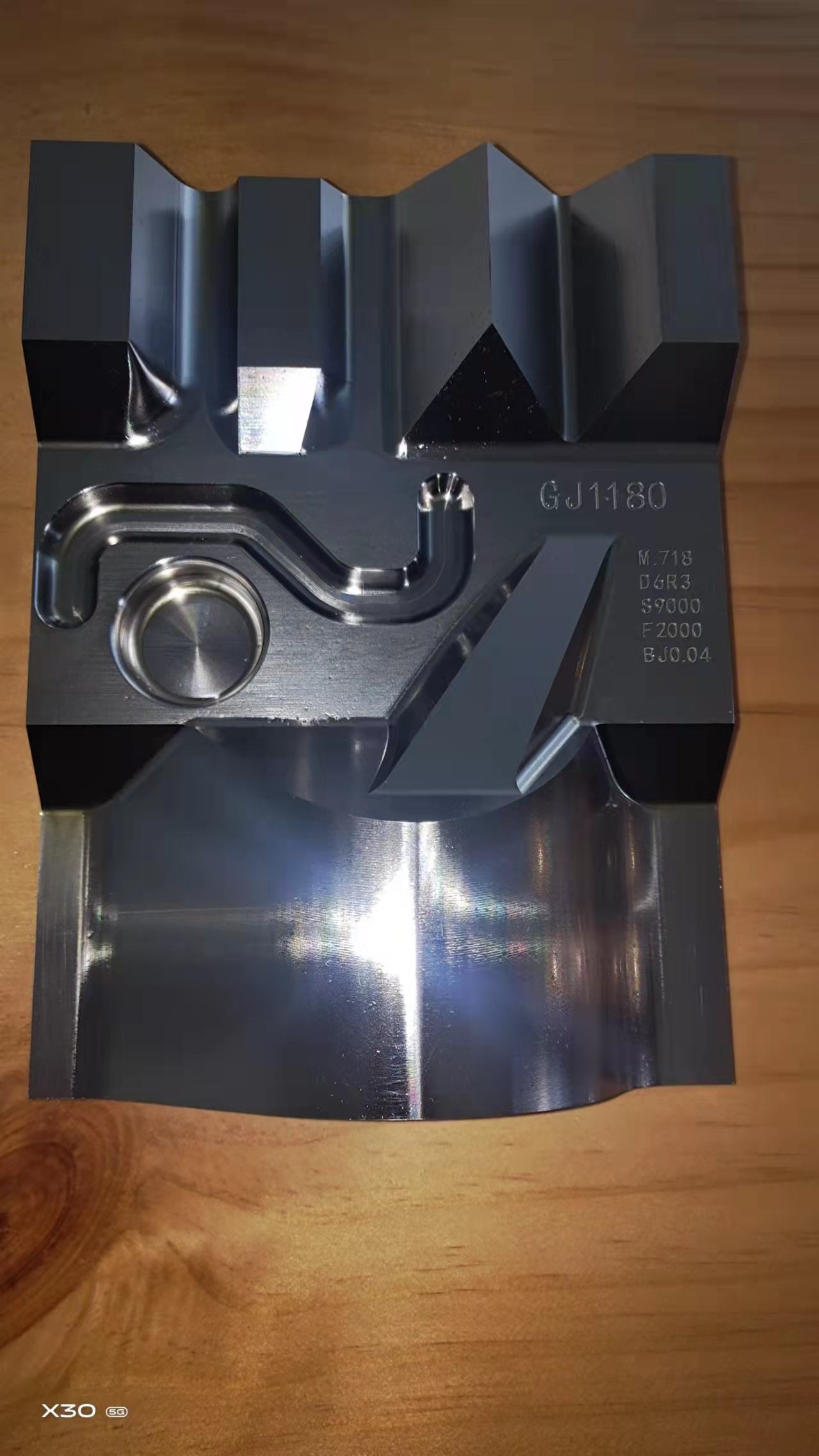

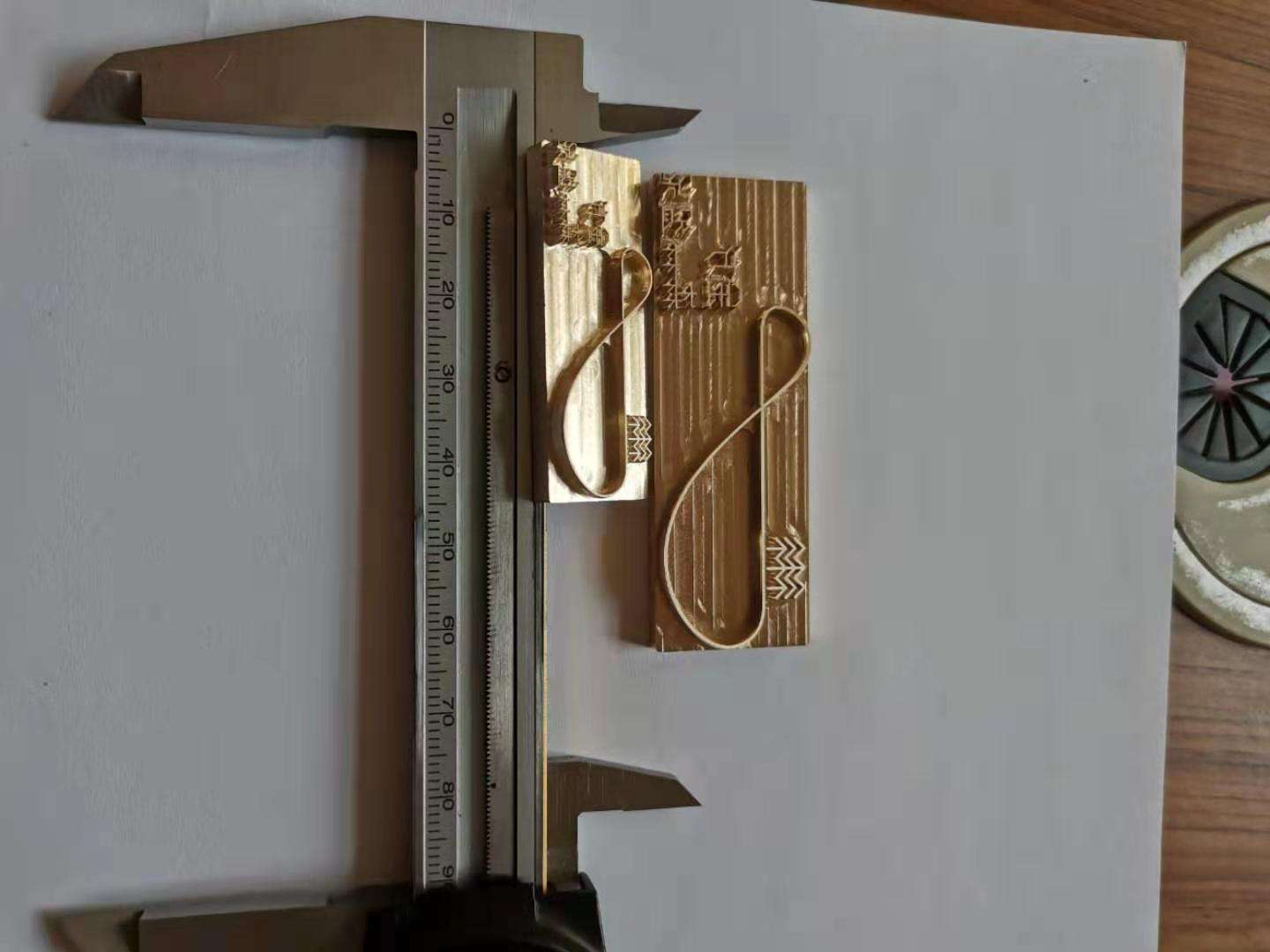

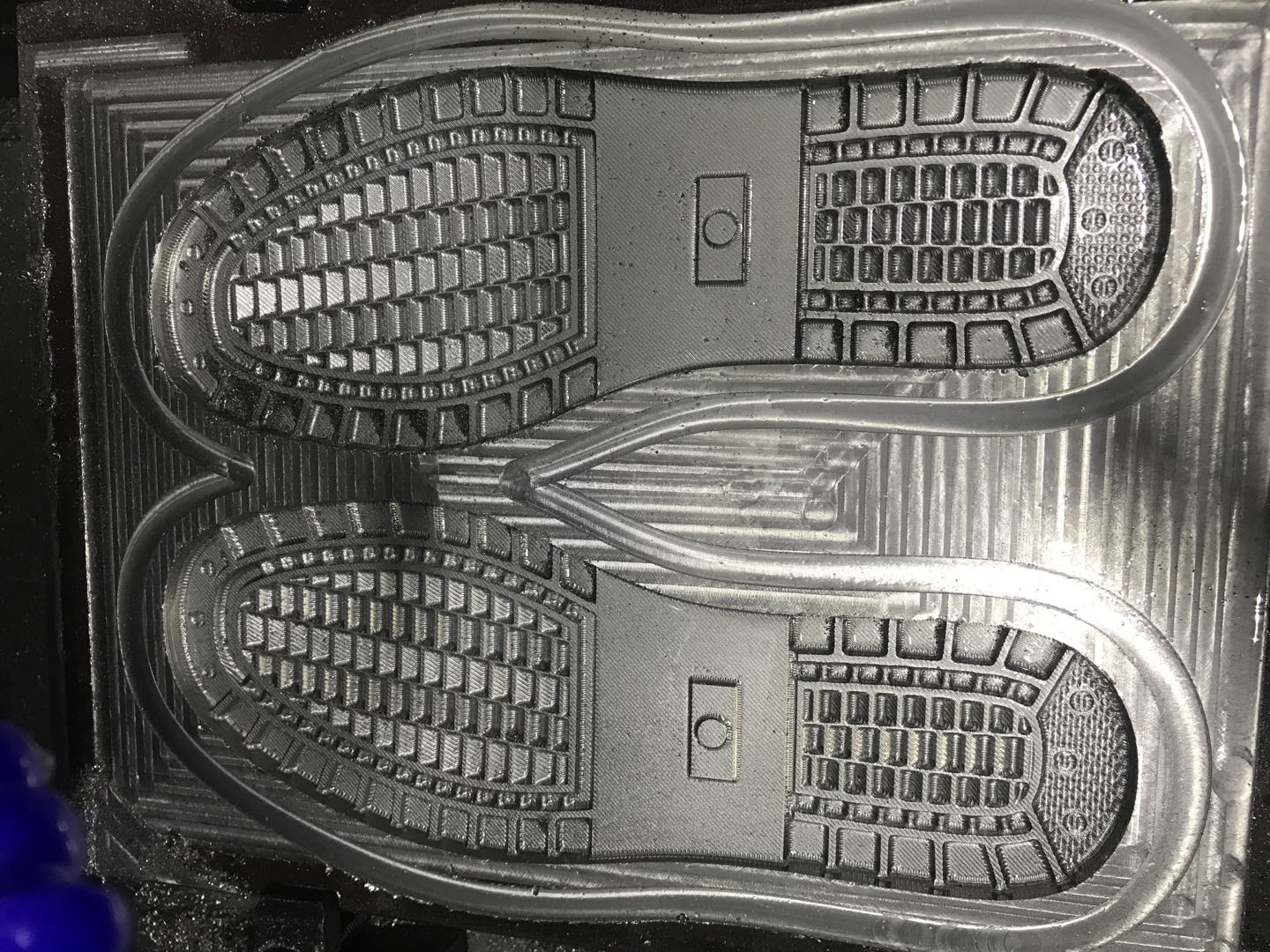

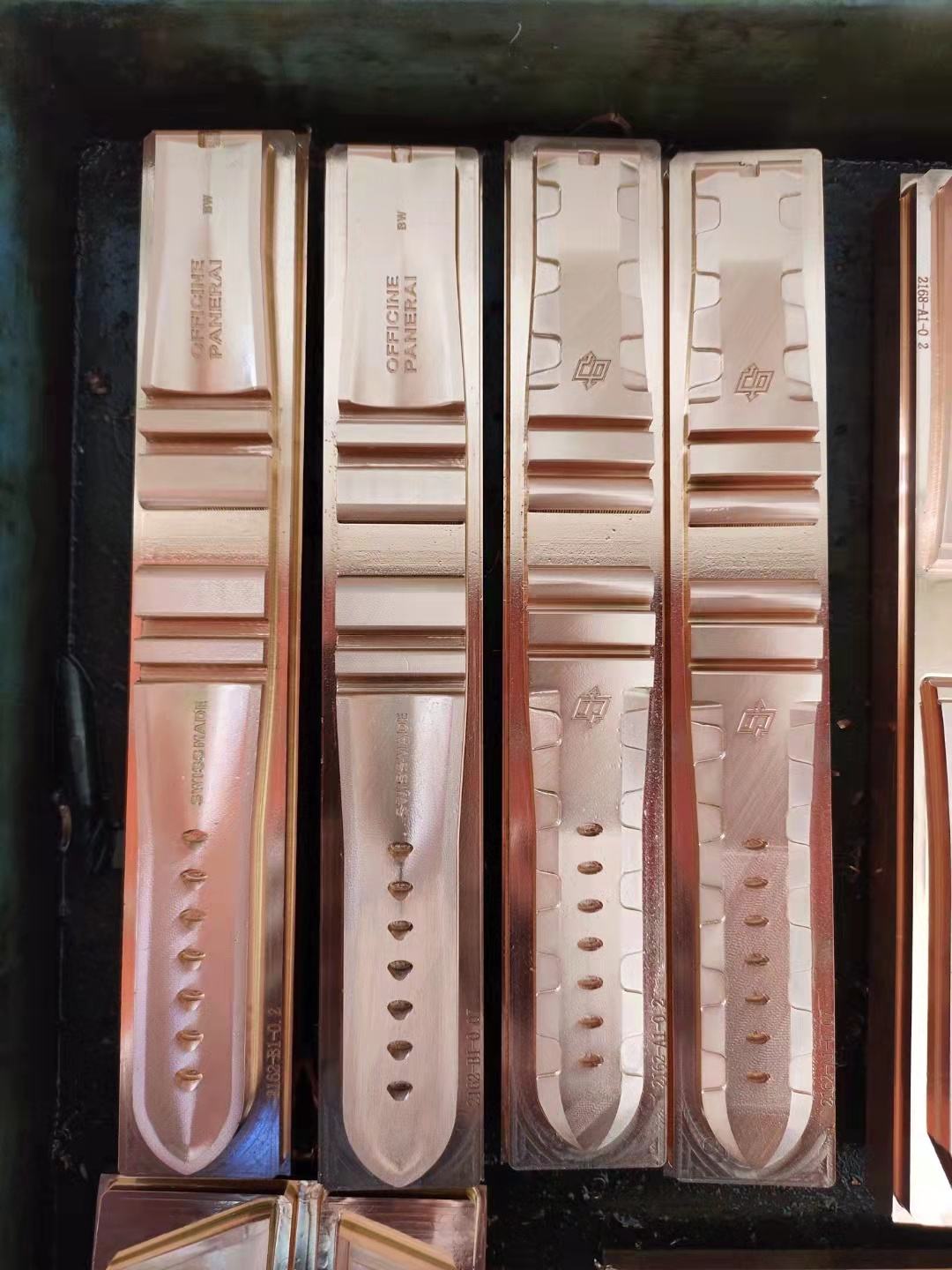

Applicable industries: ceramics, glasses, fiberboard, mobile phones, molds, hardware (hardware accessories in various industries), glass, auto parts, electronic cigarettes, smart wear, PCD circuit boards, accessories, handicrafts, die-casting parts, jewelry, seal signs,
A sort of | Machine tool technical parameters: | ||||||||
1 | The fuselage and all parts are made of nano castings | ||||||||
2 | table size | 500×400mm | |||||||
3 | T-slots (width x number x spacing) | 10×5×78mm | |||||||
4 | maximum load | 200KG | |||||||
5 | feed height | 280mm | |||||||
6 | Spindle end face to workpiece distance | 100-280mm | |||||||
7 | Three-axis travel X/Y/Z | 450/400/170mm | |||||||
8 | Spindle diameter | Ǿ100mm | |||||||
9 | Spindle speed | 36000 rpm | |||||||
10 | Spindle motor power | 6KW | |||||||
11 | Spindle magazine capacity | 8 | |||||||
12 | Tool change time | 5S | |||||||
13 | Spindle taper | ISO25 | |||||||
14 | Tool magazine | Servo disk spins | |||||||
15 | Rapid movement rate X/Y/Z | 12/12/12 m/min | |||||||
16 | processing speed | 6-12m/min | |||||||
17 | positioning accuracy | ±0.006/300mm | |||||||
18 | Repeatability | ±0.006/300mm | |||||||
19 | Processing Surface Accuracy | ≤Ra1.6 | |||||||
20 | Precision | ±0.01mm | |||||||
twenty one | Optional four-axis five-axis | yes | |||||||
twenty two | A axis rotation angle | ±105 degrees | |||||||
twenty three | Fifth axis C axis rotation angle | 360 degrees | |||||||
twenty four | Five-axis linkage mode | 5-axis follow-up | |||||||
25 | Operating Voltage | 380V/50HZ±10% or 220V/60HZ | |||||||
26 | Machine size (length*width*height) | 1450×1600×2100mm | |||||||
27 | weight | 1500KG | |||||||
Second | Machine tool configuration details Brand parameters: | ||||||||
1 | System Configuration | Taiwan SYNTEC 6GA/Ncstudio280/LNC | |||||||
2 | Spindle | 6KW high-precision, high-speed, high-quiet oil-cooled spindle | |||||||
3 | Ball screw rod | Japan NSK, Germany RexRoth) 2005 | |||||||
4 | Linear Guides | Taiwan HIWIN/ABBA high precision rail H25 | |||||||
5 | Servo unit | Panasonic servo motor 750W/Ncstudio | |||||||
6 | Wire Bearings | Taiwan TPI precision grade bearings | |||||||
7 | switching power supply | Mean Well Taiwan | |||||||
8 | electric switch | CHINT | |||||||
9 | converter | * Square Converter |
