JS 7080 High precision CNC engraving and milling machine

PRODUCT DETAIL
Package preview:application:DIY/education/light industry, hard materials, 3C accessories, precision molds, precision electrodes
CNC or not:CNCRepeatability (X/Y/Z) (mm):0.006
product name:Machining Center CNC Milling Machinecolor:Blue and white (purchase quantity can specify the color)
Spindle speed range (rpm):100 - 18000 rpmPackaging Details:Most of them are packed in cartons, a small part is packed in wooden boxes, accept customized CNC milling machine iKX3 high precision heavy duty mini 5 axis cnc milling machine price in China
payment terms:wire transferOrigin:China
Dimensions (L*W*H):1700*2200*2300Warranty:1 year
port:ShanghaiType of machine:CNC milling machine
After warranty service:Video technical support, online supportaccurate:high precision
Function:Face milling, slot milling, drilling, chip removalMain selling points:high accuracy
Spindle speed:100-5000 rpmSpindle power (kW):5.5
After-sales service provided:Video technical support, online supportSupply capacity:50 pieces per month
Product Category:handicrafts, metal, woodWeight (kg):1680
Health status:newShowroom location:not any
Positioning accuracy (mm):0.01 mm mmLocal service location:Turkey, United Kingdom, United States, Italy, Philippines, Brazil, Mexico
model:iKX3
Product Description

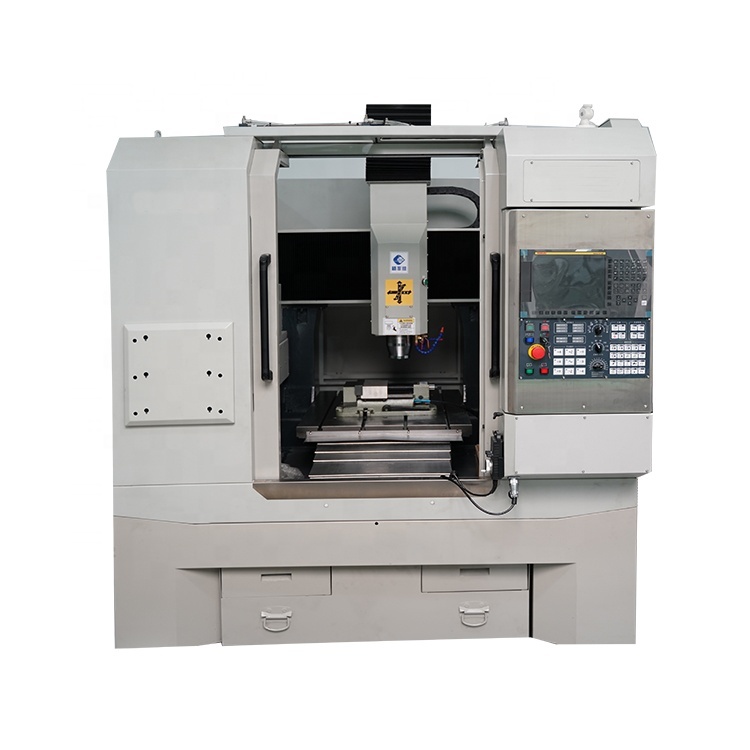

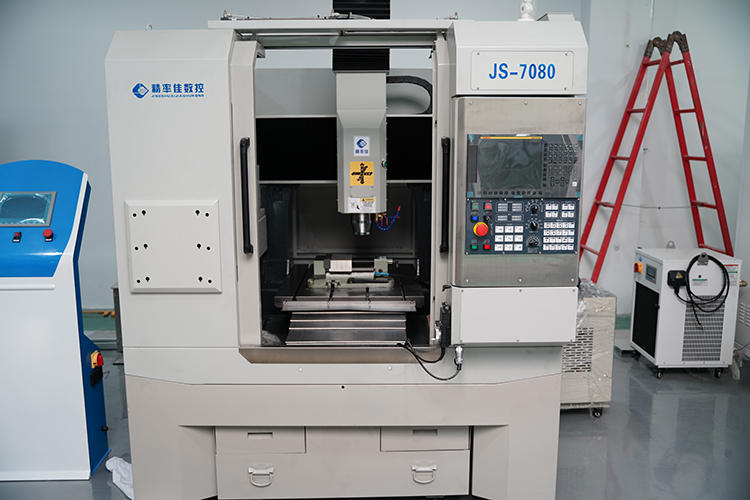

JS 7080 high precision CNC engraving and milling machine
table
table size
800×820mm
travel
X travel
≥720mm
Y travel
≥820mm
Z travel
≥300mm
Spindle
Spindle motor power
5.5 kW
Spindle speed
≥18000rpm
Spindle drive structure
Electric spindle
Spindle cooling method
Oil cooler
feed
Maximum moving speed (X/Y/Z)
15000/15000/10000 mm/min
tool changer
tool number
8
accuracy
positioning accuracy
≤0.008mm
Repeatability
≤0.006mm
others

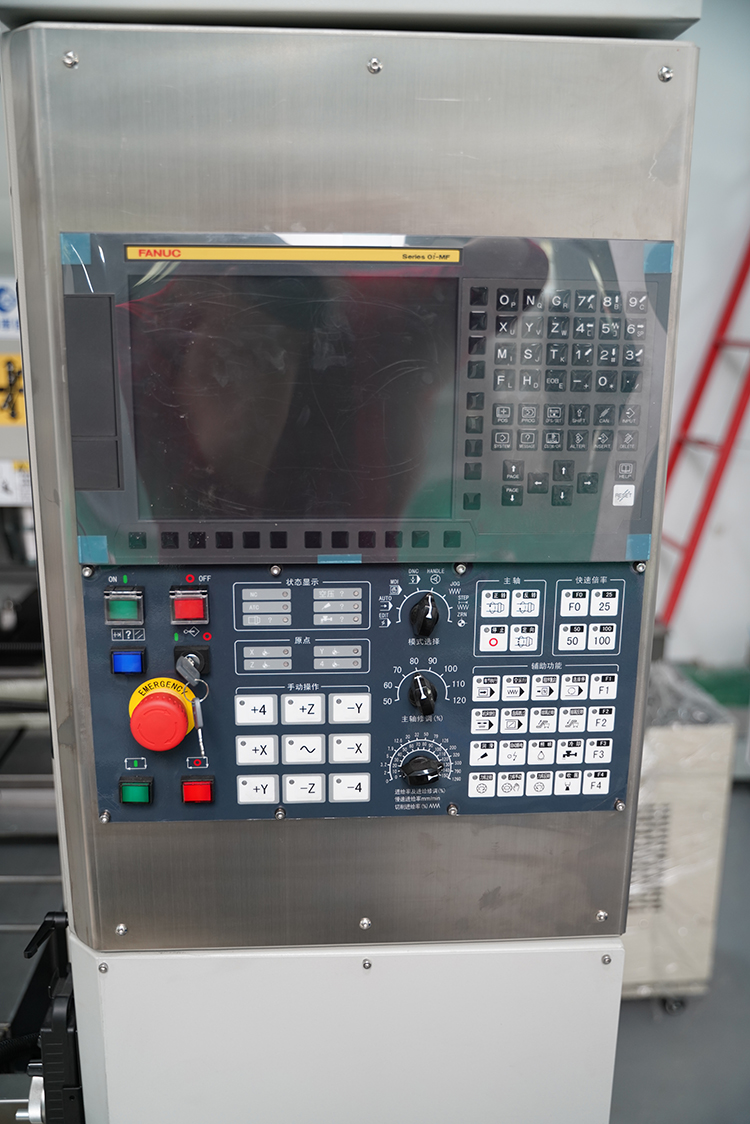

Control System
GSK, KND, FANUC
Dimensions
1700*2200*2300mm
included accessories
Milling cutter (alloy)
4/6/8/10/12/14/16mm, 5 each
Ball mill (alloy)
1.5/2/3/4/6/8mm
electrode knife
R0.5*50, R0.78*50, R1*50, R2*50, R3*50, R4*50, R6*50, R8*50


This is our star product, which sells very well in the world market.


-Control system: GSK, KND, FANUC;
-High-speed electric spindle
-8 station air traffic control
-Quick tool changer
-Spindle oil cooling;
- LED work lights;
