CNC processing marble sheet metal vacuum lifter for lifting glass, stone, flat plate
- $1700.00 / 1 - 1 sets
$900.00 / 2 - 11 sets
$500.00 / 12 - 23 sets
$400.00 / >=24 sets - 1 set
- Qingdao Sinofirst Machinery Co.,ltd
- Shandong, China
- Ms Alison Zhou
| Marketing Type: | New Products 2020 | Control voltage: | DC24V |
| Showroom location: | United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka , Romania, Bangladesh, South Africa, Malaysia, Australia | Lifting height: | 1.5~2.5m, or customized |
| R: | 400kg/600kg/800kg, or customized | Video shipment inspection: | if |
| Supply capacity: | 1000 sets per month | Core components: | PLC, engine, motor, pressure vessel, water pump |
| place of origin; place of origin: | Shandong China | Mechanical test report: | if |
| Maintenance-free battery: | 2x12V/160AH | payment terms: | L/C, Western Union, T/T, MoneyGram, Alibaba Trade Assurance |
| Weight (kg): | 1100 kg | Dimensions (L*W*H): | standard |
| Security: | Double loop vacuum system | port: | Qingdao Port, |
| Warranty: | 12 months | brand: | SAGA first |
| Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores | After-sales service provided: | Engineers available to service machinery overseas |
| Input voltage: | 110V 220V 240V 380V, 400V, customized | Core component warranty: | 3 years |
| Packaging Details: | wooden box | motor: | 24V/500W/700W/900W |
| State of health: | new | Surface treatment: | powder coating |
| Suction cup type: | 250mm/300mm round rubber suction cup/square sponge suction cup |

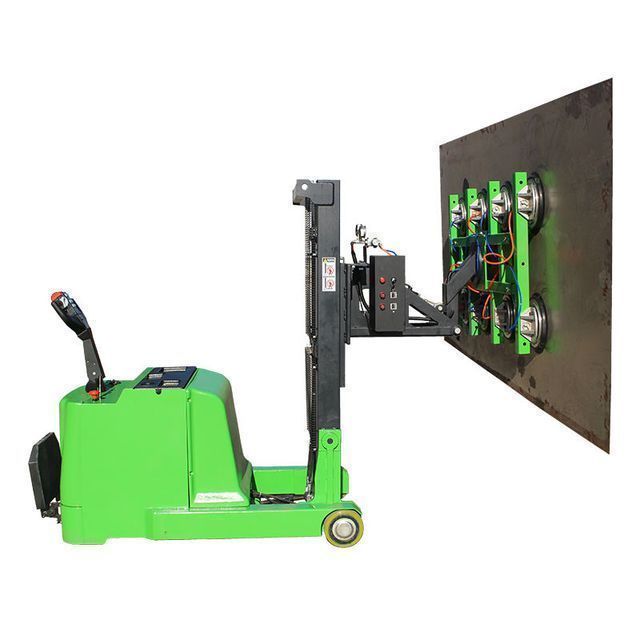

Marble full electric vacuum spreader
- OEM & ODM service -

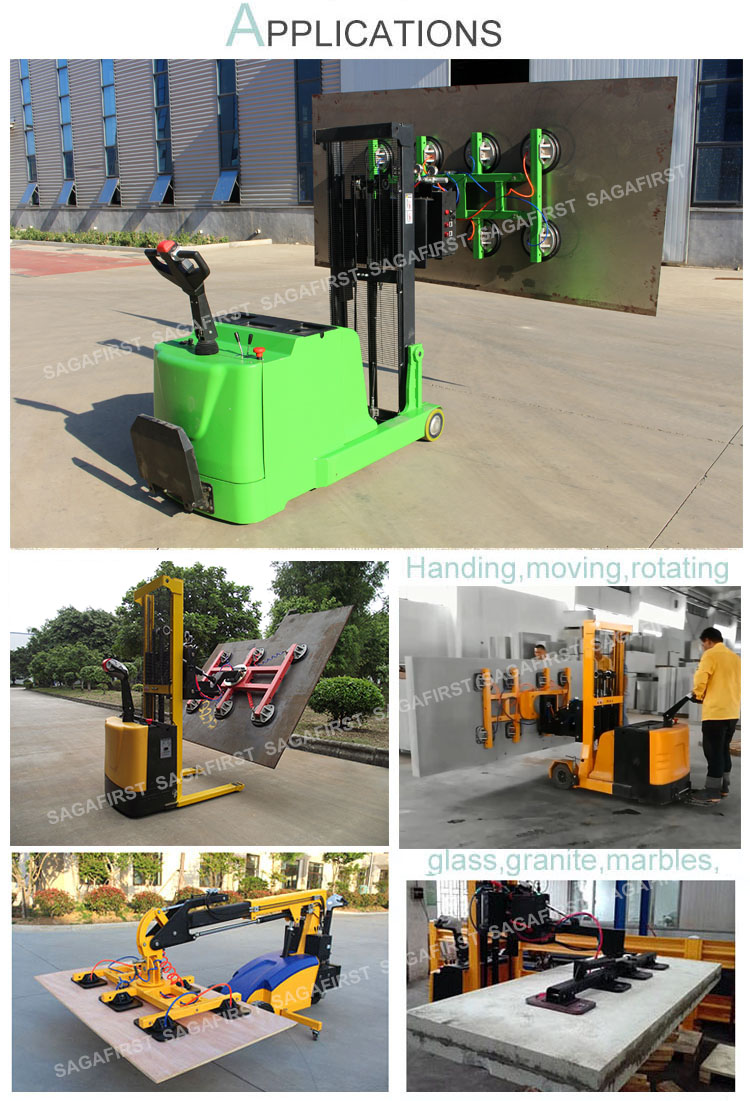

SAGAFIRST brand vacuum spreaderDesigned for handling all kinds of slabs, planks and glass, it is suitable for installing steel plates, glass walls, moving granite, marble and more. Lifting, moving and rotating are handled with ease by vacuum suction cups and a powerful drive system.
GL-HD series vacuum spreader: Heavy-duty vacuum lifter, easy to move
Self-propelled drive, higher lift cover, available on request. 100 mm left and right electric side shift. Motorized forward/backward tilt from vertical to horizontal or reverse. The suction cup is rotated manually.
|
Model |
GL-HD-4015 |
GL-HD-6015 |
GL-HD-8015 |
GL-HD-8025(8) |
GL-HD-8025(10) |
|
maximum. R |
400 kg |
600 kg |
800 kg |
800 kg |
800 kg |
|
Safe load capacity |
200 kg |
300 kg |
400 kg |
400 kg |
400 kg |
|
Lifting height |
1500mm |
1500mm |
1500mm |
2500mm |
2500mm |
|
Maximum Quantity (Custom) |
4/6 |
4/6/8 |
6/8/10 |
8 |
10 |
|
Cap diameter (customized) |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
|
Plate size (customized) |
1220x1830mm |
2440x1830mm |
3660x2440mm |
3660x2440mm |
3660x2440mm |
|
load center |
650mm |
950mm |
1250mm |
1250mm |
1250mm |
|
drive motor |
24V/500W |
24V/700W |
24V/900W |
24V/900W |
24V/900W |
|
hydraulic motor |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
|
Battery |
2x12V/70Ah |
2x12V/100Ah |
2x12V/160Ah |
2x12V/160Ah |
2x12V/160Ah |
|
charger |
24V/10A |
24V/15A |
24V/20A |
24V/20A |
24V/20A |
1. Self-driven. Rotate manually.
2. Electric lifting up to 1.5M 2.5M
3. Taller lift cap. Available upon request.
4. Left and right electric side shift 100mm.
5. Electric front/rear tilt, from vertical to horizontal or reverse.

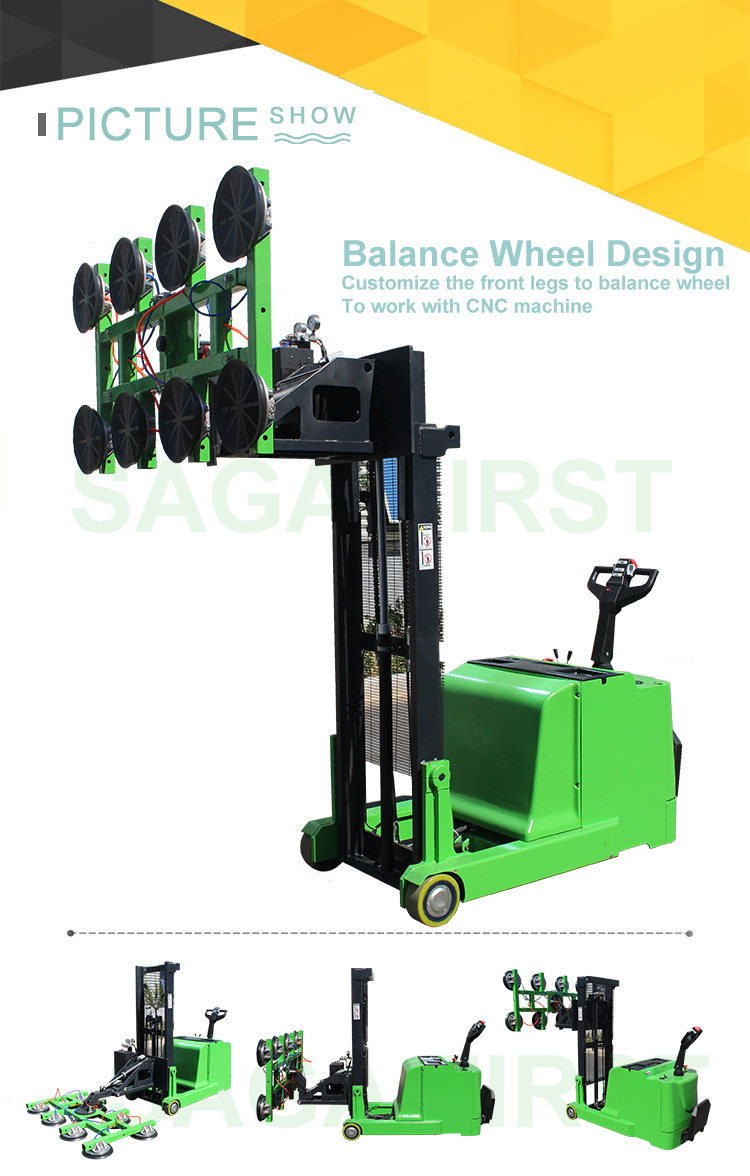

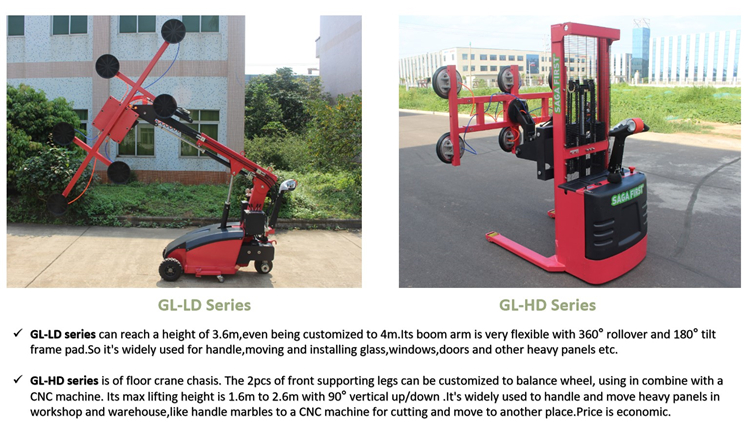

GL-HD series is floor crane chassis.2 front support legs can be customized asbbalance wheel,Used in conjunction with CNC machine tools.Its maximum lifting height is 1.6m to 2.6m, vertically up and down 90°. Widely used in workshops and warehouses to carry and move heavy slabs, such as carrying marble to CNC machines for cutting and moving to another place. The price is economical.
Safety Instructions:
1. Explosion-proof valve 2. Relief valve
3. Emergency lowering valve 4. Overload protection locking device.
5. DC power supply, safe and reliable 6. Double loop vacuum system
Sagafirst Vacuum Lifteryesspecialyou designedHa haProcess all kinds of thick plates, plates, glass, suitable for installing steel plates, glass walls, moving granite, marble, etc. Handle lifting, moving and rotating with ease thanks to the vacuum suction cap and powerful drive system.
