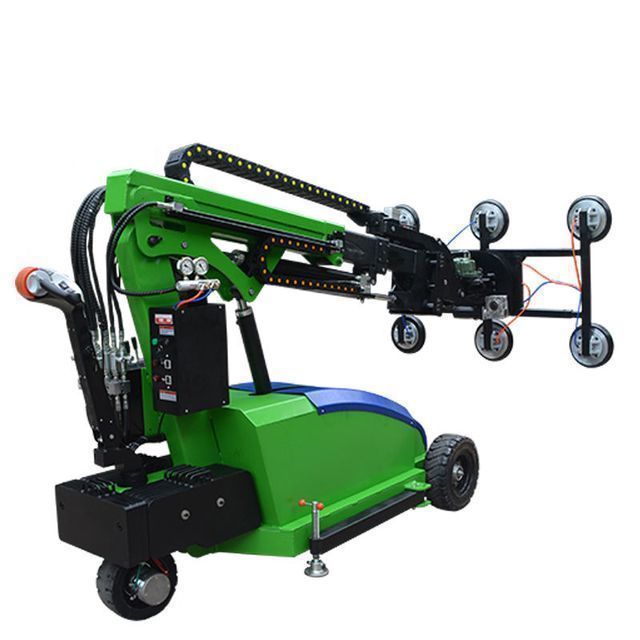

Glass robot on electric mobile glazing trolley

PRODUCT DETAIL
Packing Dimensions/Materials:3150mm*1100mm*1860mm wooden boxport:Qingdao, Shanghai, Ningbo, Shenzhen or designated
Core components:PLC, motor, pressure vessel, water pumpapplication:Architectural Decoration Factory Glass Company
brand:Polycon Elevatorcolor:blue green red or as your request
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PaypalCore component warranty:1 year
After warranty service:spare partsDimensions (L*W*H):See below
Applicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agenciesPackaging Details:wooden box
Package preview:Video shipment inspection:if
Optional control system:remote controlR:see table below
Supply capacity:218 sets per yearLifting height:see table below
Weight (kg):1600 kgfeature:Dual independent pneumatic channels Smart handle Durable battery
net weight:see table belowShowroom location:Egypt, Turkey, UK, Italy, France, Germany, Vietnam, Philippines, Brazil, Saudi Arabia, India, Russia, Spain, Morocco, Argentina, Chile, UAE, Colombia, Nigeria, Japan, Malaysia, Australia
place of origin; place of origin:Shandong ChinaMarketing Type:New Products 2020
Mechanical test report:ifusage:Shipping glass, marble or other flat objects
Warranty:1 yearState of health:new



GL-LD series truck glass vacuum hoisting equipment



introduce

a) Electric drive, the trolley can run effortlessly under high load.

b) Durable battery promises longer duty cycle.

c) High-quality hydraulic cylinders guarantee zero-risk lifting and extension of the telescopic boom.

d) All products are CE marked.



application:

Widely used in the lifting and handling of flat objects such as glass plates, metal blocks, marble blocks, and sandwich panels.

Sponge suction cups are specially designed for deformation of irregularly shaped objects.





feature:

1. Double pneumatic channels ensure safety. It maintains pressure even if one channel is severed.

2.Versatile and flexible. The suction cup holder can move freely 180°horizontally and vertically, and a remote control is optional.

3. Telescopic design, stretch farther and lift higher.

4. High-quality hydraulic cylinder to ensure good operation.

5. Durable battery and smart charger can extend the working cycle.

6. One yearfree replacement partsPolicy against any mechanical and structural failure, non-human causes.

Click hereGet the latest quote...

Specification Table

Top Rated Cart Vacuum Spreader: LD-600

model type

GL-LD-350

GL-LD-400

GL-LD-600

GL-LD-800

R

350kg (arm retracted)

400kg (retracted)

600kg (retracted)

800kg (retracted)

175kg (expanded)

200kg (extended)

300kg (extended)

400kg (extended)

Lifting height

3500mm

3500mm

3650mm

5000mm

Number of suction cups

4

6

6

8

rubber suction cup

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Maintenance-free battery

2x12V/100AH

2x12V/100AH

2x12V/120AH

2x12V/120AH

charger

smart charger

smart charger

smart charger

smart charger

motor

24V/600W

24V/600W

24V/900W

24V/1200W

lift motor

24V/2000W/5L

24V/2000W/5L

24V/2000W/5L

24V/2000W/12L

front wheel

Ø310x100mm

Ø310x100mm

Ø375x110mm

Ø400x150mm

drive wheel

Ø250x80mm

Ø250x80mm

Ø310x100mm

Ø300x125mm

Net weight/Gross weight

780/820kg

800/850kg

1200/1250kg

1600/1700kg

Package dimensions

Wooden box: 3150x1100x1860mm. (1x20GP load quantity: 5sets)

move

Automatic (4 types)

1. The pad frame is vertically up and down 180°automatically

2. Boom in/out 610/760mm automatic

3. The power arm automatically goes up and down

4. Horizontal side shift 100mm automatic

instruction manual (2 types)

5. The pad frame is tilted left and right by 90° manually (see option 1. Automatic lift/right turn)

6. The pad frame rotates 360° manually (see option 2. Automatically rotate 360°)

usage

It is specially designed for handling different thick plates such as steel, glass, granite, marble, etc., and is equipped with vacuum suction caps of different materials.







Product overview



 Click hereGet the latest quote...

Features and advantages



1. Integrated control system to ensure fast and automatic positioning vertically and horizontally.

2. DC24V reliable actuator for lifting, extending and tipping, efficient and precise.

3. High efficiency and manpower saving, which can greatly improve the working environment.

4. The vacuum spreader has been shot peened and painted to prevent corrosion.
5. The high-quality pumping station makes the vacuum spreader go up and down smoothly.
6. High-quality hydraulic cylinder to ensure smooth operation.

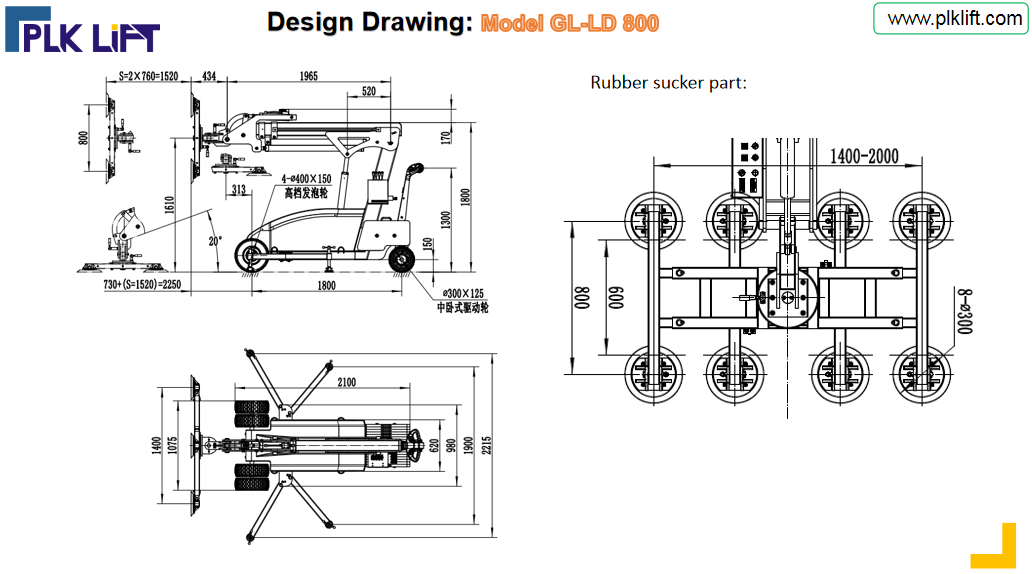

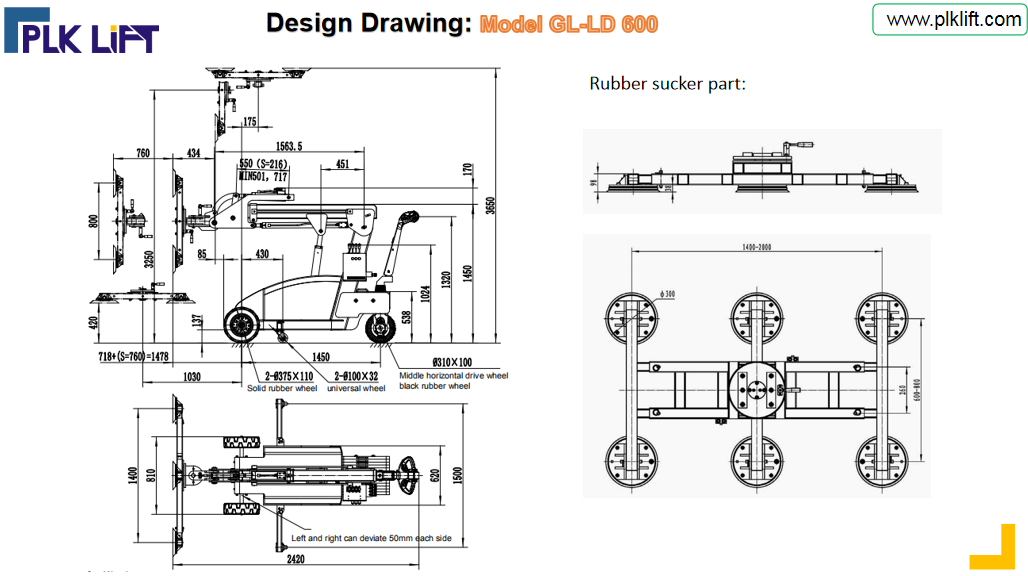

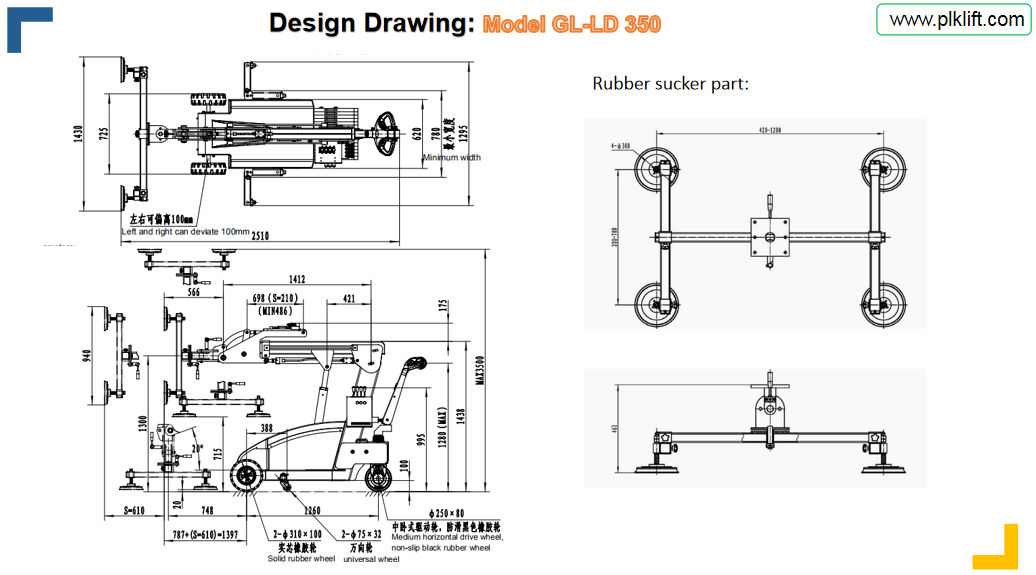

draw

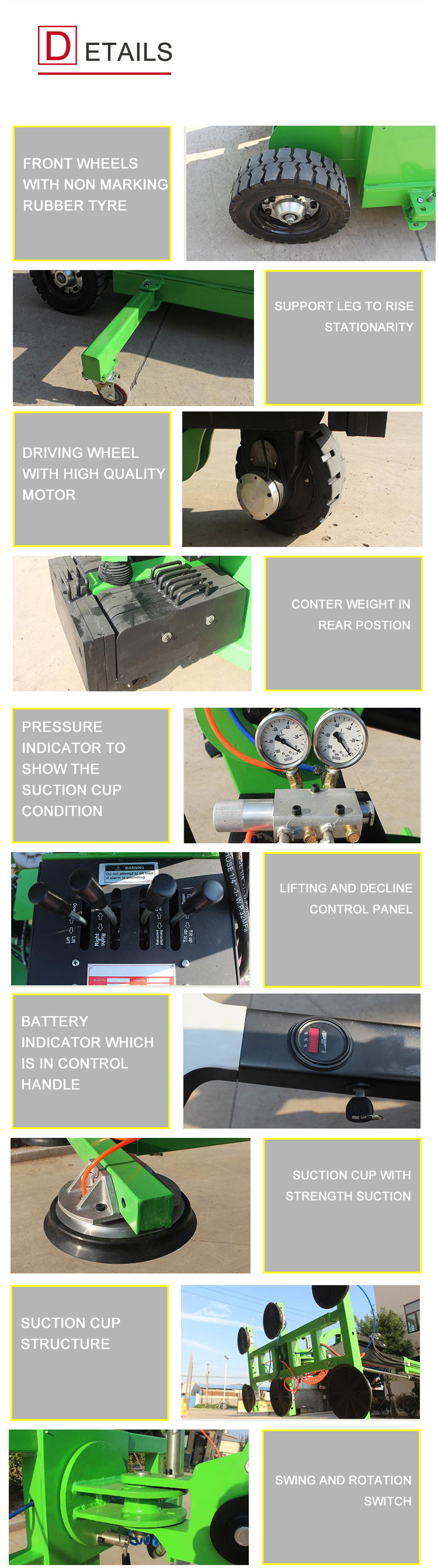

detailed image
