Soggy Field Used Belt Wheel Crawling Mobile Track Scissor Access Lift

  • $2500.00 / 1 - 2 sets
    $2450.00 / 3 - 4 sets
    $2400.00 / >=5 sets
  • 1 set
  • Jinan Plk Machinery Co., Ltd.
  • Shandong, China
  • Ms Sarah Tian
PRODUCT DETAIL
Marketing Type:Hot Product 2019;Port:Qingdao, Shanghai, Ningbo, Shenzhen, Dalian or Designated;
Lift Mechanism:Scissor Lift;Lift Drive / Actuation:Hydraulic;
Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Retail,Construction works ,Energy & Mining;Product Variants:6m 8m 10m 12m;
Warranty:1 Year;Lifting Motor:48V 2.2KW;
Power:2.2KW;Intelligent Control System:Yes;
After-sales Service Provided:Free spare parts;Core Components:Pressure vessel,Motor,Pump,Other;
Video outgoing-inspection:Provided;Overall Dimensions:2440MM*1390MM*1765MM,2440MM*1390MM*1765MM;
Supply Ability:90 Sets per Month;Brand Name:PLK LIFT;
Net Weight:2420KG 2610KG 2890KG 3080KG;Turning Radius:0 M;
Showroom Location:None;Max Climbing Angle:30 Degree;
Min. Lifting Height:1765MM;Warranty of core components:1 Year;
Table Size:2270MM*1120MM;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;
Weight:2420 kg;Load Capacity:450KG 320KG;
Machinery Test Report:Not Available;Packaging Detail:Wooden Box;
Condition:New;Product Name:Crawler Track Scissor Lift;
Place of Origin:China;

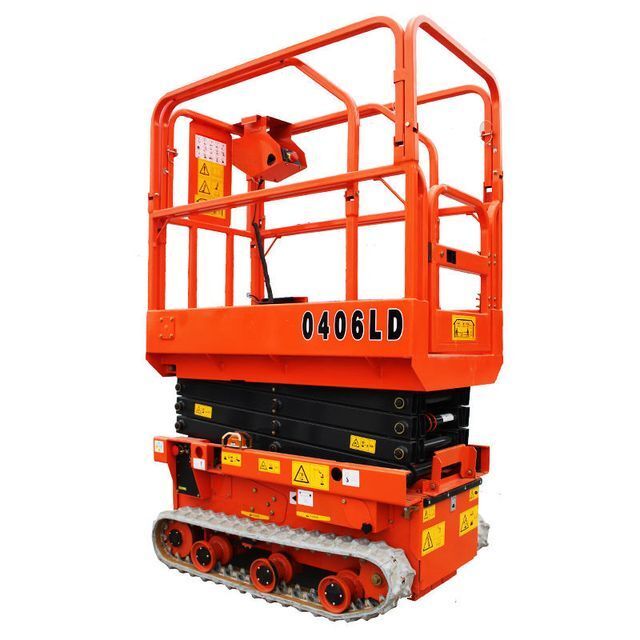

Track Crawler Scissor Lift



Chassis Super Strong

Track Crawler Scissor Lift can operate on rough terrains away from constant AC power supply. Empowered by super heavy chassis, the lift can work under load stably without need for outrigger support and after job done, can directly leave the venue without need for lowering the platform first.



All Terrains Operational

Track Crawler Scissor Lift adopts belt wheels greatly increasing surface contact with ground, generating way greater friction than regular non marking wheels. So it can travel on uneven muddy terrains, an ideal tool for oil prospecting, outdoor installations and more.



Highly Maneuverable

Track Crawler Scissor Lift, with its compact size and zero turning radius, can outperform large scale access machinery in maneuverability while accomplishing tasks with equal standards.



Free Parts Offered for any Malfunction

1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.



>>>Click Here<<< to Get Latest Quote...



Specs Table



Model

GTJZ-C6

GTJZ-C8

GTJZ-C10

GTJZ-C12

Max. Platform Height

m

6

8

10

12

Max. Work Height

m

8

10

12

14

Load Capacity

kg

450

450

320

320

Load Capacity of Extendable Platform

kg

113kg

113kg

113kg

113kg

Platform Size-B*D

mm

2270*1120

2270*1120

2270*1120

2270*1120

Extendable Platform Length-S

mm

900

900

900

900

Minimum turning radius

°

0

0

0

0

Lifting Motor

v/kw

48/2.2

48/2.2

48/2.2

48/2.2

Driving Motor

v/kw

2*48/4

2*48/4

2*48/4

2*48/4

Driving Speed

km/h

2

2

0.5

0.5

Up/Down Time

sec

24/34

28/38

38/46

38/46

Battery

V/Ah

8*6/225

8*6/225

8*6/225

8*6/225

Battery Charger

V/A

48/25

48/25

48/25

48/25

Max Climbing Ability



30%

30%

30%

30%

Max Working Angle



1.5°/3°

1.5°/3°

2°/3°

2°/3°

Speed Ratio40483



1:40

1:40

1:40

1:40

Overall Length-L

mm

2440

2440

2440

2440

Overall Width-W

mm

1390

1390

1390

1390

Overall Height (Guard rail fold)-H1

mm

1765

1890

2015

2130

Overall Height (Guard rail unfold)-H2

mm

2275

2400

2525

2545

Overall Net Weight

kg

2420

2610

2890

3080

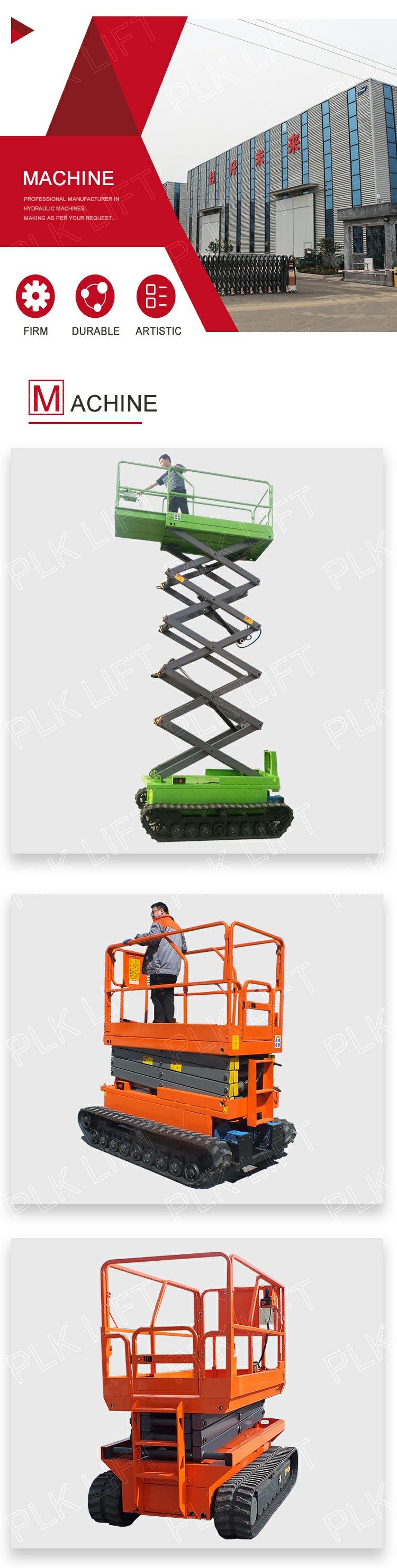

Product Overview









 >>>Click Here<<< to Get Latest Quote...



Feature & Advantage



1. Imported intelligent control system.

2. Max. 30 degree climbing capability.

3. Automatic braking function.

4. Intelligent auto troubleshooting system.

5. Little noise and zero carbon print.

6. Maintenance-free Trojan brand battery.

7. High strength manganese steel scissor tubing

8. DC Powered. Can move without being confined to AC power source.

9. Safety valves including hose anti-burst valve, spillover valve, and emergency decline valve.

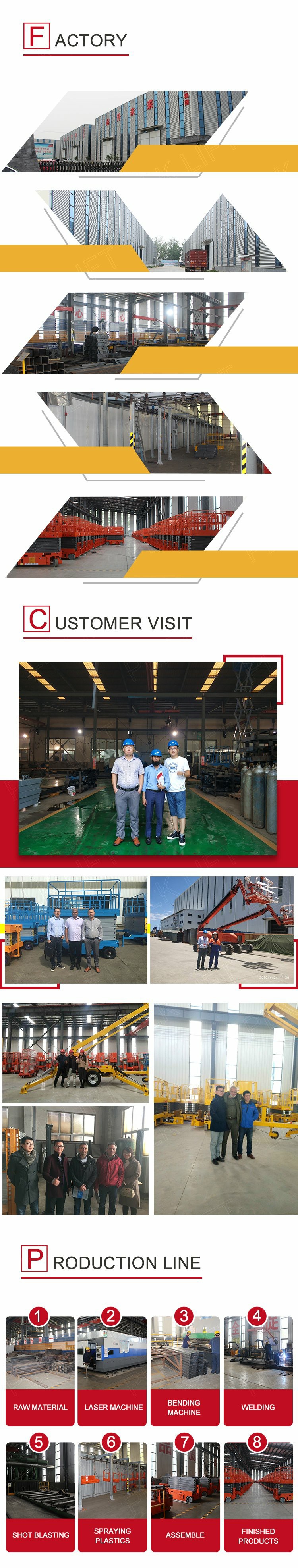

Factory Overview

Our Services

1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.



Remarks: All products are CE marked, meeting safety regulations. Should you be interested in any of them, make yourself at home and feel free to contact me. I'm sure a good solution can be offered to you through my patience and dedication to your satisfaction.
