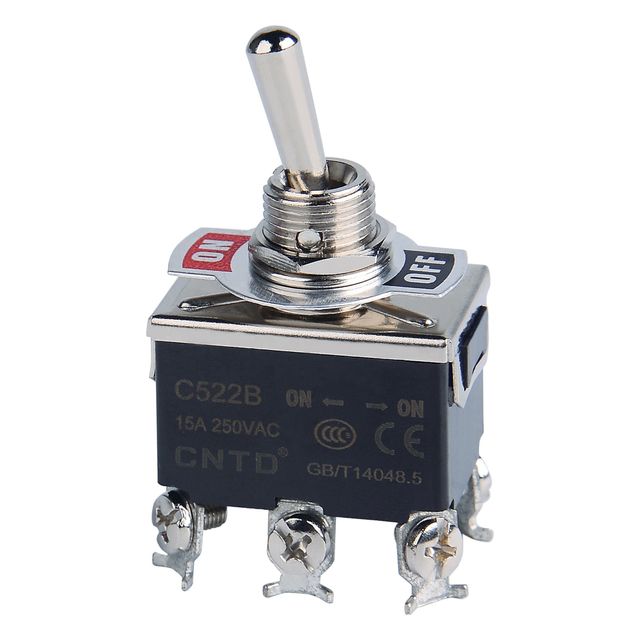

CNTD Metal Micro Toggle Switch Waterproof Switch On 10/15A 250V 85% RH Max. C522B/C5R22B 250VAC CN;ZHE 12mm 25A
- $0.61 / >=100 pieces
- 100 pieces
- CNTD Electric Technology Co., Ltd.
- Zhejiang, China
- Mr Conway Chen
PRODUCT DETAIL
| Dielectric strength: | 2000VAC 50/60Hz 1 minute; | Ambient temperature: | Use: -20~+70℃ (no freezing); |
| Contact resistance: | 15MΩ max (initially); | Mounting holes: | 12 mm; |
| product name: | Toggle Switches; | humidity: | Maximum 85% relative humidity; |
| vibration: | 10～55Hz, 1.5mm double amplitude; | Electrical life: | 500,000+ operations; |
| place of origin; place of origin: | Zhejiang, China; | maximum. current: | 25A; |
| model: | C522B/C5R22B; | port: | Ningbo, Shanghai; |
| touch: | Unipolar, bipolar; | maximum. Voltage: | 250VAC; |
| brand: | CNTD; | Certification: | TUV, ISO9001, CCC, CE; |
| Mechanical life: | 500,000+ operations; | payment terms: | Letter of credit, wire transfer, PayPal; |
| Packaging Details: | Standard export packaging; | Insulation resistance: | Above 100MΩ (below 500VDC); |
feature

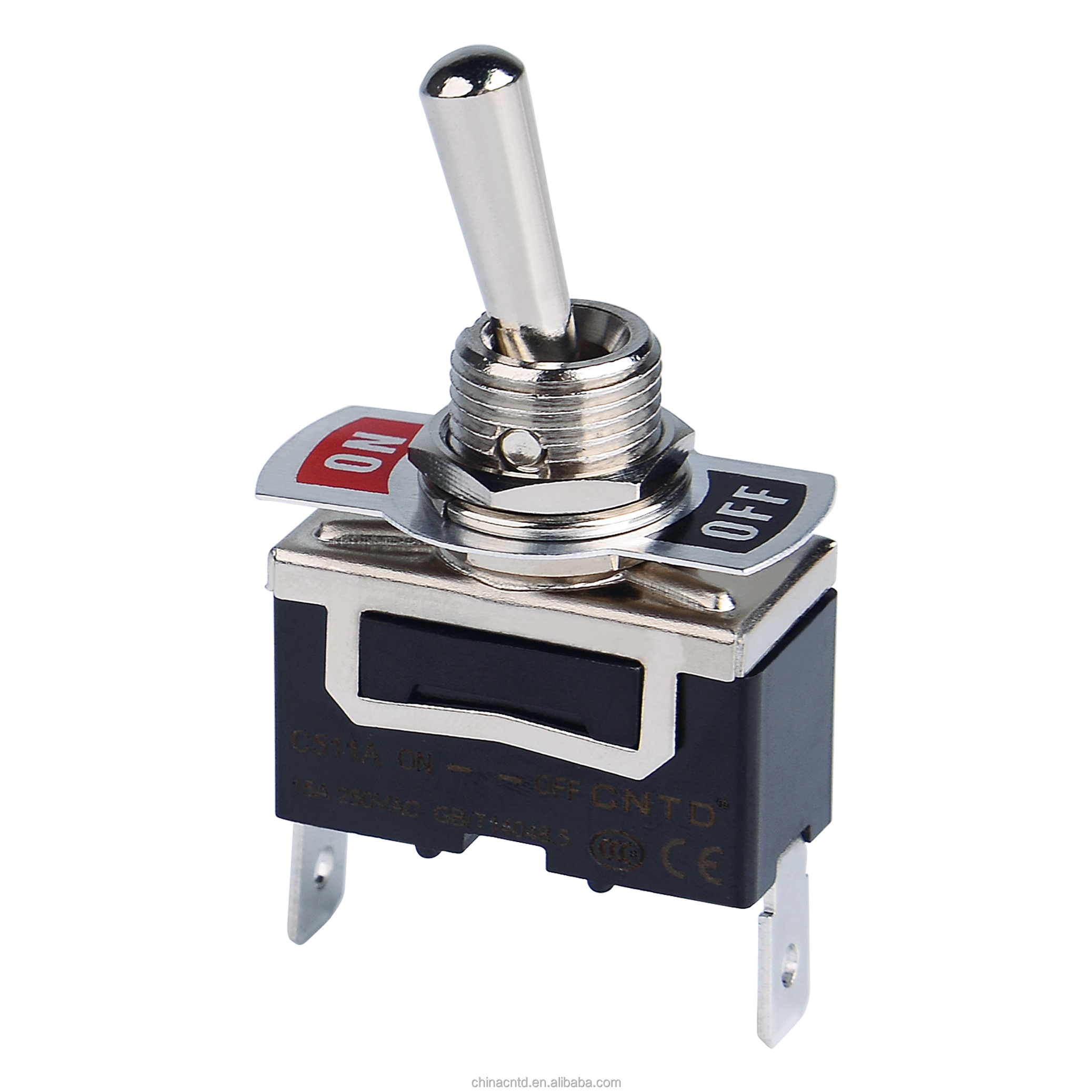

Types 10A and 15A are available
Fixed and automatic return (single and double throw) options
Screw terminals, solder terminals and terminal blocks are available
Waterproof and oilproof waterproof cap
Mounting holes:Ф 12mm

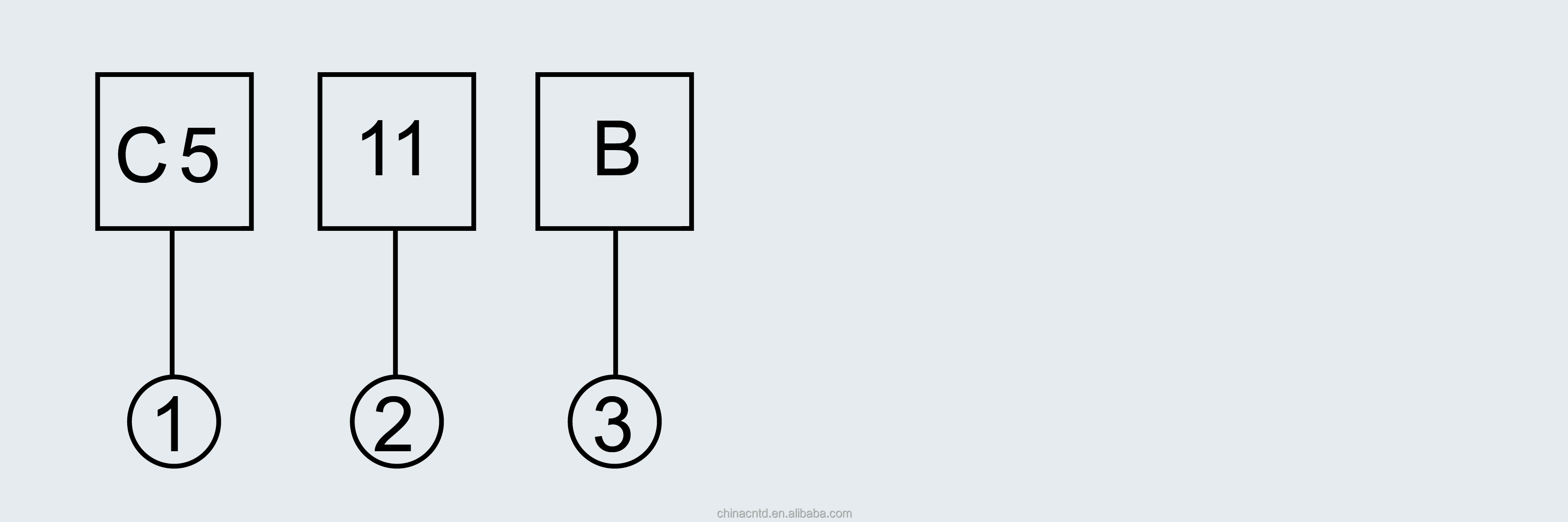

Model structure
thing | code | illustrate |
type | carbon monoxide | 10A 250VAC self-locking |
CPR | 10A 250VAC Spring Return | |
C5 | 15A 250VAC self-locking | |
C5R | 15A 250VAC Spring Return | |
touch | 11 | SPST ON-OFF |
12 | SPDT ON-ON | |
13 | SPDT (center OFF) ON-OFF-ON | |
131 | SPDT (center OFF single return) ON-OFF-ON | |
twenty one | Double pole single throw switch | |
twenty two | Double Pole Double Throw ON-ON | |
twenty three | Double pole double throw (center OFF) ON-OFF-ON | |
231 | Double pole double throw (center OFF single return) ON-OFF-ON | |
terminal | One | Label Terminal (#250) |
Second | screw terminal | |
C | Solder Terminals (#187) |
Specification
Contact resistance | 15MΩ max (initial) |
Insulation resistance | Above 100MΩ (below 500VDC) |
Dielectric strength | 2000VAC, 50/60Hz for 1 minute |
vibration | 10 to 55Hz, 1.5mm double amplitude |
ambient temperature | Use: -20~+70℃ (no freezing) |
humidity | Maximum 85% relative humidity |
Electrical life | 500,000+ operations |
Ratings
load | type | AC rating | DC rating |
Resistive load | carbon monoxide | 10A 250V 15A 125V | 0.4A 250V 0.8A 125V |
C5 | 15A 250V 20A 125V | 0.5A 250V 0.9A 125V | |
Inductive load | carbon monoxide | 10A 250V 15A 125V | 0.2A 250V 0.4A 125V |
C5 | 15A 250V 20A 125V | 0.3A 250V 0.5A 125V 15A | |
lamp load | carbon monoxide | 300W 100V 500W 200V | 30V |
C5 | 400W 125V 800W 250V | - | |
Motor load | carbon monoxide | 200W 125V 300W 250V | 7A 30V |
C5 | 400W 125V (single phase) | ||
carbon monoxide | 500W 250V (three-phase) | - | |
C5 | 750W 250V (three-phase) |
