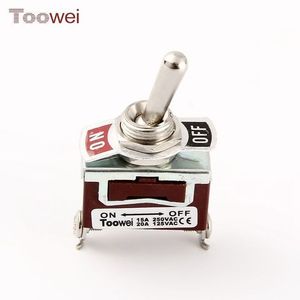

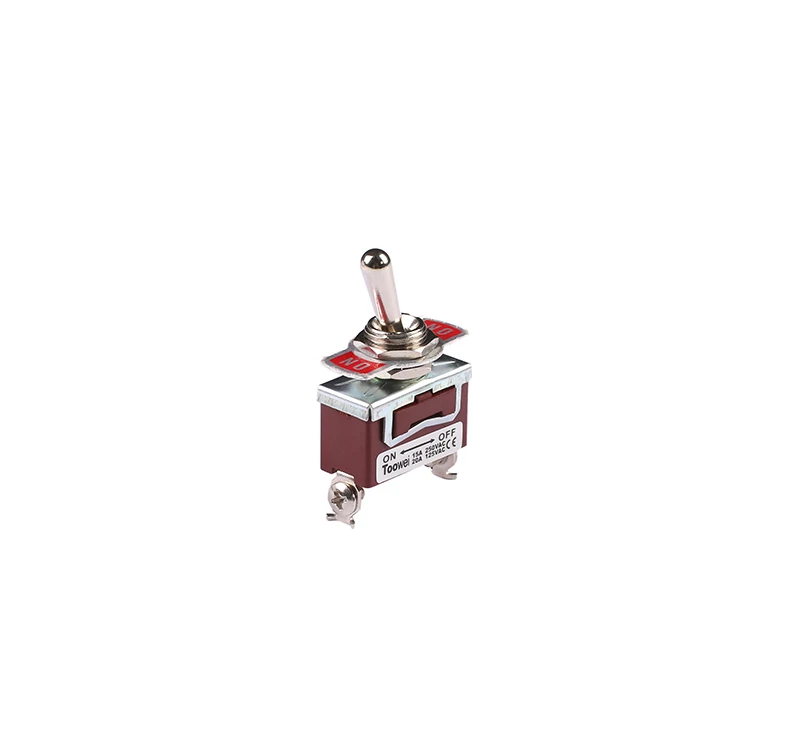

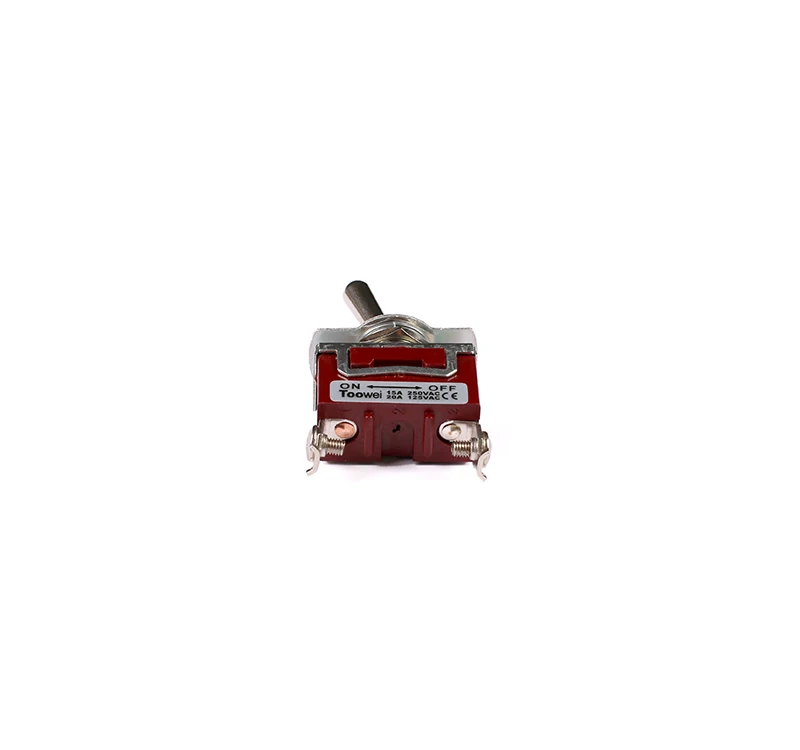

Toowei T700 series mini 10A 250VAC 2pins on-off metal toggle switch
- $0.53 / 1 - 499 pieces
$0.50 / 500 - 999 pieces
$0.48 / >=1000 pieces - 1 piece
- Yueqing Toowei Electronic Switch Manufacturer
- Zhejiang, China
- Mr Ray Jin
PRODUCT DETAIL
| Rating Value: | 10A 250VAC /20A 125VAC; | Packaging Detail: | Carton packing 20pcs/box , 25 boxes/ CTN; |
| poles: | SPDT; | Model Number: | T701AW; |
| Installation: | Bushing mount; | Brand Name: | Toowei; |
| Ambient Temperature: | -25 c to +80 c; | Mounting Dimension: | Diameter 12mm+/-0.2; |
| Package Preview: | ; | Terminal Type: | Screw terminal; |
| Selling Units: | Single item; | Single gross weight: | 0.150 KG; |
| Pins: | 2pins; | Function: | ON-OFF; |
| Base Material: | bakelite; | Single package size: | 17X9X9 cm; |
| Mechanical Life: | 50000 Cycles, 50000 times; | Max. Current: | 10A; |
| Certifications: | CE,FCC,ISO; | Max. Voltage: | 250VAC; |
| Place of Origin: | Zhejiang, China; |
Product Description
The T700 series toggle switch is rated at 10 250V 20A 125V, suitable for AC 50Hz / 60Hz. This switch is used as a switching method and a reset method in the circuit. The terminal has screws, quick plug terminals and welding terminals. Waterproof and oilprooffunction, they suitable for all series.
Specification
Toggle Switch Information | ||
Model | T701AW | |
Rated value | 10A 250VAC/20A 125VAC | |
Base material | Bakelite | |
Ambient Temperature | -25~+80degree | |
Founction | ON-OFF | |
Mounting Dimension | Diameter 12+0.2mm | |
Terminal Form | Screw terminal | |
Mounting Method | Bushing mount | |
Usage | Food machinery, generators, industrial control, office automation | |

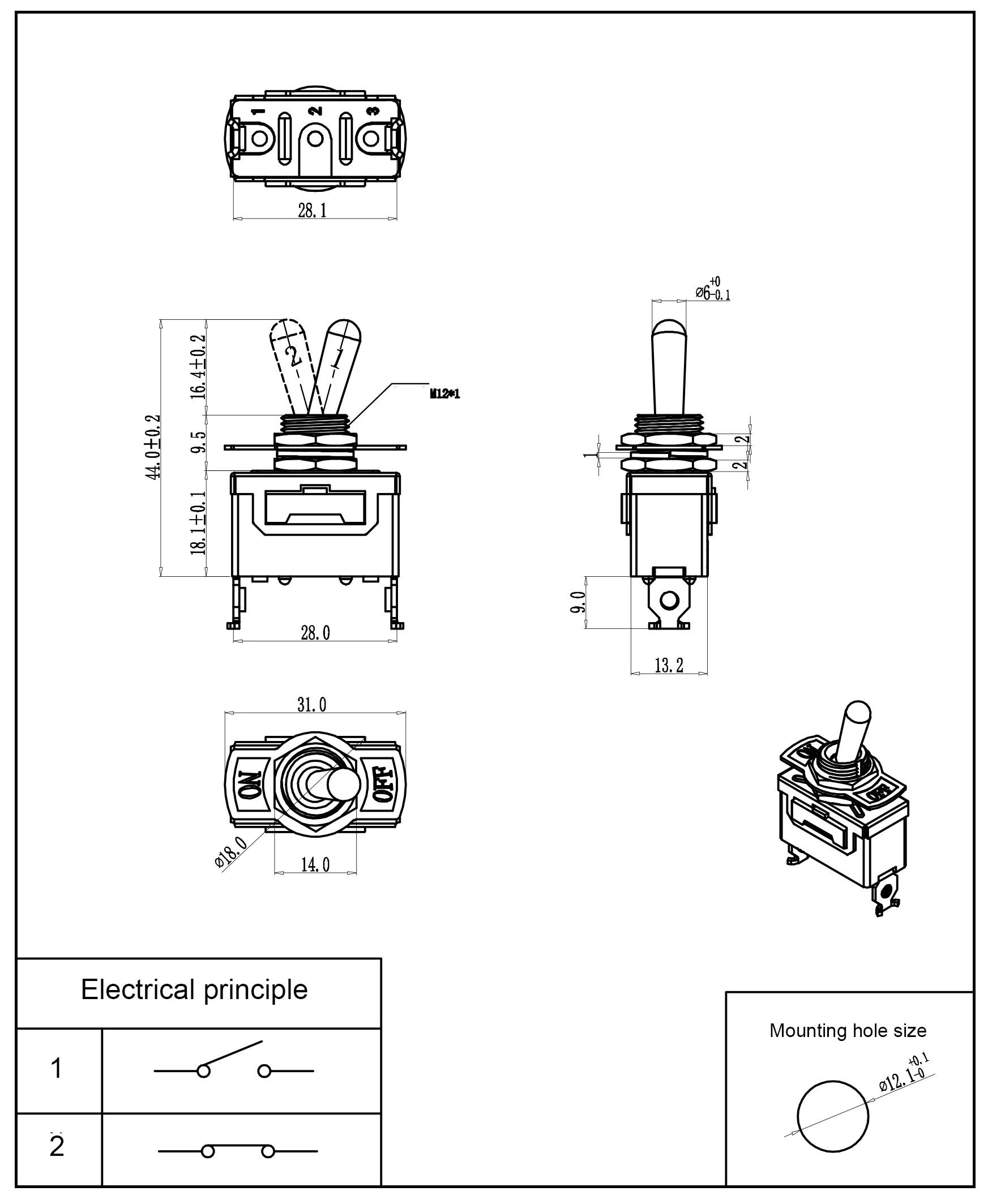

Model Size
Technical parameters | ||||||
Rating value
| 10A 250VAC/20A 125VAC | Operating force | 8N-24N | |||
Ambient temperature | -25℃~+85℃ | Withstand voltage | 1500VAC 50/60hz | |||
Leakage current | 5mA | Insulation resistance | ≥100mΩ | |||
Durability | Electrical life 20,000 times Mechanical life 50,000 times | Humidity | below 85% RH | |||
Solderable soldering iron | m345±5° 1~2S | Solder resistance soldering iron | 45±5° 3~5S | |||
Terminal form | Screw terminal | Mounting method | Bushing mount | |||
