CWS Gear Wound Ferrite 24V Series Common Mode Line Filters for Filtering Power Line Noise with 1 mH to 36 mH Inductance
- $5.00 / >=100 pieces
- 100 pieces
- Coil Winding Specialist, Inc
- California, China
- Mr Gennady Nyu.
PRODUCT DETAIL
| Packaging Details: | carton | application: | automotive application |
| Packaging/Case: | custom made | tolerant: | custom made |
| type of packaging: | other | temperature range: | - 40°C to 130°C |
| port: | long beach | inductance: | 1 mH to 36 mH |
| brand: | CWS | place of origin; place of origin: | USA/China |
| brand: | CWS | Payment/Payment: | custom made |
| Operating temperature: | custom made | model: | 24V |
| DC resistivity: | 0.05 ohms to 1.5 ohms | payment terms: | Credit Card/PayPal/Wire Transfer |
| Types of: | line filter | Current Rating: | 0.55 Amps to 3.5 Amps |
| Supplier type: | Original factory / original factory |
Product Description
24V
24Vseries common-mode filter. Line Filters for Filtering Common Mode Power Line Noise
feature

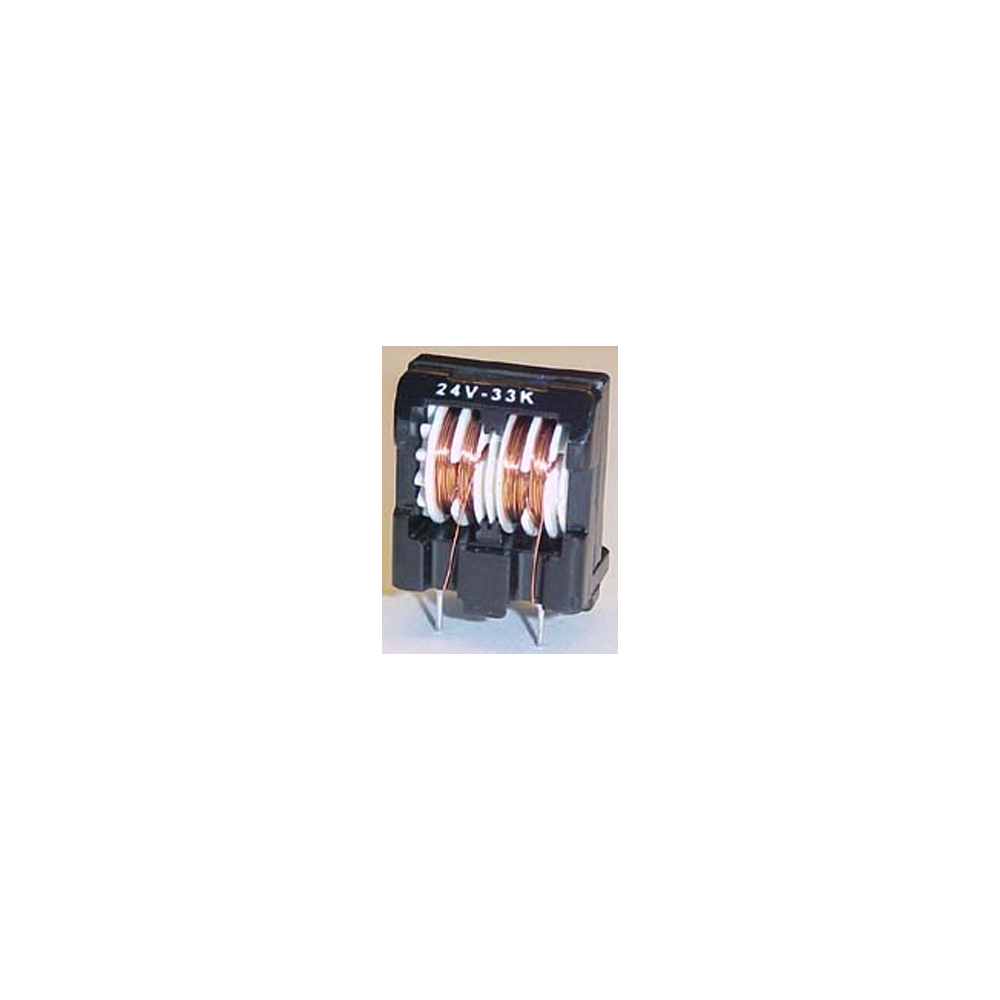

• Very low cost monolithic ferrite design • Zero edge loss due to monolithic zero-gap ferrite core and windings on split bobbins • Designed to IEC 950 specifications • 2500 Vac dielectric breakdown voltage • Temperature range of -40°C to 130°C • Current ratings of 0.55 A to 2.2 A • DCR of 0.05 Ohm to 1.5 Ohm • Inductance of 1 mH to 36 mH • Height: 31 mm (1.22"). Length: 26 mm ( 1"). Width: 19 mm (0.75 in) • Mounting base: 13 x 10 mm (0.5 in x 0.4 in)
Specification
model | 24V |
Types of | line filter |
place of origin; place of origin | USA/China |
brand | CWS |
direct current | custom made |
supplier type | Original factory / original factory |
application | automotive application |
brand | CWS |
At CWS, we accurately and expertly meet our customers' common mode choke needs. We offer a wide range of common mode choke coils with different phases designed to meet project needs and provide best-in-class performance.
Common mode chokes offer multiple phase

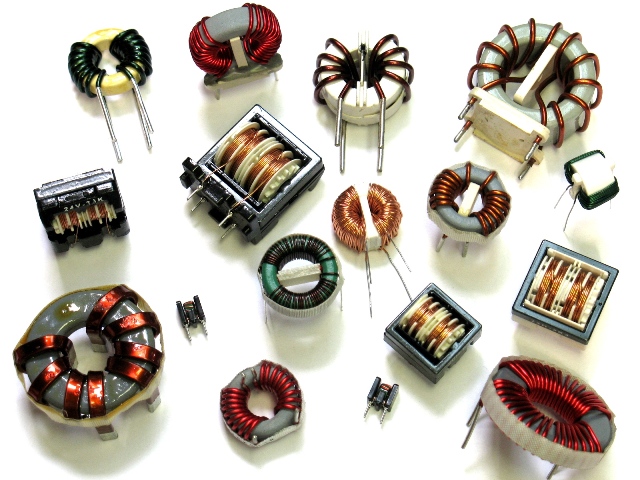

A choke is simply an air to ferromagnetic core coil that can be used as an inductor reluctance. They are typically used for single or three phase use. CWS now also offers them for two phase and four phase use. A common mode choke is connected in series to the supply and return conductor pair. They are ideal for EMI filtering on signal and power lines. Most common mode chokes can handle high AC currents without compromising performance. Ferrite Chokes and Nanocrystalline Chokes Our early phase common mode choke designs were created with ferrite. A ferrite choke is a passive electronic component that suppresses high frequencies in electronic circuits. Our 2-phase, 3-phase and 4-phase common mode choke coils are designed with nanocrystalline magnetic cores to significantly reduce the size of the common mode choke coils. This results in stronger EMI suppression than ferrite chokes.order chokesAt CWS, we make it our top priority to deliver quality products within short notice times. Expert engineers can work with customers to design custom common mode choke coils. Once the common mode chokes are created, samples are sent to customers for testing to make sure they fit the project needs. Then, the final design is approved and shipped in small or high volume orders.For additional technical support, ordering questions and product information, please contact us at 800-377-3244.
