High quality radio frequency absorber electromagnetic wave absorber made of mnzn soft ferrite powder
- $0.60 / >=200 pieces
- 200 pieces
- Shenzhen PH Functional Materials Co., Ltd.
- Guangdong, China
- Ms Cindy W

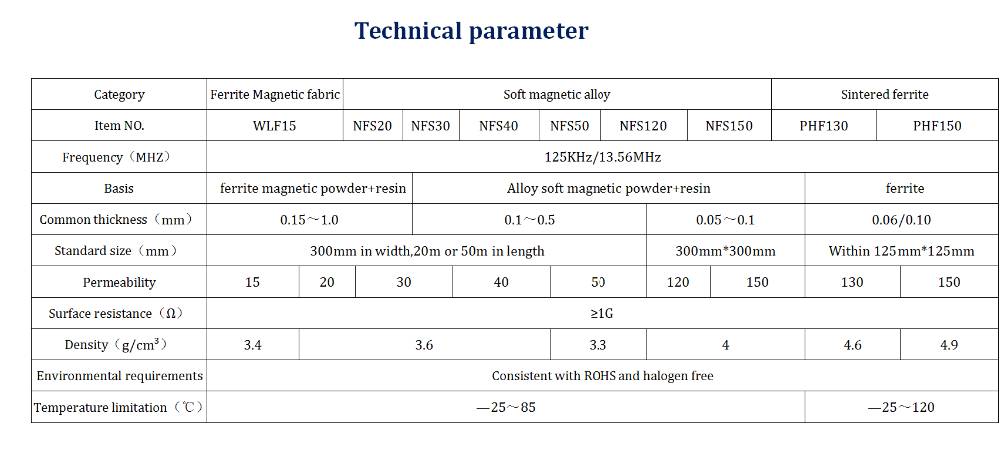

| density: | 4.0g/cm3; | Magnetic permeability: | 20/40/120/150; |
| thing: | NFS20/40/120/150; | payment terms: | Western Union, T/T, MoneyGram, PayPal; |
| Supply capacity: | 200,000 square meters per month; | Thickness tolerance: | ±10%; |
| End use temperature: | -45~85; | environmental: | Compliant with ROHS, halogen free; |
| Material: | Ferrite powders and resins; | model: | NFS20/40/120/150; |
| brand: | PH value; | type: | Ferrite powders and resins; |
| color: | custom made; | Standard size: | 300mm*20m*0.3mm; |
| Standard thickness: | 0.3 mm; | Packaging Details: | Standard export see packing or air packing; |
| place of origin; place of origin: | Shenzhen; | port: | Shenzhen; |
High quality radio frequency absorber electromagnetic wave absorber made of mnzn soft ferrite powder
pHRF Absorbing MaterialsIncludethree categories, they areMagnetic fabric (low end), soft magnetic alloy (middleend) and sintered ferrite (high end).All itemshaveThisFunctionofmagnetic.
go throughConnected between the antenna and the metal on the back to form a magneticconduction channel, which eliminatesinterferenceantennafrommetal (or other sources of interference),Make the antenna transmit signals normally.
application:
Anti-metal tags/cards
NFC mobile phone battery/back cover
Anti-Metal Card Reader
iphone case

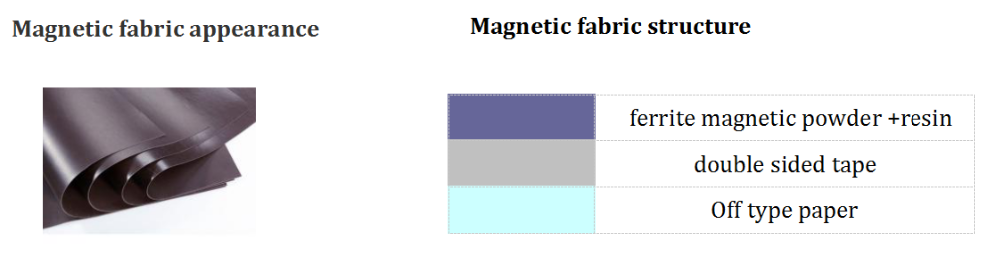

Features of Magnetic Fabric:
low cost
General permeability, low magnetic loss
High resistivity
Compliant with ROHS and Halogen Free
Flame retardant grade: UL94-V2
Common thickness: 0.3~0.5mm

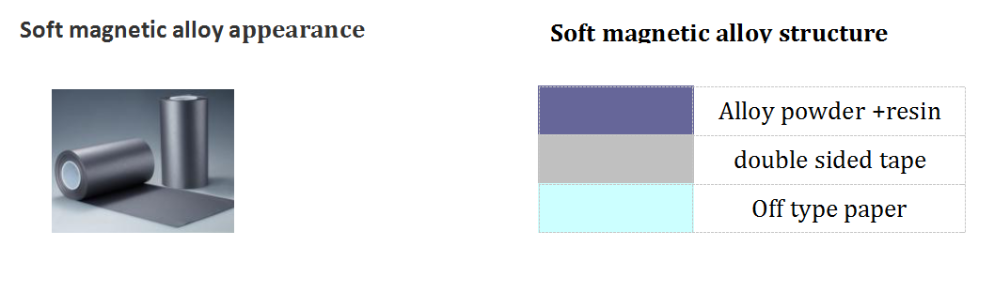

Soft magnetic alloy characteristics:
Mid-to-high end cost
Medium and upper permeability, low magnetic loss
High resistivity
Compliant with ROHS and Halogen Free
Flame retardant grade: UL94-V2
Common thickness: 0.05~0.5mm

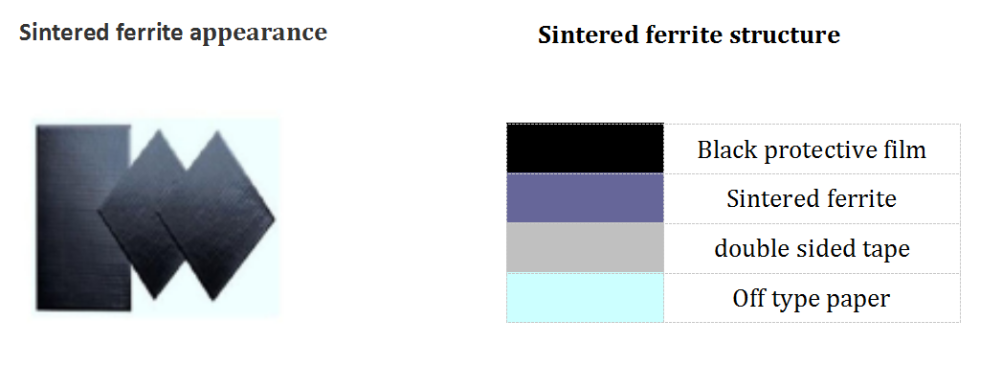

Sintered ferrite features:
high cost
High permeability and low magnetic loss
High resistivity
Compliant with ROHS and Halogen Free
Flame retardant grade: UL94-V2
Common thickness: 0.06~0.1mm
Features:
1 Soft texture and good fit;
2 Perfect absorption performance, which can absorb electromagnetic waves in a wide range of wavelengths;
3 Comply with ROHS environmental protection requirements
4 Can be cut into desired size and shape according to customer requirements
Company certification: IS09001
Product certification: ROHS and Halogen free
Warranty period: 5 years
