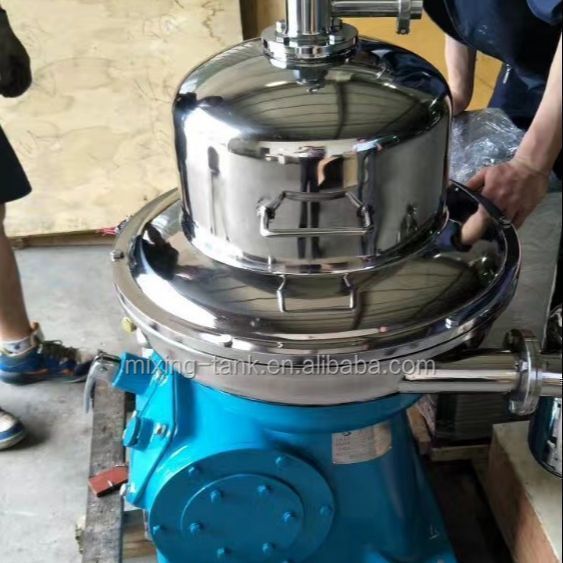

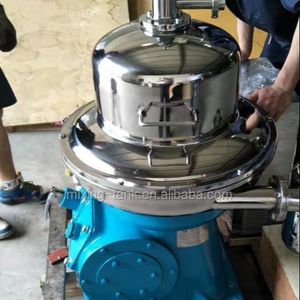

Centrifugal oil-water separator 1000L/H
- $9000.00 /piece
- 1 piece
- Wenzhou Ranking Imp.& Exp. Co., Ltd.
- Zhejiang, China
- Mr Tonny Cheng
| Core component warranty: | 1 year | Mechanical test report: | if |
| Motor Power: | 3 kW | Video shipment inspection: | if |
| Solid cleaning type: | manual/automatic cleaning | port: | Ningbo, China |
| Product Category: | milk | weight: | 400 |
| Warranty: | 12 months | Dimensions: | 800x610x1000 |
| type: | centrifuge | strength: | 3000 |
| Health status: | new | place of origin; place of origin: | Zhejiang, China |
| Disc space: | 0.5mm | Drum speed: | 8300 rpm |

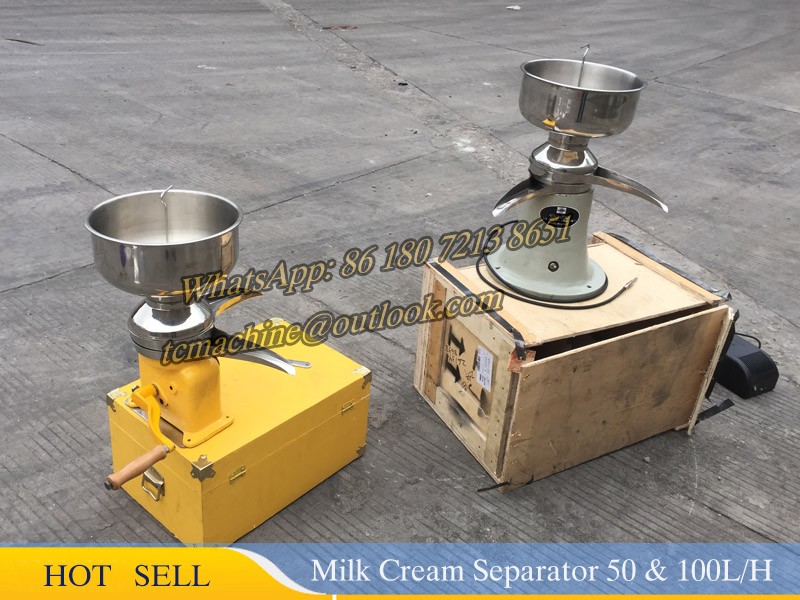

| Voltage: | 380V | Packaging Details: | 500L/H Cream Separator and 1000LPH Milk Separator in Wooden Box Packaging 50L/H Manual Separator and 50LPH Electric Separator in CTN Carton |
| payment terms: | L/C, Western Union, T/T | Marketing Type: | New Products 2023 |
| Separation ability: | 500L/H ~1000LPH (water flow) | Showroom location: | not any |
| Core components: | motor | Supply capacity: | 500 pieces per quarter |
| Main selling points: | easy to operate | Number of discs: | 75 |
| Separation factor Fr: | 9300 | Drum inner diameter: | 230mm |
| Dimensions (L*W*H): | 1000x800x960 | Applicable industries: | Food and beverage factories, farms, food and beverage outlets |
| weight: | 280 kg |
Cream Separator/Centrifugal Separator/Solid-Liquid Separator/Liquid-Solid Separator
Centrifugal water and oil separator 1000L/H Centrifugal separators, Centrifugal classifiers
Centrifugal separators are designed for liquid-based applications. They use centrifugal forceFor the separation of suspensions consisting of two or more phases of different densities, that is, they can be used forliquid-liquid separation, forLiquid-liquid-solid separationor forliquid-solid separation。 They are equally effective at separating liquid mixtures and removing solids at the same time.
Fresh milk separator 500LPH centrifugal separator
Centrifugal Milk Separator/Liquid-Solid Separator/Centrifugal Water Oil Separator
The fields of application range from separation processes in the chemical and pharmaceutical industries to the recovery of oil and fat, to the production of dairy products, beer, wine, fruit and vegetable juices, and the processing of mineral oil and mineral oil products.

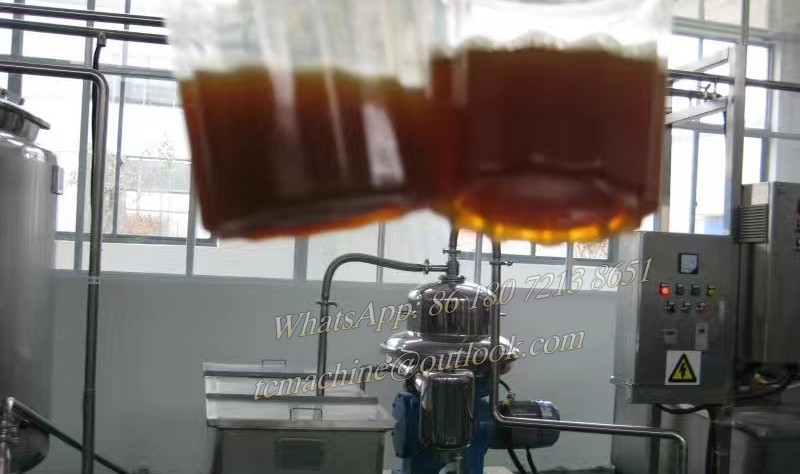

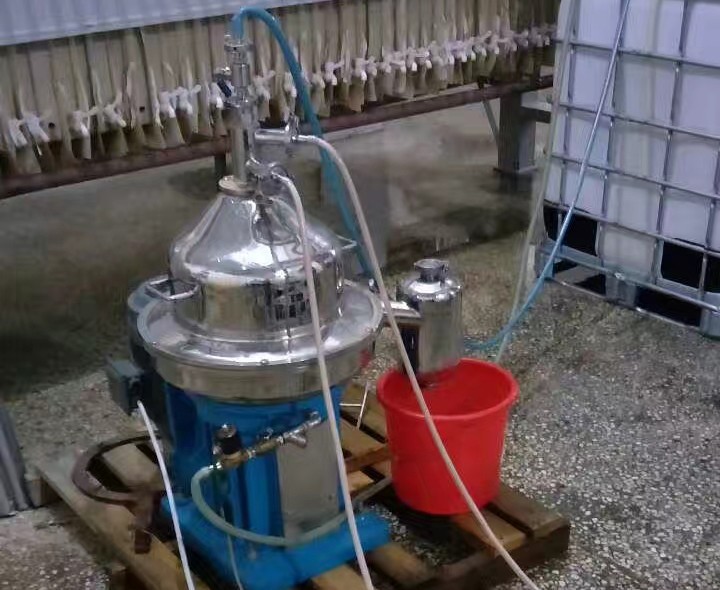

separate debugging
Separator debugging
We offer manual cleaning and self-cleaning separators according to your separation requirements
Separators are available as discs or annular chamber bowls. They operate continuously in liquid phase discharge. In terms of solids discharge, they can work discontinuously (e.g. discontinuous disc centrifuges that must be stopped so that collected solids can be removed manually), semi-continuously (self-cleaning centrifuges = self-cleaning separators) or fully continuous (nozzle separator).
Manually cleaned separators are suitable for working conditions with small volumes and short working hours. If you want the separator to work 8 hours a day and work uninterrupted within 8 hours, it is recommended that you use a self-cleaning separator.
Fresh milk separator 500LPH centrifugal separator
Cream Separator Specifications
| 203 | 204 | 207 | |
| 1500 | 2000 | 4000-50000 | |
| 8300 | 7300 | 6700 | |
| φ230 | φ260 | φ360 | |
| 9300 | 8900 | 9300 | |
| manual | automatic | automatic | |
| 0.5 | 0.5 | 0.5 | |
| 3 | 4 | 7.5 | |
| 75 | 80 | Post-90s | |
| 800×610×1000 | 830×610×900 | 1130×1060×1400 | |
| 260 | 280 | 780 |
Raw milk inlet & skimmed milk outlet/cream outlet tube
The raw liquid can be milk, oil, oil-water mixer and any other type of liquid that you want to separate in our separator.
When the process liquid is fresh milk, the skimmed milk flows out from the lower tube, and the cream flows out from the bottom grinding tube.
cream separator body

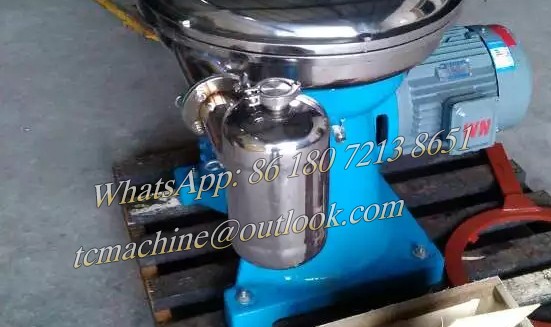

self-cleaning device
This device is only suitable for self-cleaning separators
During the separation process, solids and small particles flow out of the device

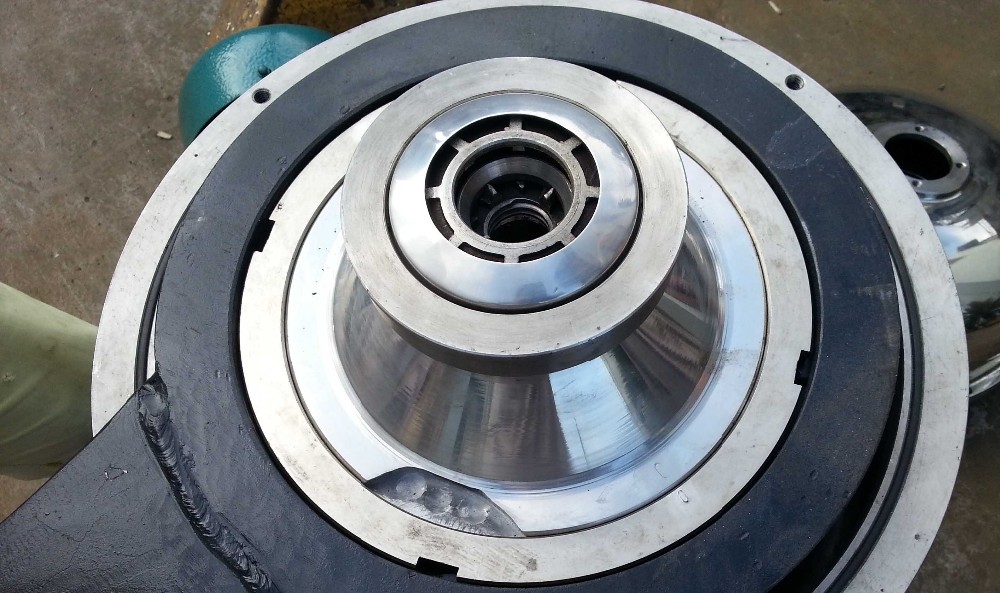

Separation drum for tools for dismantling the drum
noI:Separator drum for milk separator
Material:Stainless steel

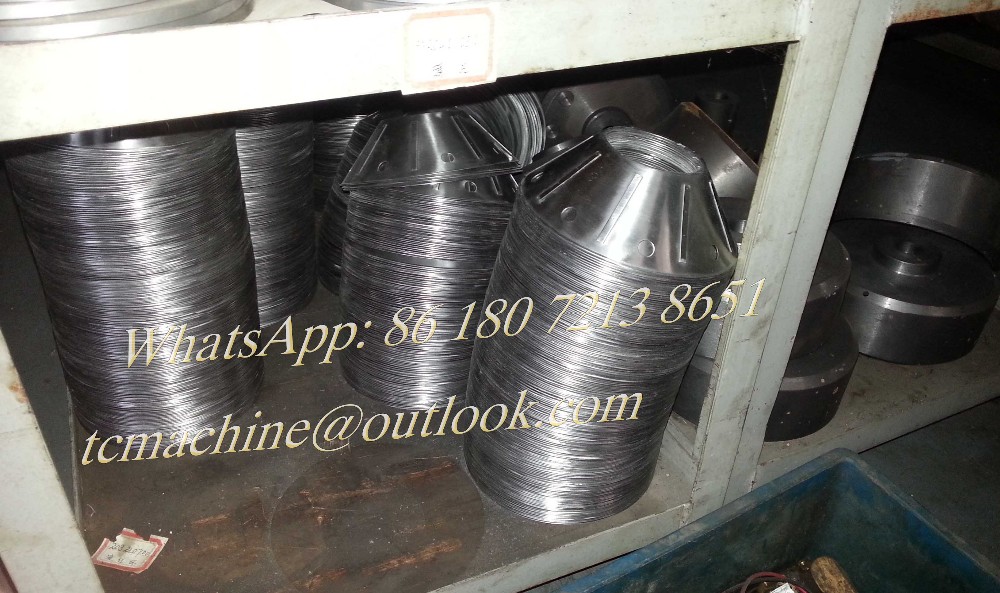

Cream Separator Disc
Separation disc is one of the most important parts in the separator, used for milk separation, all discs and other contact parts are made of food grade stainless steel
| size | |
| weight | |

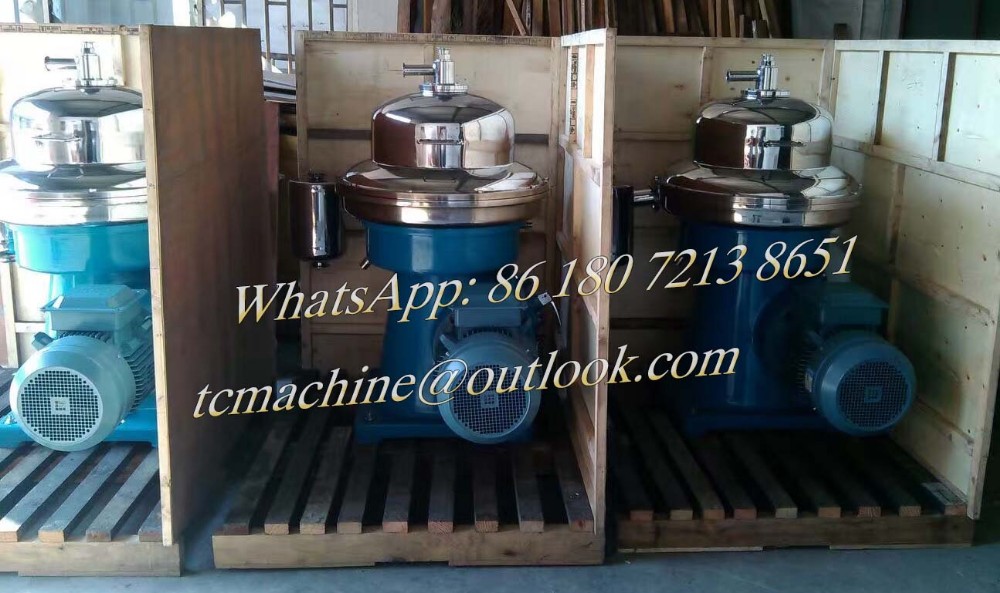

500L 1000L Cream Separator Packaging
For large capacity cream separator, for example, 500LPH milk separator, 1000L separator, 5000L/H oil water separator, we will use wooden case as packing.
