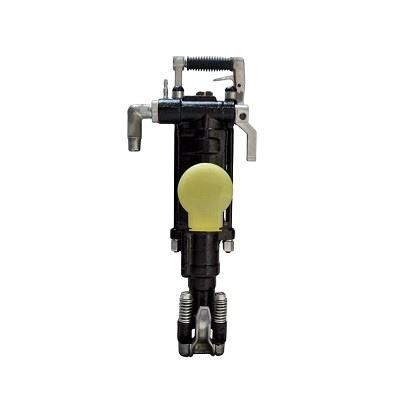

Cheap Rock Drill YT29A Pneumatic Air Leg Rock Drill Ore Mining Rock Drill Price

PRODUCT DETAIL
Customization support:Processingcolor:According to your requests
Model:YT29ADrilling depth:6m
brand:PavacWarranty:1 year
Packaging Details:Wooden box packing or carton packingOrigin:Fujian Province, China
port:Fuzhou, Xiamen, Shanghai, NingboFrequency of impact:40 Hz
model:YT29AAir consumption:82 l/min
air pressure:0.63 MPaName:Efficient rock drill
weight:26 kgpayment terms:L/C, Western Union, T/T
engine:pneumatic

Cheap Rock Drill YT29A Pneumatic Air Leg Rock Drill Ore Mining Rock Drill Price

Product Description

YT29A is a high-quality ore mining pneumatic rock drill with high efficiency and low consumption. It is widely used in railway, highway, hydropower construction and other fields. It is also an ideal replacement for machines used in various drilling operations.

The rig is suitable for horizontal, inclined or upward drilling in hard and solid rock. The drilling diameter is generally 34-45mm, and the drilling depth is 5m. According to the tunnel fracture size and operating conditions, it can be equipped with air legs, FT160A, FT160C, FT160, FT170. YT29A can also do dry or wet drilling with drill truck and rig.

weight No. 27 Kilogram
Dimensions (length x width x height) 659*248*205 mm
Barrel diameter 82 mm
Piston stroke 60 mm
work pressure 0.40-0.63 MPa
Impact energy ≥78(0.63Mpa),≥69(0.5Mpa),
≥50(0.4Mpa)
J
Air consumption ≤88(0.63Mpa),≤65(0.5Mpa),
≤52(0.4Mpa)
long/second
Shock frequency ≥39(0.63Mpa),≥37(0.5Mpa),
≥36(0.4Mpa)
hertz
torque ≥20(0.63Mpa),≥17(0.5Mpa),
≥15(0.4Mpa)
Nano
Rotating speed 300(0.5Mpa) rpm
working water pressure 0.3 MPa
Duct inner diameter 25 mm
Water pipe inner diameter 13 mm
Drilling diameter of rock drill 34-45 mm
drilling depth 5 Medium
Operating temperature -30~45
Shank size H22*108 mm
FY250 oil lubricator
weight 1.2 Kilogram
oil reserves 0.25 machine learning

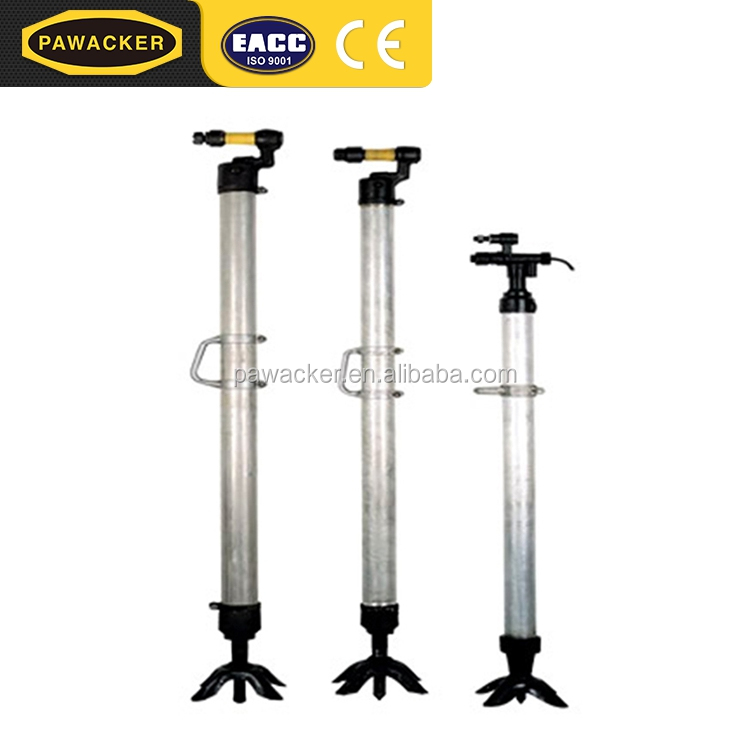

FT160A air leg
length 1668 mm
Advance length 1338 mm
Barrel diameter 65 mm
weight number 17 Kilogram
