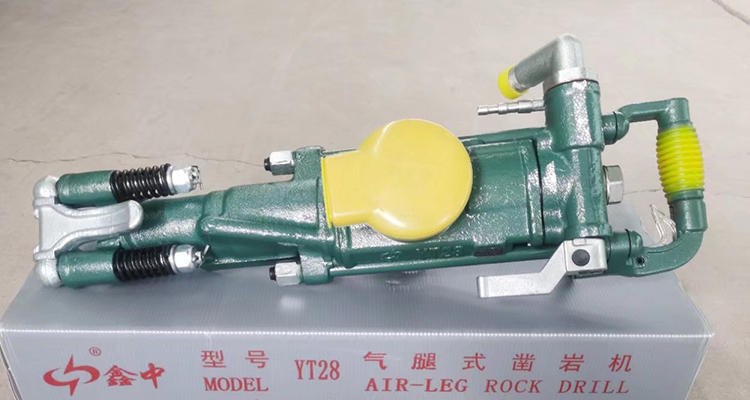

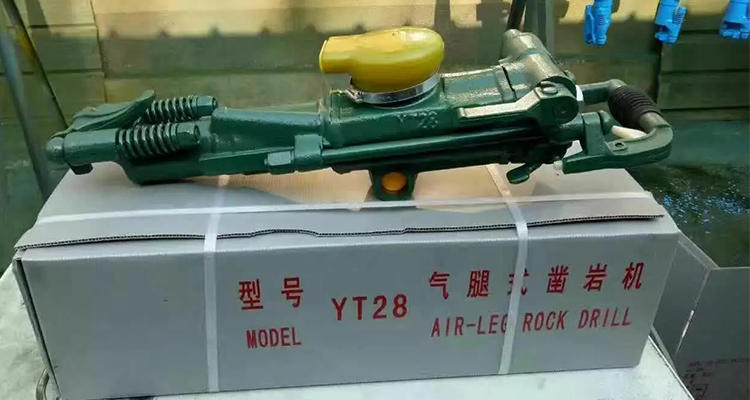

YT28 gasoline rock drill mining rock drill jack hammer gasoline jack hammer for rock drilling
- $120.00 / 1 - 49 pieces
$80.00 / >=50 pieces - 1 piece
- Shandong Huayao Construction Machinery Co., Ltd.
- Shandong, China
- Mr Tom Chen
PRODUCT DETAIL
| payment terms: | L/C,Western Union,D/P,D/A,T/T | Piston stroke: | 60mm |
| Drill Diameter: | 34~42mm | Rotational torque: | ≥23Nm |
| working pressure: | 0.63Mpa | model: | YT28 |
| port: | Qingdao Shanghai Shenzhen | Machine length: | 661mm |
| Custom Support: | OEM | Affect frequency: | ≥36J |
| Inner diameter of trachea: | 25mm | product name: | YT28 |
| Packaging Details: | Standard export packaging | place of origin; place of origin: | Shandong China |
| Cylinder diameter: | 80mm | Warranty: | 3 years |
| Impact energy: | ≥70J | Packaging Preview: | |
| Supply capacity: | 1000 sets per month |
Product Description
YT27 Push Rock Drill Jack Hammer for Underground Mining and Tunneling
YT27 rock drill is a new type of high-efficiency air-leg rock drill, which is mainly used for rock drilling in mine excavation. It is also a rock drilling tool widely used in railway, water conservancy and national defense masonry. It is used in conjunction with the FY250 injector and the FT160A. (SFT160B. FT160C. FT170) type air legs can be used in combination with medium hard and hard rock wet drilling, horizontal and inclined blast hole drilling. It can also be used on a trolley when the air leg is removed.
Specification
YT29 rock drill | ||||||||
machine weight | 26 | Kilogram | ||||||
machine length | 661 | mm | ||||||
cylinder diameter | 80 | mm | ||||||
Piston stroke | 60 | mm | ||||||
working pressure | 0.4 | 0.5 | 0.63 | MPa | ||||
Shock frequency | ≥28 | ≥35 | ≥36 | J | ||||
Gas consumption for rock drilling | ≤52 | ≤58 | ≤82 | l/s | ||||
impact energy | ≥44 | ≥63 | ≥70 | J | ||||
Rotational torque | ≥15 | ≥19 | ≥23 | cow rice | ||||
spinning speed | ≥250 | ≥260 | ≥300 | rpm | ||||
rock drill speed | ≥250 | ≥400 | ≥470 | mm/min | ||||
Average meter length before first failure | ≥400 | Meter | ||||||
Drilling depth without disassembly | ≥300 | Meter | ||||||
Inner diameter of water pipe | 25 | mm | ||||||
Inner diameter of water pipe | 13 | mm | ||||||
Drill diameter | 34~42 | mm | ||||||
Shank specification (hexagon opposite side X length) | 22X108±1 | mm | ||||||

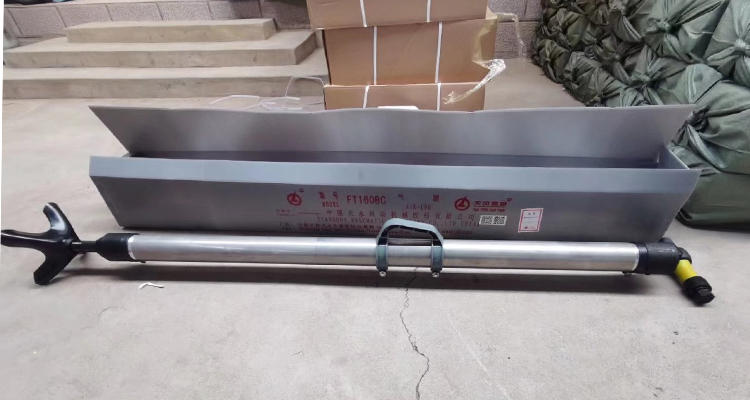

air leg | ||||||||
FT160BD | FT160BC | |||||||
Air leg length | 1400 | 1800 | mm | |||||
Advance travel | 965 | 1365 | mm | |||||
cylinder bore | 65 | 65 | mm | |||||
weight | 14.4 | 16.9 | Kilogram | |||||
FY200 FY200C Lubricator | ||||||||
Fuel tank capacity | 200 | ml | ||||||
weight | 1.02 | Kilogram | ||||||
