New stone splitter for sale, hydraulic stone splitter and electric hydraulic rock splitter
- $150.00 /set
- 1 set
- Shandong Huayao Construction Machinery Co., Ltd.
- Shandong, China
- Mr Tom Chen
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Applicable industries: | Construction, Energy & Mining, Other, Rock Splitting |
| Video shipment inspection: | if | Mechanical test report: | if |
| Work pressure: | 55-70Mpa | port: | Tianjin Qingdao Shanghai Shenzhen |
| Marketing Type: | New Products 2020 | Drive mode: | Hydraulic drive |
| Drilling depth: | 0.5-0.8m | product name: | stone crusher |
| Showroom location: | not any | Core components: | Engines, gearboxes, motors, gears, pumps |
| engine: | diesel/electric motor | Warranty: | 1 year |
| Key words: | stone crusher | color: | yellow/red |
| Name: | stone crusher | Packaging Details: | wooden box |
| place of origin; place of origin: | Shandong China | Weight (kg): | 330 |
| Core component warranty: | 1 year | brand: | Huayao |
| application: | rock splitting | Supply capacity: | 1000 sets per month |
| usage: | stone crusher | Types of: | stone crusher |
| State of health: | new | Model: | HR-9-25/HR-9-35/HR-9-45 |
product information

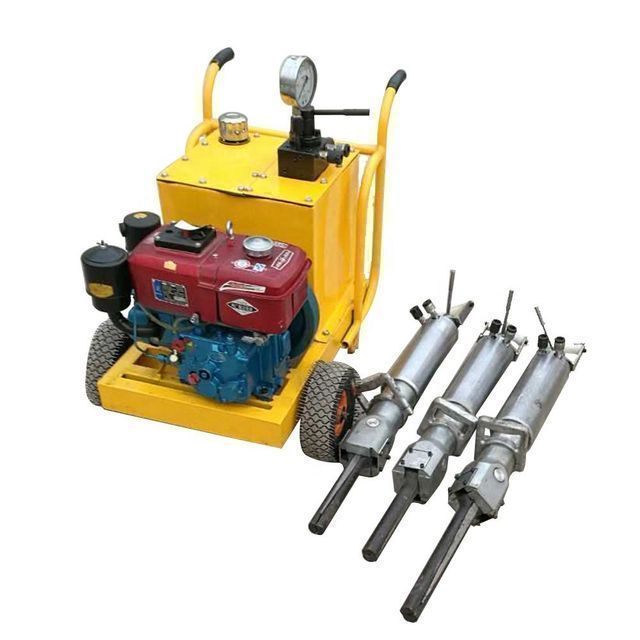

Factory direct hydraulic portable diesel rock splitter
The hydraulic rock splitter is also called a rock splitter, a rock splitter, a mountain cutter, etc. According to the type of power station, it can be divided into:Electric rock splitter, diesel engine rock splitter, gasoline engine rock splitter.
According to the material of the split gun, it can be divided into: steel split gun and aluminum split gun. Concrete components (cement pavements, machine tool foundations, bridges and building components) are the main components of partial and total demolition operations; natural stone mining (metal mines), non-metallic minerals).
The hydraulic rock splitter is especially suitable for secondary splitting of large rocks, and is an ideal equipment to completely replace blasting and manual demolition.
Product Details
Specification
Hydraulic pump station specifications | ||||||
motor type | ||||||
Motor Power/Voltage | 4KW/380V | 5.5KW/380V | 7.5KW/380V | |||
work pressure | 63Mpa | 63Mpa | 63Mpa | |||
Working oil temperature | 5-50℃ | 5-50℃ | 5-50℃ | |||
work process | 2-13L/min | 2-13L/min | 2-13L/min | |||
Hydraulic oil type | 46# | 46# | 46# | |||
Hydraulic tank | 36L | 40L | 52L | |||
The maximum load of the splitter | 6 | 6 | 6 | |||
weight | 120KG | 170KG | 220KG | |||
diesel engine type | ||||||
engine power | 6 hp | 8 hp | 18 hp | |||
work pressure | 55-60Mpa | 63Mpa | 65-70Mpa | |||
Working oil temperature | 5-50℃ | 5-50℃ | 5-50℃ | |||
work process | 2-13L/min | 2-13L/min | 2-13L/min | |||
Hydraulic oil type | 46# | 46# | 46# | |||
Hydraulic tank | 40L | 40L | 52L | |||
The maximum load of the splitter | 18 pcs | 18 pcs | 18 pcs | |||
weight | 330KG | 330KG | 330KG | |||
stone crusher | Model | ||||||
HR9-25 | HR9-35 | HR9-45 | customized | ||||
Piston diameter | 90mm | 90mm | 90mm | 110mm | |||
wedge length | 250mm | 350mm | 450mm | 800mm | |||
Aperture | Φ42mm | Φ45mm | Φ50mm | 110mm | |||
Drilling depth | 0.5m | 0.6m | 0.7m | 0.8m | |||
split time | 8-50s | 8-50s | 8-50s | 8-50s | |||
splitting force | 800 tons | 800 tons | 800 tons | 1500 | |||
weight | 40KG | 41KG | 42KG | 45KG | |||
Customer Feedback
Packaging and Shipping
