Hydraulic rock drilling machine hydraulic rock drilling gun price
- $1000.00 / 1 - 4 sets
$900.00 / >=5 sets - 1 set
- Shandong Master Machinery Group Co., Ltd.
- Shandong, China
- Ms Ella Liu
PRODUCT DETAIL
payment terms: | wire transfer | Origin: | Shandong Province, China |
Applicable industries: | Construction Engineering, Energy and Mining | Packaging Details: | Wooden packing |
Warranty: | 1 year | Key words: | rock splitter |
thing: | hydraulic rock crusher | port: | Qingdao |
Local service locations: | Chile | Supply capacity: | 100 sets per month |
Drilling depth: | 650-1000mm | usage: | rock separate |
feature: | fast rock splitter | Dimensions (L*W*H): | 1.2*0.5*0.6m |
After-sales service provided: | Free spare parts, online support, video technical support | Package preview: | |
application: | rock splitter | Certification: | ISO9001 |
Core component warranty: | 1 year | Drilling diameter: | 90-220 mm |
brand: | Chinese master | Showroom location: | Pakistan |
Mechanical test report: | if | Work pressure: | 120MPa |
Video outbound inspection: | if | type: | rock splitter |
Core components: | engine | Working medium: | 68 Anti-wear |
Health status: | new | Name: | hydraulic rock splitter |
Pump type: | hydraulic pump | Marketing Type: | 2020 New Products |
Motor type: | AC motor |
Product Description
Hydraulic rock drilling machine hydraulic rock drilling gun price
1. Brief Introduction of YPB Series Static Explosion Hydraulic Splitter Rod

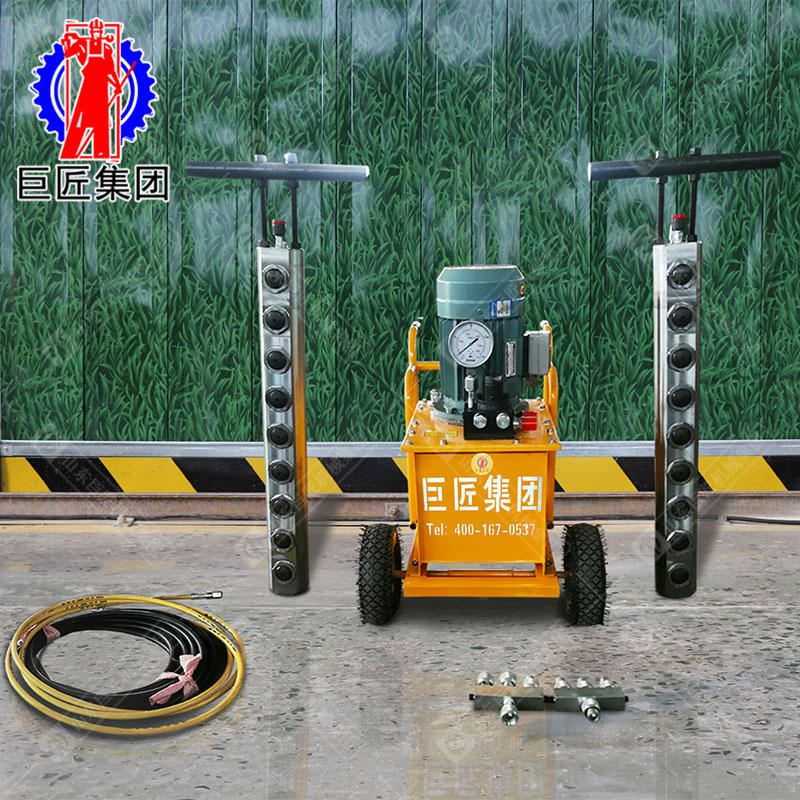

The static explosion hydraulic splitting equipment of Shandong Master Machinery Group consists of a hydraulic pump station, a flow divider, a high-pressure oil pipe and a splitting rod. The equipment has been widely used in open-pit quarrying, roadway excavation, concrete demolition and narrow site demolition operations and other fields. Depending on the power of the hydraulic pump

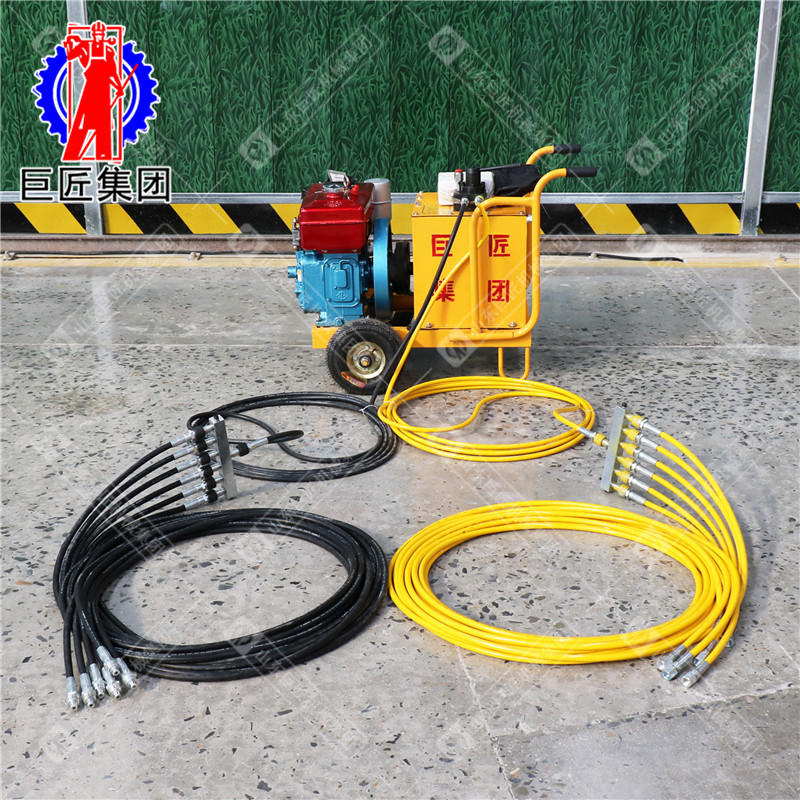

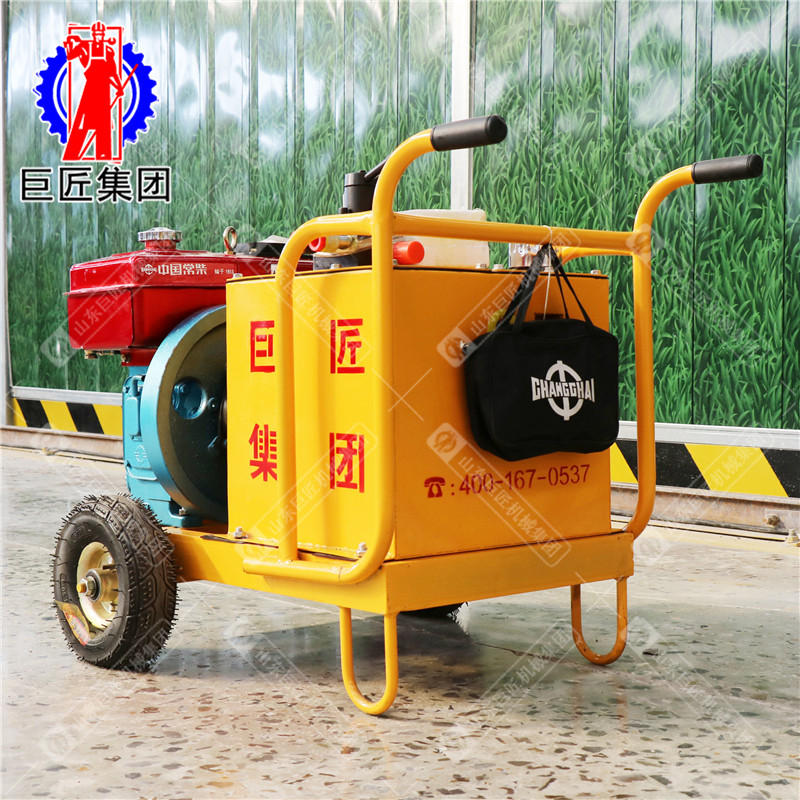

Static explosion hydraulic splitting equipment can be divided into diesel station type and mobile station type. When the hydraulic pump station pumps oil, the plunger of the hydraulic splitting rod is pushed out, exerting force on the rock from the inside to the outside, destroying the internal structure of the rock, and achieving the purpose of splitting the rock.
2. Features of YPB series static explosion hydraulic splitter bars
* Compared with the traditional operation method, the hydraulic splitting rod has the advantages of simple operation, strong controllability, high efficiency, large splitting force, low cost, safety and environmental protection, and no dust and noise.
* Modular design, easy to assemble and disassemble.
* Small size, light weight, easy to carry, and can be disassembled in narrow places.
* The hydraulic pump station is easy to start, flexible to operate, strong in power and reliable in performance.
* The hydraulic oil pipe is resistant to ultra-high pressure, has good toughness, and is not easy to burst.
* The hydraulic splitting rod is made of special steel, and the rod body is wear-resistant, impact-resistant and durable.
* The plunger jack has strong splitting force, anti-extrusion, not easy to damage, and low maintenance cost.
Specification
Model | YPB-90 | YPB-110 | YPB-130 | YPB-150 | YPB-180 | YPB-220 | ||
Required aperture (mm) | 90 | 110 | 130 | 150 | 180 | 220 | ||
Split rod length (mm) | 650 | 850 | 850 | 850 | 850 | 1000 | ||
Required hole depth (mm) | 850 | 1050 | 1050 | 1050 | 1050 | 1300 | ||
Splitting pole weight (kg) | 28 | 55 | 79 | 104 | 128 | 200 | ||
Number of plugs (pieces) | 8 | 9 | 8 | 7 | 6 | 5 | ||
Single rod splitting force (T) | 450 | Chapter 560 | 650 | Chapter 760 | 850 | 960 | ||
Equipped with pump station pressure (Mpa) | 120 | 120 | 120 | 120 | 120 | 120 | ||
bus station | Power (kW) | 4 | 4 | 7.5 | 7.5 | 7.5/11 | 7.5/11 | |
diesel station | Horsepower (horsepower) | 8 | 8 | 18 | 18 | 18 | 18 |

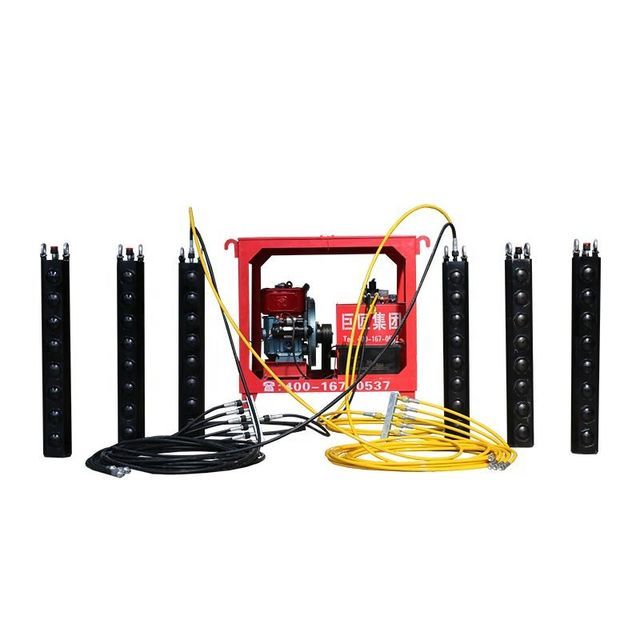

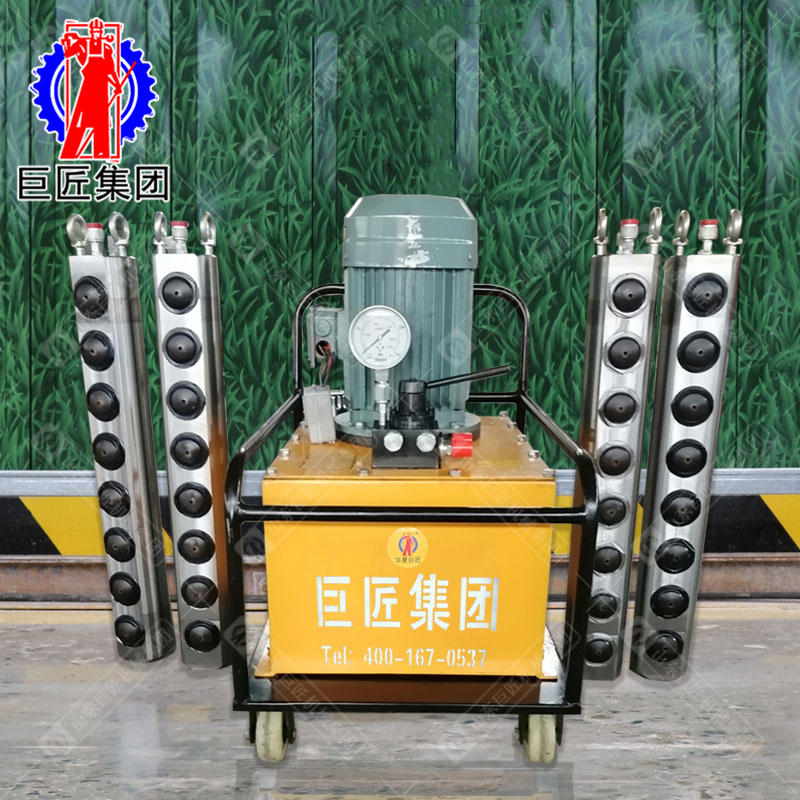

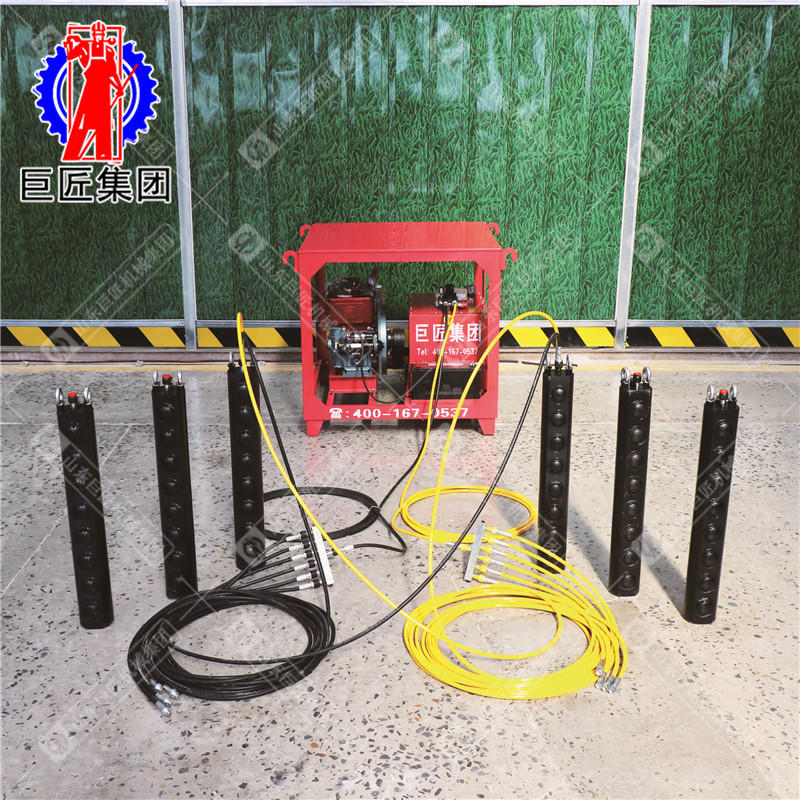

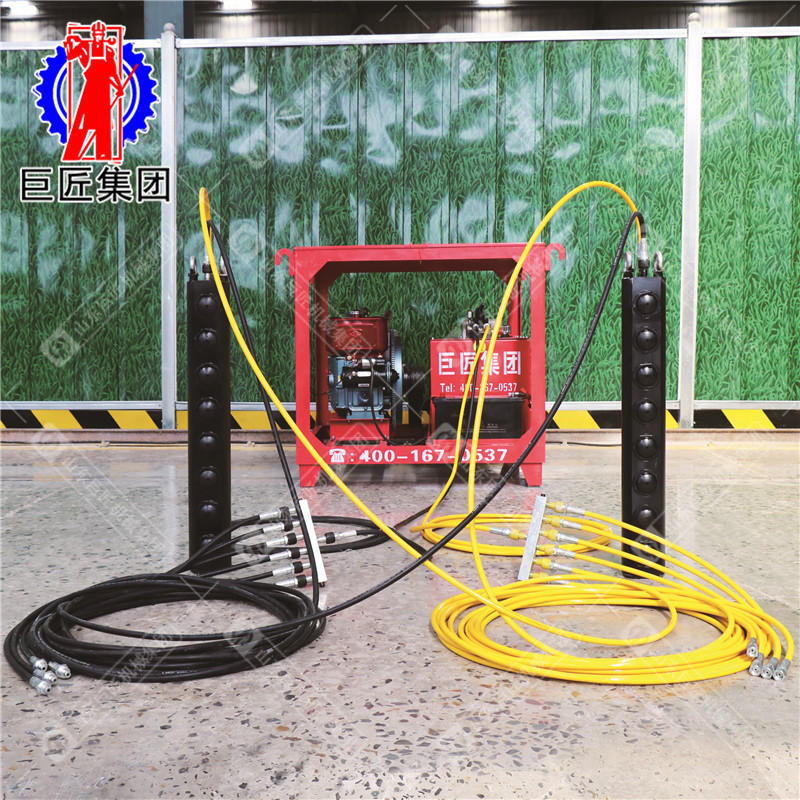

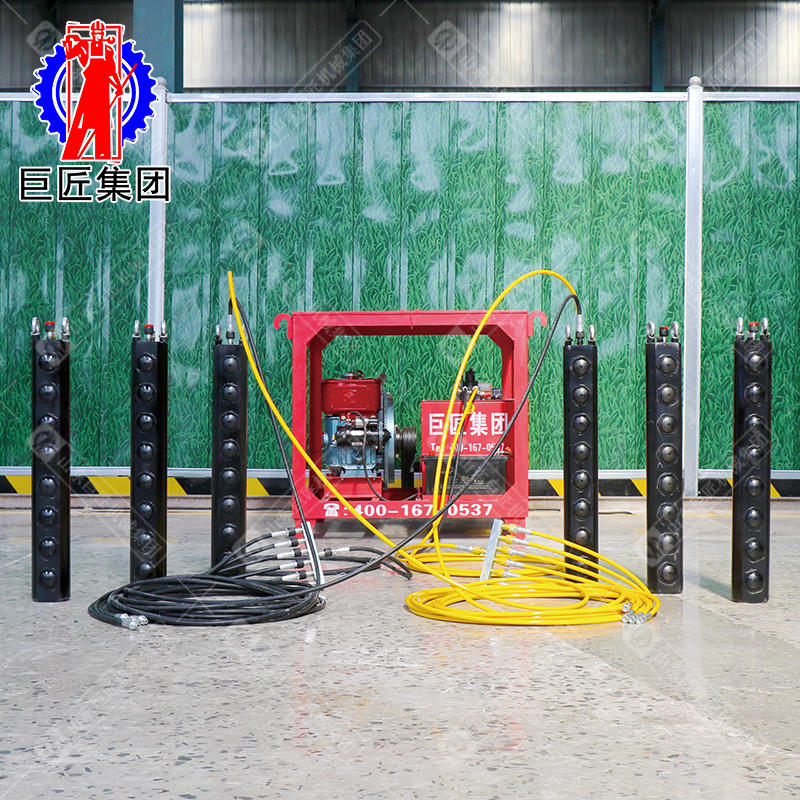

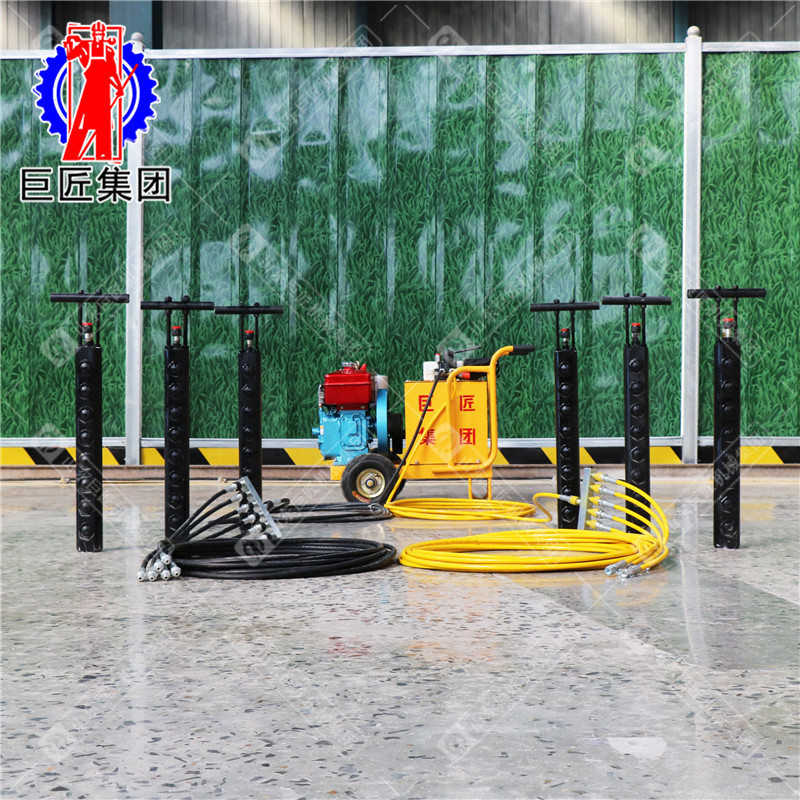

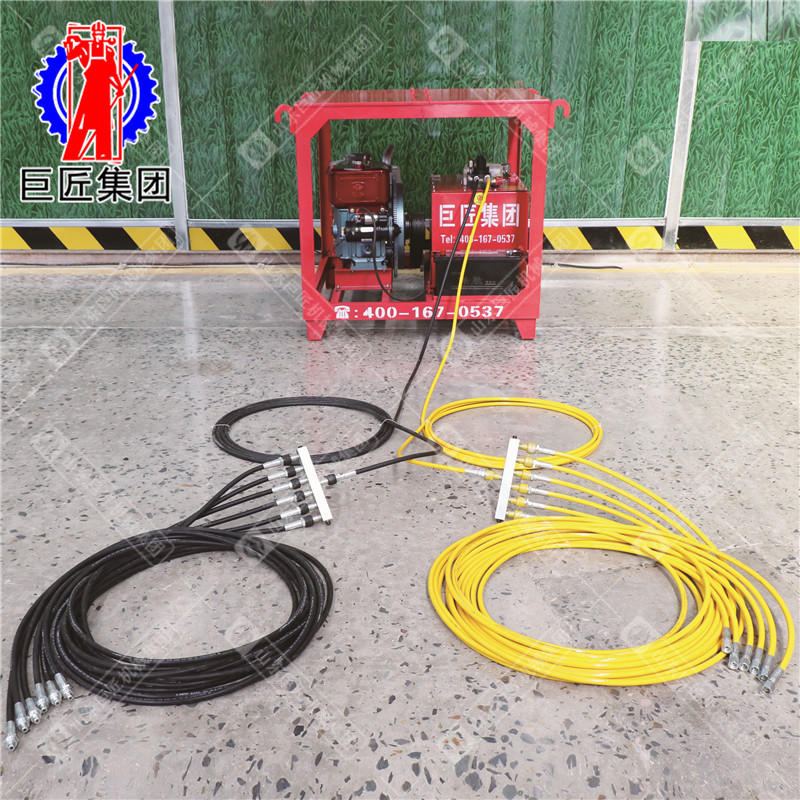

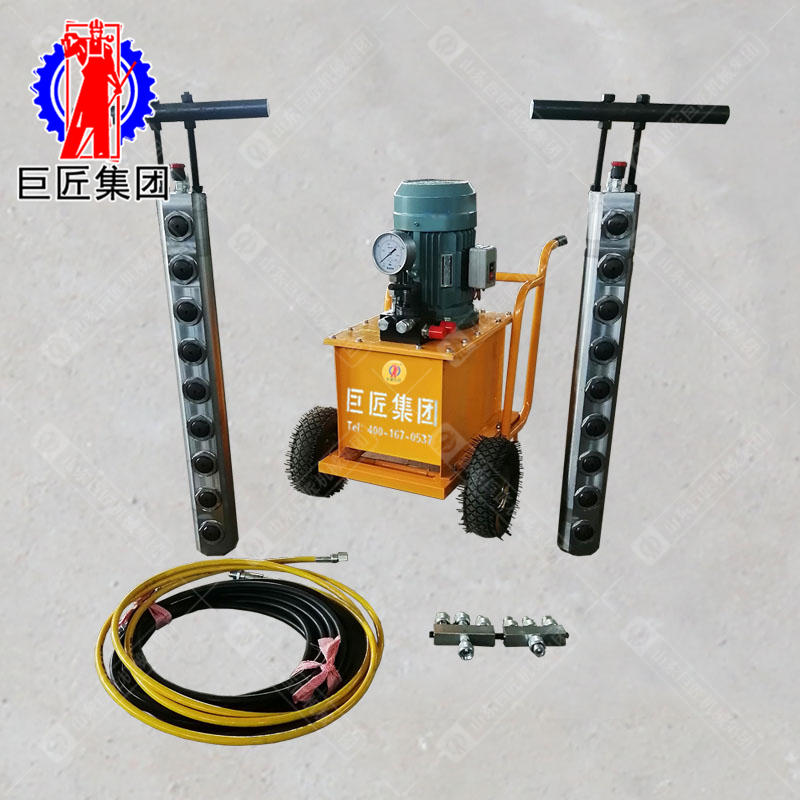

product display
Hydraulic rock drilling machine hydraulic rock drilling gun price
Phone/WeChat/Whatsapp: 008618865479502 Ella Liu
Welcome to consult! ! !
Welcome to consult! ! !
