Traditional handmade stone splitting wedges for hard rock splitting
- $1600.00 / 1 - 4 sets
$1450.00 / 5 - 9 sets
$1200.00 / >=10 sets - 1 set
- Henan Geb Machinery Equipment Co., Ltd.
- Henan, China
- Ms Linda Yang
| Mechanical test report: | if | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, water pump |
| Health status: | new | port: | Qingdao or according to your needs |
| Motor type: | AC motor | Certification: | CE certification |
| Actual splitting force: | 800 tons | Dimensions (L*W*H): | 80*60*60CM |
| Name: | stone crusher | Warranty: | 1 year |
| Supply capacity: | 300 sets per month | Package preview: | |
| Oil pump type: | electric/diesel | Marketing Type: | normal product |
| Drilling depth: | 400-700mm | Split hole diameter: | 42-48mm |
| Core component warranty: | 1 year | Work pressure: | 55-63Mpa |
| Split part diameter: | 40.5 mm to 45.5 mm | Split distance: | 13-18mm |
| Origin: | China | Showroom location: | not any |
| Weight (kg): | 500 | type: | stone crusher |
| Advantage: | high performance | application: | Rock Splitting/Building |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | brand: | gem |

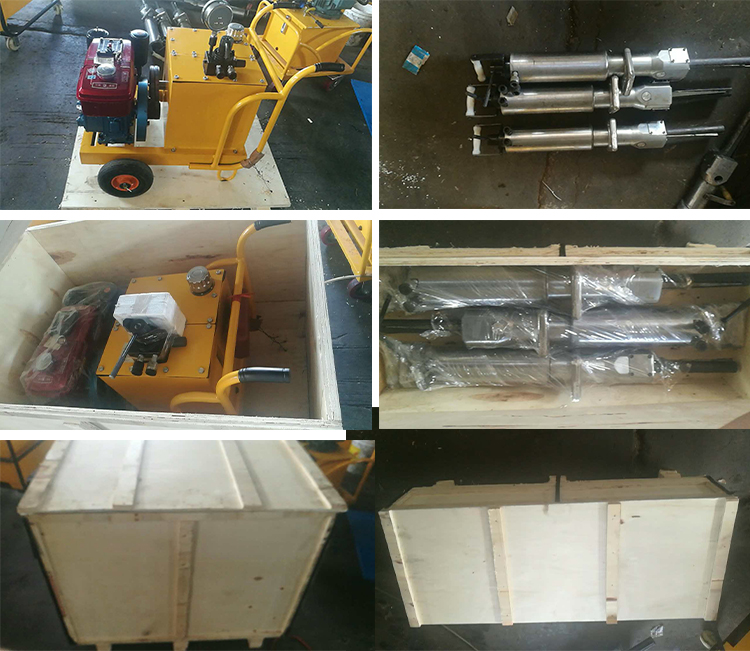

| Packaging Details: | export wooden bag | Video shipment inspection: | if |
| Applicable industries: | construction project |

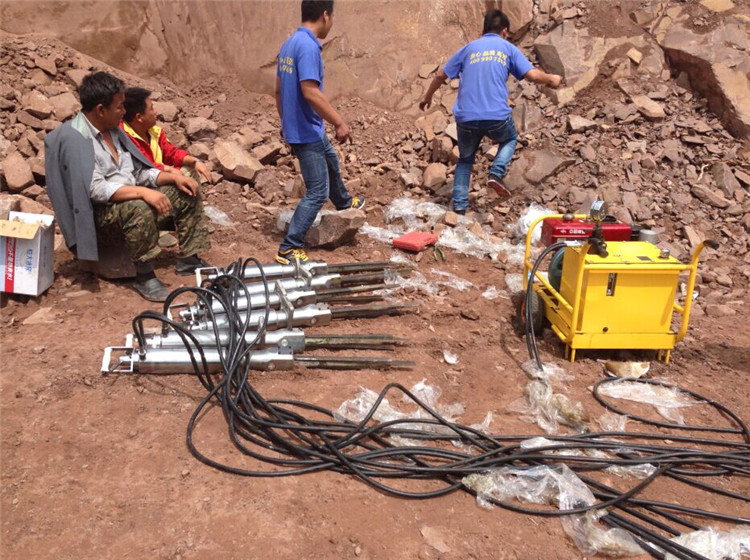

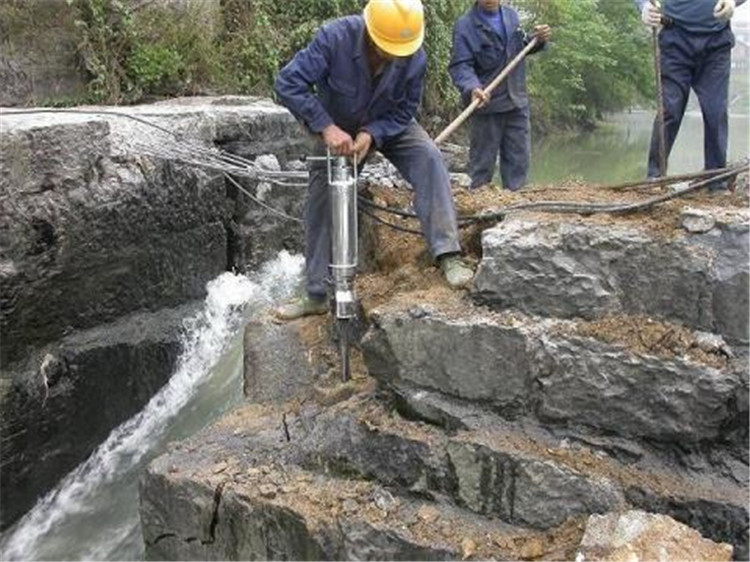

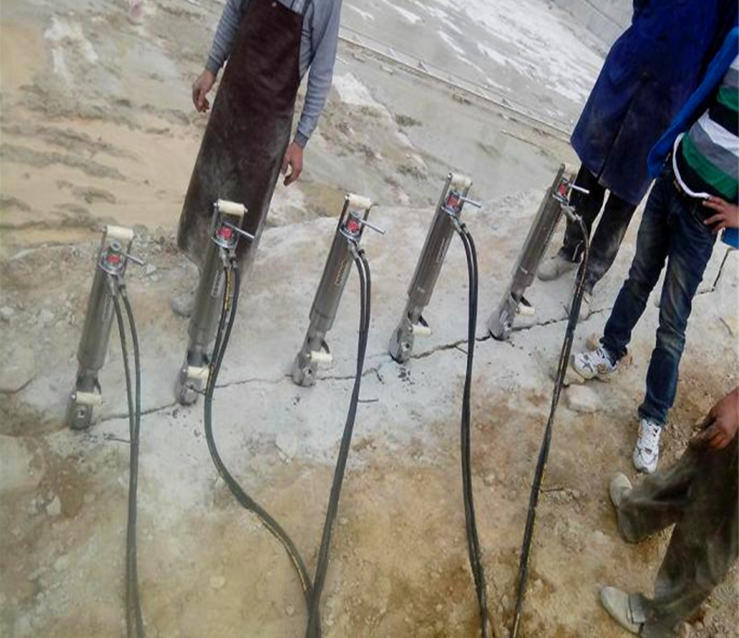

The hydraulic rock and concrete splitter is a hand-held splitting and demolition tool. It can controllably split rock or concrete. Especially suitable for enclosed areas where large machines cannot work.
Such as hydraulic breakers and places where noise, dust, flying debris, vibration, and exhaust gas are strictly limited, and are also widely used in places that require non-explosive and prohibited explosions.

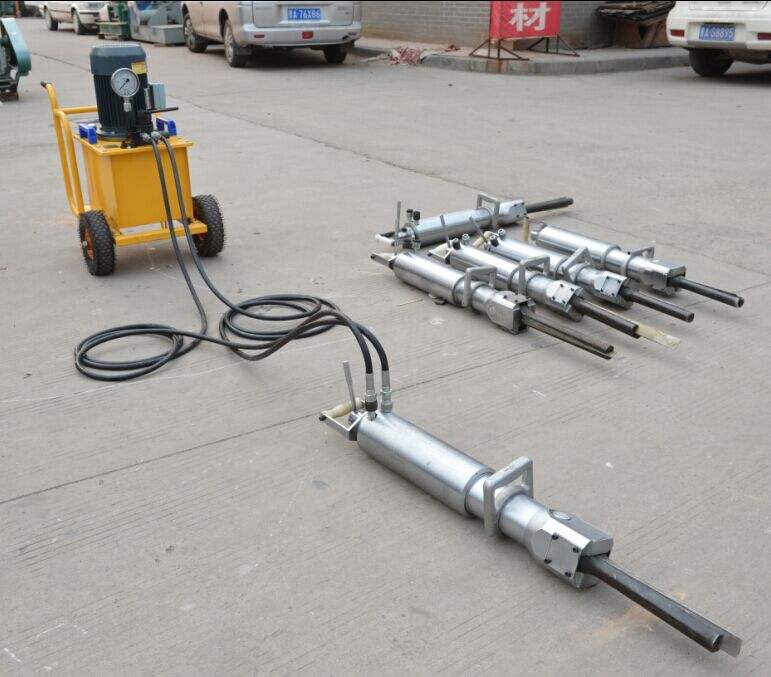

It includes power station and cylinder.
power plant:
Includes Diesel, Electric and Gasoline.

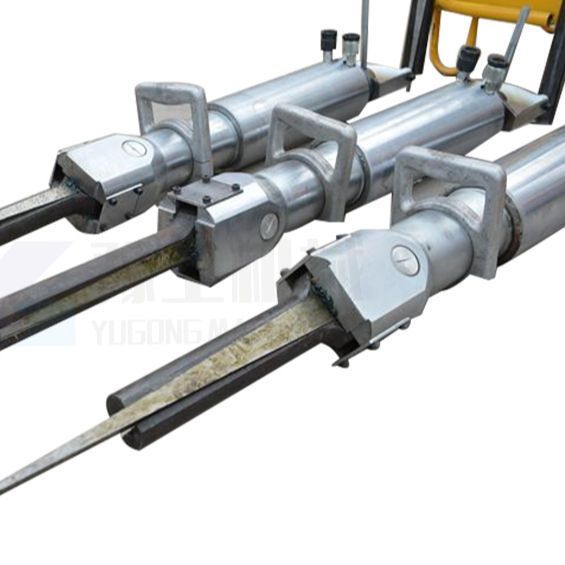

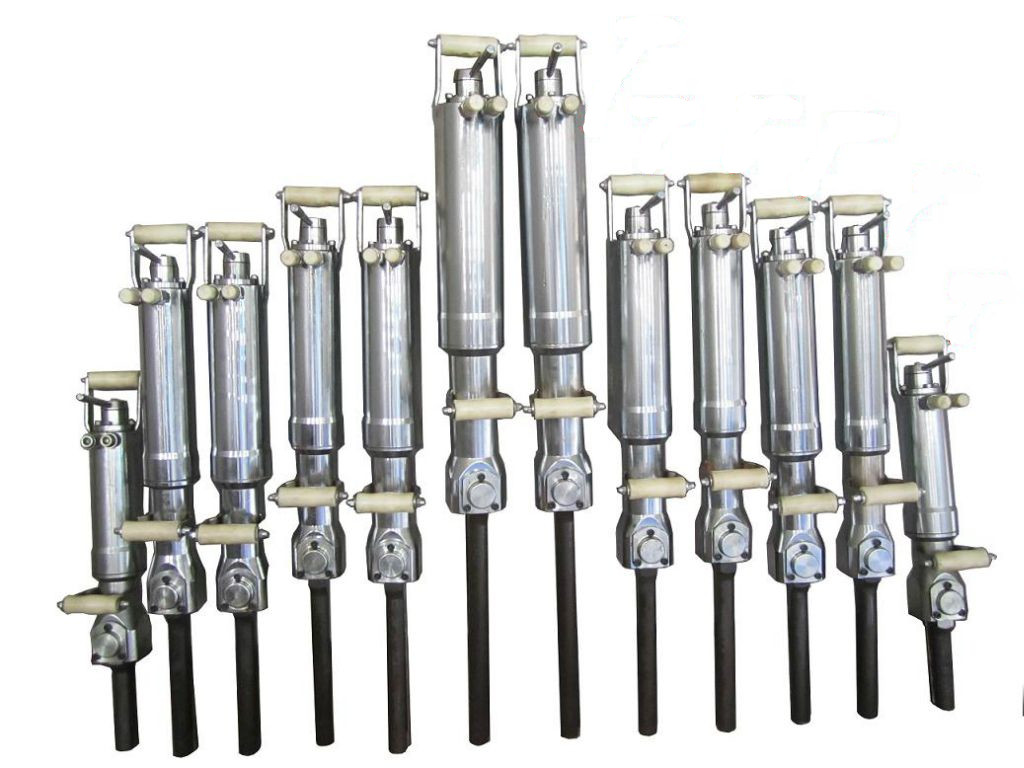

Cylinder (gun):
Includes aluminum and steel.
One station can match 1-10 cylinders.
Advantages of our hydraulic splitter:
Huge splitting force of up to 600 tons
Dust-free and nearly silent operation
no vibration
light
finishing
always under control
For close quarters and hard-to-reach places
easy to operate
Anti-wedges and center wedges of different sizes can be used on the same separator.
| thing | 250 | 350 | 450 |
| split length | 250mm | 350mm | 450mm |
| Piston stroke | 90/220mm | 90/220mm | 90/220mm |
| Drilling depth | >500mm | >700mm | >900mm |
| Drilling diameter | 42mm | 46mm | 46mm |
| crack width | 10-20mm | 10-20mm | 10-20mm |
| split time | 10-15 seconds | 10-15 seconds | 10-15 seconds |
| strength | 500 tons | 800 tons | 800 tons |
| weight | 30 kg | 32 kg | 36 kg |
