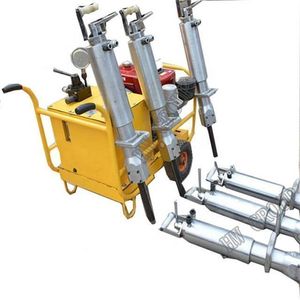

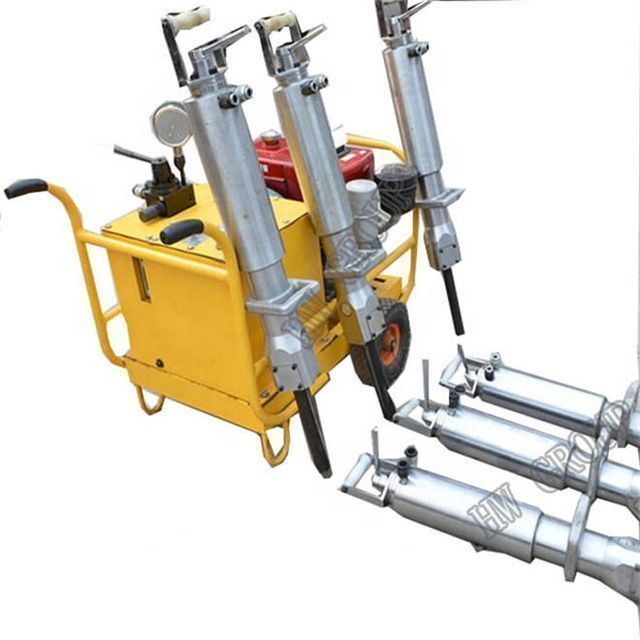

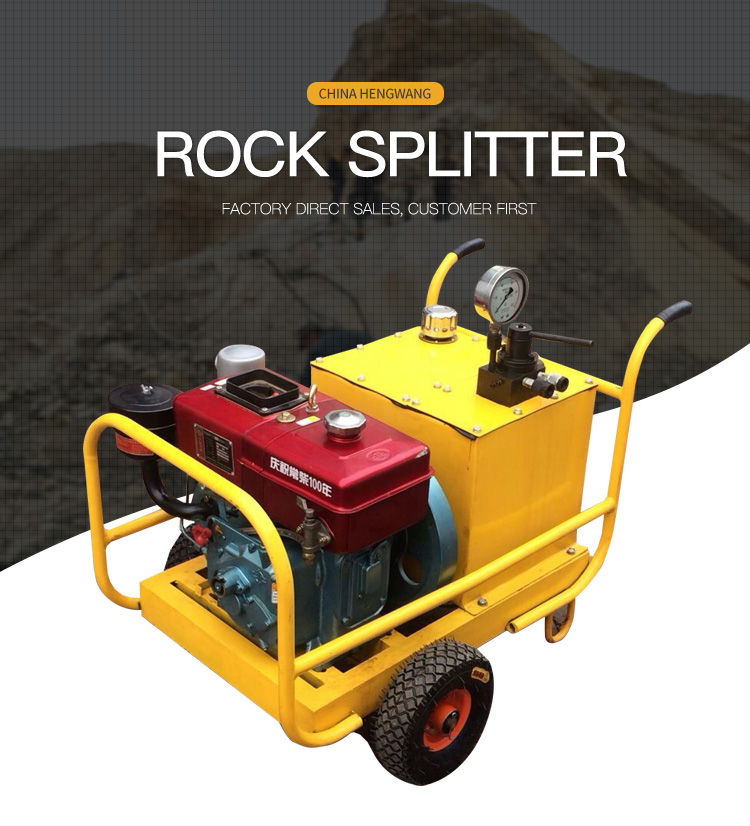

Darda C12(N) hydraulic rock splitter cylinder with diesel engine

PRODUCT DETAIL
Showroom location:not anyPackage preview:
Certification:International Organization for StandardizationDimensions (L*W*H):450*410*700MM
port:Qingdao/Tianjin/ShanghaiMechanical test report:if
Packaging Details:Factory Supply Standard Package Low Price Hydraulic Wedge Rock Splitter Machine For SaleFuel tank capacity:25-45L
Work pressure:55-60MpaCore component warranty:1 year
place of origin; place of origin:Shandong ChinaSupply capacity:200 sets per week
State of health:new, newbrand:Heng Wang
After-sales service provided:Engineers available to service machinery overseaspayment terms:L/C, Western Union, T/T, MoneyGram
Applicable industries:Building material stores, farms, construction, energy and miningTypes of:stone crusher
Power (watts):4.2kw, 7.5kw, 5.5hp or 7.5hpVideo shipment inspection:if
Warranty:1 yearMarketing Type:New Products 2022
work process:2-13 L/mapplication:stone, concrete, rock stone
Weight (kg):33Core components:Pump
Motor type:alternating current motor
Product Description
Product Description of Factory Supply Low Price Hydraulic Wedge Rock Splitter Machine For Sale



stone crusheris our newly developed product which is a powerful and very cost-effective alternative to other traditional demolition tools. When it is put into a pre-drilled hole in rock or concrete, it can generate a very large splitting force (up to 1000T) and break it into pieces in seconds.

It is now widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool for construction, river dredging, and disaster relief. Our company's main hydraulic pumps and oil cylinders are as follows. If you are interested, please tell us what type of pump and cylinder you need. We will offer you a very competitive price.



technical parameter

Technical Parameters of Factory Supply Low Price Hydraulic Wedge Rock Splitter For Sale

Hydraulic wedge rock splitterDistribution cylinder parameters

Model

HW80-250

HW80-350

HW80-450

HW90-250

HW90-350

HW90-450

Piston diameter

80mm

80mm

80mm

90mm

90mm

90mm

Drilling diameter

Φ42mm

Φ45mm

Φ50mm

Φ42mm

Φ45mm

Φ50mm

Drilling depth

>500mm

>550mm

>600mm

>500mm

>550mm

>600mm

wedge length

250mm

350mm

450mm

250mm

350mm

450mm

crack width

10~40mm

10~40mm

10~40mm

10~40mm

10~40mm

10~40mm

split time

5~15 seconds

5~15 seconds

5~15 seconds

5~15 seconds

5~15 seconds

5~15 seconds

Separatist theory

600 tons

600 tons

600 tons

800 tons

800 tons

800 tons

actual splitting force

480 tons

480 tons

480 tons

480 tons

480 tons

480 tons

weight

28Kg

29Kg

30Kg

31Kg

32Kg

33Kg

Hydraulic wedge rock splitterPump parameters

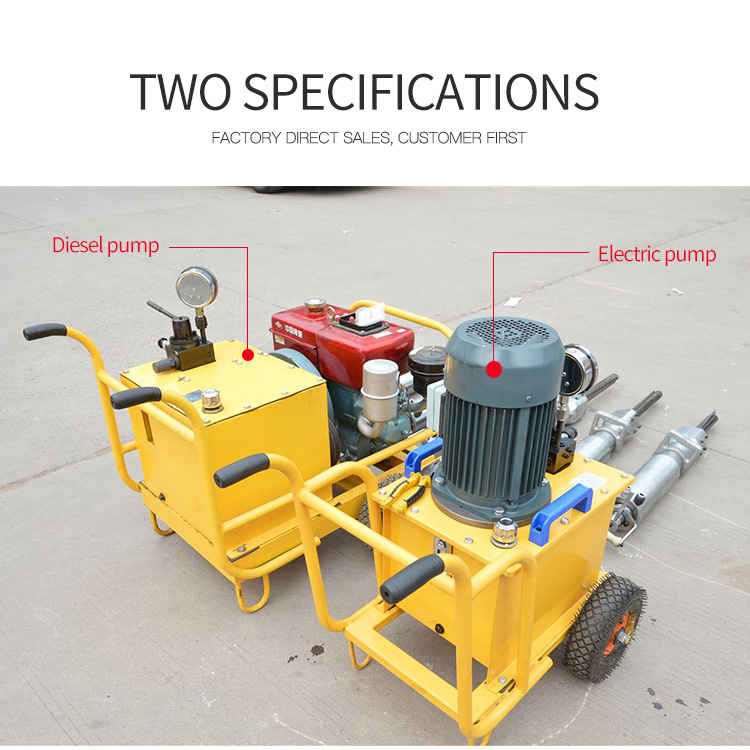

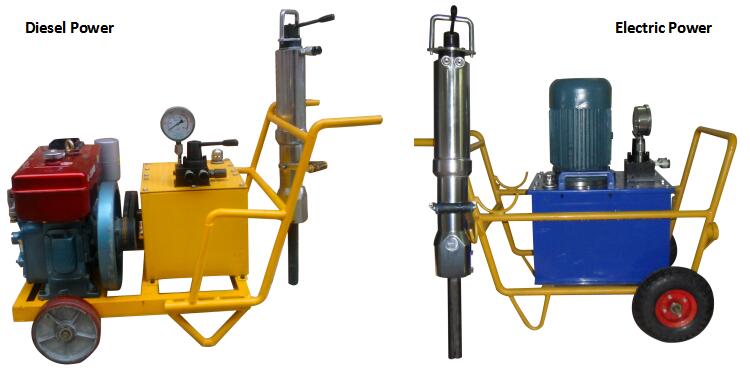

engine

electric engine

Diesel engines

weight

60 kg

110 kg

150 kg

100 kg

130 kg

150 kg

tank capacity

40L

60L

88L

45L

65L

90L

Motor Power

3.0KW

4.0KW

5.5KW

3 hp

5 hp

7.5 hp

Working pressure (Mpa)

55-60

55-60

55-60

55-60

55-60

55-60

Working flow(L/min)

2-13

2-13

2-13

2-13

2-13

2-13

Configurable number of guns

1-5

2-7

2-10

1-3

3-8

3-10

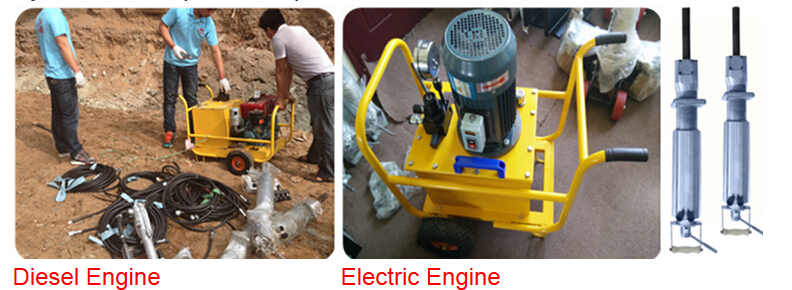

Products real shot
More details aboutFactory Supply Low Price Hydraulic Wedge Rock Splitter Machine For Sale

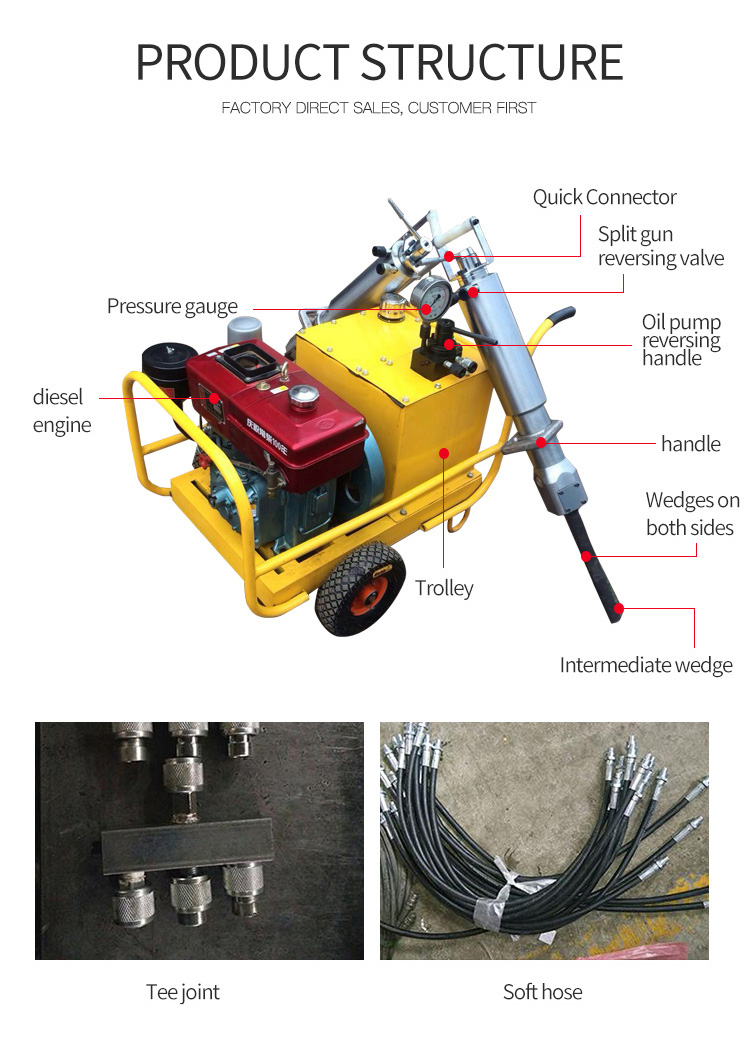

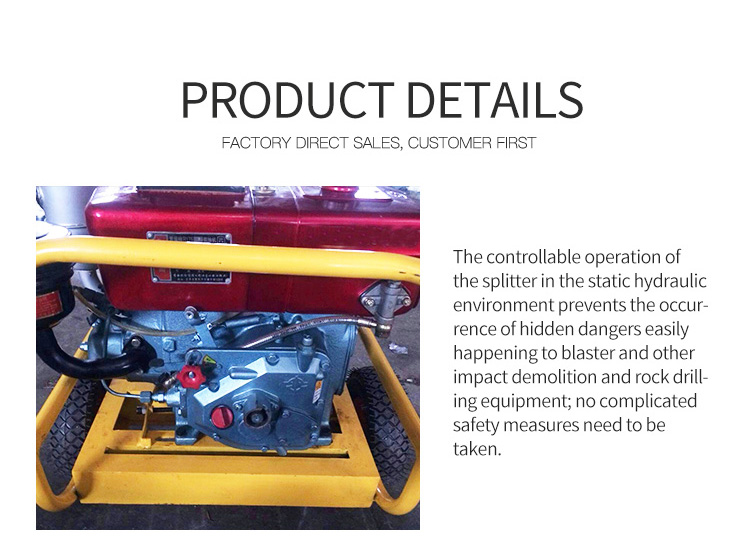

detailed image
