800 Ton Force Hydraulic Stone Splitter
- $300.00 /set
- 1 set
- Shandong Huayao Construction Machinery Co., Ltd.
- Shandong, China
- Mr Tom Chen
PRODUCT DETAIL
| Core component warranty: | 3 years | Warranty: | 3 years |
| Applicable industries: | Mechanical repair shops, home use, construction, energy and mining | Engine power: | 6.8.18 HP |
| Motor Power/Voltage: | 4/5.5/7.5KW 380V | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Mechanical test report: | if | Motor type: | AC motor |
| Core components: | Engines, Motors, Pumps | Working oil temperature: | 5-50℃ |
| State of health: | new | Showroom location: | turkey, none |
| Types of: | stone crusher | place of origin; place of origin: | Shandong China |
| Hydraulic oil type: | 46# | work process: | 2-13L/min |
| Weight (kg): | 330 | Supply capacity: | 1200 sets per year |
| engine: | Diesel engines | port: | Shanghai/Qingdao/Tianjin/Guangzhou |
| Package preview: | Packaging Details: | Standard export wooden box packaging | |
| Weight (separator only): | 120KG | brand: | Huayao |
| Work pressure: | 63Mpa | application: | natural stone mining |
| Marketing Type: | New Products 2020 | Splitter maximum load: | 6 |
| Video shipment inspection: | if | Hydraulic tank: | 36/40/52L |
product information

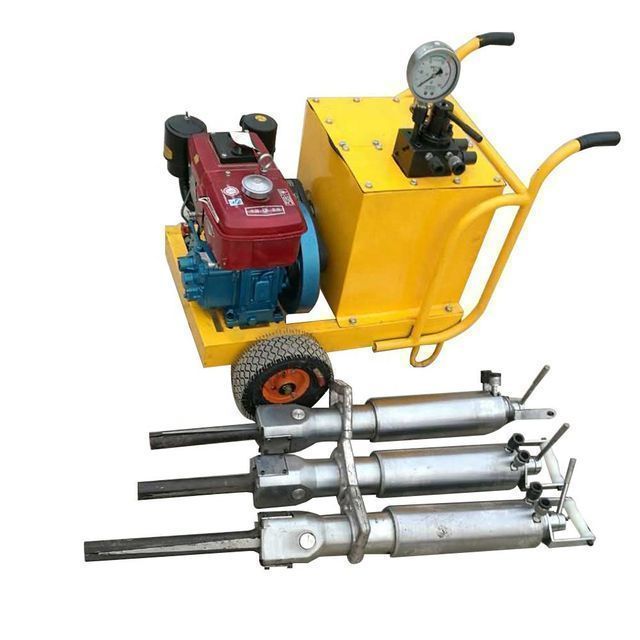

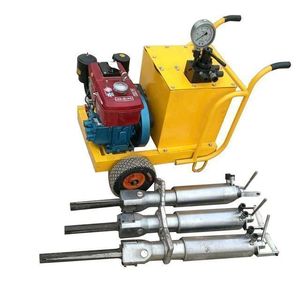

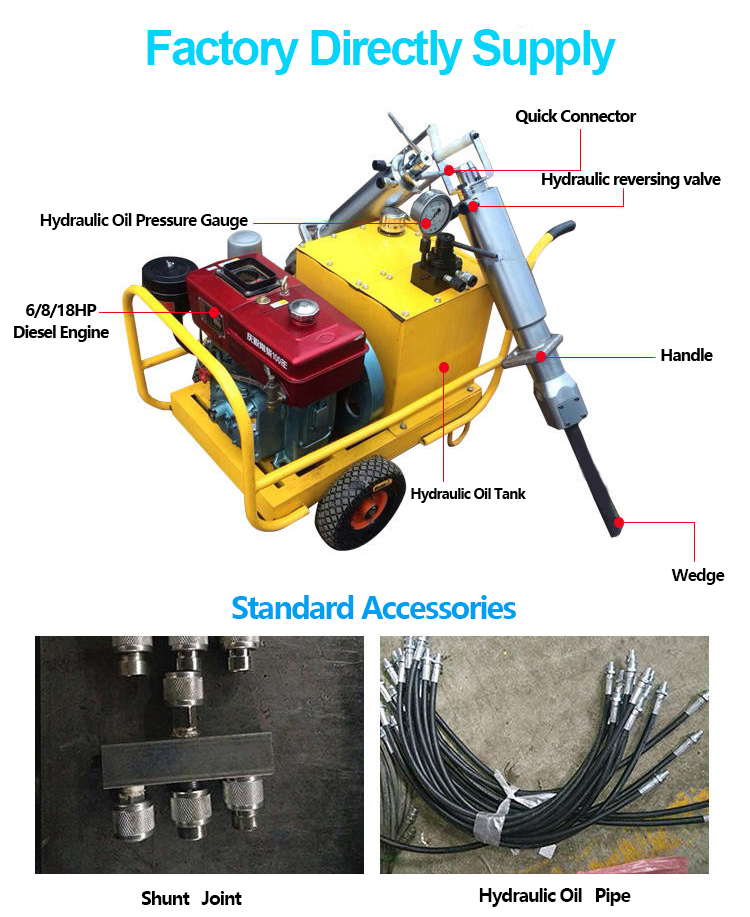

Factory direct hydraulic portable diesel rock splitter

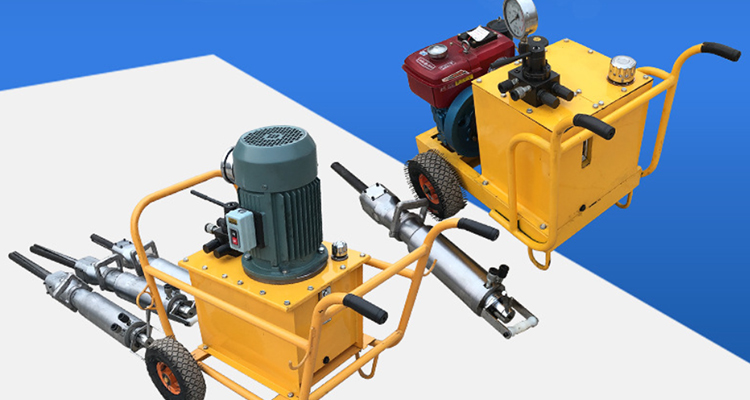

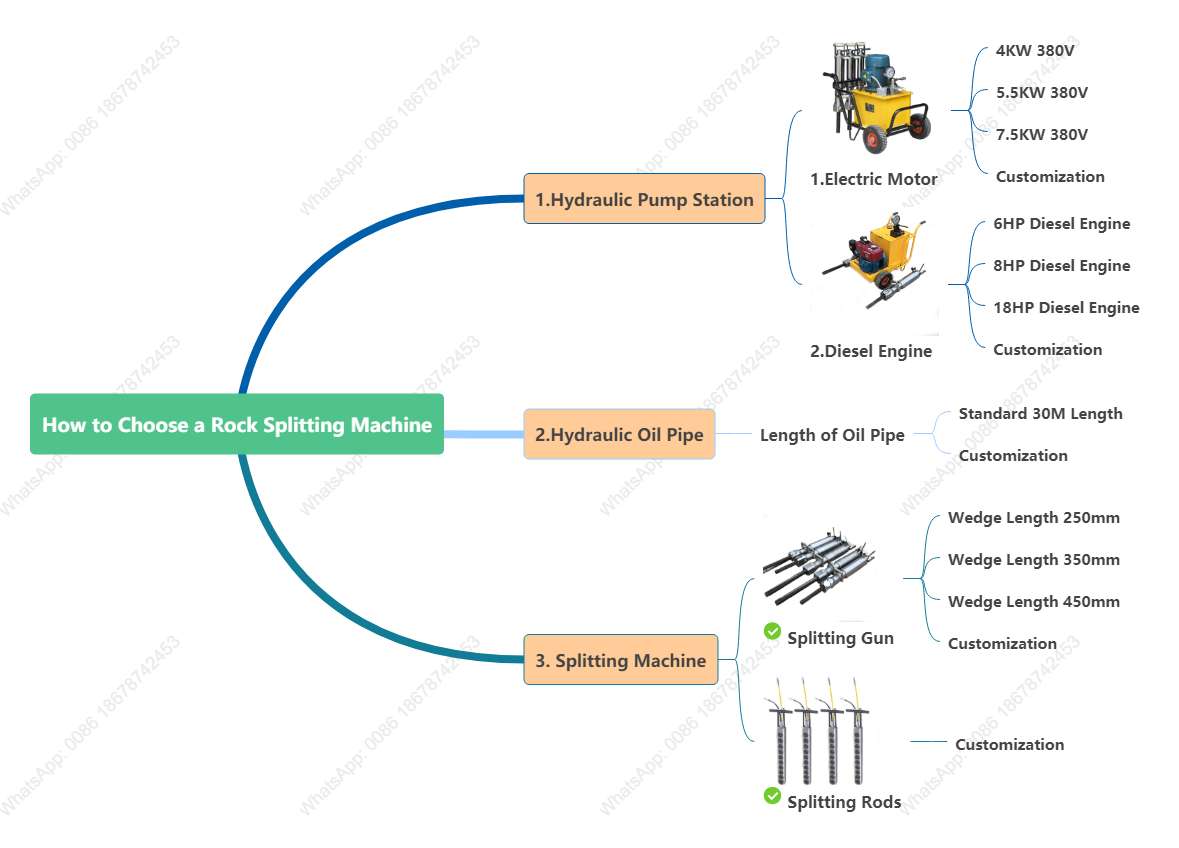

The hydraulic rock splitter is also called a rock splitter, a rock splitter, a mountain cutter, etc. According to the type of power station, it can be divided into:Electric rock splitter, diesel engine rock splitter, gasoline engine rock splitter.

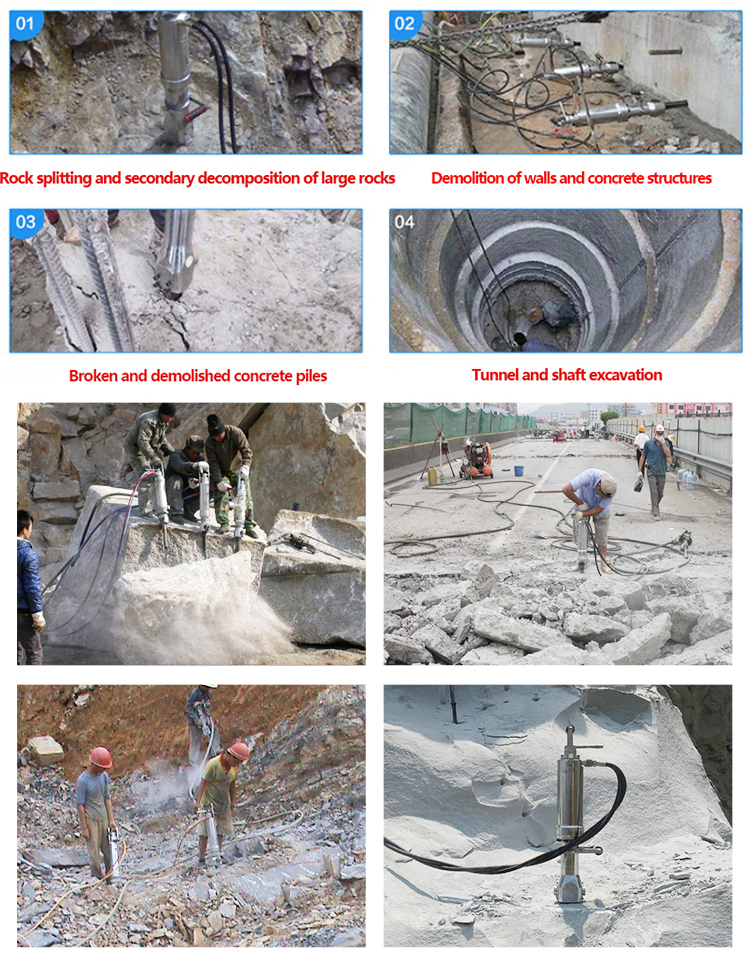

According to the material of the cracking gun, it can be divided into: steel cracking gun and aluminum cracking gun. Concrete components (cement pavements, machine tool foundations, bridges and building components) are the main components of partial and total demolition operations; natural stone mining (metal mines), non-metallic minerals).
The hydraulic rock splitter is especially suitable for secondary splitting of large rocks, and is an ideal equipment to completely replace blasting and manual demolition.
Product Details
Specification

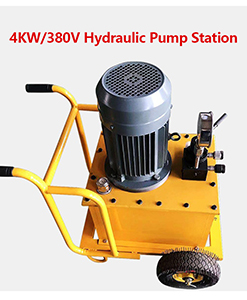

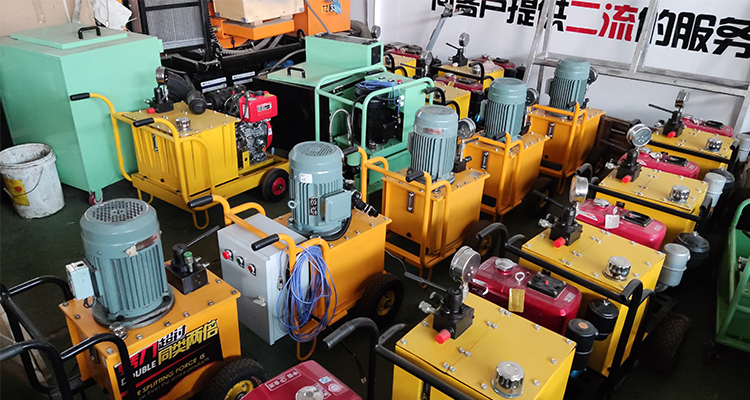

Hydraulic pump station specifications | ||||||
motor type | ||||||
Motor Power/Voltage | 4KW/380V | 5.5KW/380V | 7.5KW/380V | |||
work pressure | 63Mpa | 63Mpa | 63Mpa | |||
Working oil temperature | 5-50℃ | 5-50℃ | 5-50℃ | |||
work process | 2-13L/min | 2-13L/min | 2-13L/min | |||
Hydraulic oil type | 46# | 46# | 46# | |||
Hydraulic tank | 36L | 40L | 52L | |||
The maximum load of the splitter | 6 | 6 | 6 | |||
weight | 120KG | 170KG | 220KG | |||

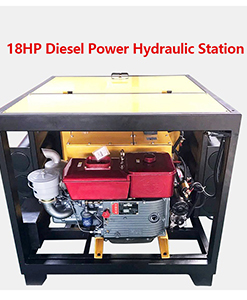

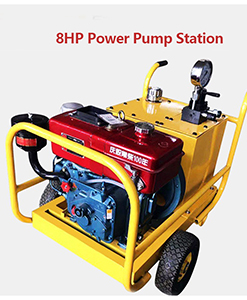

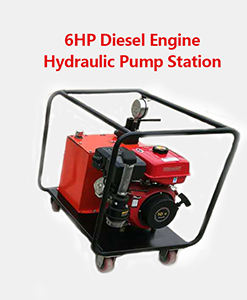

diesel engine type | ||||||
engine power | 6 hp | 8 hp | 18 hp | |||
work pressure | 55-60Mpa | 63Mpa | 65-70Mpa | |||
Working oil temperature | 5-50℃ | 5-50℃ | 5-50℃ | |||
work process | 2-13L/min | 2-13L/min | 2-13L/min | |||
Hydraulic oil type | 46# | 46# | 46# | |||
Hydraulic tank | 40L | 40L | 52L | |||
The maximum load of the splitter | 18 pcs | 18 pcs | 18 pcs | |||
weight | 330KG | 330KG | 330KG | |||

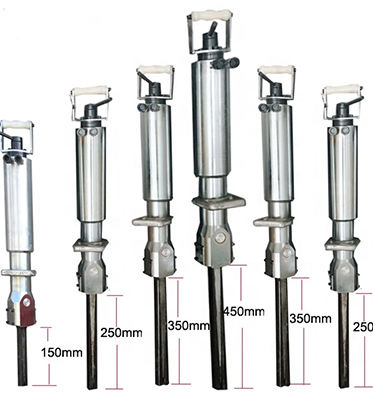

stone crusher | Model | ||||||
HR9-25 | HR9-35 | HR9-45 | customized | ||||
Piston diameter | 90mm | 90mm | 90mm | 110mm | |||
wedge length | 250mm | 350mm | 450mm | 800mm | |||
Aperture | Φ42mm | Φ45mm | Φ50mm | 110mm | |||
Drilling depth | 0.5m | 0.6m | 0.7m | 0.8m | |||
split time | 8-50s | 8-50s | 8-50s | 8-50s | |||
splitting force | 800 tons | 800 tons | 800 tons | 1500 | |||
weight | 40KG | 41KG | 42KG | 45KG | |||
