hydraulic rock splitter

PRODUCT DETAIL
Motor type:AC motorproduct name:hydraulic rock splitter
application:split stone, concrete, stone, concreteApplicable industries:Building materials stores, machinery repair shops, construction, energy and mining
State of health:newport:Qingdao/Shanghai
payment terms:L/C, Western Union, T/T, MoneyGramplace of origin; place of origin:Shandong China
Wedge length:250-450mmDrilling depth (mm):500-900mm
Mechanical test report:ifDimensions (L*W*H):450*410*700MM
Power supplier:hydraulicWeight (kg):200
Showroom location:not anyPackaging Details:wooden box
brand:NKMarketing Type:normal product
Supply capacity:200 sets per monthCore component warranty:1 year
feature:Quick CrusherWork pressure:63Mpa stone crusher
Types of:stone crusherShunt width(mm):50--60mm
Theoretical chopping force:500 tonsWarranty:1 year
Video shipment inspection:ifCore components:Pump
Split time:10-15 seconds
Product Description

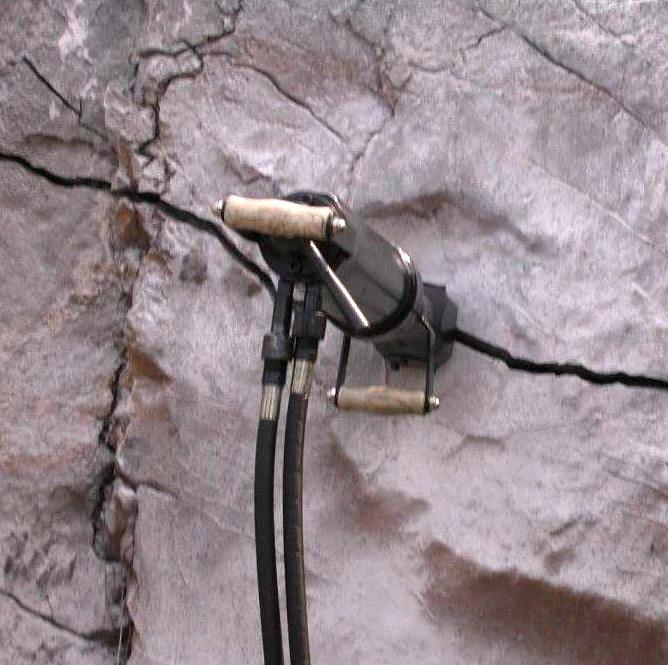

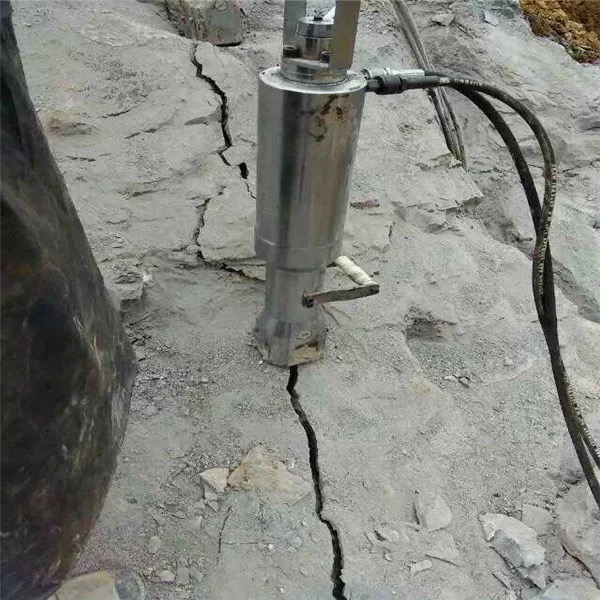

The Rock Splitter is our newly developed product which is a powerful and very cost-effective alternative to other traditional demolition tools. The rock splitter generates a very large splitting force (up to 1000T) when placed into a pre-drilled hole in rock or concrete, and breaks it into pieces within seconds.
It has been widely used in mining (cave mining), construction and demolition of civil engineering.
It is also an indispensable tool for construction, river dredging, emergency rescue and disaster relief.

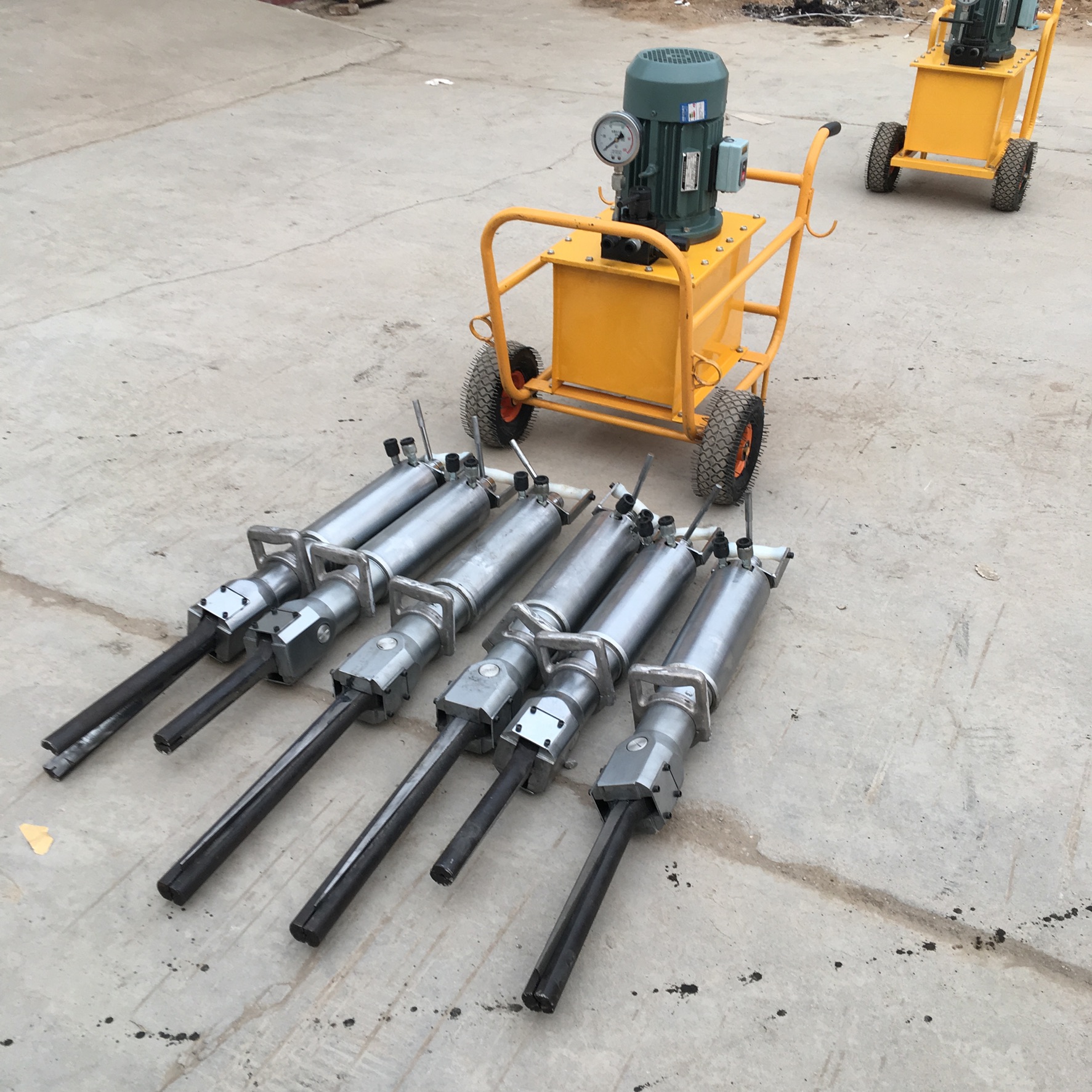

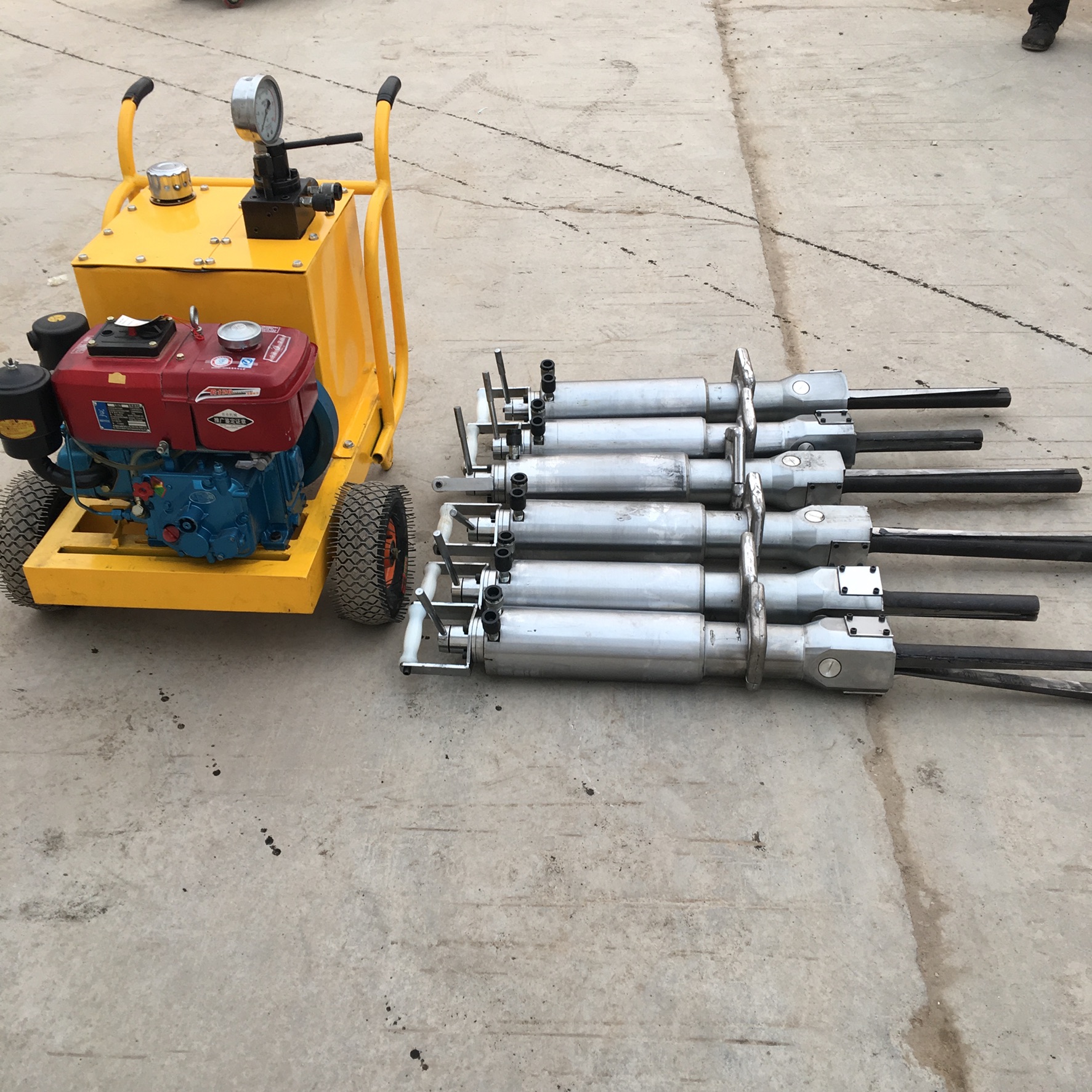

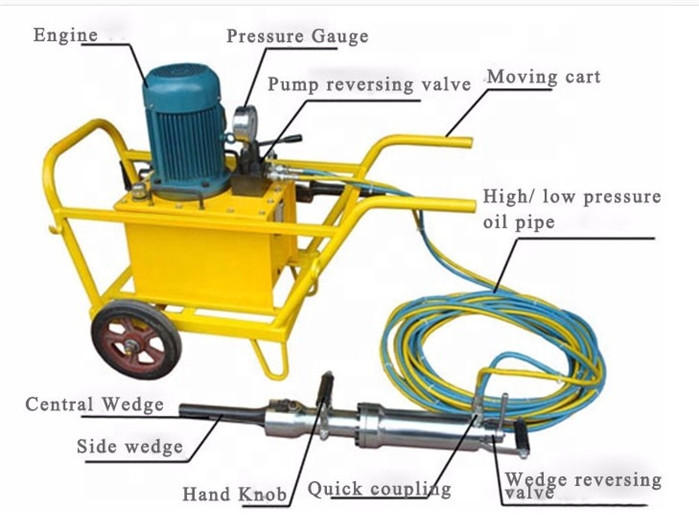

The pump and cylinder are as follows.
Rock Crusher Specifications
rock splitter cylinder
Model
NK80-250
NK80-350
NK80-450
NK90-250
NK90-350
NK90-450
Piston diameter
80mm
80mm
80mm
90mm
90mm
90mm
Drilling diameter
Φ42mm
Φ45mm
Φ50mm
Φ42mm
Φ45mm
Φ50mm
Drilling depth
≧500mm
≧550mm
≧600mm
≧500mm
≧550mm
≧600mm
cheese block length
250mm
350mm
450mm
250mm
350mm
450mm
crack width
10~40mm
split time
5~15 seconds
Separatist theory
600 tons
600 tons
600 tons
800 tons
800 tons
800 tons
actual splitting force
480 tons

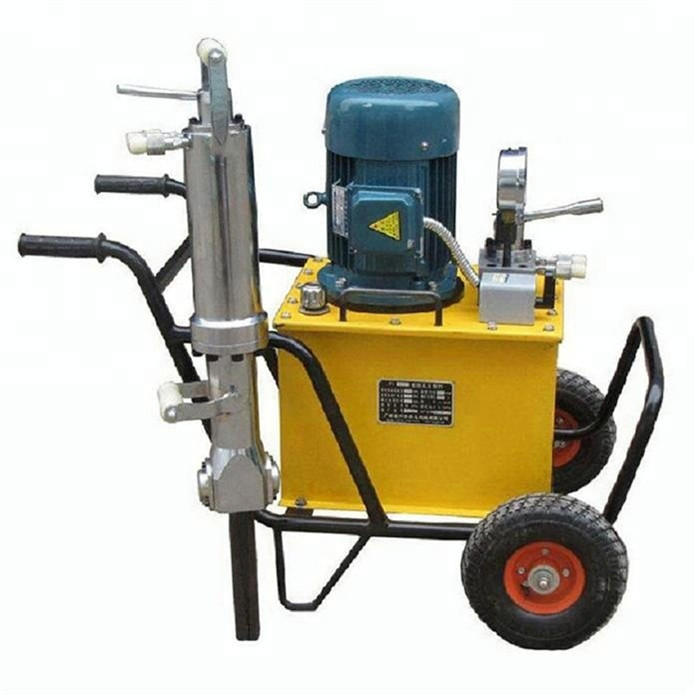

Hydraulic rock splitting pump station
engine
electric engine

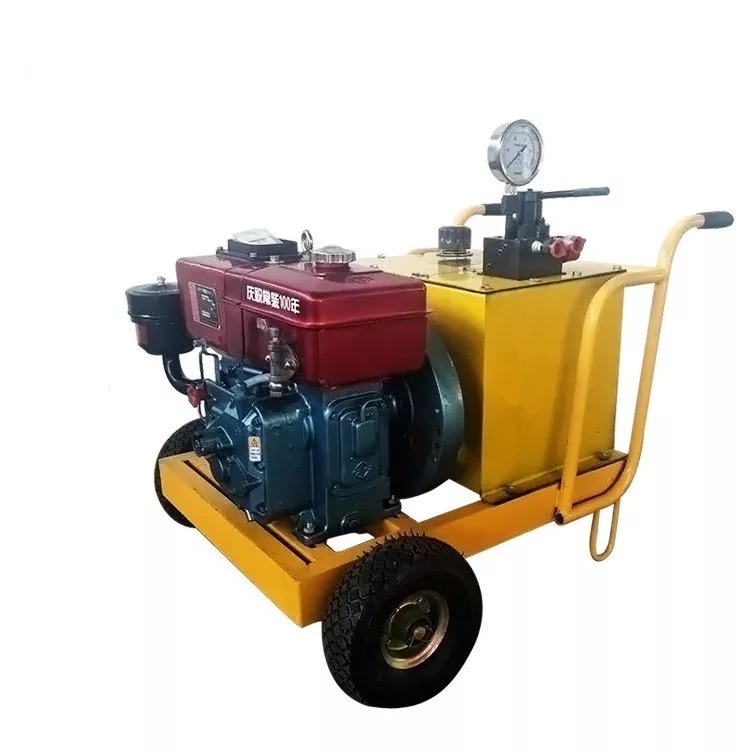

Diesel engines
Fuel tank capacity
15L
40L
88L
45L
65L
90L
Motor Power
1.5KW
4KW
7.5KW
4 hp
7 hp
7.5 hp
Working pressure (Mpa)
55-60
Working flow(L/min)
2-13

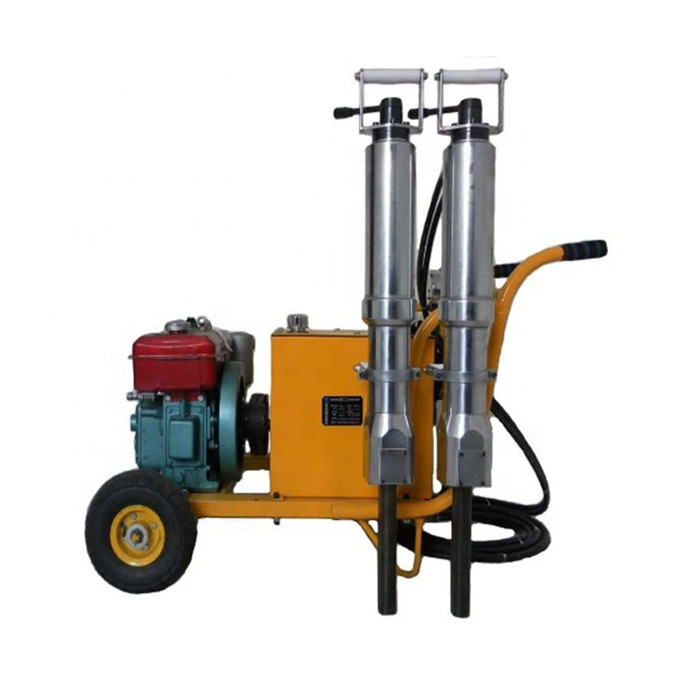

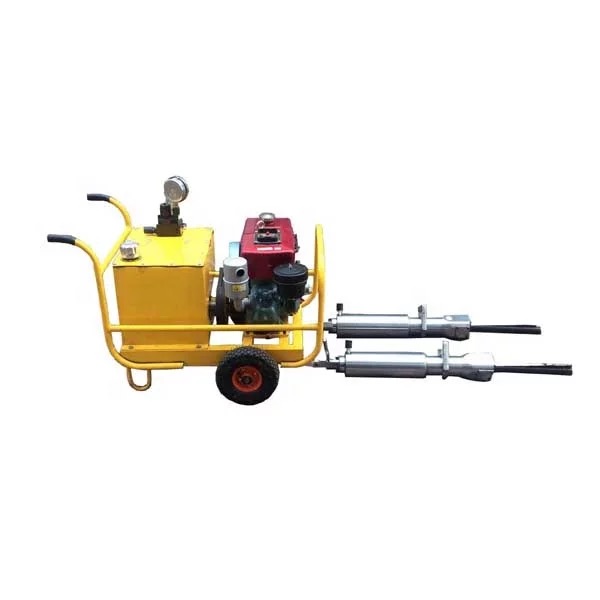

Diesel power
electricity

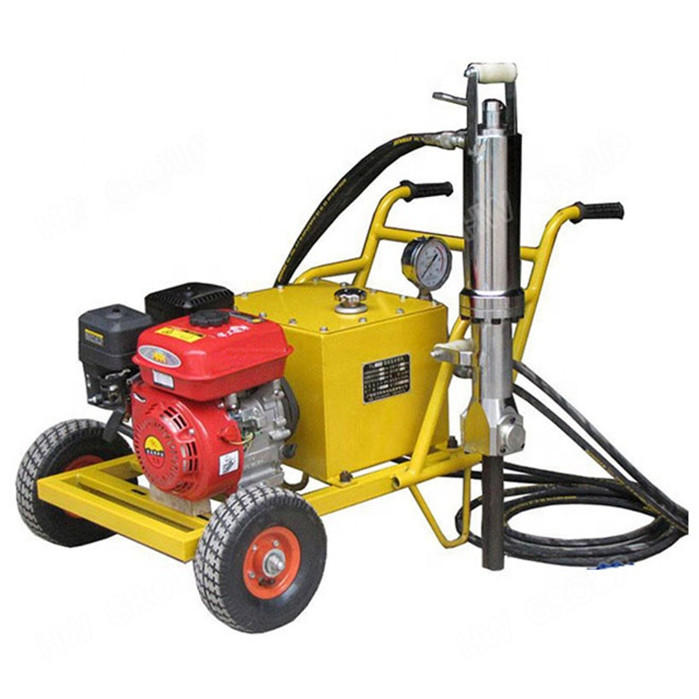

gasoline powered
