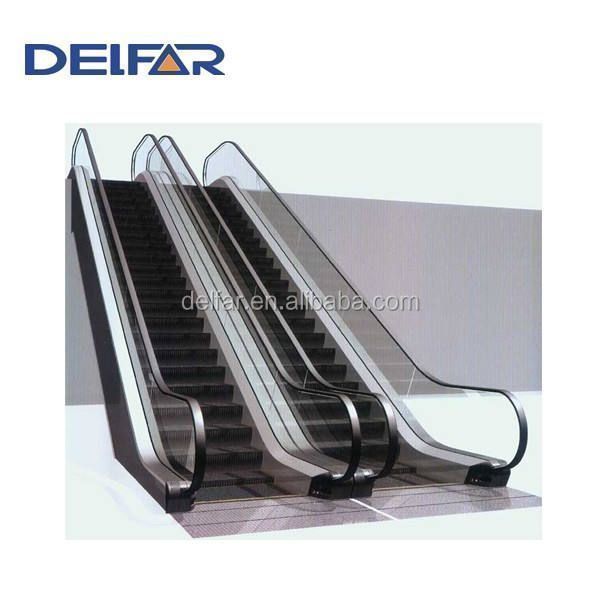

Cheap price and high quality escalator
- $11000.00 /unit
- 1 unit
- Delfar Elevator Co., Ltd.
- Zhejiang, China
- Mr Benson Benson
| Introduction to the interior: | Hairline St. British stone. | Warranty: | 1 year |
| application: | office building | After-sales service: | online technical support |
| port: | Shanghai | Bottom plate: | Hairline St. British stone. |
| Packaging Details: | Use strong export plywood box, suitable for long-distance transportation, moisture-proof, moisture-proof, shock-proof, rust-proof. | Skirting: | Hairline St. British stone. |
| Supply capacity: | 10000 units per year | armrest: | black rubber |
| railing: | tempered glass | brand: | delfa |
| Project solution ability: | Graphic design, 3D model design, overall project solution, cross-category integration | inclination: | 35° and 30° |
| Step/Tray: | Stainless steel | design style: | modern |
| maximum. high: | 3.0≤H≤10.0 | Step width: | 600/800/1000 |
| Package preview: | truss: | Welded mild steel (angle steel) | |
| payment terms: | L/C, T/T | model: | Germany |
| place of origin; place of origin: | China |
Delfar Elevator Co., Ltd.is a professional elevator company that designs and manufactures complete sets of elevators, escalators and moving walks, as well as elevator components. The company covers an area of more than 40,000 square meters, with a factory building of more than 17,000 square meters and an office area of more than 3,000 square meters. DELFAR currently has 135 employees, including 52 engineers and technicians.
Certificate
For escalators, we have 30° and 35° angle designs, which can meet the needs of major shopping malls, shopping centers, supermarkets, subway stations, airports, etc.
Escalator Construction Parameters
| 30° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Miss) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/30°) | 3000≤H≤6000 | 0.5 | 3600 | 30 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/30°) | 3000≤H≤5000 | 0.5 | 4800 | 30 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5000 | 11 | |||||||||
| DE(1000/30°) | 3000≤H≤4500 | 0.5 | 6000 | 30 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||
| 35° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Miss) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/35°) | 3000≤H≤6000 | 0.5 | 3600 | 35 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/35°) | 3000≤H≤5500 | 0.5 | 4800 | 35 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5500 | 11 | |||||||||
| DE(1000/35°) | 3000≤H≤4500 | 0.5 | 6000 | 35 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||
Advantage:
(1) The truss adopts first-class angle steel, which has a unique structure, high strength and durability.
(2) The overall design is simple and smooth, inclusive.
(3) Advanced international technology guarantees the accuracy of stepping.
(4) The diameter of the stepping roller is large, the operation is stable, the noise is low, and the service life is long.
(5) The entrance of the humanized handrail is fixed with a brush.
security system
arrange plan
workshop
