| Port: | Shanghai; | Supply Ability: | 10000 Unit/Units per Year; |
| Delivery Detail: | 30 days after deposit; | Brand Name: | DELFAR; |
| Model Number: | DM10,DM20; | Packaging Detail: | standard export packing; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Place of Origin: | Zhejiang China; |
| Type: | Moving Walks; | | |
Specifications
1.Drive: Micro-computer control and VVVF technology
2.Novel,reliable and superior sheet material
3.Beauitiful appearance
Delfar Elevator Co., Ltd. is a professional elevator company who designs and manufactures complete elevators, escalators and moving walks, as well as elevator parts. The company covers a land area of over 40,000 square meters with more than 17,000 square meters of factory houses and 3,000square meters of office area. Currently, 135 employees work for DELFAR, which includes 52engineering technicians.
Certificates
Product Description

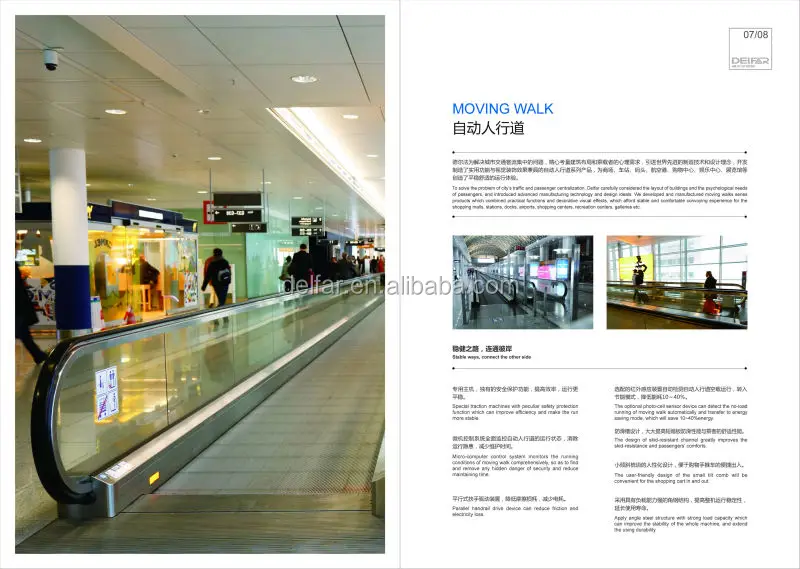

For moving walk, we can supply different angle automatic sidewalks from 0° to 12°, it can solve the transportation of a huge flow of people, but also a beautiful flowing landscape in the building,now it's very popular in major shopping malls, railway stations, docks, airports, shopping centers, entertainment centers, exhibition halls and other public places.
Moving walk Construction Parameters
+
| 12°moving walk construction dimensions |
| model | travel height
(mm) | nominal speed
(m/s) | maximum delivery capacity
(person/h) | inclination | motor power
(kw) | A(mm) | B(mm) | C(mm) | D(mm) |
| DM(800/12°) | 1000≤H≤3800 | 0.5 | 4800 | 12 | 1*7.5 | 800 | 1038 | 1400 | ≥1460 |
| 3800<H≤6000 | 1*11 |
| 6000<H≤7600 | 1*15 |
| 7600<H≤7800 | 2*11 |
| DM(1000/12°) | 1000≤H≤3000 | 0.5 | 6000 | 12 | 1*7.5 | 1000 | 1238 | 1600 | ≥1660 |
| 3000<H≤4800 | 1*11 |
| 4800<H≤6000 | 1*15 |
| 6000<H≤6200 | 2*11 |
+
| 0°moving walk construction dimension |
| model | travel height
(mm) | nominal speed
(m/s) | maximum delivery capacity
(person/h) | inclination | motor power
(kw) | A(mm) | B(mm) | C(mm) | D(mm) |
| DM(800/0°) | 80000 | 0.5 | 4800 | 0 | 5.5 | 800 | 1038 | 1400 | ≥1460 |
|
| 80000≤L≤130000 | 8 |
| 130000<L≤150000 | 11 |
| DM(1000/0°) | 70000 | 0.5 | 6000 | 0 | 5.5 | 1000 | 1238 | 1600 | ≥1660 |
|
| 70000≤L≤110000 | 8 |
| 110000<H≤150000 | 11 |
Advantage
(1)Safe and firm fish-belly style structure- Fish-belly style narrow pallet greatly reduces the space span. It brings about the firmer and more compact pallet face.
(2)Efficient operation of traction machine- Apply traction machine special for moving walk. It is efficient in running, low noise ,smooth and comfortable in travel.
(3)Protection of micro-computer control system-It executes comprehensive all-weather monitor to running conditions of moving walk. It promptly finds and removes any hidden danger of security and ensure the travel safety of all passengers.
Our Services
1.Workshop
Packaging & Shipping
