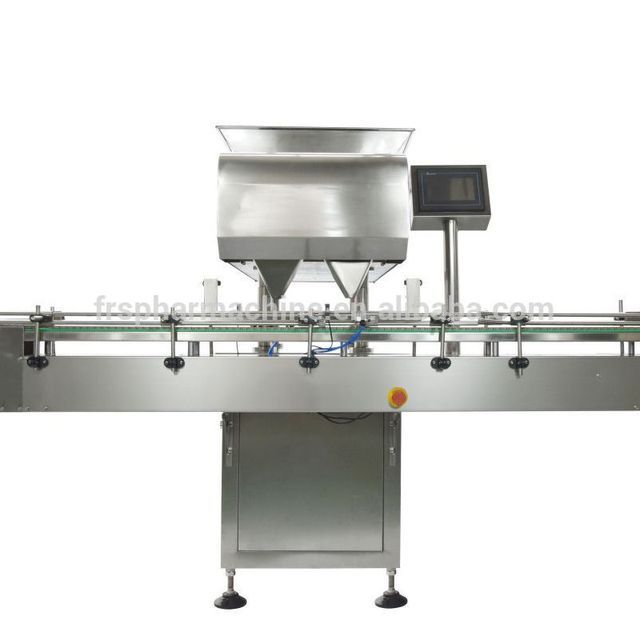

China Automatic Electronic Tablet Capsule Candy Gum Counting Machine
- $3000.00 / 1 - 1 sets
$2800.00 / >=2 sets - 1 set
- Ruian Furis Import & Export Co., Ltd.
- Zhejiang, China
- Mr Harold Zhang
PRODUCT DETAIL
| Power (kW): | 0.35 | Local service location: | USA, Germany, Mexico |
| Dimensions (L*W*H): | 1280*800*1100mm | Core component warranty: | 1 year |
| Capacity (pieces/hour): | 360,000 pieces/hour | port: | Ningbo Shanghai |
| Certification: | EU/ISO | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Function: | Capsule tablet count in bottle or bag | Capacity (bottle/min): | 10 - 180 bottles/min |
| Showroom location: | USA, Germany, Mexico, Russia, Spain | Bottling capacity (piece/bottle): | 1 - 99999 pcs/bottle |
| brand: | financial reporting system | power supply: | 0.5 kW |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | counting: | 1-99999 |
| Advantage: | No need to change the mold | After-sales service provided: | Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support |
| Suitable Size: | 0.5-3cm | Warranty: | 1 year |
| Weight (kg): | 50 | Applicable industries: | Manufacturing plants, food and beverage plants, retail stores, food and beverage outlets |
| Marketing Type: | New Products 2020 | Health status: | new |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Supply capacity: | 1 set per month |
| Automatic level: | semi-automatic or automatic | usage: | capsule |
| Voltage: | 220V50HZ/110V60HZ | feature: | high precision |
| Capsule and Tablet Sizes: | different kinds of | Mechanical test report: | if |
| product name: | Capsule Counting Machine | Material: | stainless steel 304 |
| Main selling points: | long lasting | Video shipment inspection: | if |
| Origin: | Zhejiang, China |
Product overview

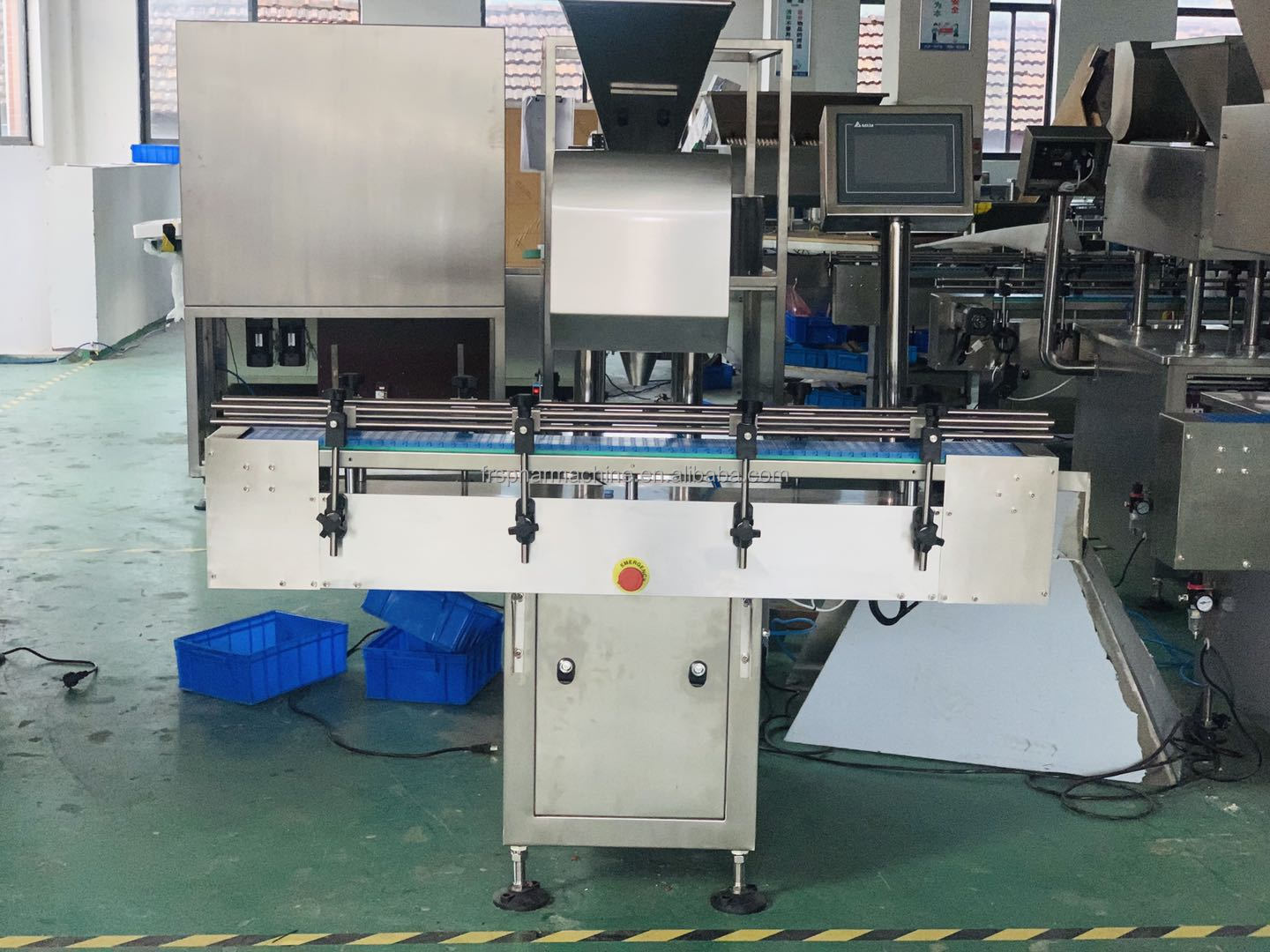

FRS Automatic Semi-automatic Capsule Filling Machine
This machine is used for fillingTablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels), pills and most solid granules are packed into plastic bottle bags, etc.This is a great idea for pharmaceutical companies,We are a professional pharmaceutical machinery supplier from China, we can provide you with capsule filling machine, tablet press machine, capsule counting machine line, blister packaging machine, etc. Our machines are mainly exported to the United States.
feature
With touch screen and PLC, the operation is very simple, counting tablets or capsules of different sizes without changing the mold.
avoid material cloggingThe special structure of the hopper mouth prevents material clogging, and the small mouth bottle can be filled quickly
Protect materials from harm
The bag is evenly fed, and the special patented filling parts are not broken.
Detection and sorting function
No bottle doesn't count and fill. Automatically reject filling abnormalities and broken bottles.
Error self-diagnosis and stop working, error alarm. dust-proof
Using the self-developed high dust-proof sensor technology, the machine works accurately and has good stability in a large dust environment
situation.
Product parameters

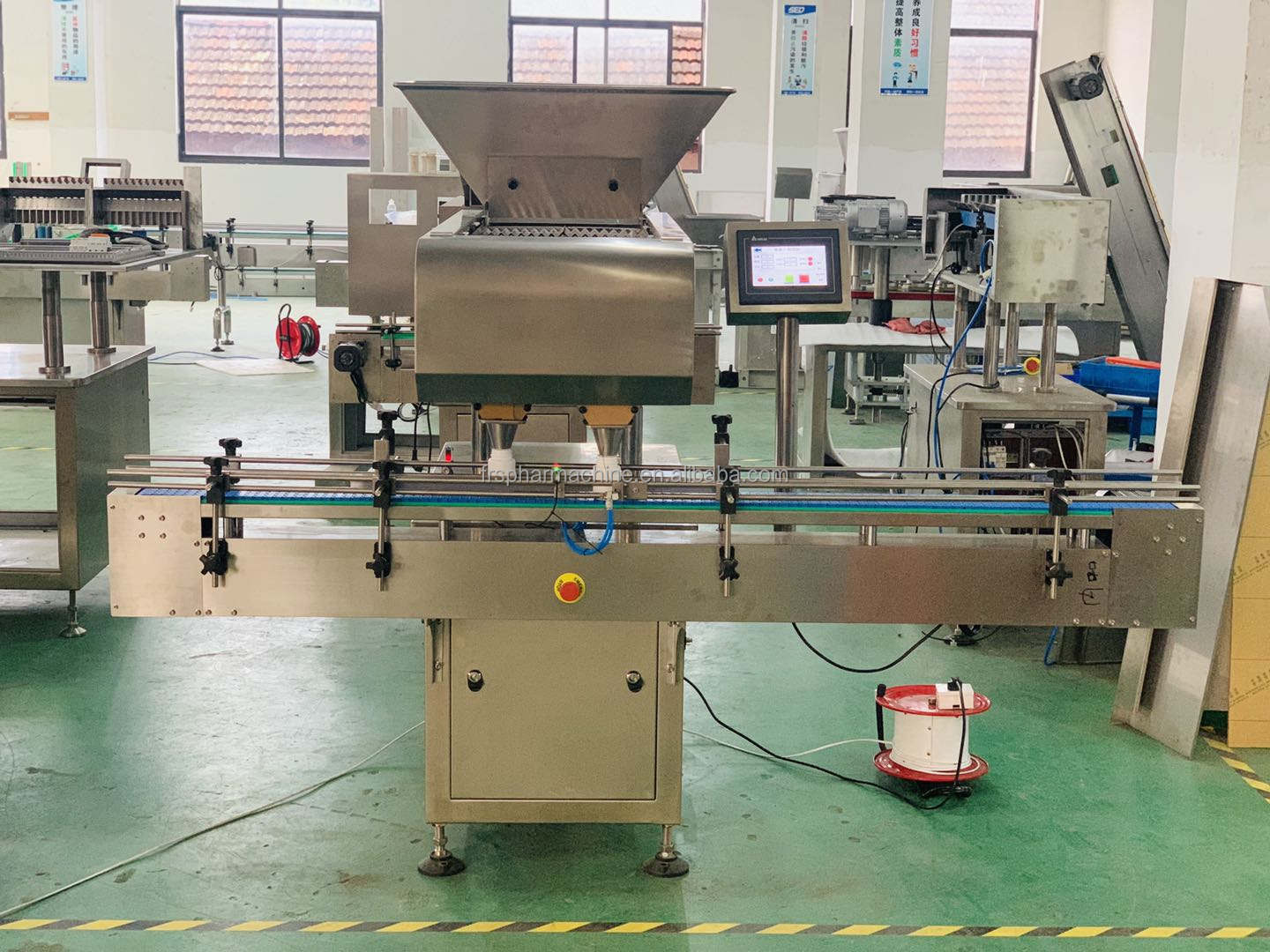

Model | FRS-8 |
capacity | 10-30 bottles/minute (by count) |
channel number | 8 channels |
strength | 220V/50HZ/0.6kw |
Dimensions (mm) | 1450*1100*1400 |
weight | 250 kg |
The scope of work | 2-9999 pcs per bottle adjustable |
Applicable | 00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills |
Model | FRS-16 |
capacity | 30-70 bottles/min (by count) |
channel number | 16 channels |
strength | 220V/50HZ/0.6kw |
Dimensions (mm) | 660*1280*1780 |
weight | 460 kg |
The scope of work | 2-9999 pcs per bottle adjustable |
Applicable | 00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills |
Model | FRS-24 |
capacity | 10-130 bottles/minute (by count) |
channel number | 24 channels |
strength | 220V/50HZ/0.6kw |
Dimensions (mm) | 1850*1280*1780 |
weight | 460 kg |
The scope of work | 2-9999 pcs per bottle adjustable |
Applicable | 00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills |
Model | FRS-32 |
capacity | 10-180 bottles/minute (by count) |
channel number | 32 channels |
strength | 220V/50HZ/0.6kw |
Dimensions (mm) | 2000*1300*1700 |
weight | 580 kg |
The scope of work | 2-9999 pcs per bottle adjustable |
Applicable | 00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills |
Model | capacity ( capsule /Hour) | capsule size | fill rate | strength | vacuum pump | noise | oversized and heavy machine |

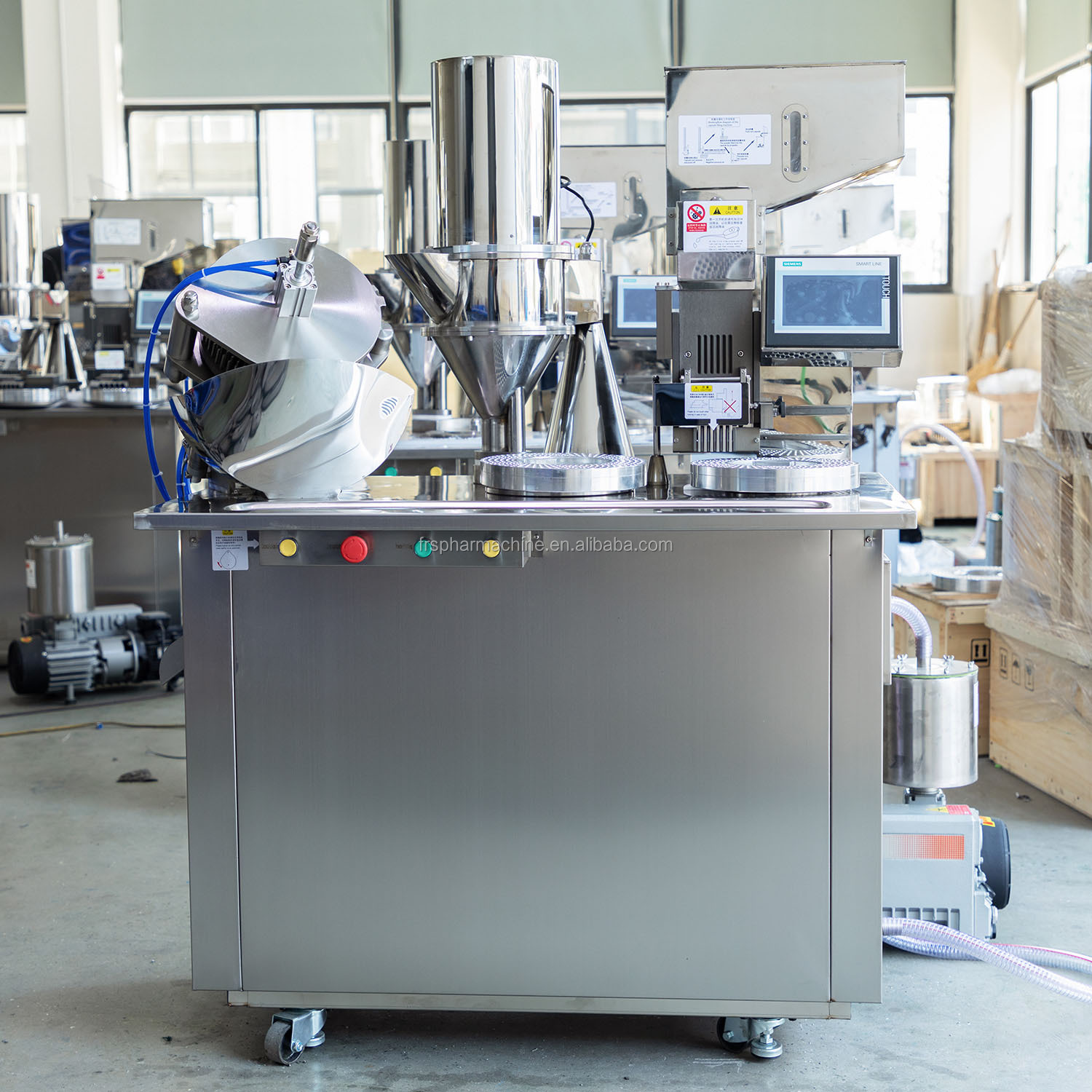

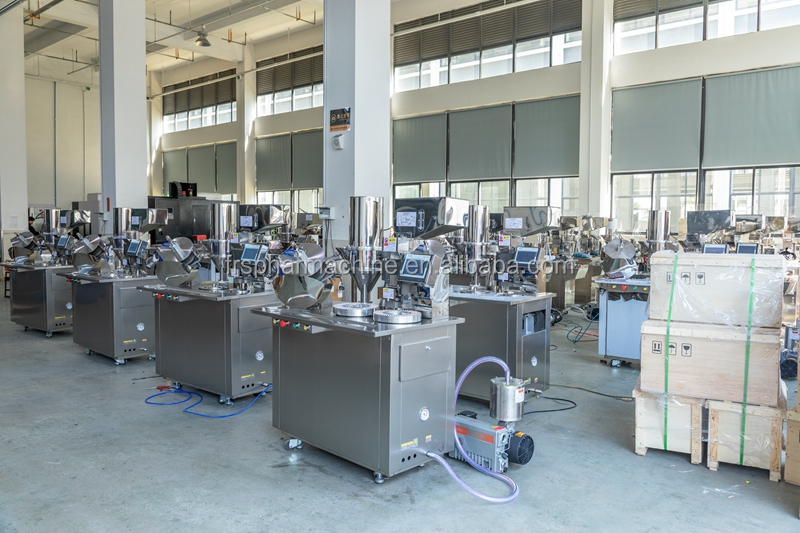

DTJ-V semi-automatic capsule machine | 25000 depending on capsule size | 00-5 or 000 | =>99% | 1.5kw | 0.02-0.06Mpa | <80dBA | 1200*600*1700mm 500 kg |
| Model Automatic Capsule Filling Machine | capacity ( capsule /minute) | capsule size | fill rate | strength | vacuum pump | noise | dust collector | oversized and heavy machine |
NJP-200 | 200 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 870*670*1900mm, 700 kg |
NJP-400 | 400 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 870*670*1900mm, 700 kg |

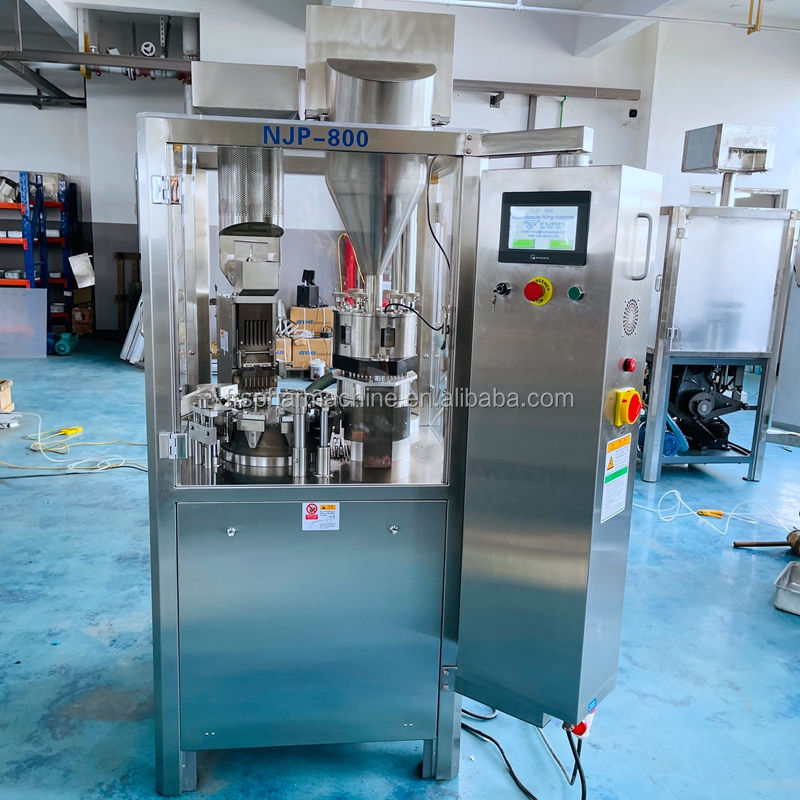

NJP-800 | 800 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 970*820*1900mm, 900 kg |

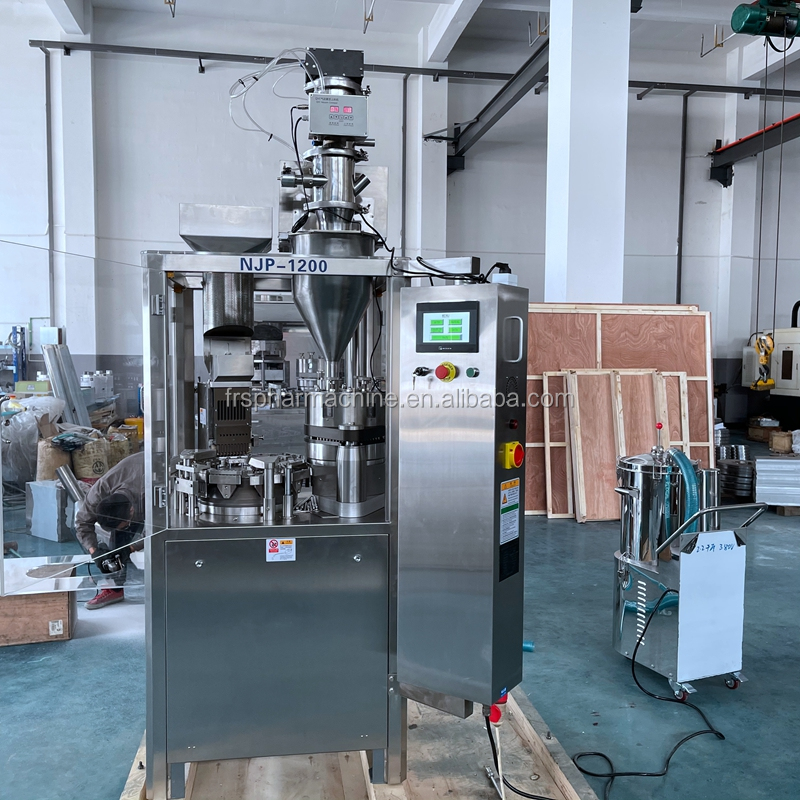

NJP-1200 | 1200 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 1020*860*1970mm, 1000 kg |
NJP-1500 | 1500 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 1500*1040*1970mm, 1300 kg |

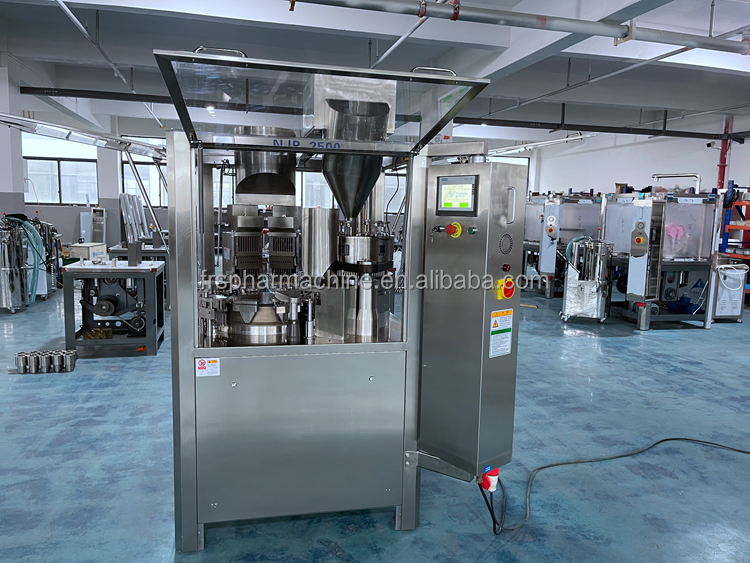

NJP-2500 | 2500 | 00-5 | =>99% | 7 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 1500*1040*1970mm, 1500 kg |
NJP-3800 | 3800 | 00-5 | =>99% | 7.6 kW | 0.02-0.06Mpa | <80dBA | 700m3/H, 2X105pa, 350*700*1000mm, 40 kg | 1500*1450*2100mm, 2000 kg |

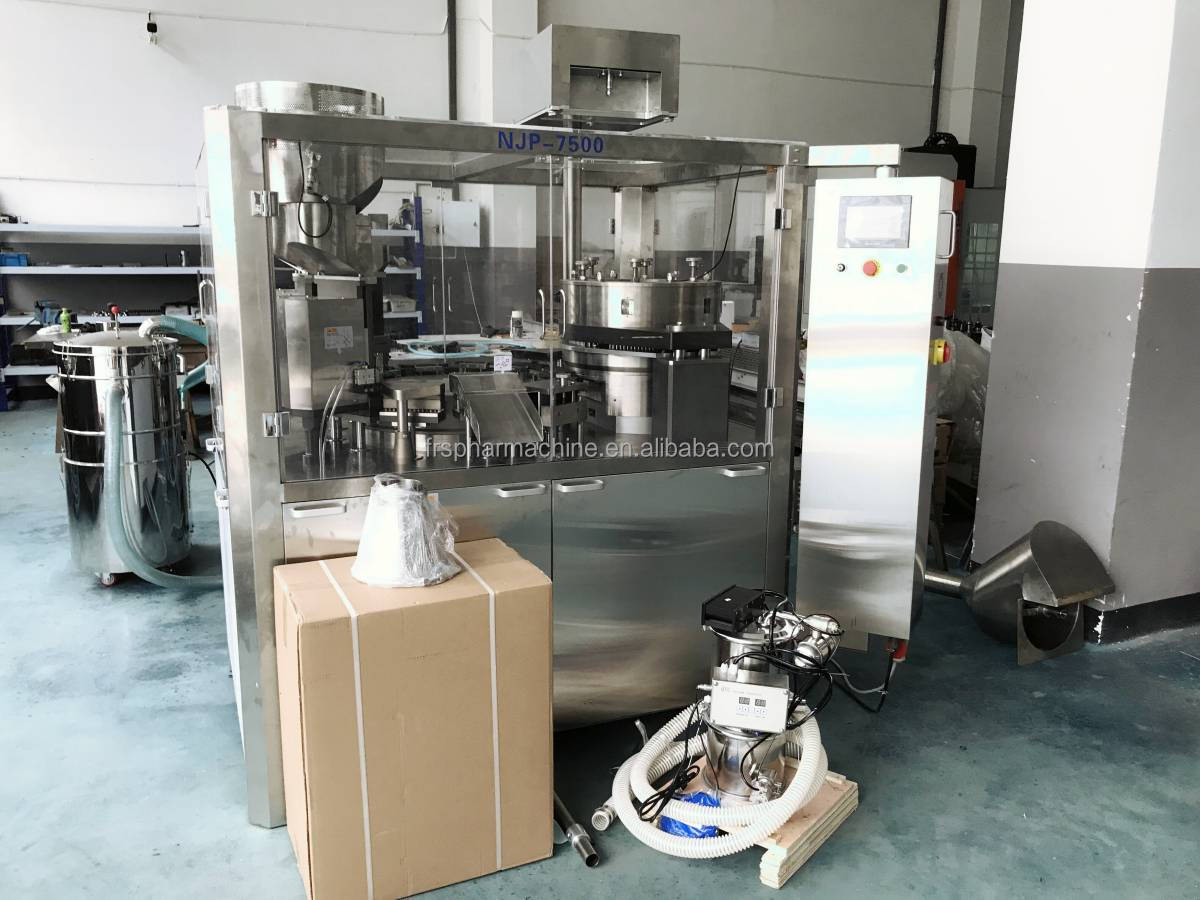

NJP-7500 | 7500 | 00-5 | =>99% | 13.5kw | 0.02-0.09Mpa | <80dBA | 900m3/H, 2X105pa, 350*700*1000mm, 40 kg | 1700*1450*2150mm, 3800 kg |
