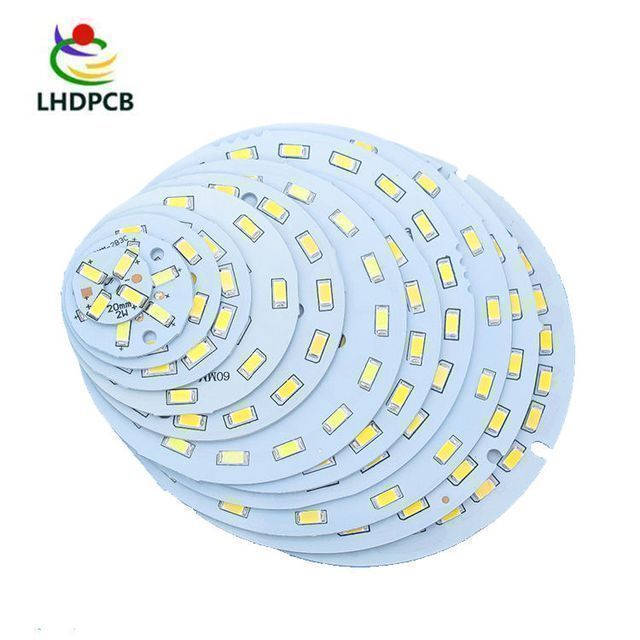

China Electronics PCB/PCBA Supplier LED PCB Board Light
- $1.00 / 1 - 99 pieces
$0.50 / 100 - 999 pieces
$0.10 / >=1000 pieces - 1 piece
- Huizhou Linghangda Technology Co., Ltd.
- GuangDong, China
- Mr Alan Liu
PRODUCT DETAIL
Supply capacity: | 70000 square meters per month | Packaging Details: | PCBA Gibson vacuum packaging or anti-static packaging Outer packaging: export carton or according to customer requirements. |
Surface treatment: | HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin | Minute Hole Size: | 0.1mm(4mil) for HDI / 0.15mm(6mil) |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Application fields: | Automotive, medical, industrial, IOT, smart home, security equipment, |
quality assurance: | AOI IQC PQC QA | port: | Shenzhen Guangzhou Hong Kong |
Package preview: | Plate thickness: | 0.2-6mm | |
Spray flux: | Add on | Wave soldering: | 2 |
Maximum plate width: | 400mm | Biggest temper: | 399 degrees Celsius |
product name: | LED circuit board | Maximum board size: | 457 * 356 (18'' * 14'') |
brand: | scraper technology | Substrate: | FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers |
Board Dimensions: | custom | Copper thickness: | 0.4-2mil (10-50um) |
capacity: | 70 million impressions per month | model: | Custom PCB and PCB Assembly |
Origin: | Guangdong, China | Minute line width: | 0.075mm/0.075mm(3mil/3mil) |
Minute line spacing: | 0.003'' | speed: | 0.15 seconds/chip, 0.7 seconds/QFR |
China Electronics PCB/PCBA Supplier LED PCB Board Light
the banner
Specification
PCBA capability
patch line | 7 lines |
capacity | 8 million impressions per day |
board size | 680*550mm Min: 0.25"*0.25" |
Minimum component size | 0201-54 sq.mm (0.084 sq.inch), long connector, CSP, BGA, QFP |
speed | 0.15 seconds/chip, 0.7 seconds/QFP |
wave soldering | Maximum printed circuit board width: 450mm |
Minimum PCB width: unlimited | |
Component height: top 120mm/bottom 15mm | |
sweat welding | Metal Type: Partial, Whole, Inlay, Side Step |
Metal material: copper, aluminum | |
Surface treatment: gold-plated, silver-plated, tin-plated | |
Air bag rate: less than 20% | |
Crimp | Pressure range: 0-50KN |
Maximum PCB size: 800*600mm | |
Assembly type | SMT and through-hole |
Solder type | Water Soluble Solder Pastes, Leaded and Lead Free |
file format | Bill of Materials, Gerber files, Pick-N-Place files (XYRS) |
Service type | Turnkey, Partial Turnkey or Consignment |
Component packaging | Cutting tape, loose tube reels, parts |
connecting time | 1-15 days |
test | XRAY inspection, AOI inspection ICT, flying probe, burn-in, functional test |
exhibition

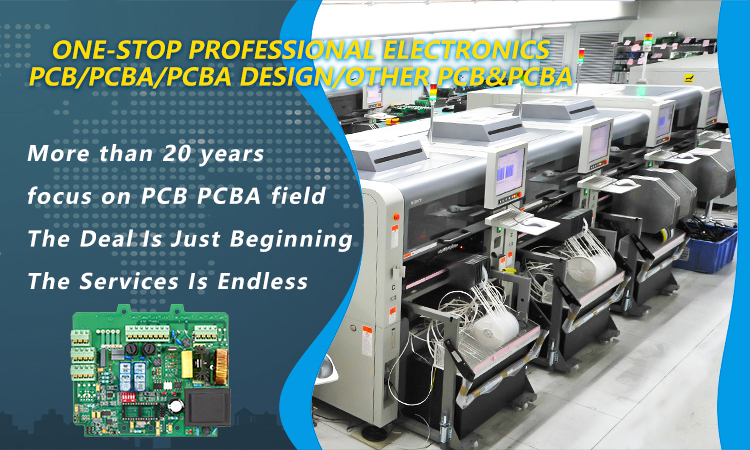

Advantage

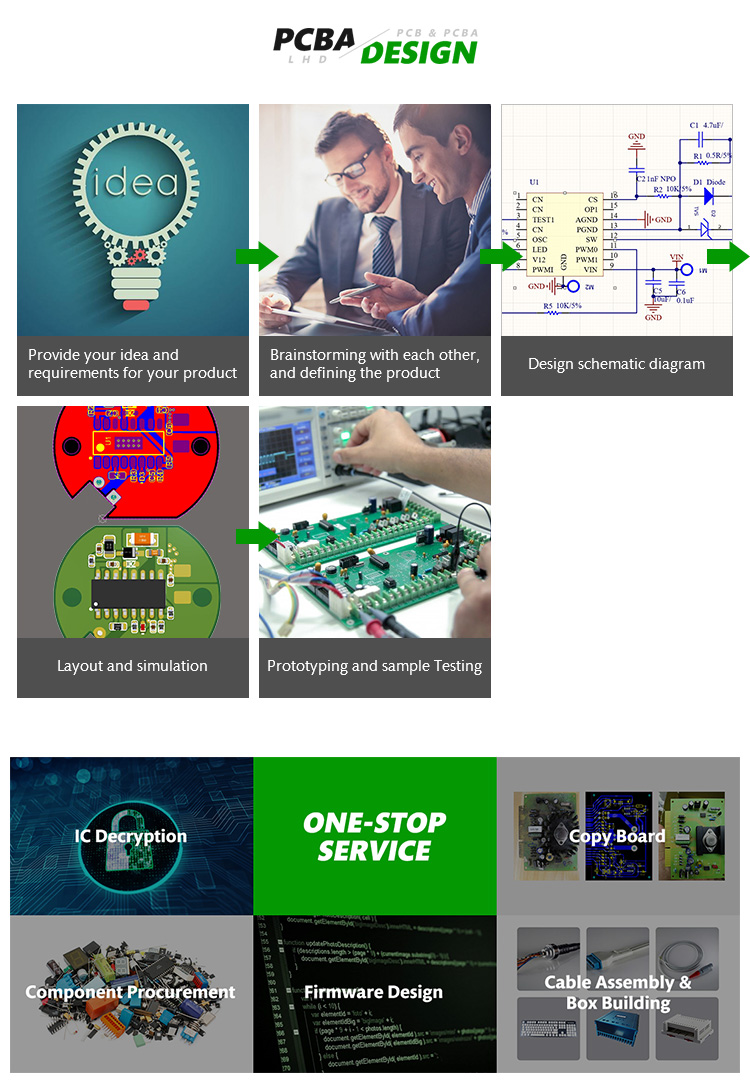

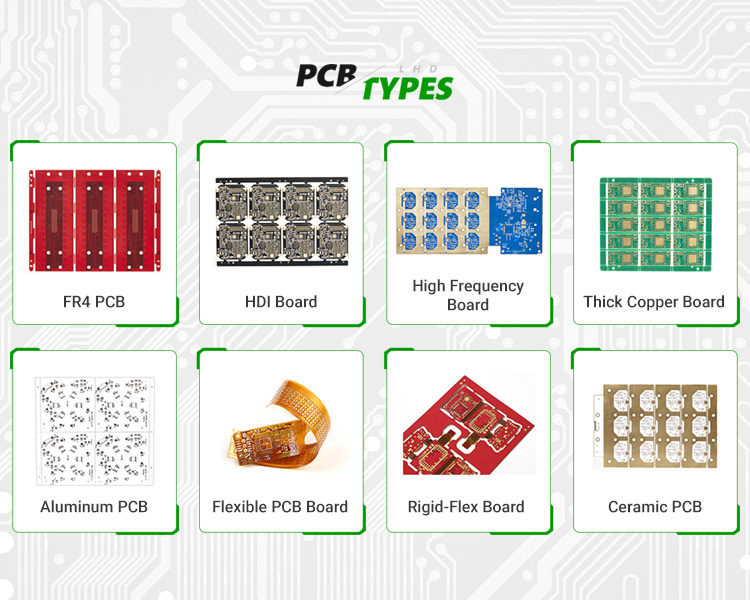

PCB/PCBA/Design

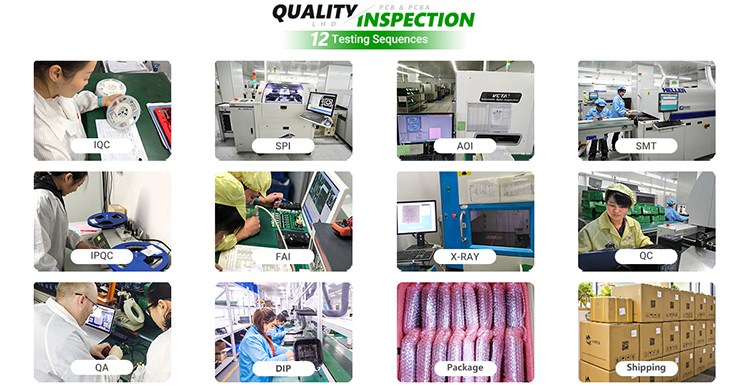

QC and partners
