Development board with LCD touch screen lcd lvds GPIO development board with Ethernet and USB interface driver board
- $53.00 / 1 - 99 pieces
$50.00 / 100 - 999 pieces
$48.00 / >=1000 pieces - 1 piece
- Shenzhen Baijie Technology Co., Ltd.
- Guangdong, China
- Mr Jun Chen
PRODUCT DETAIL
| Packaging Details: | Anti-static bubble bag and carton | usage: | billboards, medical equipment |
| Package preview: | payment terms: | T/T, Western Union, PayPal | |
| Plate thickness: | 0.2 | model: | A64-BJKJ002 |
| Copper thickness: | 0.2mm | Voltage: | 5V/12V |
| Memory: | 2GB | Substrate: | aluminum |
| Origin: | Guangdong, China, Guangdong, China | application: | electronic product |
| quality: | 100% tested | Supply capacity: | 10000 pieces per month |
| port: | Shenzhen, Guangzhou | brand: | Bai Jie |
| Function: | PCBA Board Service Prototype PCB Assembly | product name: | development board |
| MOQ: | 1 |

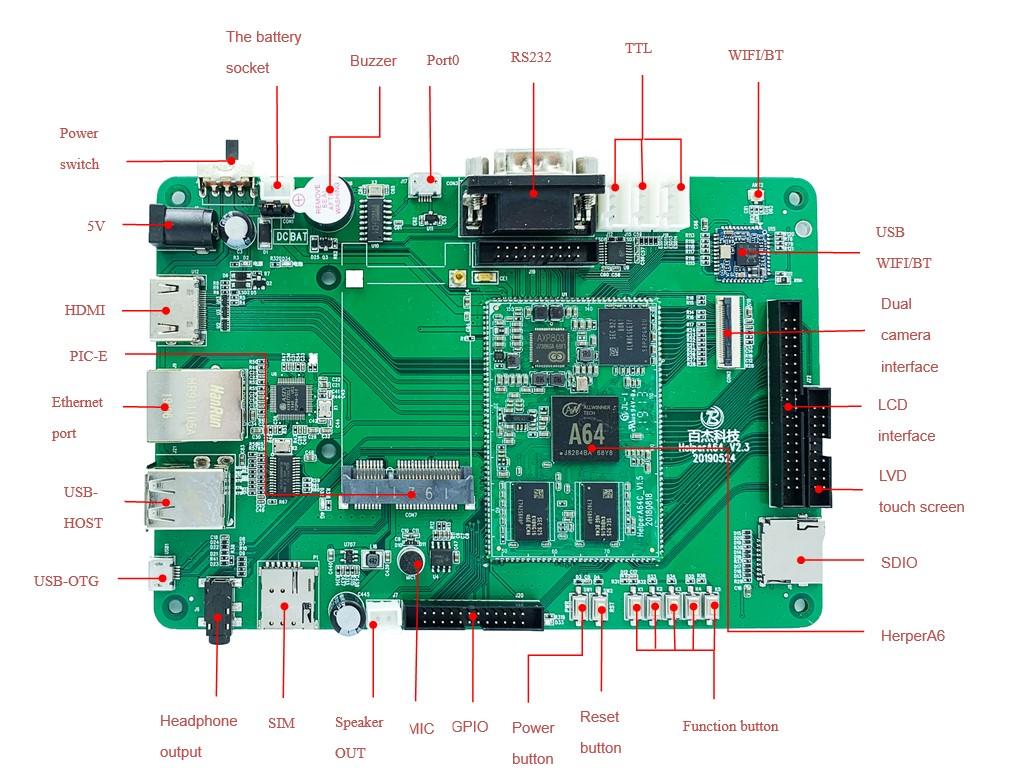

Product Description
A64 Motherboard Specifications | ||
CPU | A64, quad-core Cortex™-A53. Frequency up to 1.5GHz | |
Memory | 1GB/2GB(DDR3) | |
flash | EMMC 8GB (16GB/32GB/64GB optional) | |
network | Perfectly support 10M/100M/1000M, Ethernet interface adaptive | |
communicate | 1 buzzer | |
5 buttons | ||
1-ch CSI camera inferface,dural camera | ||
1 way RS232 | ||
1 channel 10/100/1000Mbps industrial Ethernet port | ||
Video decoding: 1080P@60Hz | ||
Onboard WIFI, Bluetooth (optional), 1 channel 2.4G wifi interface | ||
Extended 24-pin GPIO interface, including 14 3.3V ordinary IO interfaces, 1 12C, 4 1.8V ordinary IO ports, 2 3.3V batteries and 2 GND | ||
2-way high-speed USB HOST 1-way high-speed USB OTG | ||
4-way TTL (can be used as ordinary IO interface) | ||
1 channel TF card interface, 1 channel output SDIO interface | ||
1 channel 40-pin RGB TTL RGB interface, support various LCD, MAX 1920x1200@60Hz | ||
1 channel headphone | ||
1-ch outline | ||
1 channel PWM | ||
1 way MIC interface | ||
1 channel speaker output interface | ||
GPS, external GPS module (optional) | ||
exhibit | Support HDMI output 4K@30Hz, support 1080P@60Hz, LVDS 1366x768@60Hz, MIPI 1920x1080@60Hz, RGB 1920x1080@60Hz | |
TP interface | 1 way TP interface | |
memory interface | 1 way TF card slot | |
GPIO | support | |
Voltage | DC 5V, battery 3.7V | |
audio player | Loop play, timed play, emergency play | |
size | 60x40x3(mm) | |

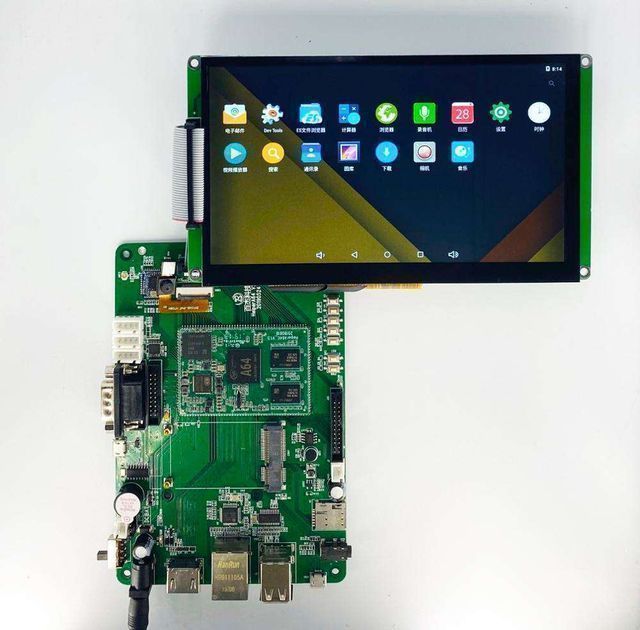

hardware environment | Allwinner A64 core board, 7-inch LCD screen (1024x600 with capacitive sensing module), 3W speaker optional, | |
system | Support Android 6.0, LINUX+QT5.6, UBUNTU MATE 15.04 | |
