China Manufacturer ID Card Making Machine Smart Card Laminating Machine PVC Card Fusing Machine

PRODUCT DETAIL
Voltage:220Vplace of origin; place of origin:Hubei, China
size:760*550*1260mmAfter Warranty Service:Video technical support, spare parts
Supply capacity:100 sets per monthTemperature control range:0-180℃
Main selling point:good priceweight:350kg
brand:WenlinPackaging Details:Standard export wooden packaging
Packaging Preview:Dimensions (L*W*H):760*550*1260mm
strength:5656WAfter-sales service provided:Engineers can repair machinery overseas
Layers:2 layerCore Components Warranty:1 year
payment terms:letter of credit, wire transferWarranty:one year
Voltage:220VShowroom location:not any
Press method:hydraulicPlaten size:210*297mm
cooling method:Inner/outer tank coolingControl Method:PLC control
Local service location:not anyCore components:engine, motor
Video external inspection:ifMechanical test report:if
Health status:newCertification:CE, ISO9001:2008
Applicable industries:Manufacturing plants, machinery repair shops, printing houses, advertising agenciespreset pressure:8Mpa
port:Shanghai PortMarketing Type:normal product

China Manufacturer ID Card Making Machine Smart Card Laminating Machine PVC Card Fusing Machine

Brand: Wenlin

Specifications: 210mm×297mm



Introduction:

WENLIN-FA3000 is the most popular model of the automatic hydraulic laminating machine that has produced more than 1,000 units in the past 20 years and has customers all over the world.

The new-generation model FA3000-2A laminator in 2020 is an upgraded version of the original FA3000-2, which is continuously optimized based on customer feedback and practice. Some parts of the new model have been redesigned to make up for some of the shortcomings of the previous model.

It is widely used in advertising companies, large card factories, and pre-printing proofing tests. It can be used in offices of various personalities users.


feature:

1. The mobile casters are easy to move and more user-friendly;

2. The cooling method is divided into inner water tank cooling system and outer water tank cooling system.

3. The latest design structure, better cooling effect and more convenient operation;

4. The cooling speed is nearly doubled compared with FA3000-2, and the production efficiency is increased by 50%;

5. High-end appearance design, full of personality.


Application range:
Smart card laminating machine is suitable for making various personalized cards, such as making contactless IC, ID card, electronic label, inlay making, etc.

Model Wenlin-FA3000-2A
cooling method water cooling
heating method electro-thermal
stress stage Heating Level 12 / Cooling Level 5
Pressure accuracy 0.1 MPa
temperature accuracy 0-180ºC
Sheet smoothness 0.05mm
laminate Aluminum alloy
hydraulic cylinder 1
pressure 0-8Mpa
Platen size 210mm×297mm
Floor 2
plate thickness 45mm
electrical 220V ,50HZ, 5.6KW
aspect L760mm×W550mm×H1260mm
weight 350KGS
output >1,200 cards/hour

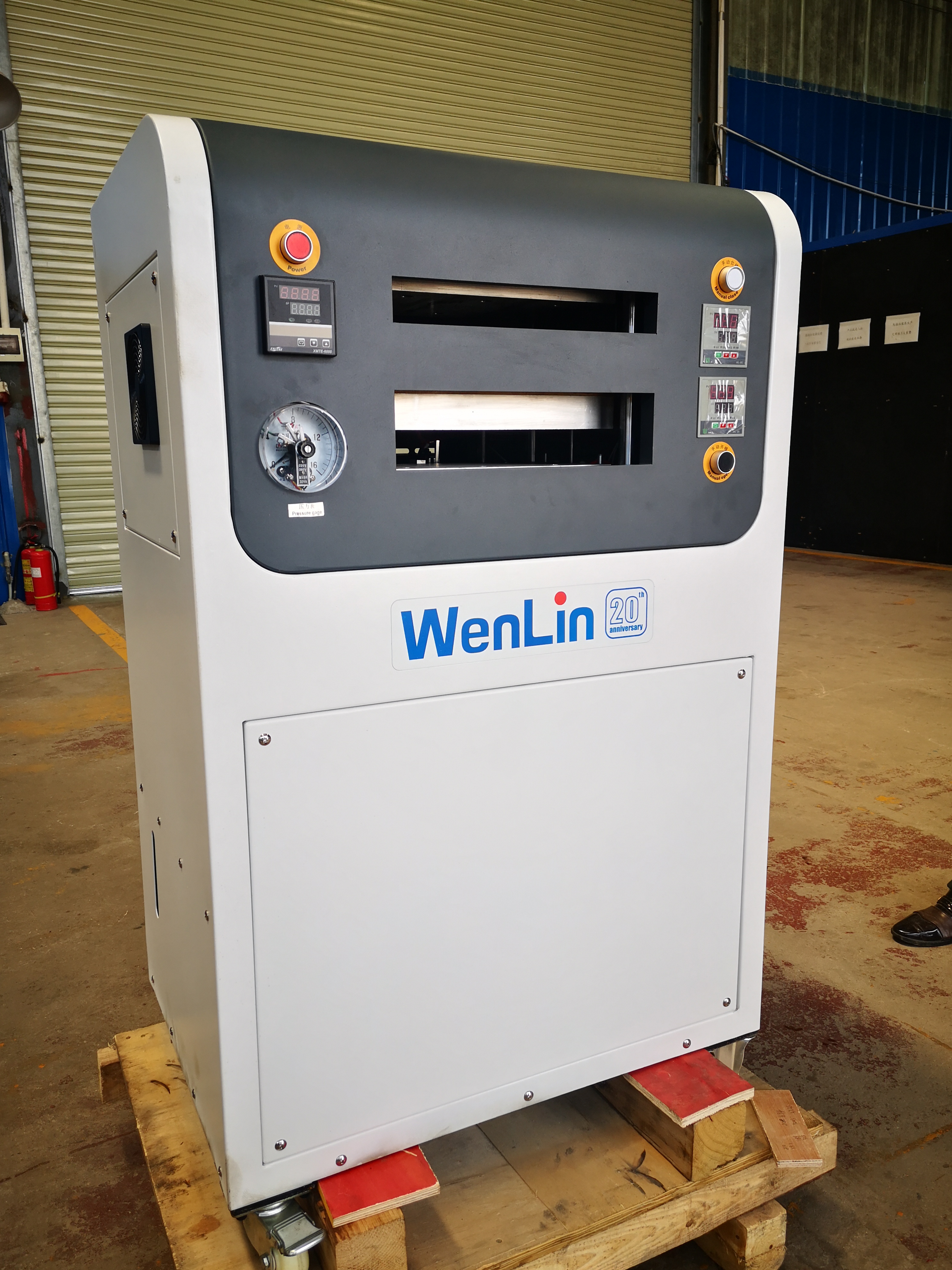

Product View:

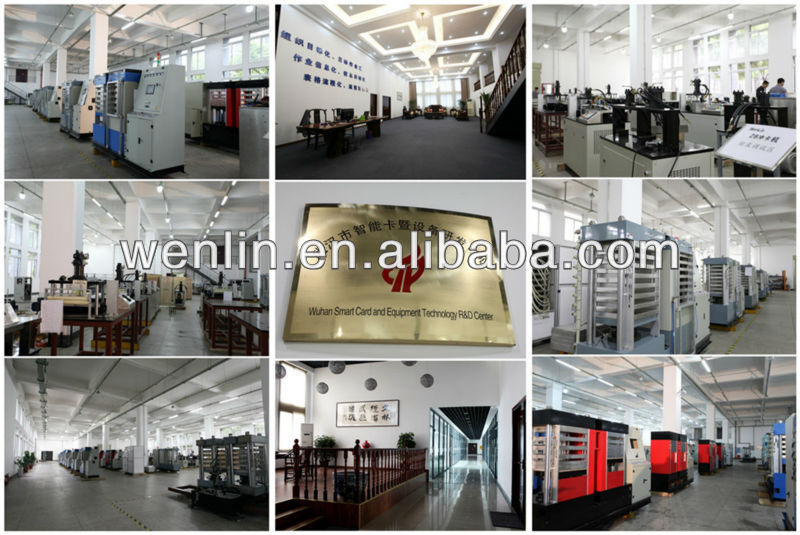

Factory view:

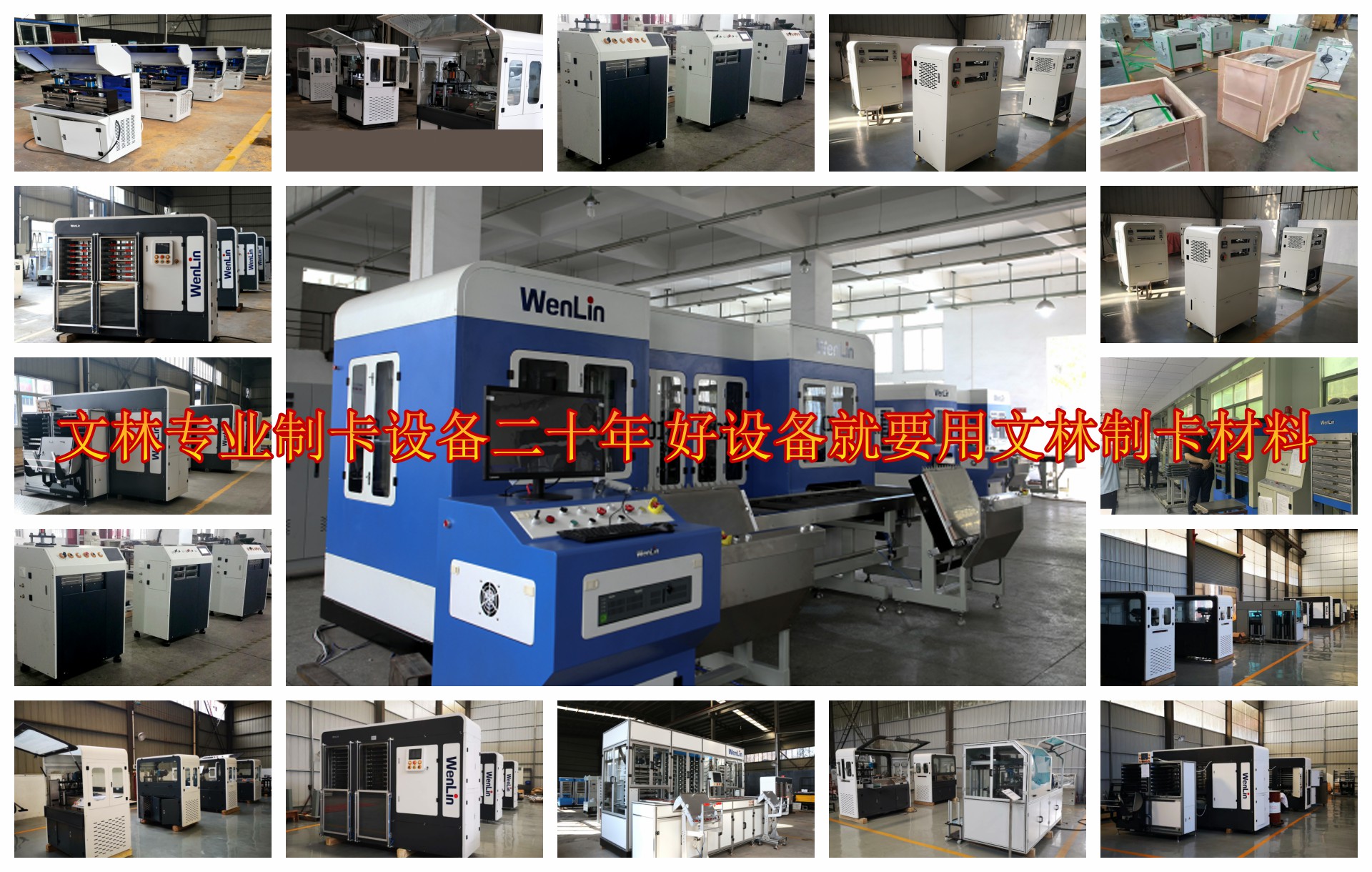

Workshop photos:

Certificate:









Company Profile

Wuhan Wenlin Technology Co., Ltd. was established in 2001. It is a research and development, production and material supply enterprise of intelligent card making equipment. IC, ID, RFID smart card laminating machines, punching machines are world-renowned. It has more than 1,000 customers in nearly 50 countries and regions around the world, including world-renowned card companies. The machine is widely used in UnionPay, VISA, MasterCard, second-generation ID cards, residential cards, social security cards, dual-interface cards, IC, ID smart cards, etc.

Wenlin is a high-tech enterprise recognized by the Chinese government, a project enterprise of the National Torch Program, and a demonstration enterprise of scientific and technological innovation and patent transformation.
The "Wenlin" trademark has been rated as a famous trademark in Hubei Province and Wuhan City for more than ten consecutive years.

Wenlin has passed CE and ISO9001 certification, and obtained 12 national invention patents, nearly 100 utility model patents and software copyrights.

Create a century-old famous brand and create a century-old Wenlin. It is Wenlin's eternal purpose to provide the best card-making solutions and services to all customers. We are willing to cooperate with agents all over the world.
